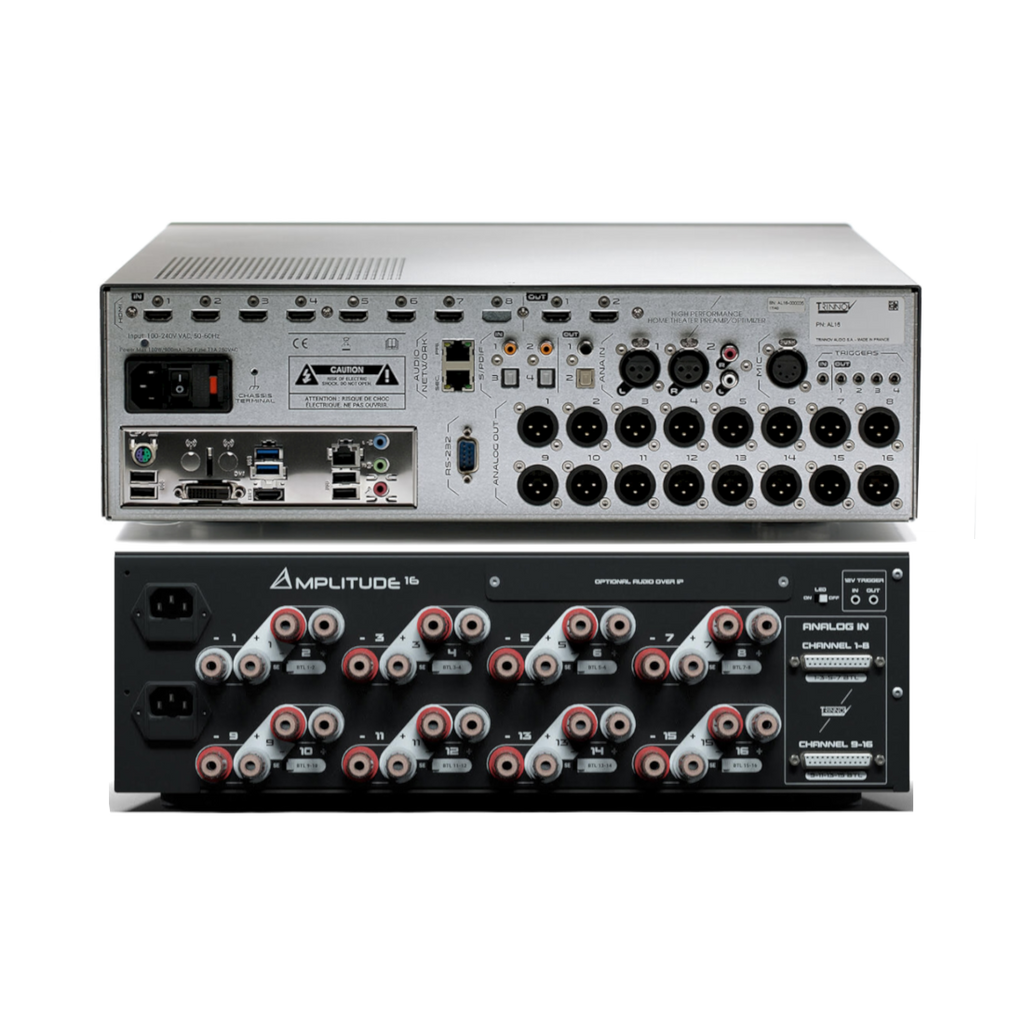

Trinnov Altitude 16 HDMI 2.0 AV Processor & Trinnov Amplitude 16 AV Power Amplifier

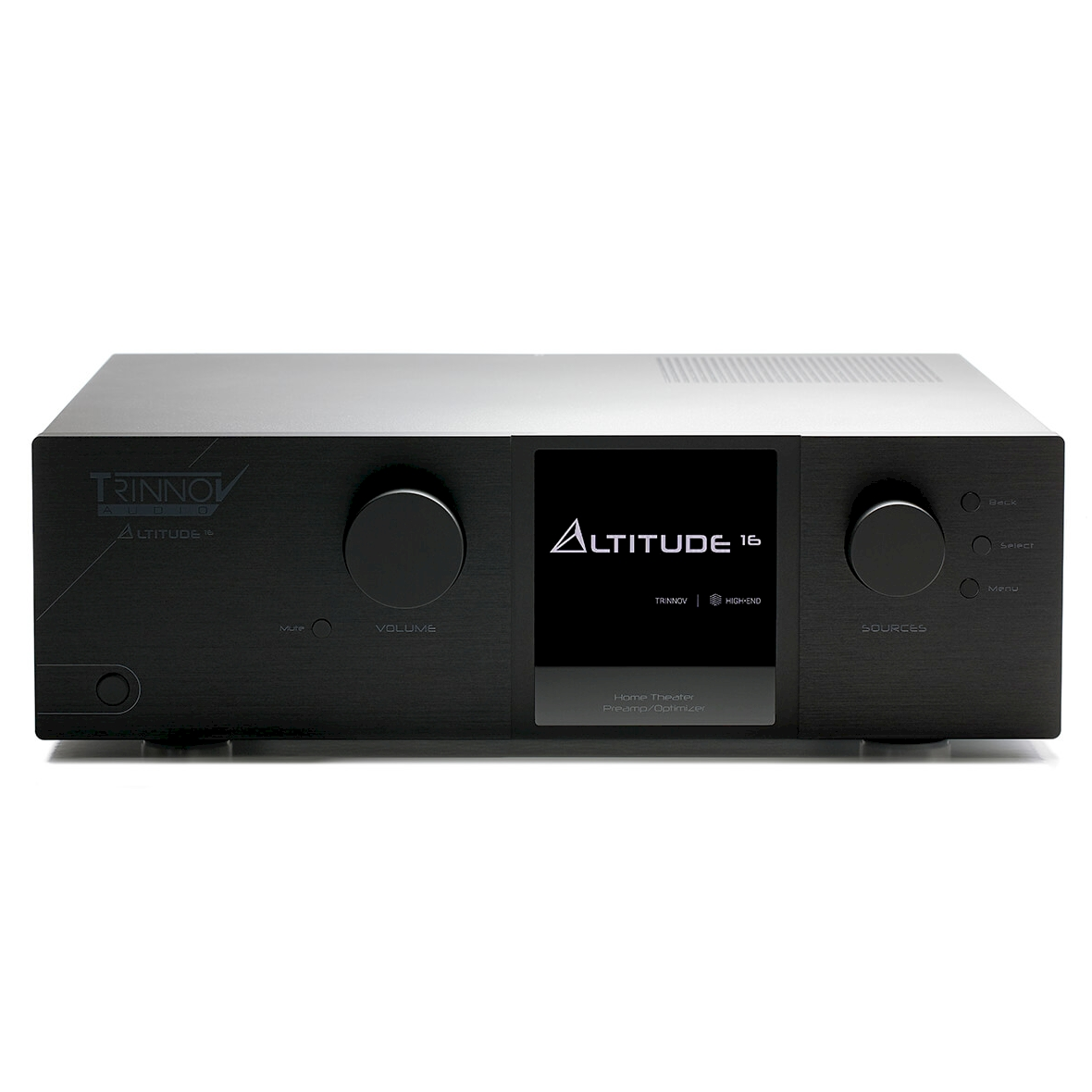

Trinnov Altitude 16 HDMI 2.0 AV Processor:
The groundbreaking Altitude32 processor set the bar high -- and we didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.
Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.
The Altitude16 joins the Altitude32 as the only AV Processors on the market capable of decoding and rendering Dolby Atmos Home content with any 20-channel speaker layout.
When it comes to channel count, the devil is in the details when it matters which channels are supported. Within its 20-channel capability, the Altitude16 supports any speaker layout, including multiple side surround speakers and high numbers of subwoofers.
In 2019, Trinnov worked closely with DTS to introduce DTS:X Pro to the consumer market.
Altitude owners enjoyed this major upgrade a year before our competitors could offer it. It benefits not only native DTS:X playback, but also the Neural:X upmixer, which greatly improves immersive playback of traditional soundtracks, maximizing speaker usage and listening envelopment.
The founders of Trinnov and Auro Technologies know each other well, having been at the forefront of immersive sound research and development dating back to the early 2000s.
Auro-3D, up to 13.1 channel configuration has been available on the Altitude32 since 2015. The Auro-Matic upmixer, highly popular among Altitude owners for music playback is also supported for all inputs.
Our world-renowned Loudspeaker/Room Optimizer is recognized as best-in-class by users and reviewers across the professional, commercial cinema and high-end home audio worlds. Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast and post-production sound engineers.
Optimizer technology is now used in nearly 2,000 studios across the globe with nearly 10,000 high-performance installations worldwide.
This same technology, enhanced and refined over the years, is at the heart of the Altitude. To this day, the Optimizer remains the most powerful and flexible calibration system available.
STEP BY STEP WIZARD
First-time users will find the Altitude Wizard an invaluable tool for setup and calibration.
This onboard software guides the integrator through the entire process, step-by-step.
From configuring the speaker layout, setting up the input and outputs, to the microphone setup and calibration, the Wizard greatly simplifies the process of getting the Altitude up and running.
EXCLUSIVE 3D REMAPPING TECHNOLOGY
In real-world rooms, we can’t always place speakers where we should. And in any case, Dolby, DTS, and Auro each have a different idea of where they should go. Trinnov’s exclusive, patented Remapping is the only solution.
During calibration, Trinnov’s unique 3D microphone precisely maps the location of each loudspeaker in the room regarding distance, azimuth, and elevation.
When decoding a particular soundtrack, we know the intended placement of each of the various sound elements. Then Remapping, taking the reality of the room into account, ‘remaps’ errant sounds to the proper locations by using adjacent speakers and the principle of stereo imaging.
This feature increases the capacity of the processor to a total of 20 discrete channel decoding and Optimization.
Combining the 16 analog outputs and 2x S/PDIF outputs of the processor, Trinnov unlocked the full potential of the Altitude16.
This update comes free of charge to all Altitude16 owners. By adding S/PDIF / Analog converters to their system, Trinnov customers can add extra subwoofers or channels to their system to increase its performance.
UNIQUE BASS MANAGEMENT
The Bass Management solution in the Altitude gives users the most sophisticated tool available for managing low frequencies.
Complete flexibility regarding high and low pass frequencies, filter types, and filter slopes is just the beginning. The low-frequency content of any channel can be fed to any combination of subwoofers, and there is no limitation to the number of subwoofer channels other than the number of available outputs.
Going further, our unique intermediate bass management system is ideal for immersive systems using smaller height channel speakers. It can redirect low frequencies not just to subwoofers, but from a speaker with limited bass capability to the closest, more-capable speaker, before sending the lowest frequencies to the subs.
Through its Paris-based server, Trinnov enables remote access to any processor connected to the Internet.
Integrators can remotely access each processor they have installed, with full control of all parameters, thus eliminating the need to be on site to adjust a customer’s system or to diagnose problems.
In addition, the Trinnov factory support team, based in the United States and France, and acknowledged as among the best in the industry, also has remote access to provide higher-level remote assistance and troubleshooting.
HDMI and its evolving standards continue to create challenges for manufacturers, integrators and end users. Rest assured that the Altitude philosophy of sustainability applies to HDMI. The Altitude’s modular hardware design ensures that future developments of the HDMI standard will not make the processor obsolete. All Altitudes will be upgradeable to HDMI 2.1.
Today, our proprietary software platform enables users to monitor and analyze all incoming and outgoing HDMI data directly on the Altitude, in addition to providing unique tools that can address HDMI incompatibility issues.
THE CINEMA DESIGNER
The Cinema Designer (TCD) is a powerful online design tool that allows integrators and system designers to create not only technically impeccable cinema designs in a matter of minutes, but also a complete set of support documents and aesthetic room renderings.
Trinnov Altitude processors and Amplitude amplifiers are fully supported in the TCD software, enabling designers to integrate the Altitude in the most complex speaker layouts in a matter of minutes.
TCD integrates Trinnov's exclusive recommendation for speaker placement by default.
IOS REMOTE CONTROL APP
Remotely control your processor from your iPhone or iPad with our iOS Remote application. Set the volume, switch between inputs, select a different preset or upmixer from your fingertip.
|OBJECT BASED DECODING
Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels
Auro-3D® Native Decoding & Up-mix (Auromatic) :Up to 13.1
DTS:X® Pro: Up to 20 discrete channels
Speaker Layouts support: All
IMAX Enhanced: Yes
||Output 1: HDMI 2.0 / HDCP 2.2
Output 2: HDMI 2.0 / HDCP 2.2
Maximum Resolution: 4K UHD on all ins / outs
Maximum Bandwidth: 18Gbps on all inputs
Frame rates supported: 24/25/30/50/60 fps (UHD) 120 fps (HD)
ARC / eARC:Available on Output 1
4K to 1080 Downscaling:Available on Output 1
OSD: Volume information displayed on-screen

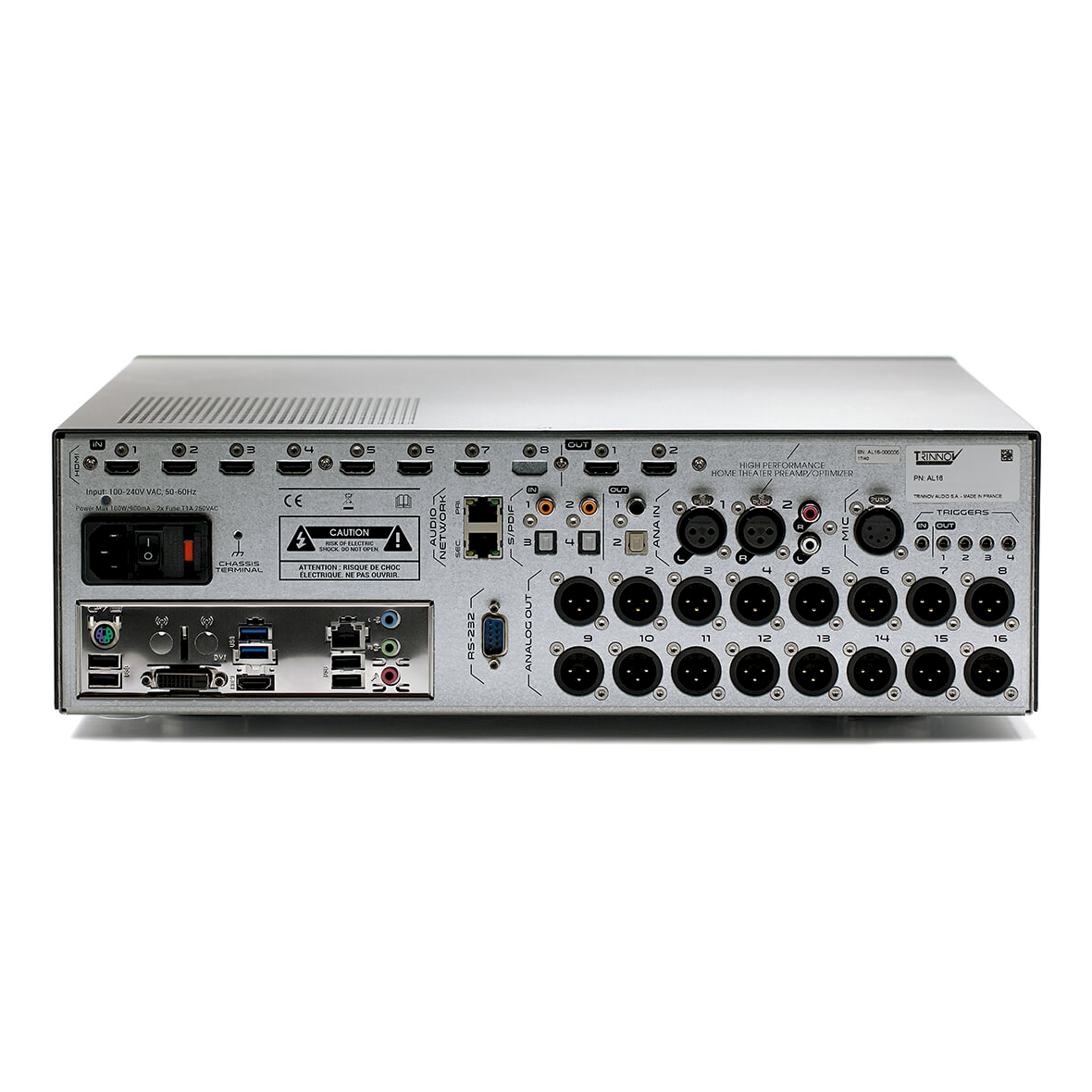

|DIGITAL AUDIO CONNECTIVITY
||S/PDIF Inputs: x4 (2 optical, 2 coaxial)
S/PDIF Outputs: x2 (1 optical, 1 coaxial)
+4 Outputs: By combining Analog and S/PDIF outputs
Audio Network: Dual ports (for future use)
|ANALOGUE AUDIO CONNECTIVITY
||Microphone input: 1x 5 Pin XLR for 3D Microphone
Balanced inputs: 1x Stereo XLR
Unbalanced inputs :1x Stereo RCA
Balanced outputs: 16x XLR
Input Impedance: 20k Ohms / 10k Ohms
||Data precision: 64 bits, floating point
Max Sampling Rate: Native, up to 96kHz
||Processor: Intel multi core hyper threaded
ADC Resolution / Sampling Rate: 24 bits/96 kHz
DAC Resolution / Sampling Rate: 24 bits/192 kHz
A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
Reference Level: +18dBu @ 0dBFS (Balanced)
Clock / Jitter:attenuation > 50 dB above 100Hz
Cooling system: Custom heat sinks + additional silent fans
Safety Components: AntiPop relays on each output
||Power requirement: 100 - 240v (auto selecting)
Power consumption: 76W Max
Thermal conversion: 260 BTU/h Max
Mains fuse: 2x 1A slow blow
Internal PSUs: Separated supplies for Audio and Processing
|WEIGHT & DIMENSIONS
||Dimensions (W x H x D) mm: 438 x 139 x 430
Dimensions (W x H x D) inches: 17 1/4" x 5 1/2" x 17 15/16"
Shipping dimensions (L x H x P) cm: 74 x 59 x 30
Weight: 11.30kg / 24.9 lbs
Shipping weight / volume: 18.2kg / 0.131 M3
Rackmounting: 3U - Rack Ears Included
||Standard Warranty: 5 year
Trinnov Amplitude 16 AV Power Amplifier:
THE POWER AMPLIFIER FOR YOUR IMMERSIVE HOME CINEMA
Designed to our specifications in partnership with ICEpower, the Amplitude16 maximizes the performance of their class D modules with custom dual power supply and heat dissipation design.
The Amplitude16 is the most versatile power amplifier ever designed to address the varying needs of your immersive home theater.
Designed for immersive home theaters, with custom integration in mind, the Amplitude16 becomes perhaps the most versatile power amplifier available today, providing integrators with the unique ability to meet diverse channel counts and power requirements.
Effectively two 8-channel amplifiers on a single 3RU chassis, the Amplitude16 has dual power supplies, each requiring its own 15A AC mains power inlet.
- Maximum continuous power with all 16 channels driven is 2800W at 115V and 3200W at 230V with less than 0.1% THD+N.
- Maximum peak power with all 16 channels driven is 6080W with 1% THD+N.
BRIDGE TO POWER
In its base model, it is a 16-channel power amplifier with a power rating of 200W/channel at 8 ohms and 400W/channel at 4 ohms.
Going beyond, the Amplitude16 provides the integrator with the option to bridge pairs of amplifier channels to increase available power for specific outputs.
This enables the integrator to maximize power for the channels with the greatest demand (left, center, and right screen channels).
In bridged mode, the power increases to 800W/channel at 8 ohms and over 1,000W/channel at 4 ohms.

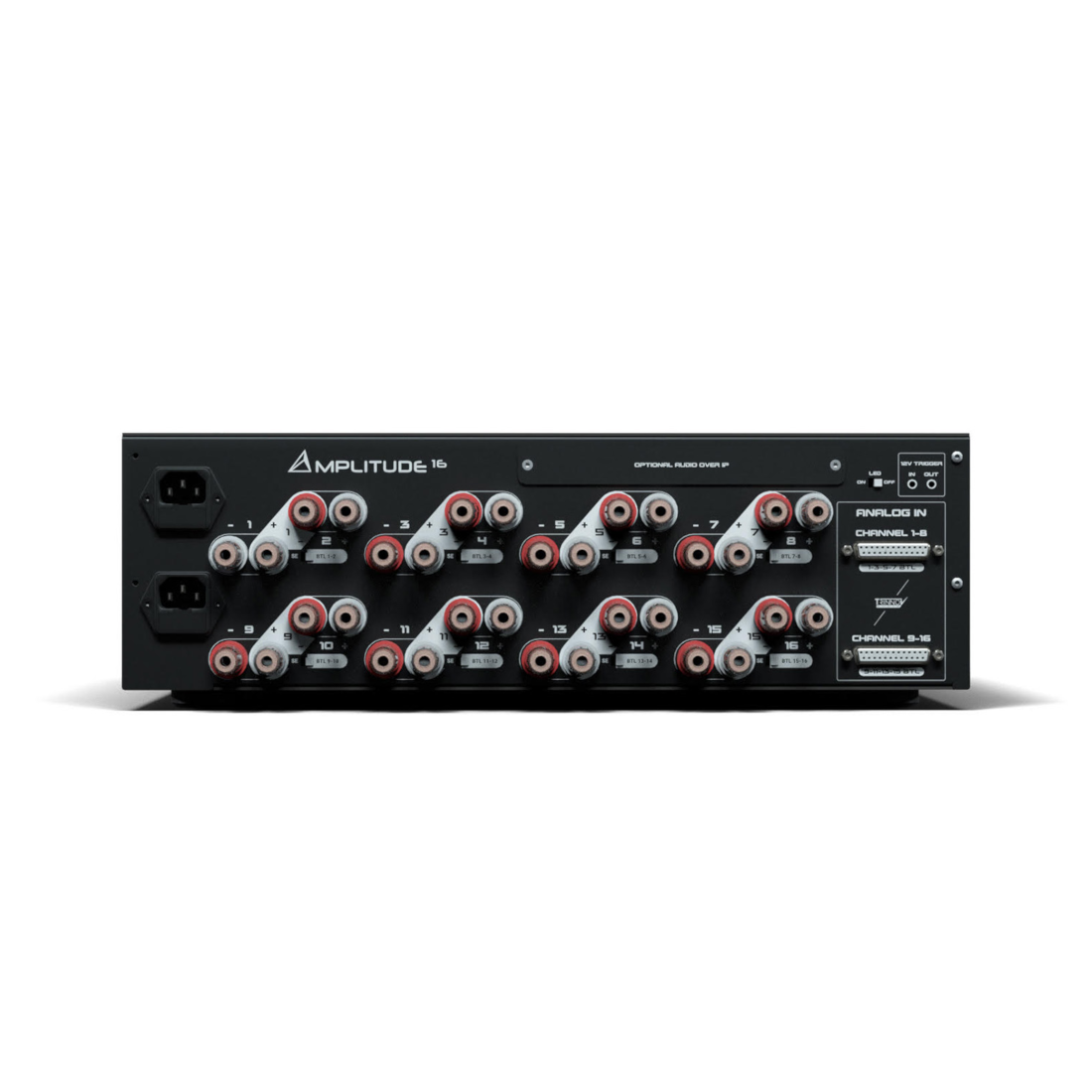

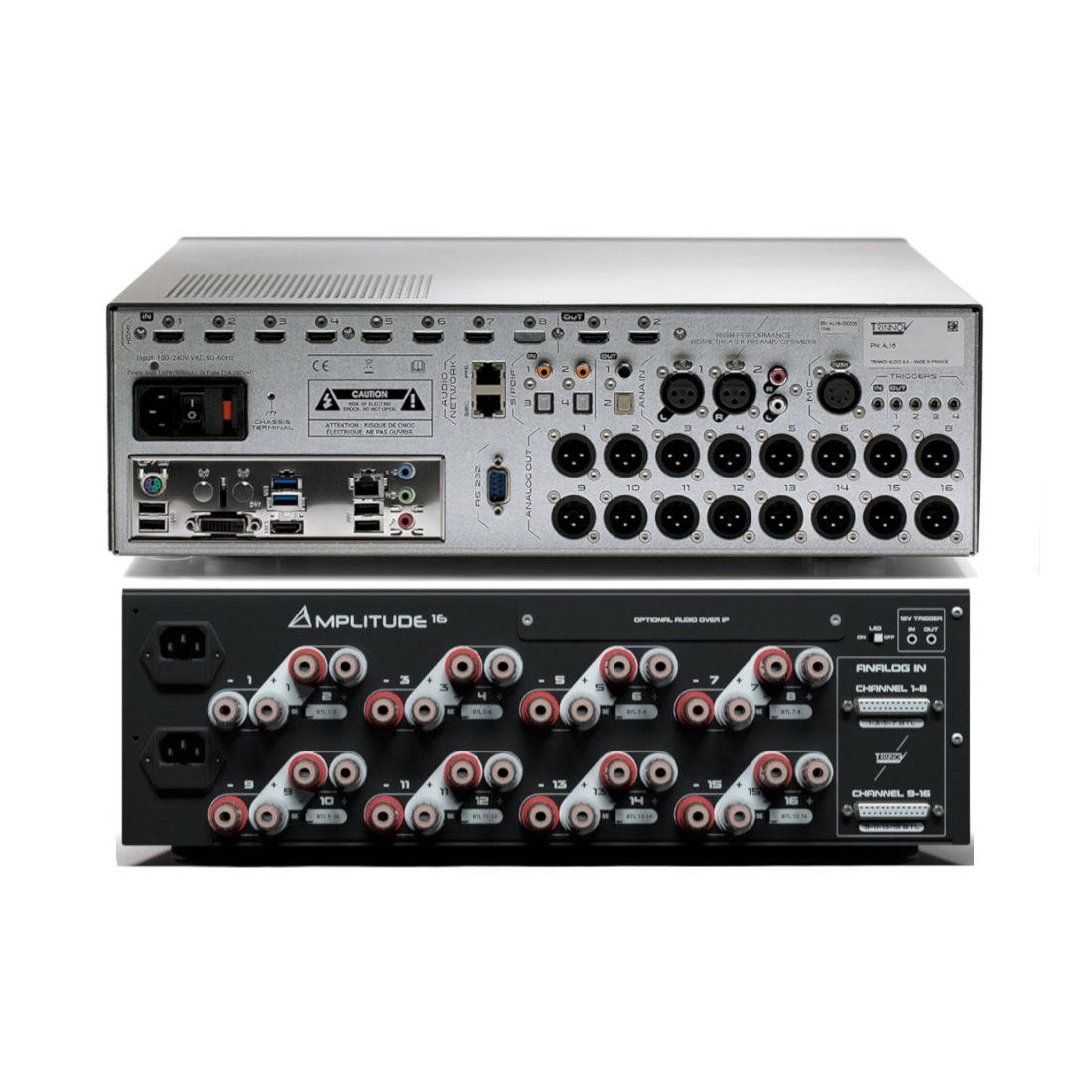

Balanced analog input is through dual Tascam pinout DB25 connectors, which eliminate the need for up to 16 individual XLR connections, making for a much more efficient connection and rack dressing.

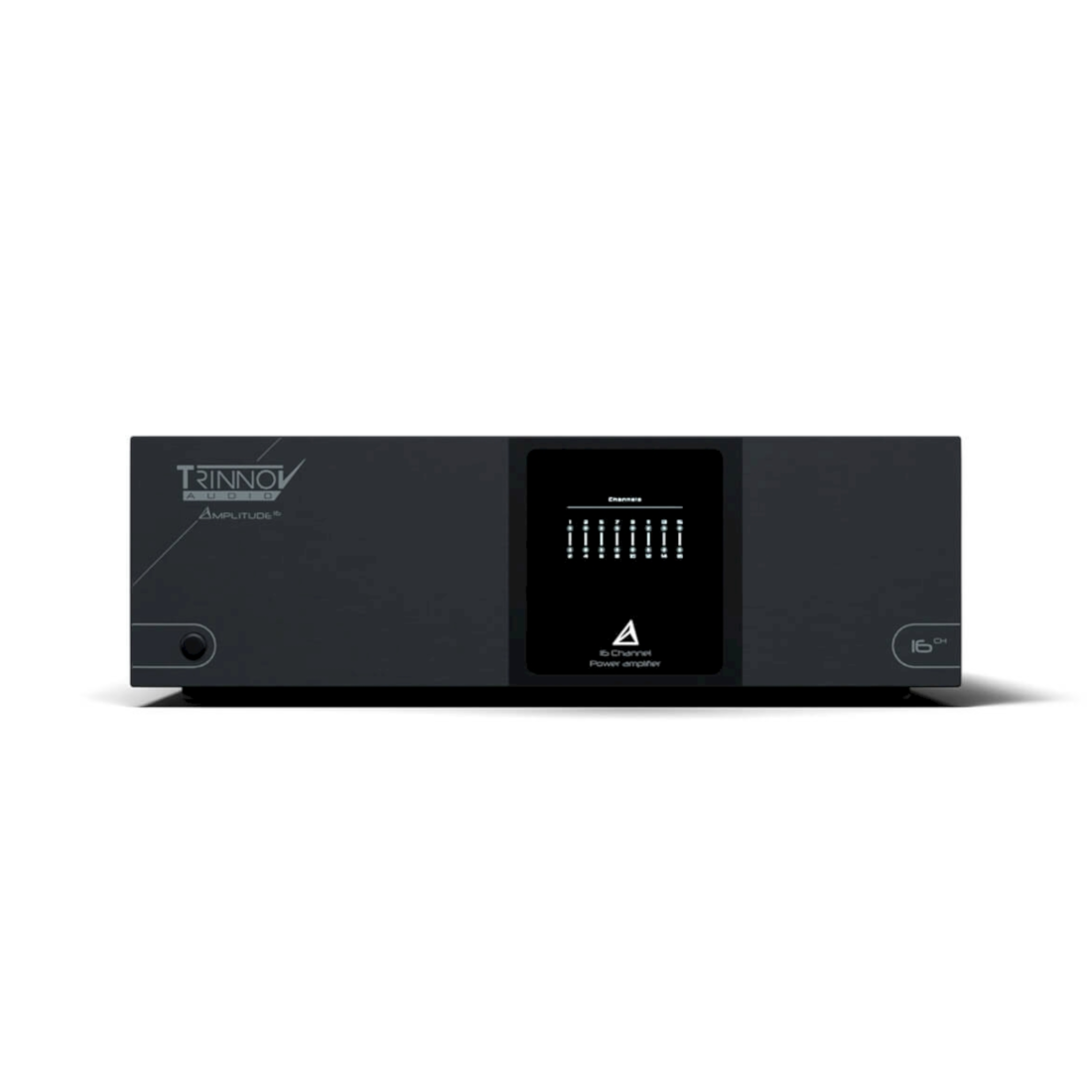

A front panel LED display identifies normal operation, channel clipping, protection, and bridge status for each pair of channels. Trigger inputs and outputs are provided to power on the amplifier and to daisy-chain other amplifiers in the system.
The input level sensitivity of the Amplitude16 matches perfectly the Altitude output level to maximize dynamic range and signal-to-noise ratio.
The importance of this trait cannot be over-estimated in a theater that may have twenty or thirty speakers in a single room. If each of those speakers were producing even a small amount of noise, it would rapidly become noticeable and unacceptable.
This scenario never arises with the Amplitude16
AUDIO OVER IP READY
Anticipating future advanced applications, another unique feature of the Amplitude16 is its optional Audio over IP input board, which provides an option for connecting the amplifier with networked audio. This board includes functions for monitoring the amplifier hardware status.
|AUDIO POWER & GAIN
||One Channel 8Ω: 200W (1kHz, 0,1% < THD+N)
One Channel 4Ω: 400W (1kHz, 0,1% < THD+N)
One Channel Bridged 8Ω: 800W (1kHz, 0,1% < THD+N)
One Channel Bridged 4Ω: 1000W (1kHz, 0,1% < THD+N)
Total Output Power (120 VAC): 2800W all channels driven SE or BTL
Total Output Power (230 VAC): 3200W all channels driven SE or BTL
Peak Power: 6080W all channels driven SE or BTL
Gain: 16 dB single ended / 22 dB bridged
||THD+N Single Ended: 0.0015% - 8Ω, 5W (2dBu)
THD+N Bridged: 0.0015% - 8Ω, 20W (8dBu)
Frequency Response: +0/- 0,6 dB, 20 Hz to 20 kHz, load-independent
Damping Factor: 2340 at 100Hz / 1820 at 1kHz / 354 at 10kHz
Signal to noise ratio: 126 dB ref to rated 1% THD output (A-Weighted)
Crosstalk: 96dB single ended 200W 8Ω
Intermodulation Distortion: Less than 0.05%
|AUDIO INPUTS & OUTPUTS||Input Connectors: 2x DB25 Female, Tascam Analog Pinout
Input Impedance: 47 kΩ, each phase
Input Sensitivity: 6.16V (+18dBu)
Output Connectors: 1x 5 way binding post per channel
||Power Requirement: 2x 100/240V (auto-selecting)
Power Consumption: 0,52W Standby; 125W idle; Max 2x 2000W
Power Input: 2x IEC C14
Inrush current at startup: 16A (<100ms, each inlet)
Thermal Conversion: 683 BTU/h MAX
Mains Fuse:2x 10 Amp slow blow
12V Trigger Input:5-15 VDC; Steady State (mini-jack TS)
12V Trigger Output:8-10 VDC; Steady State (mini-jack TS)
|WEIGHT & DIMENSIONS
||Dimensions (W x H x D) mm, including rack ears: 482 x 132 x 452
Dimensions (L x H x P) inches, including rack ears: 19” x 5 1/5” x 17 4/5”
Shipping box dimensions (W x H x D) cm: 54 x 53 x 22
Weight: 20.5kg / 45.3 lbs
Shipping weight / volume: 22.4kg / 0.064 M3
|WARRANTY||Standard Warranty: 5 year
