Primare SP25 Home Cinema AV Processor

By Primare

This product is not available for online purchase. Please contact us via phone on +61262474844 or email to arrange purchase.

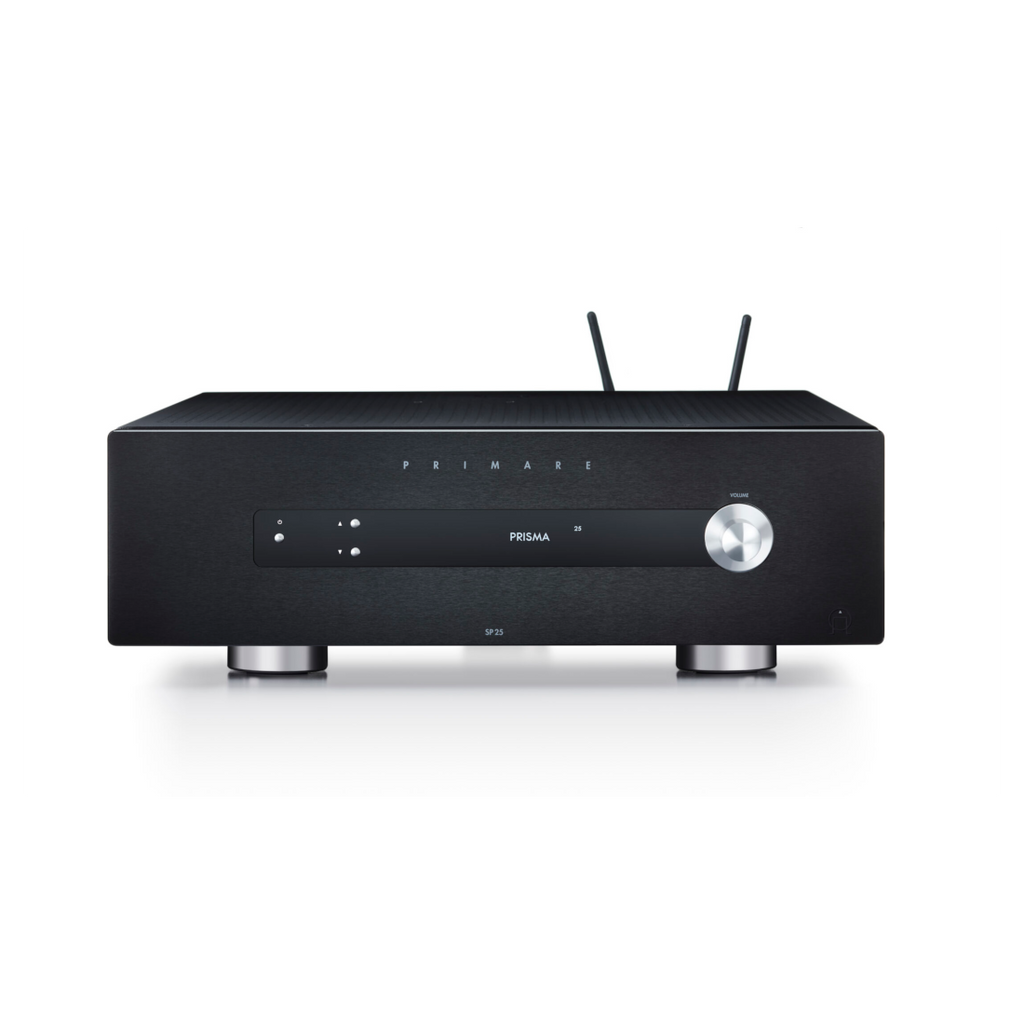

SP25 Prisma Home Cinema Preamplifier Processor

The SP25 Prisma is a multi-channel processor designed for both cinephile and audiophile, composed of carefully considered and crafted features and functionality to provide the best home cinema experience for the greatest number of people.

Key Features

  • Dolby Atmos, DTS X, and derived immersive audio processing
  • eARC advanced high resolution audio and video HDMI connection system for best system interaction and performance.
  • Dirac Live Room Correction technology ensures the best possible audio performance with any system in any room
  • Prisma network player to stream hundreds of music services including high resolution platforms like Qobuz, Spotify, and Tidal HiFi
  • Roon Ready advanced media management software with future free update\

System Configuration

The SP25 Prisma offers 11 channels of immersive audio processing, with seventeen customisable input pre-sets allowing for virtually any combination of digital and analog input configurations. Additionally, five customisable speaker setup pre-sets allow for a variety of speaker and DSP configurations, which allied with dual Front Left / Right analog outputs for bi-amping the main stereo speakers serve to support virtually any system configuration,

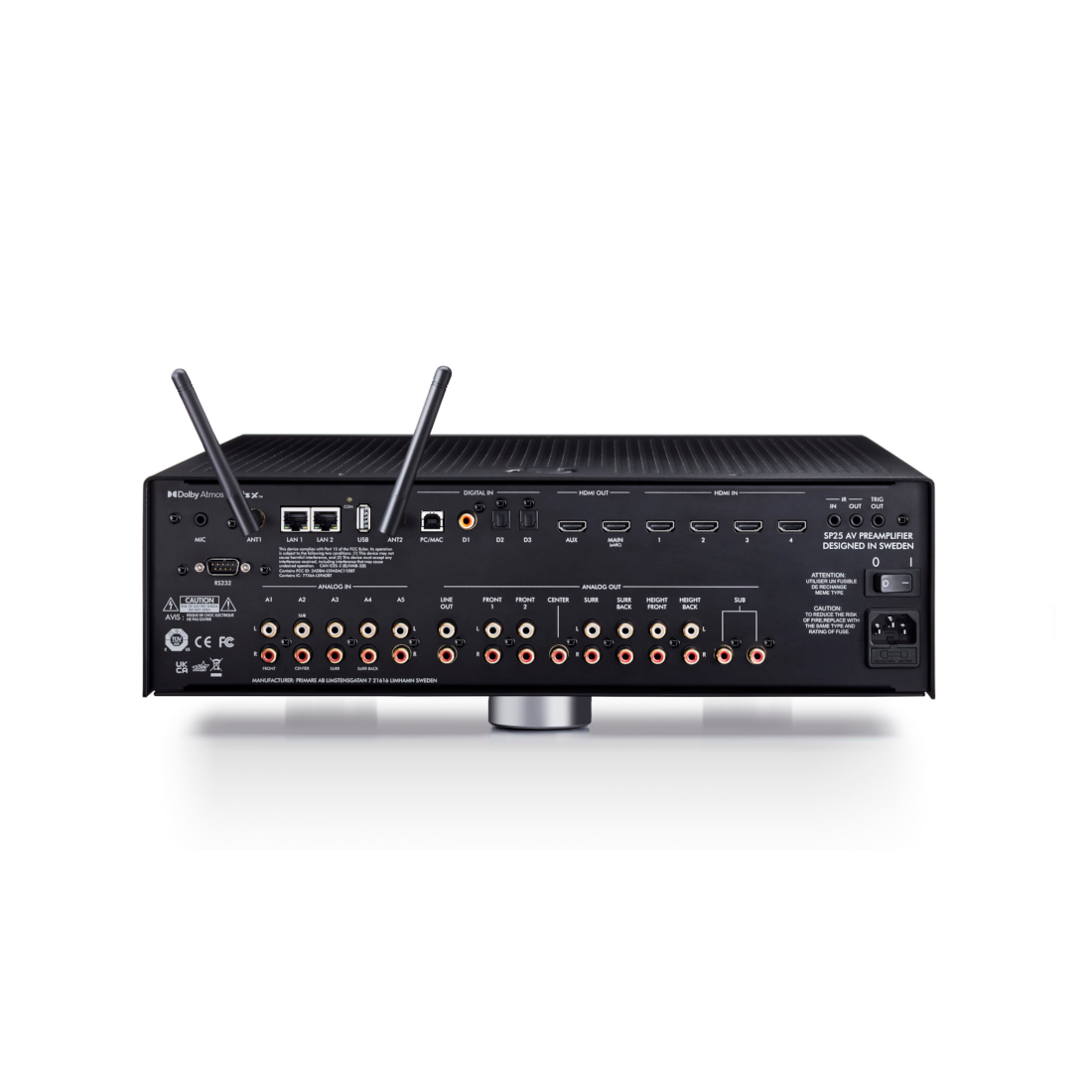

DAC 2 x ESS 9026PRO
RCA x 5 analog inputs, with 7.1 multi-channel input
RCA x 1 digital input
Toslink x 1 digital input
1 x digital input
HDMI 4 x HDMI 2.0b inputs
HDMI 2 x HDMI output, 1 x eARC / 1 x Auxiliary
HDCP 2.2
Dolby Atmos, 11 channels
Processing DTS X, 11 channels
Dirac Live
room correction
Prisma network player connectivity and control
Ethernet 2 x in/out
x 1
Chromecast built-in
Roon Ready
by future update
Spotify Connect
HiFi Ready
PRISMA remote
Primare universal system remote
IR 3.5 mm in/out
12V Trigger
1 x 3.5mm output
outboard system control port
430 x 405 x145 mm (wxdxh)
Weight 10 Kg

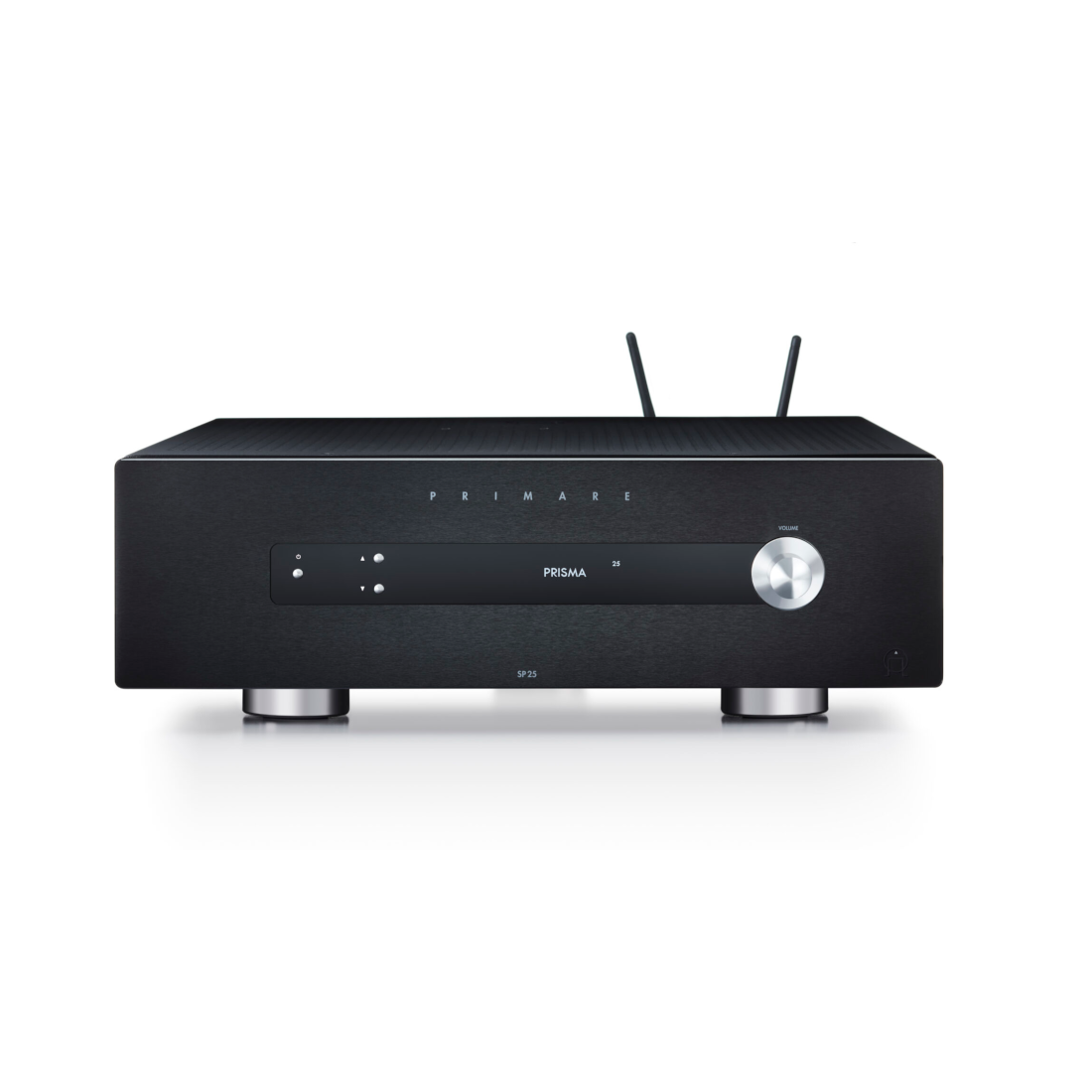

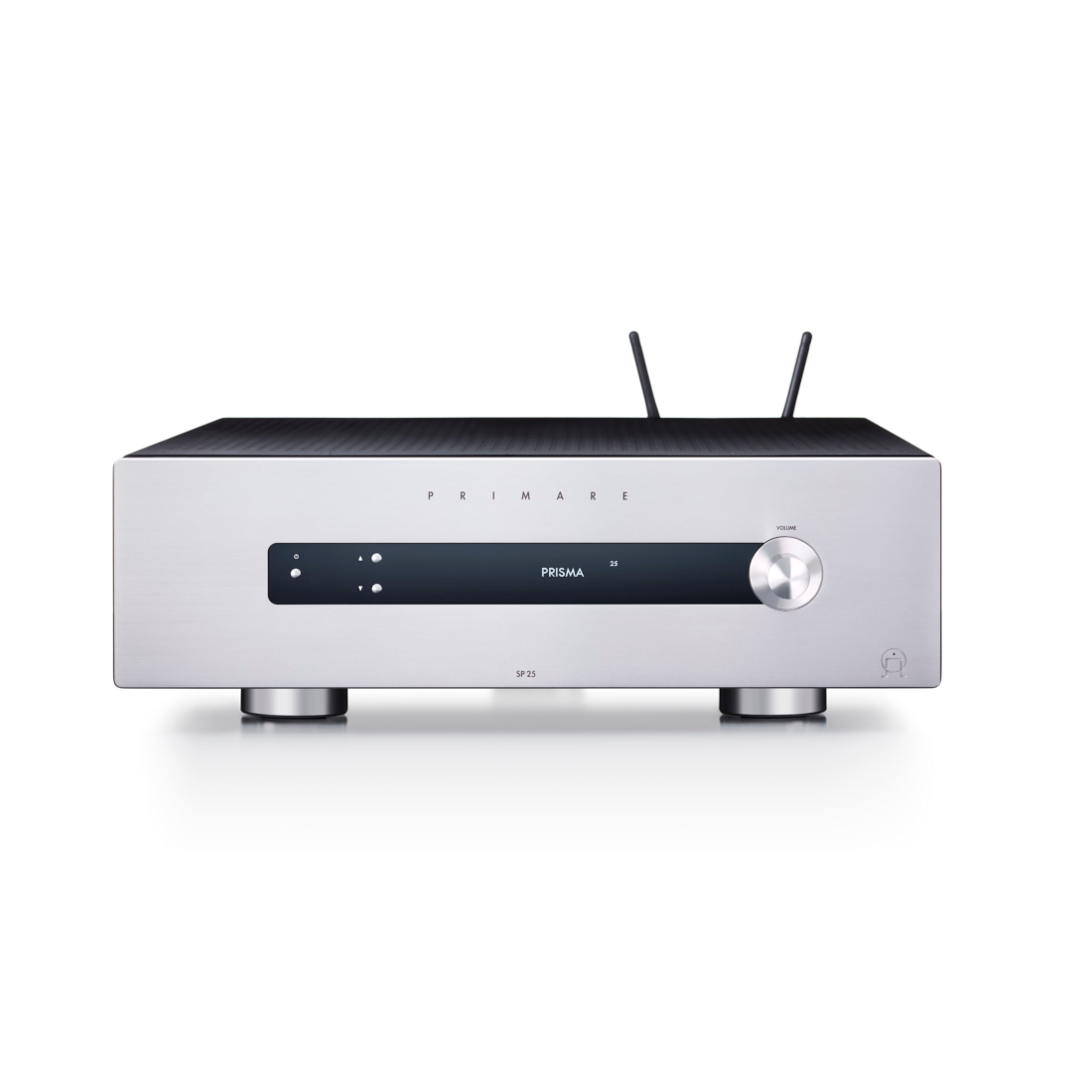

Finishes black or titanium
