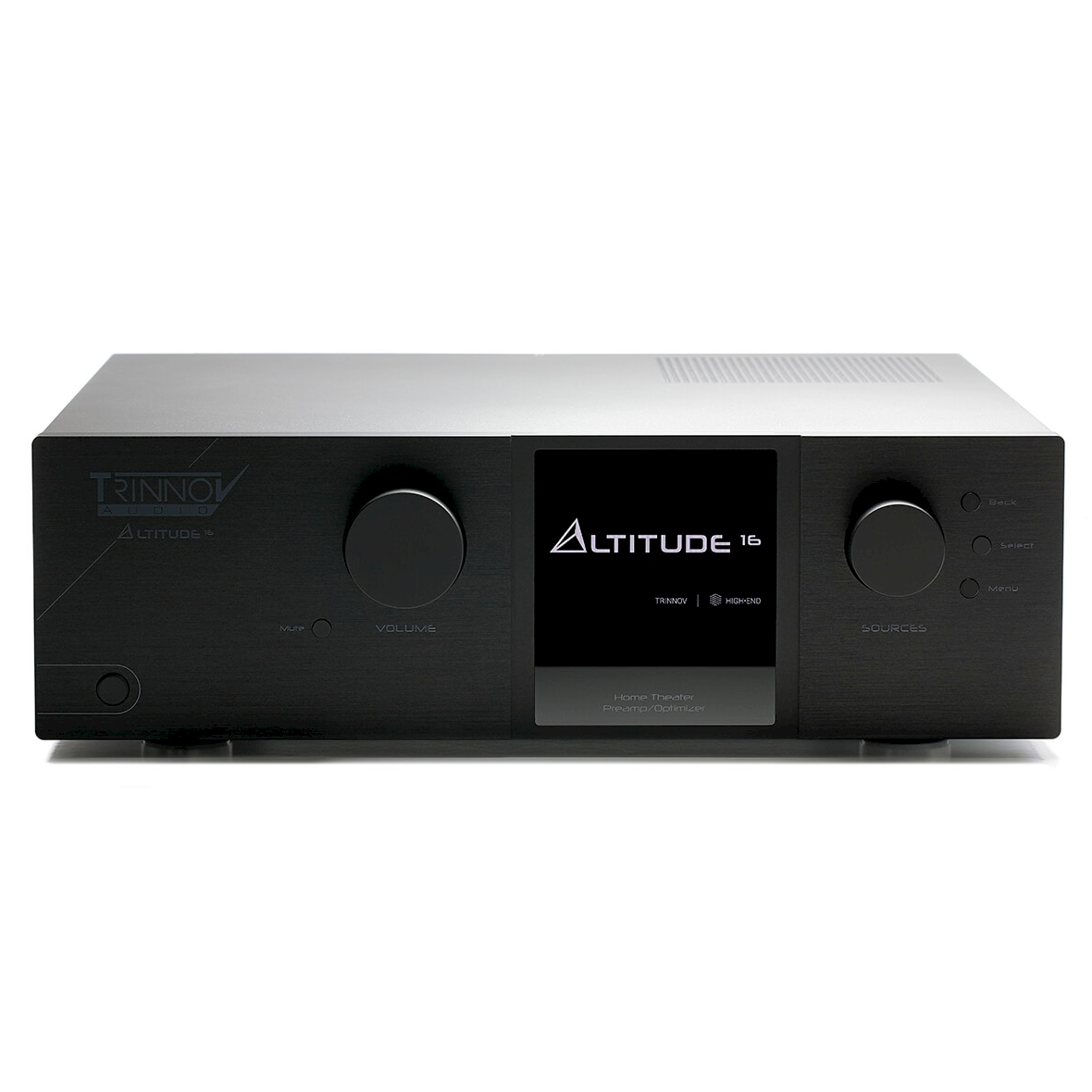

Trinnov Altitude16 AV Processor

By Trinnov

This product is not available for online purchase. Please contact us via phone on +61262474844 or email to arrange purchase.


The groundbreaking Altitude32 processor set the bar high -- and we didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.

Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.

Dolby Atmos

The Altitude16 joins the Altitude32 as the only AV Processors on the market capable of decoding and rendering Dolby Atmos Home content with any 20-channel speaker layout.

When it comes to channel count, the devil is in the details when it matters which channels are supported. Within its 20-channel capability, the Altitude16 supports any speaker layout, including multiple side surround speakers and high numbers of subwoofers.


In 2019, Trinnov worked closely with DTS to introduce DTS:X Pro to the consumer market.

Altitude owners enjoyed this major upgrade a year before our competitors could offer it. It benefits not only native DTS:X playback, but also the Neural:X upmixer, which greatly improves immersive playback of traditional soundtracks, maximizing speaker usage and listening envelopment.


The founders of Trinnov and Auro Technologies know each other well, having been at the forefront of immersive sound research and development dating back to the early 2000s.

Auro-3D, up to 13.1 channel configuration has been available on the Altitude32 since 2015. The Auro-Matic upmixer, highly popular among Altitude owners for music playback is also supported for all inputs.


Our world-renowned Loudspeaker/Room Optimizer is recognized as best-in-class by users and reviewers across the professional, commercial cinema and high-end home audio worlds. Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast and post-production sound engineers.

Optimizer technology is now used in nearly 2,000 studios across the globe with nearly 10,000 high-performance installations worldwide.

This same technology, enhanced and refined over the years, is at the heart of the Altitude. To this day, the Optimizer remains the most powerful and flexible calibration system available.


First-time users will find the Altitude Wizard an invaluable tool for setup and calibration.

This onboard software guides the integrator through the entire process, step-by-step.

From configuring the speaker layout, setting up the input and outputs, to the microphone setup and calibration, the Wizard greatly simplifies the process of getting the Altitude up and running.


In real-world rooms, we can’t always place speakers where we should. And in any case, Dolby, DTS, and Auro each have a different idea of where they should go. Trinnov’s exclusive, patented Remapping is the only solution.

During calibration, Trinnov’s unique 3D microphone precisely maps the location of each loudspeaker in the room regarding distance, azimuth, and elevation.

When decoding a particular soundtrack, we know the intended placement of each of the various sound elements. Then Remapping, taking the reality of the room into account, ‘remaps’ errant sounds to the proper locations by using adjacent speakers and the principle of stereo imaging.


This feature increases the capacity of the processor to a total of 20 discrete channel decoding and Optimization.

Combining the 16 analog outputs and 2x S/PDIF outputs of the processor, Trinnov unlocked the full potential of the Altitude16.

This update comes free of charge to all Altitude16 owners. By adding S/PDIF / Analog converters to their system, Trinnov customers can add extra subwoofers or channels to their system to increase its performance.


The Bass Management solution in the Altitude gives users the most sophisticated tool available for managing low frequencies.

Complete flexibility regarding high and low pass frequencies, filter types, and filter slopes is just the beginning. The low-frequency content of any channel can be fed to any combination of subwoofers, and there is no limitation to the number of subwoofer channels other than the number of available outputs.

Going further, our unique intermediate bass management system is ideal for immersive systems using smaller height channel speakers. It can redirect low frequencies not just to subwoofers, but from a speaker with limited bass capability to the closest, more-capable speaker, before sending the lowest frequencies to the subs.


Through its Paris-based server, Trinnov enables remote access to any processor connected to the Internet.

Integrators can remotely access each processor they have installed, with full control of all parameters, thus eliminating the need to be on site to adjust a customer’s system or to diagnose problems.

In addition, the Trinnov factory support team, based in the United States and France, and acknowledged as among the best in the industry, also has remote access to provide higher-level remote assistance and troubleshooting.


HDMI and its evolving standards continue to create challenges for manufacturers, integrators and end users. Rest assured that the Altitude philosophy of sustainability applies to HDMI.  The Altitude’s modular hardware design ensures that future developments of the HDMI standard will not make the processor obsolete. All Altitudes will be upgradeable to HDMI 2.1.

Today, our proprietary software platform enables users to monitor and analyze all incoming and outgoing HDMI data directly on the Altitude, in addition to providing unique tools that can address HDMI  incompatibility issues.


The Cinema Designer (TCD) is a powerful online design tool that allows integrators and system designers to create not only technically impeccable cinema designs in a matter of minutes, but also a complete set of support documents and aesthetic room renderings.

Trinnov Altitude processors and Amplitude amplifiers are fully supported in the TCD software, enabling designers to integrate the Altitude in the most complex speaker layouts in a matter of minutes.

TCD integrates Trinnov's exclusive recommendation for speaker placement by default.


Remotely control your processor from your iPhone or iPad with our iOS Remote application. Set the volume, switch between inputs, select a different preset or upmixer from your fingertip.



Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels

Auro-3D® Native Decoding & Up-mix (Auromatic) :Up to 13.1

DTS:X® Pro: Up to 20 discrete channels

Speaker Layouts support: All

IMAX Enhanced: Yes

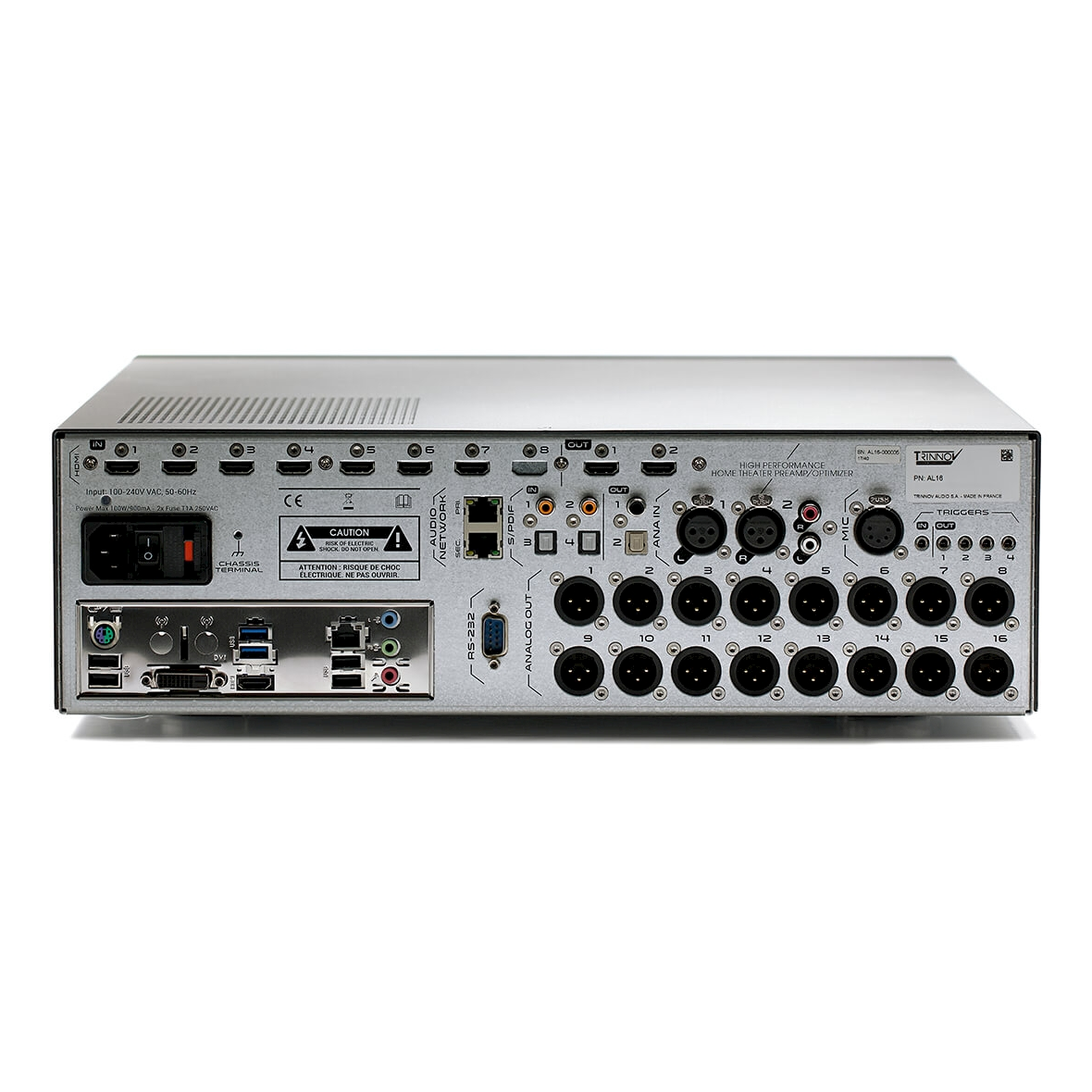

Output 1: HDMI 2.0 / HDCP 2.2

Output 2: HDMI 2.0 / HDCP 2.2

Inputs: 8

Maximum Resolution: 4K UHD on all ins / outs

Maximum Bandwidth: 18Gbps on all inputs

Frame rates supported: 24/25/30/50/60 fps (UHD) 120 fps (HD)
ARC / eARC:Available on Output 1
4K to 1080 Downscaling:Available on Output 1

OSD: Volume information displayed on-screen
S/PDIF Inputs: x4 (2 optical, 2 coaxial)

S/PDIF Outputs: x2 (1 optical, 1 coaxial)

+4 Outputs: By combining Analog and S/PDIF outputs

Audio Network: Dual ports (for future use)
Microphone input: 1x 5 Pin XLR for 3D Microphone

Balanced inputs: 1x Stereo XLR
Unbalanced inputs :1x Stereo RCA

Balanced outputs: 16x XLR

Input Impedance: 20k Ohms / 10k Ohms
Data precision: 64 bits, floating point

Max Sampling Rate: Native, up to 96kHz
Processor: Intel multi core hyper threaded

ADC Resolution / Sampling Rate: 24 bits/96 kHz

DAC Resolution / Sampling Rate: 24 bits/192 kHz

A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)

D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)

Reference Level: +18dBu @ 0dBFS (Balanced)
Clock / Jitter:attenuation > 50 dB above 100Hz

Cooling system: Custom heat sinks + additional silent fans

Safety Components: AntiPop relays on each output
Power requirement: 100 - 240v (auto selecting)

Power consumption: 76W Max

Thermal conversion: 260 BTU/h Max

Mains fuse: 2x 1A slow blow

Internal PSUs: Separated supplies for Audio and Processing
Dimensions (W x H x D) mm: 438 x 139 x 430

Dimensions (W x H x D) inches: 17 1/4" x 5 1/2" x 17 15/16"

Shipping dimensions (L x H x P) cm: 74 x 59 x 30

Weight: 11.30kg / 24.9 lbs

Shipping weight / volume: 18.2kg / 0.131 M3

Rackmounting: 3U - Rack Ears Included
Standard Warranty: 5 year
Transferable: Yes
