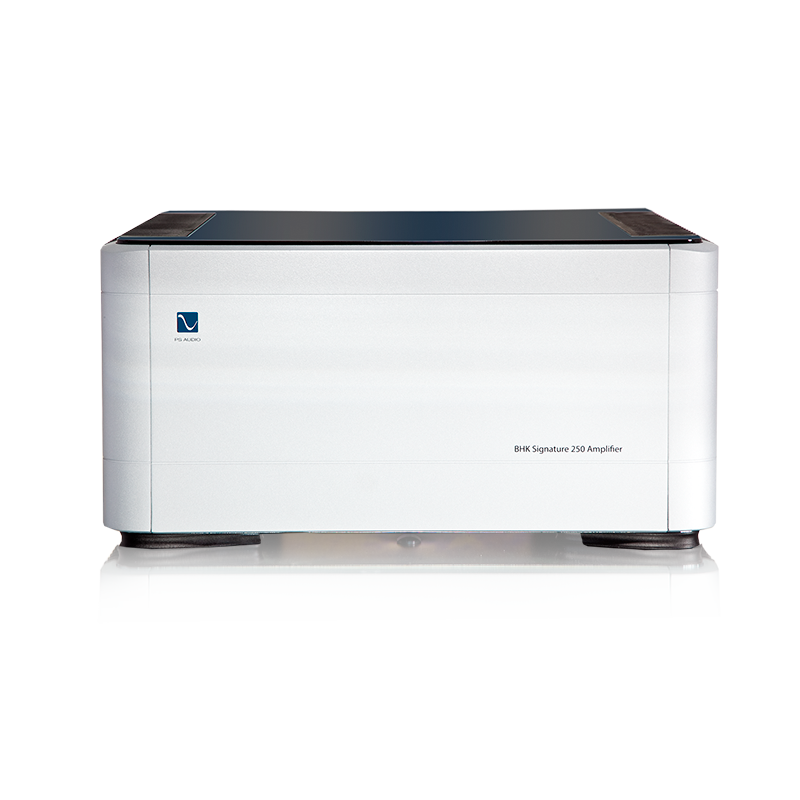

PS Audio BHK Signature 250

$11,395

Brand PS Audio

BHK Signature 250 Stereo Amplifier

A forty year quest for musical perfection

“The first amplifier I gave up a lifetime obsession with tubes for” Arnie Nudell, founder, Infinity Systems.

Have you ever wanted to own the finest stereo amplifiers in the world but were scared off by a six-figure price tag? All that is about to change. The BHK Signature Series power amplifier is a stunning achievement in power amplification and Bascom H. King’s finest work, unequaled in performance at any price. Power amplifiers are the make-or-break component in the music reproduction chain. Everything in your system funnels into this critical component; anything lost can never be recovered.  The BHK Signature features a zero-loss vacuum tube input stage coupled to a high bias differentially balanced MOSFET output. This amplifier has few rivals at any price and, in terms of sheer musicality, openness, tonal richness and accuracy, none.

Features:

  • Zero-loss vacuum tube input stage
  • Differentially coupled balanced MOSFET output stage
  • All through hole construction (no surface mount parts)
  • RCA Single ended input
  • XLR balanced input
  • 250 watts per channel 8Ω Signature
  • 500 watts per channel 4Ω Signature
  • 2Ω stable Signature 250 stereo
  • Less than 0.1% thd 20Hz to 20kHz at rated power
  • Damping factor 100 for excellent loudspeaker control
  • Front panel standby button for vacuum tube input
  • -3dB greater than 200kHz
  • Dual, custom, solid copper, gold plated output binding posts
  • Fully balanced from input to output
  • 38 kgs
  • Input 12 volt trigger
  • Easy access for tubes

Specifications:

BHK Signature 250 Stereo and BHK Signature 300 Mono

Unit Weight 38 kgs
Unit Dimensions 17.1” x 8.7” x 14” Chassis only. 15" deep including connectors.
Shipping Weight 92 lbs
Shipping Dimensions 21”x 13” x 19”
Color Options Black
Silver
Voltage Options
Factory set only
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs IEC C14
Fuse Compliment all Countries 4 - 10 amp fast blow H-Rated 5x20mm Rail Fuses
Fuse Compliment Mains 100vac Countries
1 - 2 amp slow blow H-rated 5x20mm
1 - 12 amp slow blow H-rated 5x20mm
120vac Countries
1 - 1.6 amp slow blow H-rated 5x20mm
1 - 10 amp slow blow H-rated 5x20mm
230vac Countries
1 - 1 amp slow blow H-rated 5x20mm
1 - 5 amp slow blow H-rated 5x20mm
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)
Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Signature 250 Gold plated copper binding posts (2 pair per channel)
Speaker Outputs Signature 300 Gold plated copper binding posts (2 pair)
Other DC Trigger Input
3.5mm 5-15VDC
Warranty 3 years parts and labor on unit
1 year on vacuum tube

Power Consumption

@Ready 75 Watts
@Idle 175 Watts
@Rated power 8Ω 850 Watts
@Rated power 4Ω 1600 Watts

Signal

Gain 30.5dB +/-0.5dB
Sensitivity for rated output power of 250 watts into 8Ω 1.3V
Noise 100-20KHz <-85dBV
Input impedance Signature 250 stereo Unbalanced 100KΩ
Balanced 200KΩ
Input impedance Signature 300 mono Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.1Ω
Frequency Response @2.8VRMS
10Hz – 20KHz +/- 0.1dB
10Hz – 200KHz +0.1/-3.0dB

THD

1KHz, 1W/8Ω <0.01%
20-20KHz, 1W/8Ω <0.1%
1KHz, 200W/8Ω < 0.1% (120VAC Mains input)
1KHz, 400W/4Ω < 0.1% (120VAC Mains input)

Signature 250 Stereo Amplifier

Output Power

Both channels driven 120vac mains, 1kHz, 1% THD
8Ω 250W minimum
4Ω 500W minimum
2Ω Stable for musical transients

Signature 300 Mono Amplifier

Output Power

120vac mains, 1kHz, 1% THD
8Ω 300W minimum
4Ω 600W minimum
2Ω 1000W
