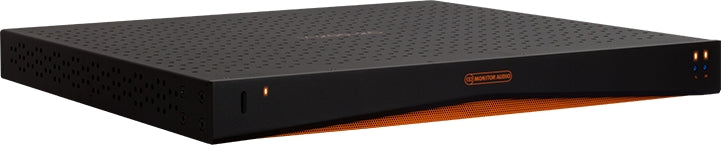

Monitor Audio IA200-2C Custom Installation 200W Stereo Amplifier with Connect IP

$1,583 $1,759

Description

The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. A ‘Connect’ amplifier, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

Product Video:

A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.

Specifications:

'Connect' IP Control Yes
Channel Number 2 (1 Stereo Pair)
Power (W / Channel) | 4 Ohms 200 W
Power (W / Channel) | 8 Ohms 150 W
Power (W / Channel) | Bridge (8 Ohms) 470 W (1 ch)
Power (W / Channel) | 70 V N/A
Input Impedance 20 K Ohms
Output Impedance (Loop RCA) 600 Ohms
Input Sensitivity 100 mV / 1 W, 1230 mV – Full Power
Maximum Input Voltage 2.9 V
Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency Response 5 Hz – 50 kHz
Total Harmonic Distortion THD+N @ 1 kHz 0.03%
Rack Height 1U
Dimensions (Excluding Feet (H x W x D)) 42.4 x 438 x 427 mm (1 11/16 x 17 1/4 x 16 13/16")
Dimensions (Including Feet (H x W x D)) 52.8 x 438 x 427 mm (2 1/16 x 17 1/4 x 16 13/16")
Width (Including Rack Brackets) 482 mm (19")
IP Communication TCP/IP (RJ-45 10/100 BaseT)
Mains Operating Voltage 100 – 120 V @ 60 Hz / 220 – 240 V @ 50 Hz
Fuse Type 5 A (T5AL ~ 250 VAC)
Standby Power Consumption <0.5 W (Green Mode)
Networked Standby Power Consumption <2 W
Weight 5.3 kg (11 lb 10 oz)
