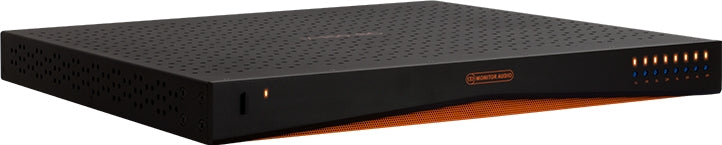

Monitor Audio IA150-8C Custom Installation 150W 8-channel Amplifier with Connect IP

$4,049 $4,499

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

The IA150-8C enables up to eight (4 stereo pairs) channels of 150 watts of power at 4 ohms. It’ll fit 1U rack height and, it employs our Connect IP interface, a web application, which can be accessed by any device connected to the internet with a browser on the same network.

The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

Product Video:

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.

Specifications:

'Connect' IP Control Yes
Channel Number 8 (4 Stereo Pairs)
Power (W / Channel) | 4 Ohms 150 W
Power (W / Channel) | 8 Ohms 140 W
Power (W / Channel) | Bridge (8 Ohms) 300 W (4 ch)
Power (W / Channel) | 70 V N/A
Input Impedance 20 K Ohms
Output Impedance (Loop RCA) 600 Ohms
Input Sensitivity 100 mV / 1 W, 2200 mV – Full Power
Maximum Input Voltage 2.9 V
Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency Response 5 Hz – 50 kHz
Total Harmonic Distortion THD+N @ 1 kHz 0.03%
Rack Height 1U
Dimensions (Excluding Feet (H x W x D)) 42.4 x 438 x 427 mm (1 11/16 x 17 1/4 x 16 13/16")
Dimensions (Including Feet (H x W x D)) 52.8 x 438 x 427 mm (2 1/16 x 17 1/4 x 16 13/16")
Width (Including Rack Brackets) 482 mm (19")
IP Communication TCP/IP (RJ-45 10/100 BaseT)
Mains Operating Voltage 100 – 120 V @ 60 Hz / 220 – 240 V @ 50 Hz
Fuse Rating 10 A (T10AL ~ 250 VAC)
Standby Power Consumption <0.5 W (Green Mode)
Networked Standby Power Consumption <2 W
Weight 7.45 kg (16 lb 6 oz)
