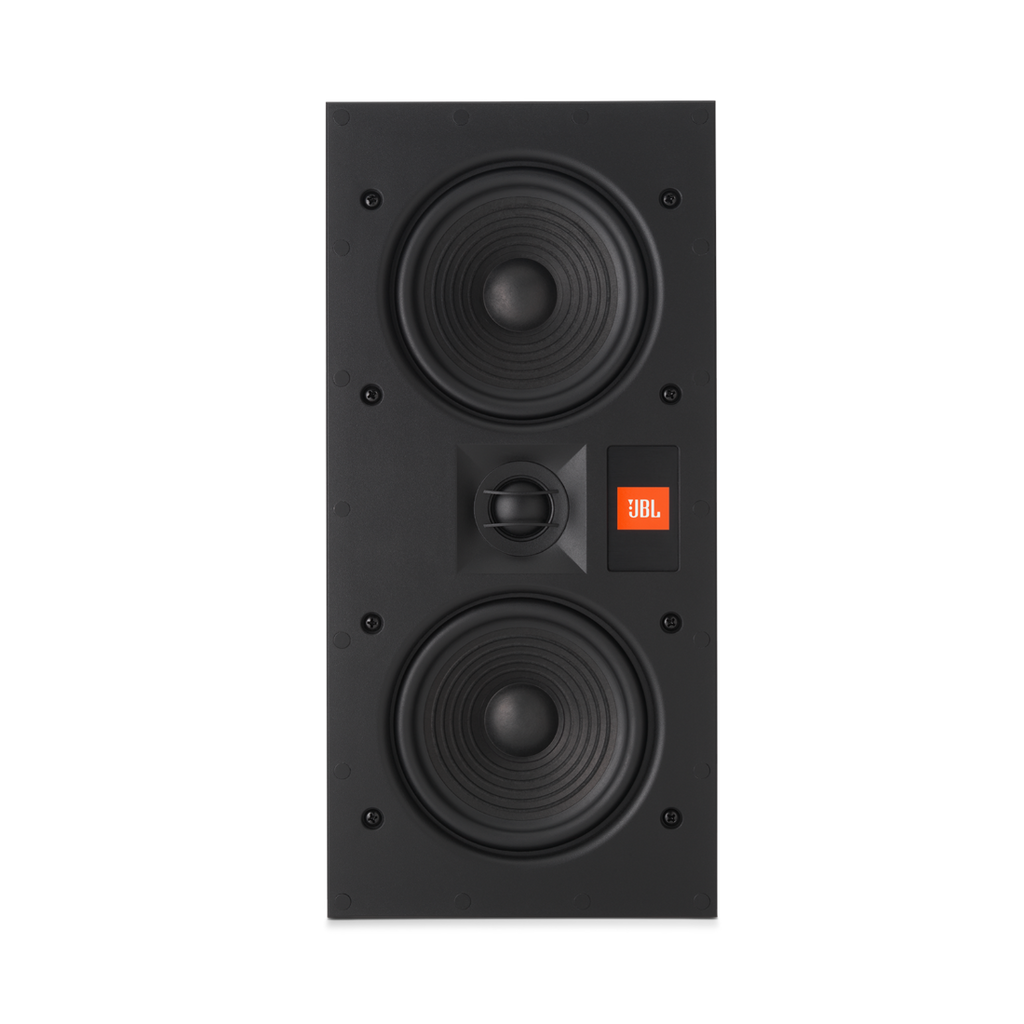

JBL Arena 55IW In Wall Speaker



Versatile home theater performance

JBL's Arena 55IW in-wall speaker combines two 5-1/4" woofers with a smooth 1" silk dome tweeter to provide rich, full-range performance without taking up any floor space. Because the tweeter is centrally located, it's ideal for your home theater's center channel when installed horizontally. You'll get crisp, balanced audio in all your seating locations — even the ones off to the side.

The 55IW is an equally capable left- or right-channel speaker as well. Enjoy an immersive front soundstage by using one in each of your home theater's front three speaker locations, or add a pair in the side or the back of your room for dynamic surround sound.


  • dual 5-1/4" polycellulose woofers
  • 1" silk dome tweeter
  • frequency response 40-20,000 Hz
  • power handling: up to 120 watts RMS
  • 8-ohm impedance
  • sensitivity 88 dB
  • includes paintable magnetic grille
  • cutout dimensions: 6-3/8" W x 14-1/8" H
  • grille dimensions: 7-1/2" W x 15-3/16" H
  • mounting depth: 3-7/16"
  • warranty: 5 years

Great for music too

The Arena series' rich, distinctive sound was modeled after JBL's legendary M2 Master Reference Monitor — one of the best speakers they ever created. JBL's proprietary HDI waveguide fills your room with immersive, theater-like sound. But the 55IW isn't just for TV and movies. Install a pair in rooms where you want to enjoy music for a powerful two-channel experience.

Match your decor

The 55IW not only sounds terrific, but sports a sleek design too. The low-profile grille is magnetic, so attaching it to the speaker is a breeze. It's also paintable, so you can match it to your room's decor. The zero-bezel edge means no bulk around the sides of the grille, making it virtually disappear into your wall.


Tweeter Size 1
Midrange Size N/A
Woofer Size 5.25
Speaker Shape 6.375 x 14.125
Cutout Width 6.375
Cutout Height 14.125
Power Range (Watts) up to 120
Sensitivity 88 dB
Impedance (Ohms) 8
Frequency Response 40-20kHz
Parts Warranty 5 Years
Labor Warranty 5 Years
