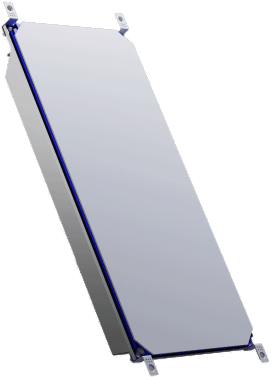

Amina Mobius 5iB-S200 In Wall Invisible Speaker

By Amina



Building upon 20 years of R&D at the cutting edge of invisible speaker technology, the ‘iB’ update to the Mobius5iB S200 not only provides significant acoustic upgrades, but introduces an entirely new installation technology for plaster finishes. Development of brand newproprietry high frequency transducers in combination with Amina’s Optidrive®, Opti-damping® and Reduced Resonance Exciter® technology results in greater low frequency extension, higher sensitivity and smooth high frequency response well in to the ultrasonic region. The slimline Mobius5iB S200 features an all-new integrated backbox that is acoustically tuned and provides protection to the speaker from any potential contaminants ensuring a trouble free installation and long life. The streamlined installation process automatically aligns the speaker to the correct depth, ultimately resulting in a faster, easier installation.

Example Applications:

nvisible audio installations with space limitations or when installing into a curved wall or
ceiling. Can be supplied with high-impedance 100/70V transformer for integration into high
impedance audio systems


Nominal impedance 4 Ohms
Power handling (100 hour continuous/peak) 50W/100W
Sensitivity (@ 1m/2.83Vrms 84dBSPL (with 2mm plaster skim)
Frequency response (-6dB) 90Hz - 30kHz
Usable frequency range (+/-10dB) 65Hz - 32kHz
Dispersion angle 180° x 180° at specified frequency range
Electrical connection Blue butt-splice crimp terminals (14-16 AWG)
Dimensions 450mm x 200mm x 77mm (173/4” x 77/8” x 31/16”)
Product weight 2.3Kg (2lb 7oz)
Fixing requirements All fixings provided
In-line protection unit APUi50C_2, APU-RS8iC, APU-RS16iC, or the new Guardian active APU
Manufacturer limited warranty 10 years
