Trinnov Altitude-CI Networked AV Preamplifiers

Please contact us for current pricing.
By Trinnov
This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

AltitudeCI brings Trinnov’s exclusive active acoustics technologies to the world of custom integration, with native support for DanteⓇ and AES67, a scalable channel count, and a network architecture built to meet the demands of the most challenging environments.

Audio Processing

  • Channel Count:Available from 8 to 32 outputs
  • Future Option (2026):Up to 64 channels (build-to-order)
  • Architecture:Software-based, 64-bit floating point processing
  • Sample Rate:Up to 192kHz (channel dependent)

Immersive Audio Formats

  • Decoded Formats:Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
  • Upmixers:Dolby Surround, DTS Neural:X, Auro-Matic
  • Flexibility:Full-format decoding with channel-to-speaker assignment

HDMI Connectivity

  • Inputs / Outputs:4x HDMI Inputs, 2x HDMI Outputs
  • Version:HDMI 2.1 with HDCP 2.3
  • Max bandwidth:40 Gbps on all inputs and outputs
  • 8K Support:Up to 8K60 (4:2:0 chroma only)
  • 4K Support:Up to 4K120 (with full 4:4:4 chroma)
  • Chroma Subsampling:4:4:4, 4:2:2, 4:2:0 (format-dependent)
  • HDR Support:HDR10, HDR10+, Dolby Vision, HLG
  • Gaming Features:VRR, FRL and ALLM
  • Other Features:On-screen display (OSD), full pass-through, ARC/eARC

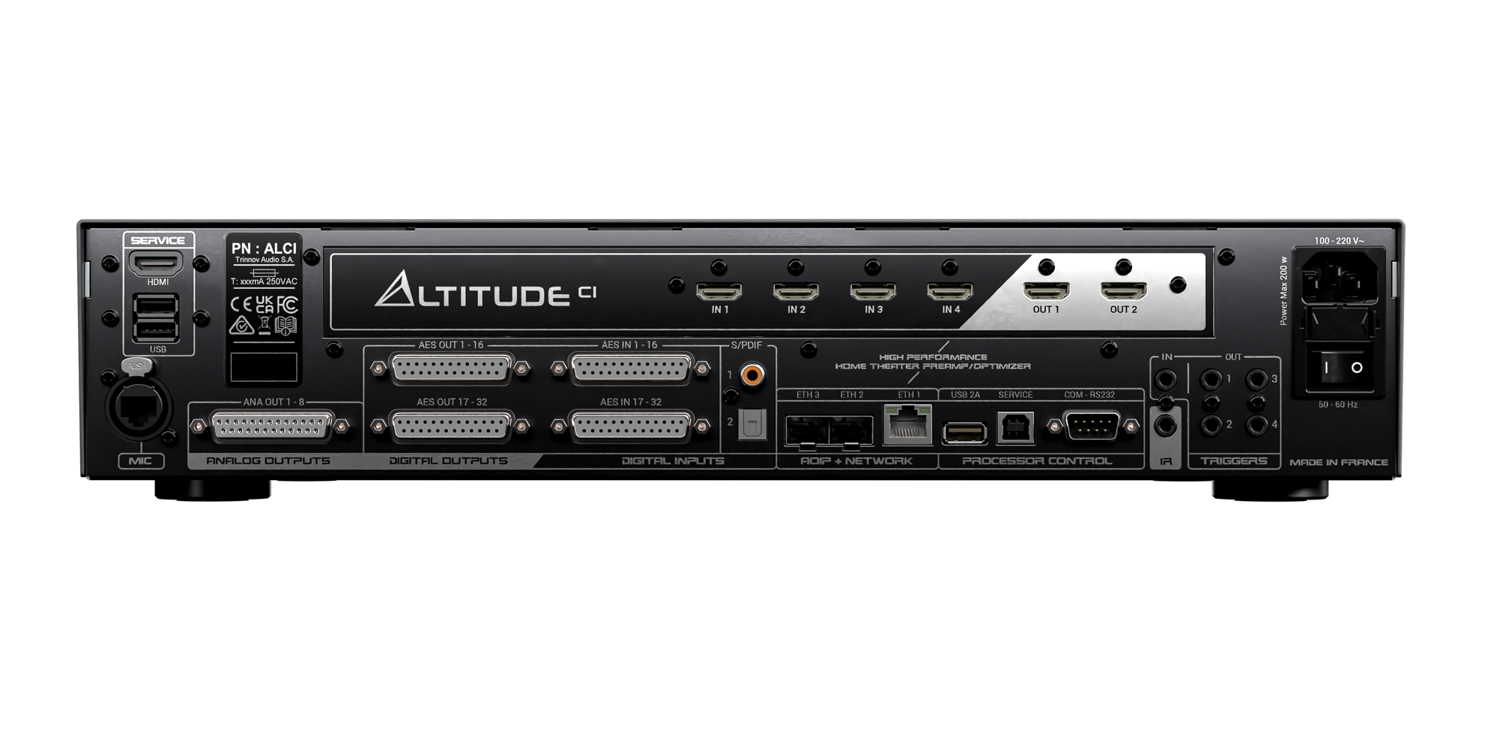

Audio Inputs

  • Dante:Up to 32 input channels
  • AES/EBU:Up to 32 inputs via 2x DB25
  • S/PDIF:1x coaxial + 1x optical
  • 3D Microphone:1x Ethercon input (provides power)
  • Independence:All inputs are independent
  • Future AoIP Input Capacity (2026):Up to 64 inputs (build-to-order)

Audio Outputs

  • Dante:Up to 32 output channels
  • AES/EBU:Up to 32 outputs via 2x DB25
  • Analog:8x balanced outputs via 1x DB25
  • Analog Output Level:+18 dBu max
  • THD+N (analog output):110dB (1kHz 0dBFS, 20kHz BW)
  • Dynamic Range (analog output):115dB A-weighted (ref +18dBu)
  • Channel Assignment:Any output channel to any physical audio output
  • Output Types:Analog, digital or AoIP

Network Architecture & AoIP

  • AoIP Format:Dante (+AES67 compatibility)
  • Compatibility with Dolby media servers:via AES67
  • Ethernet Ports:3x Gigabit ports: 1x RJ45, 2x SFP cages
  • SPF module:1x RJ45 provided
  • Networking Modes:Integrated switch, isolated, or redundant paths
  • AoIP Simplification:DirectLink supported with Amplitude16

Control & Integration

  • Full UI Access:macOS/Windows app or Web UI
  • Mobile Remote Control:iOS & Android app
  • Control Drivers:Crestron, Control4, Savant, RTI, AMX, Nice, AVA
  • Physical Control:IR Input (Jack 3,5", IR receiver included), RS-232
  • Triggers:1x input, 4x programmable outputs
  • IR Remote Control:Optional
  • Remote Management:Partner access through via my.trinnov.audio

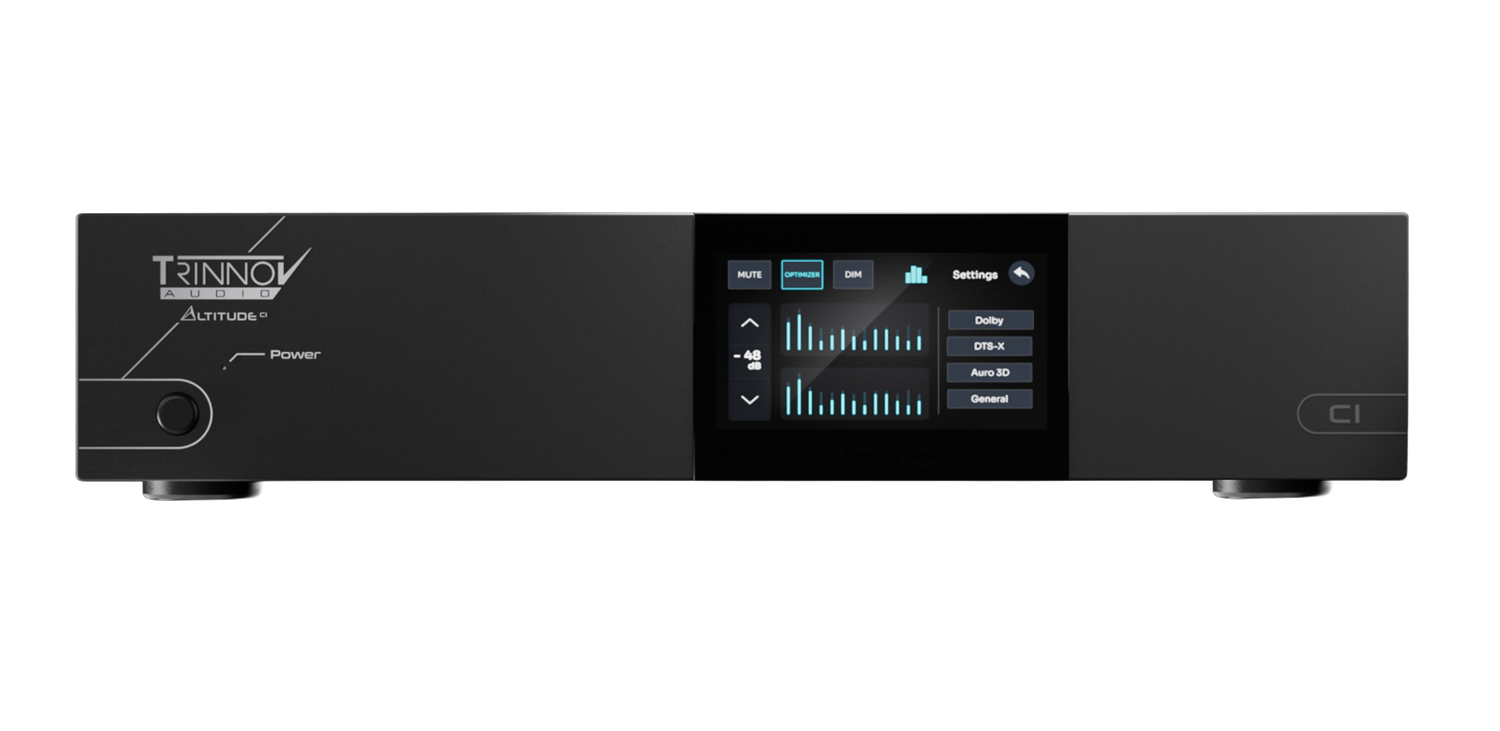

  • Front panel:5-inch touchscreen
  • Power Modes:Standby & fast boot (firmware-ready)

Digital Acoustic Optimization

  • Trinnov Technologies:Trinnov Optimizer, WaveForming & Remapping
  • Calibration Workflow:Step-by-step guided setup
  • 3D Mic Integration:Automatic compensation file upload

Audio Streaming

  • Roon:Certified Roon Ready endpoint (soon)
  • Audirvãna:Certified plãys with audirvãna (soon)
  • UPnP:Flac, WAV, MP3, ogg

Power & Thermal

  • Power Supply:100-240V auto-switching
  • Max Consumption:140W (0,5W idle)
  • Cooling:Temperature-controlled exhaust fans
  • Heat Output:480 BTU/hr (max load)
  • Mains fuse:2x T800mA

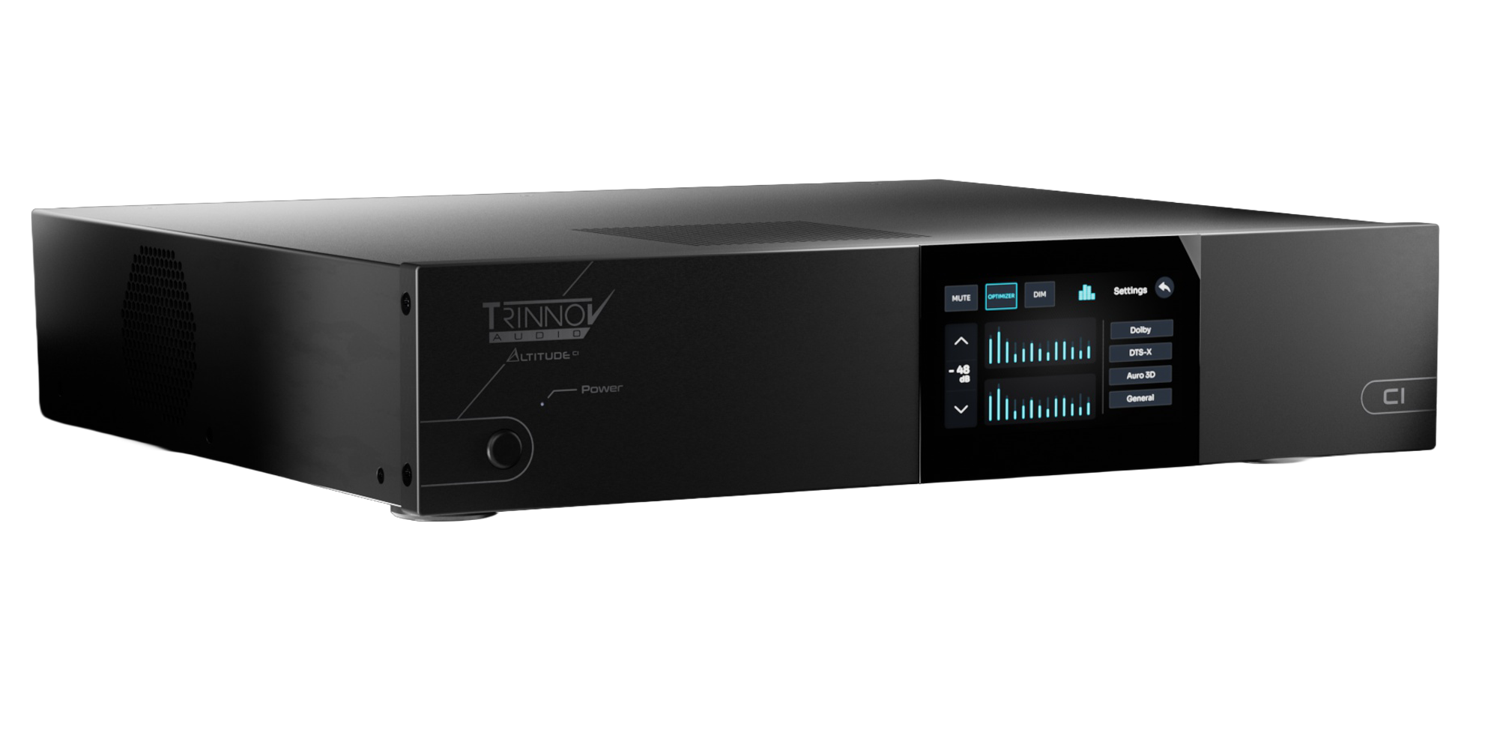

Chassis & Dimensions

  • Form Factor:2RU rack-mountable
  • Net Weight:8.6kg / 19 lbs
  • Front Plate:Smoked-glass touchscreen in brushed aluminum
  • Design:Minimalist, with removable ears/feet
  • W x H x D (no ears/feet):438 x 88 x 371 mm / 17.24 x 3.46 x 14.61 in
  • W x H x D (with ears/feet):482 x 97 x 371 mm / 18.98 x 3.82 x 14.61 in
