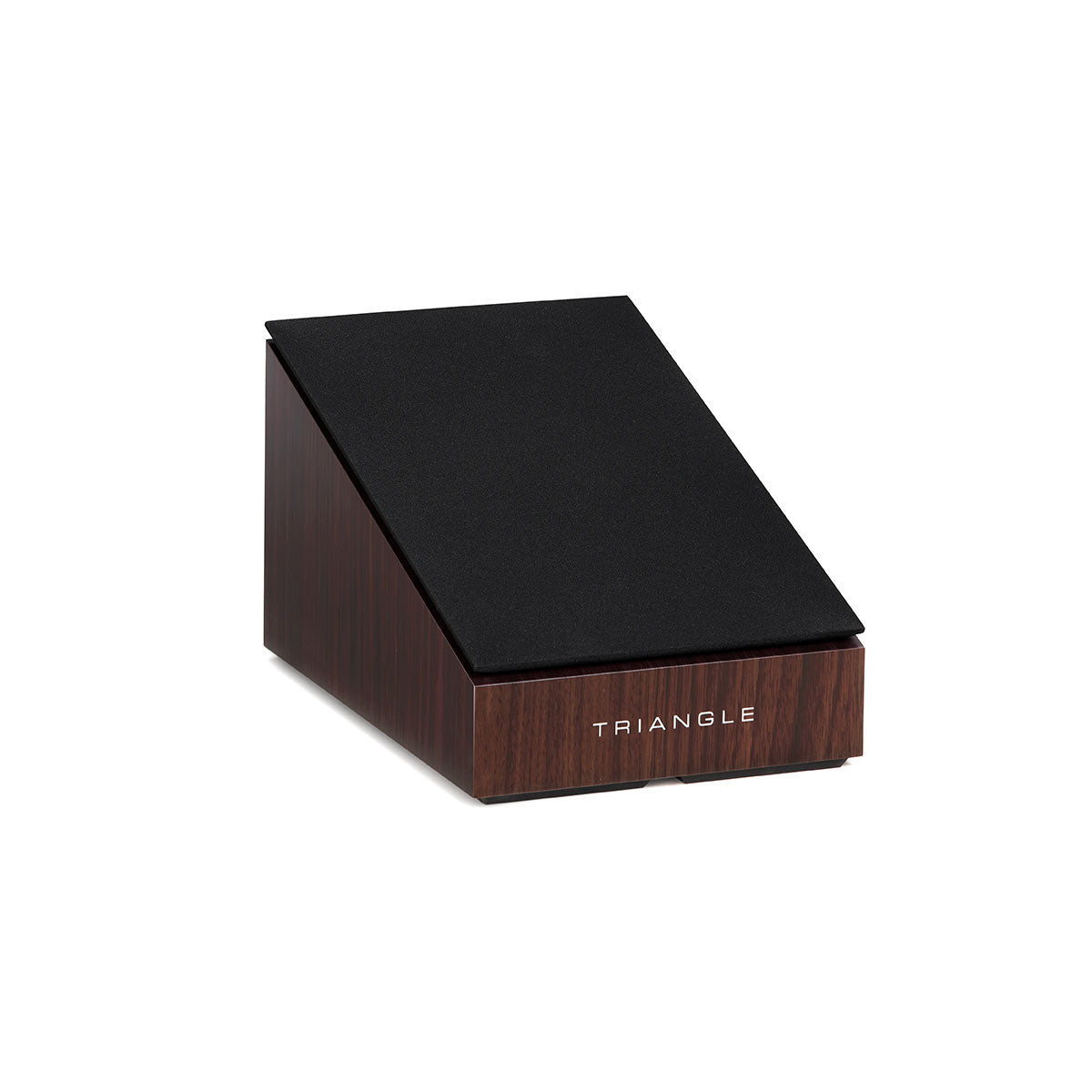

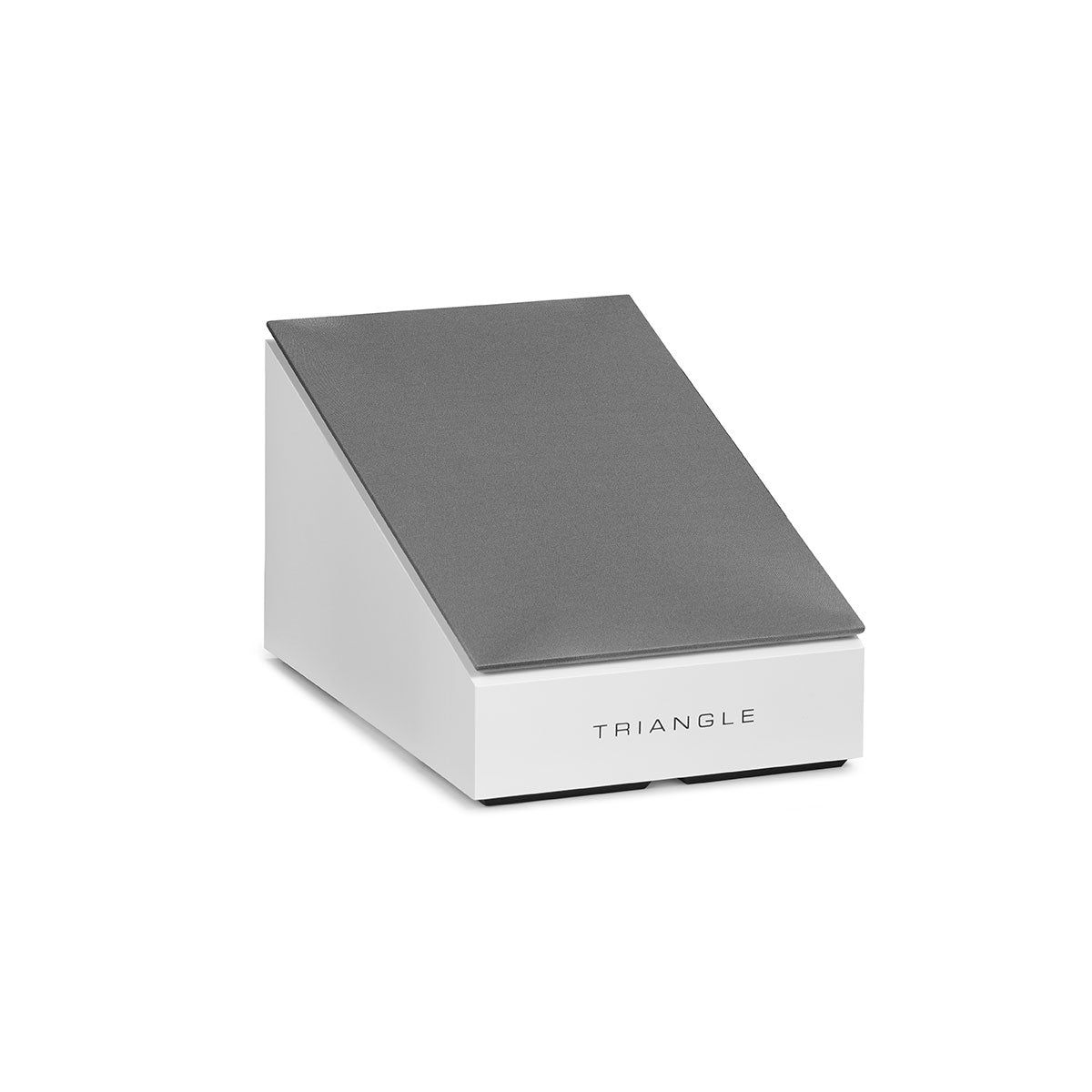

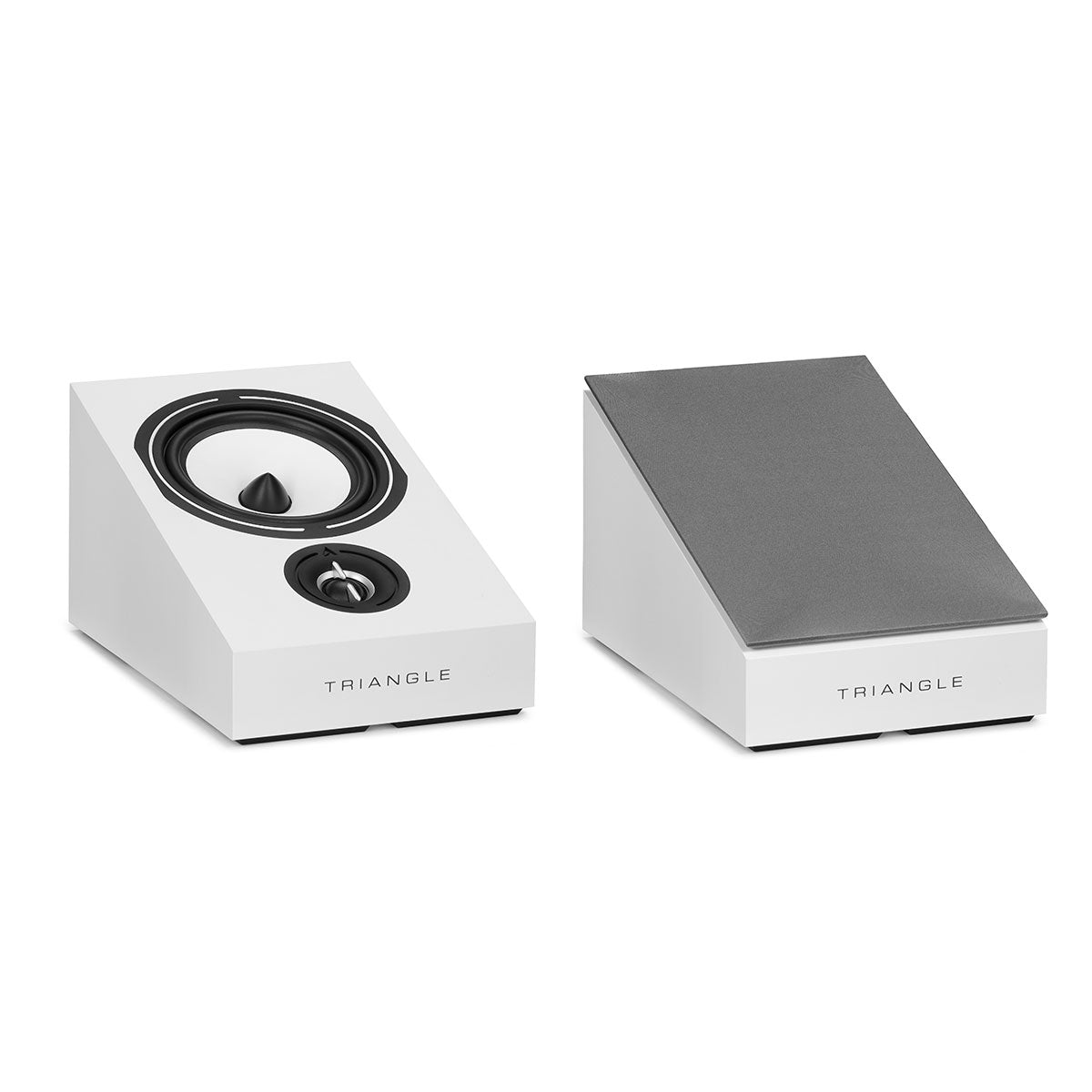

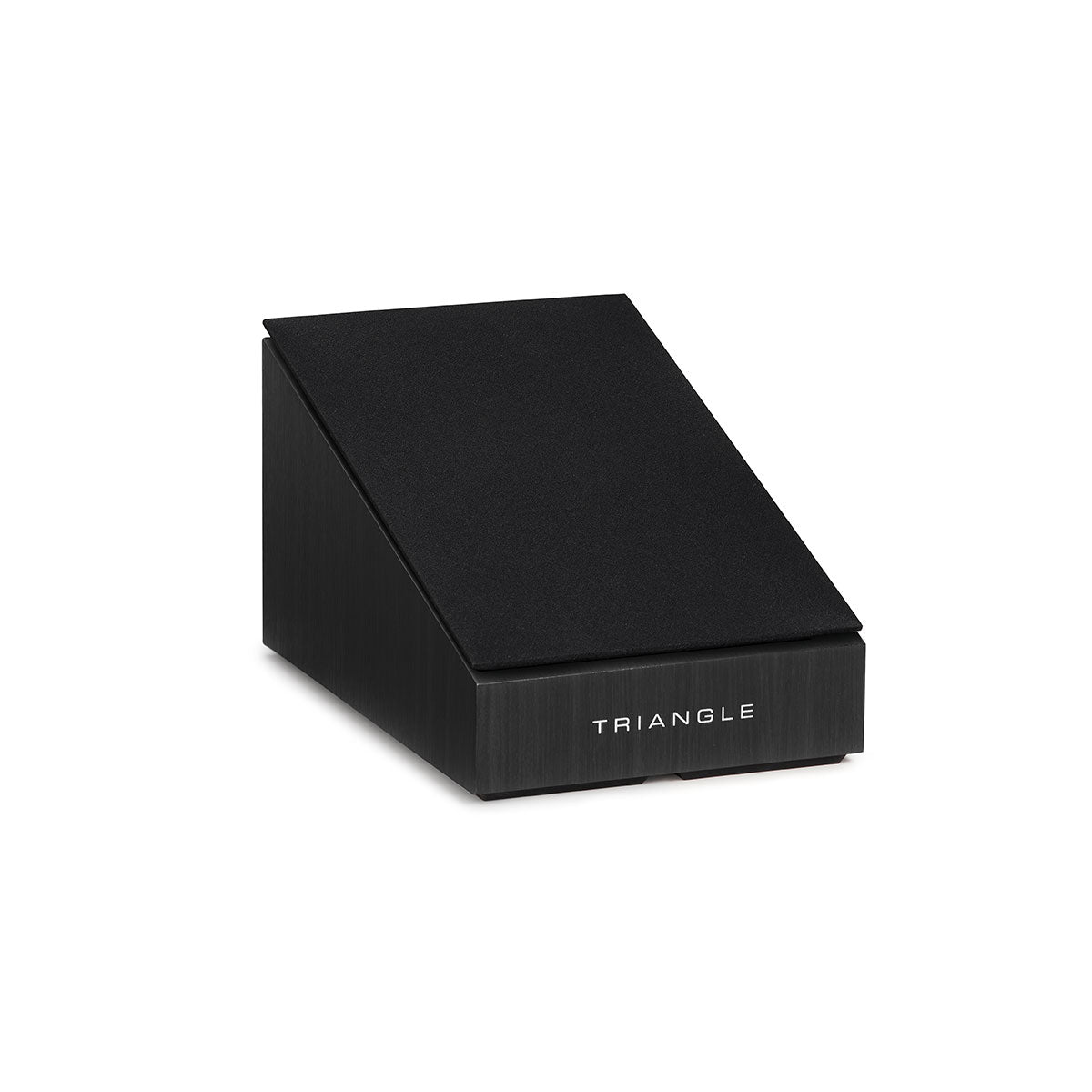

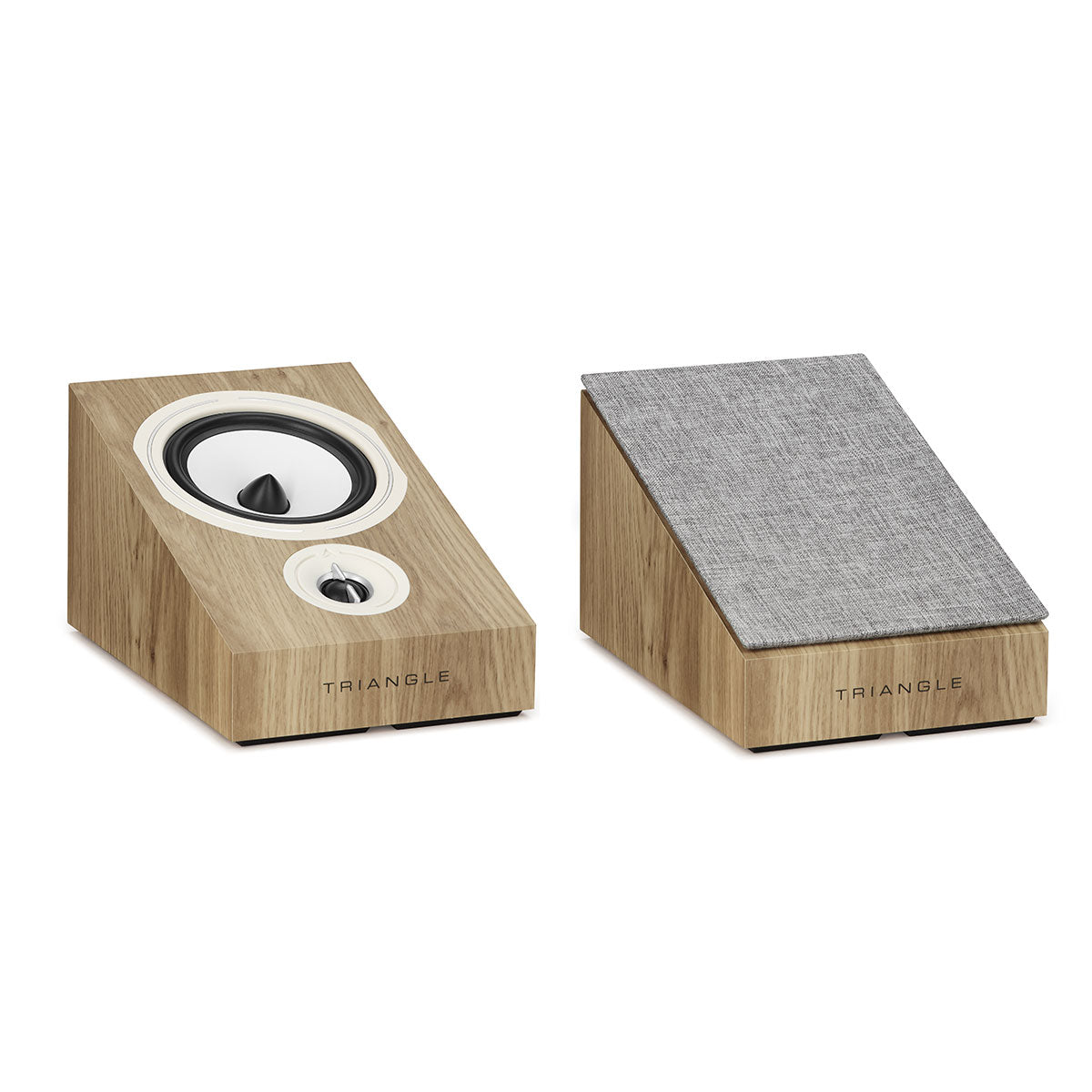

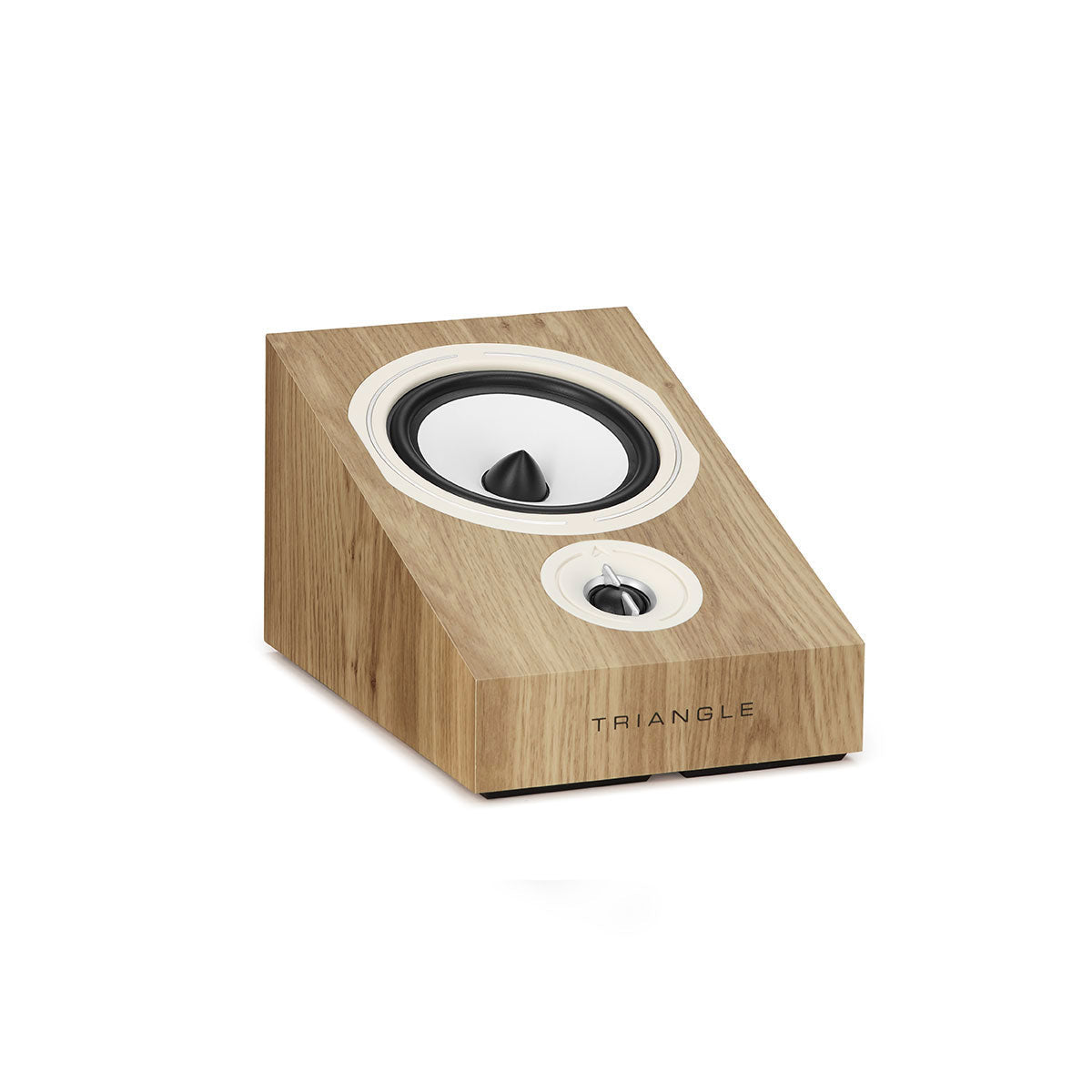

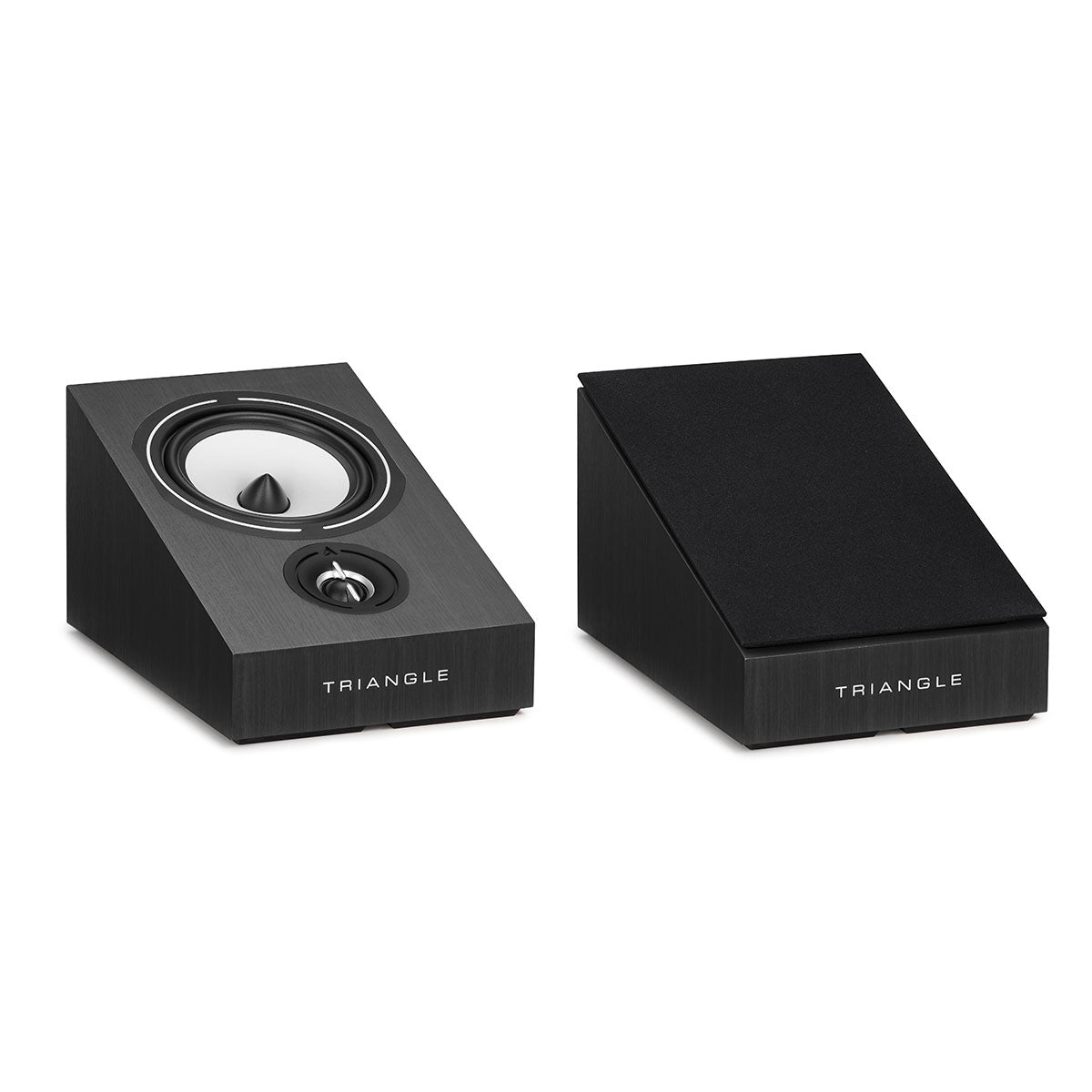

Atmos Speakers – Borea BRA1
The Borea BRA1 speakers, dedicated to the reproduction of sound effects, are an ideal complement for your home cinema setup. Thanks to their adjustable filtering, they can be used in the following ways:

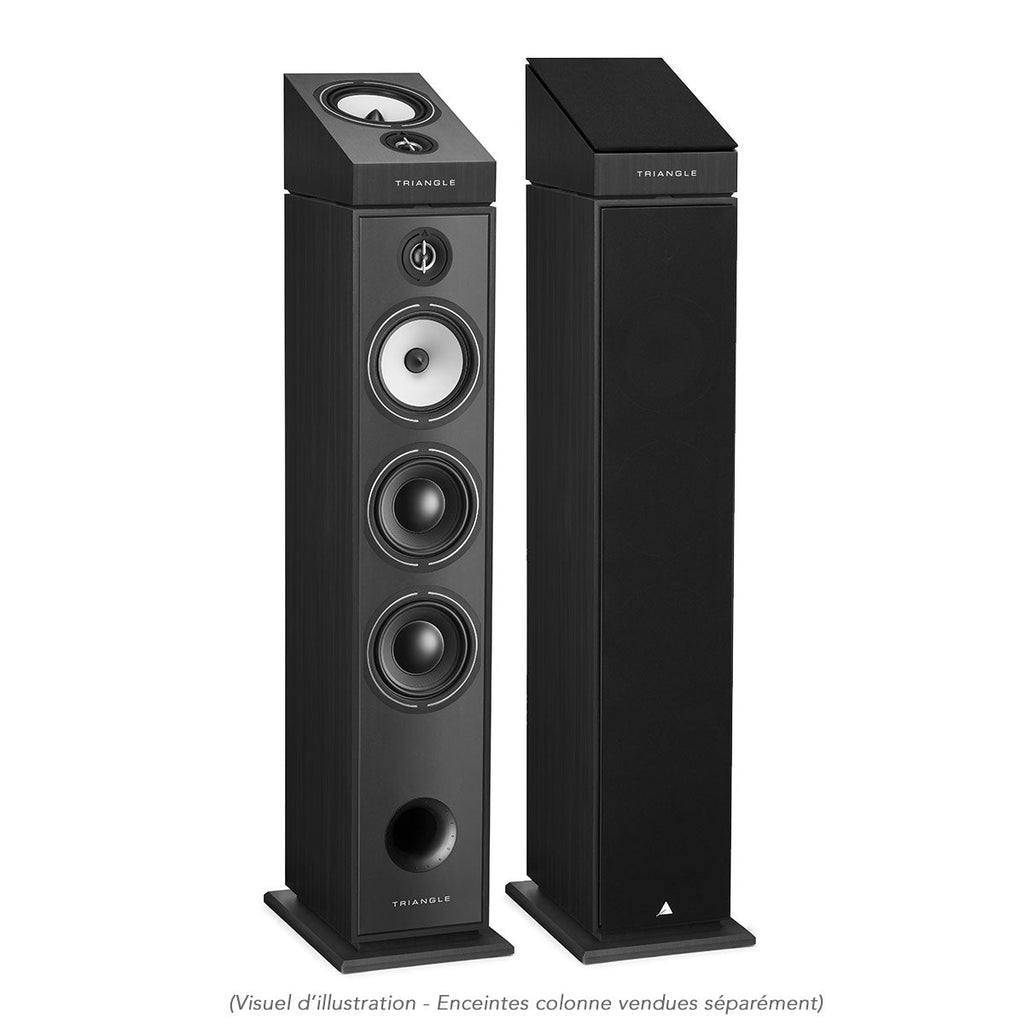

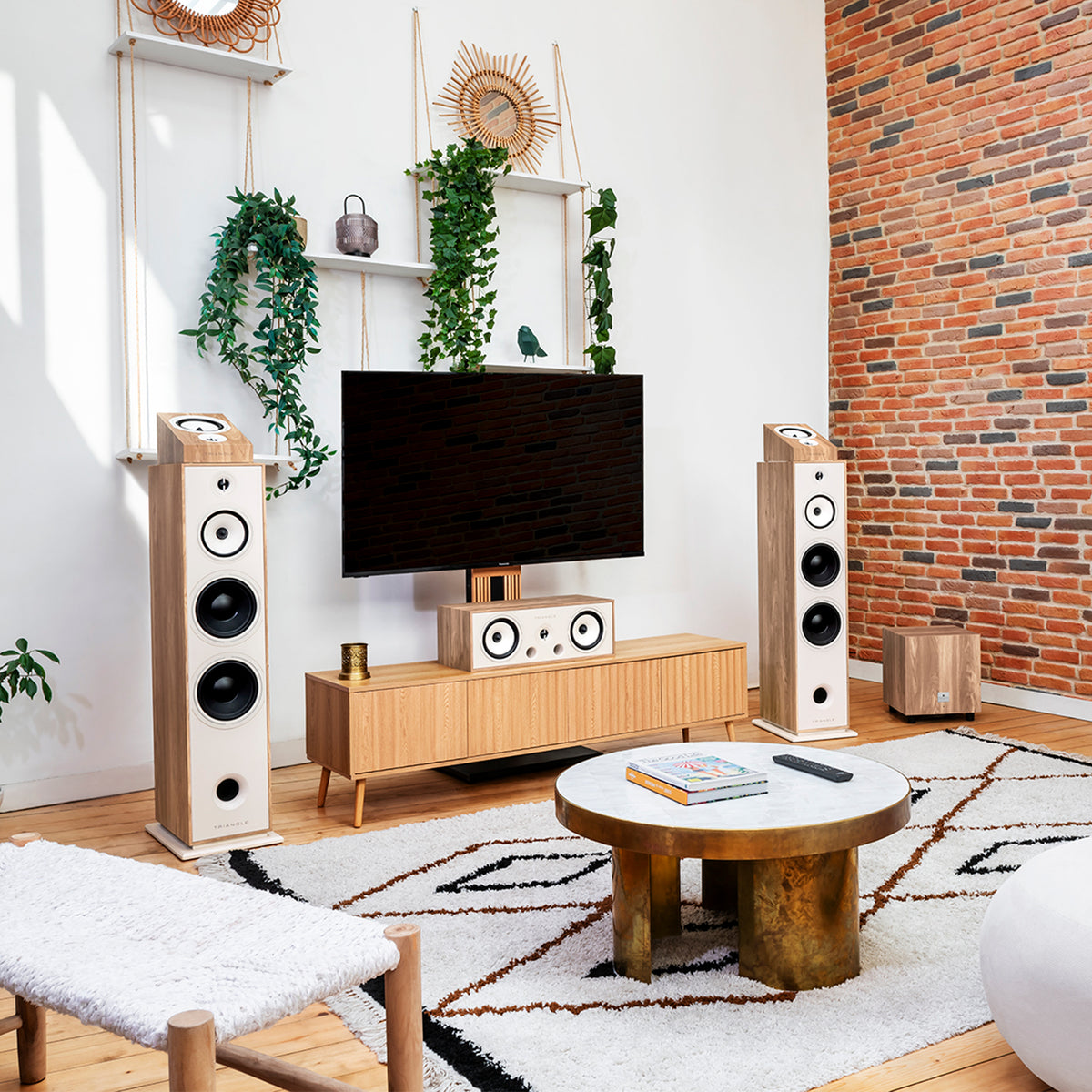

- In vertical 3D effects: The speakers are placed on top of the main speakers*. The BRA1 are then oriented upwards and use the principle of reflection of sound waves.

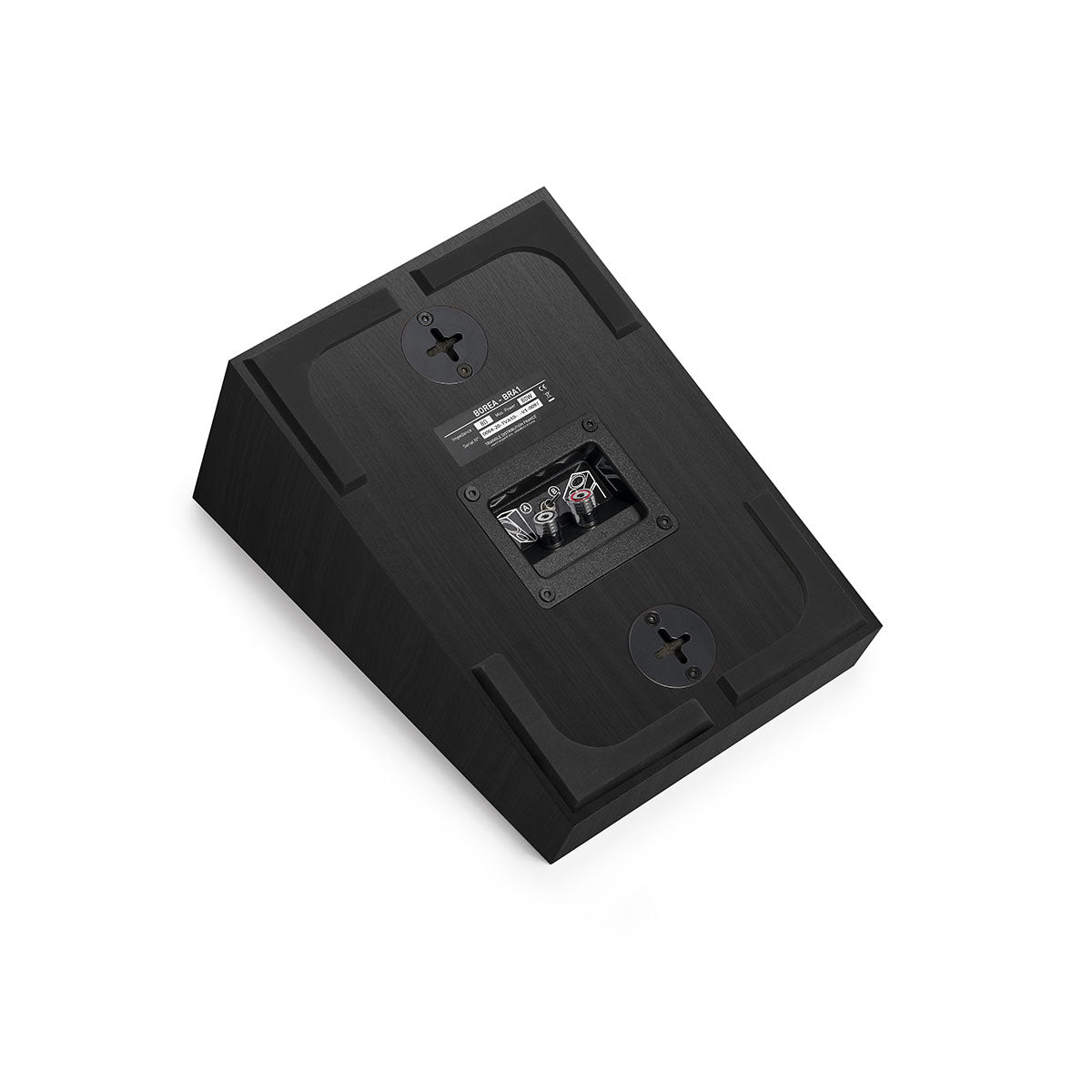

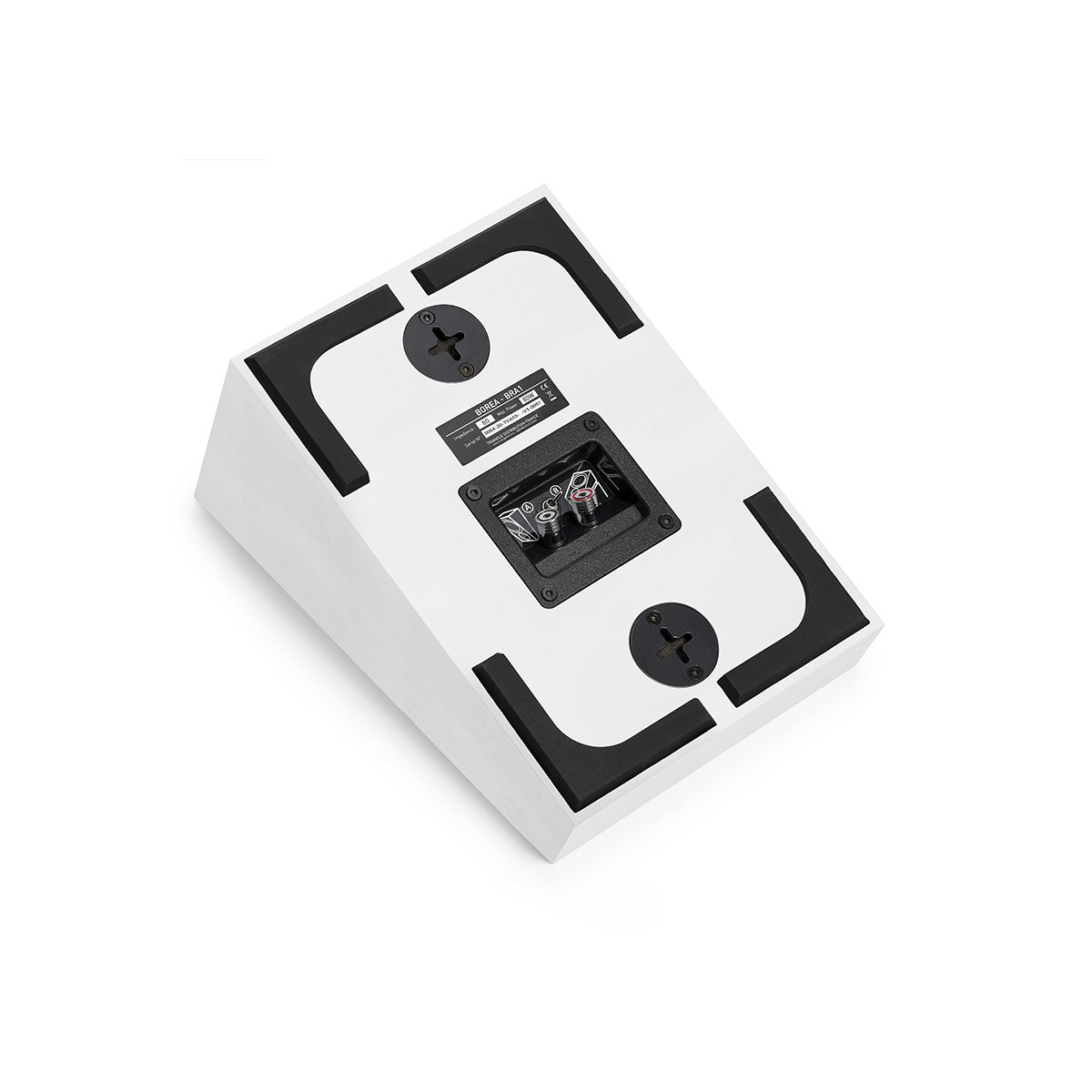

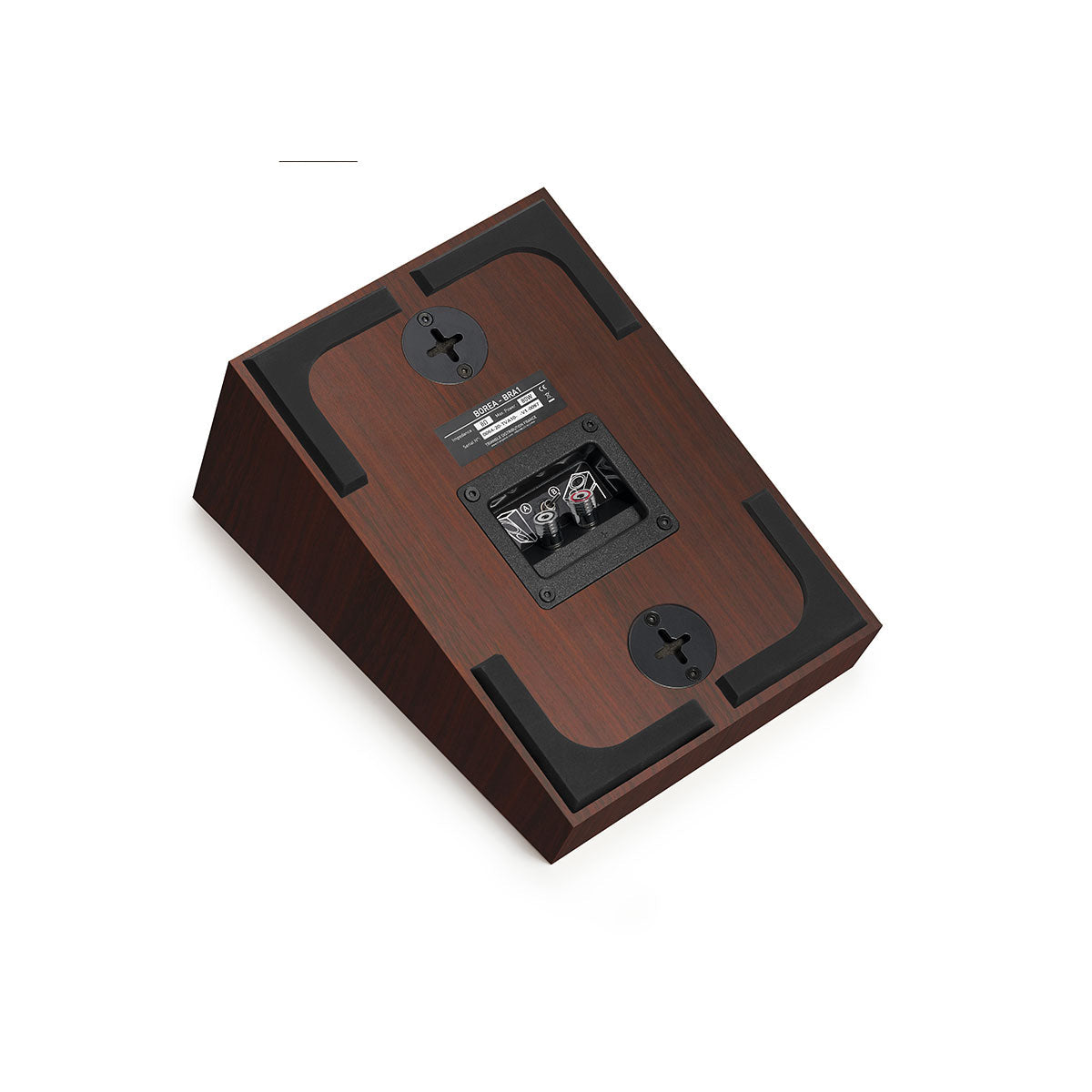

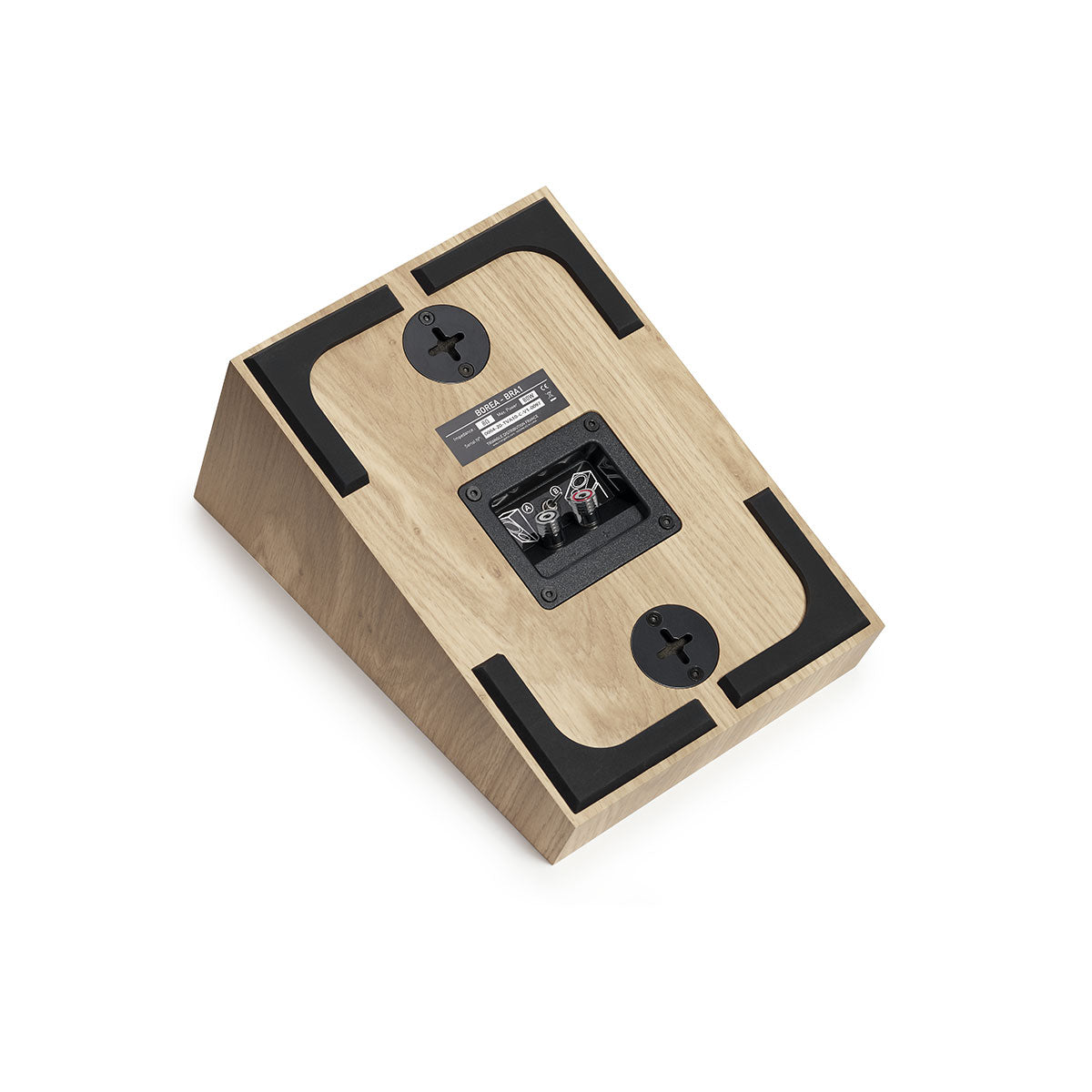

- In horizontal effects: The speakers are placed on the rear and side walls thanks to their dedicated fixing system. The BRA1, with an inclined front, allows precise and direct targeting of sound waves towards the listener.

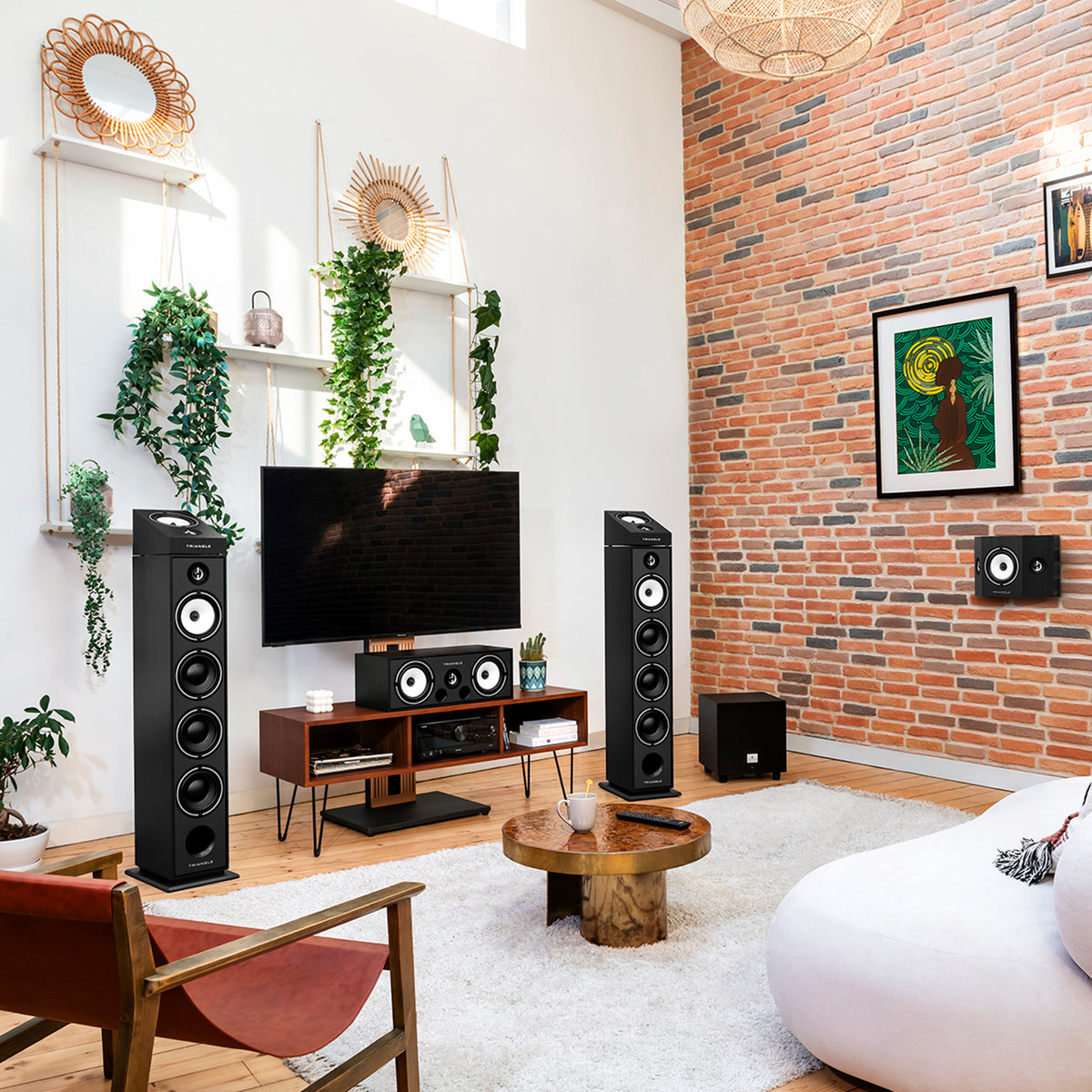

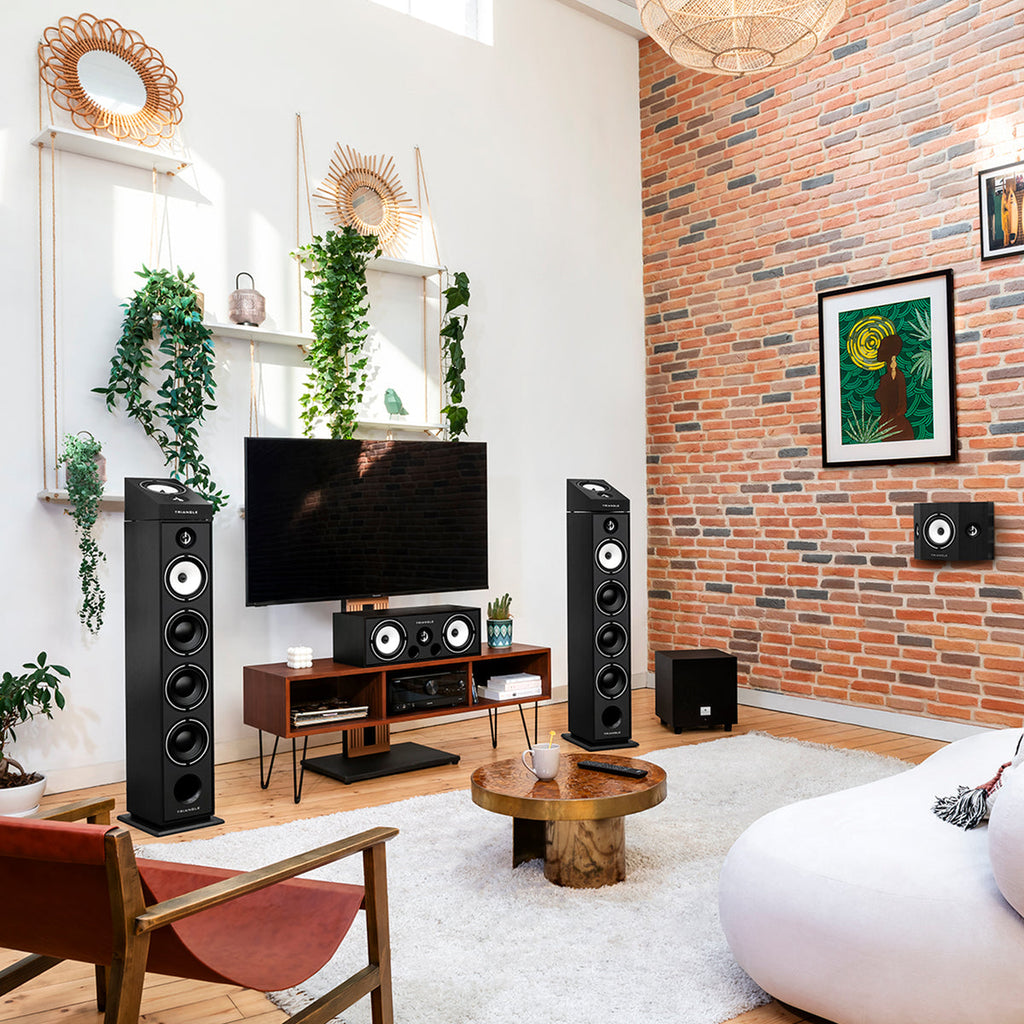

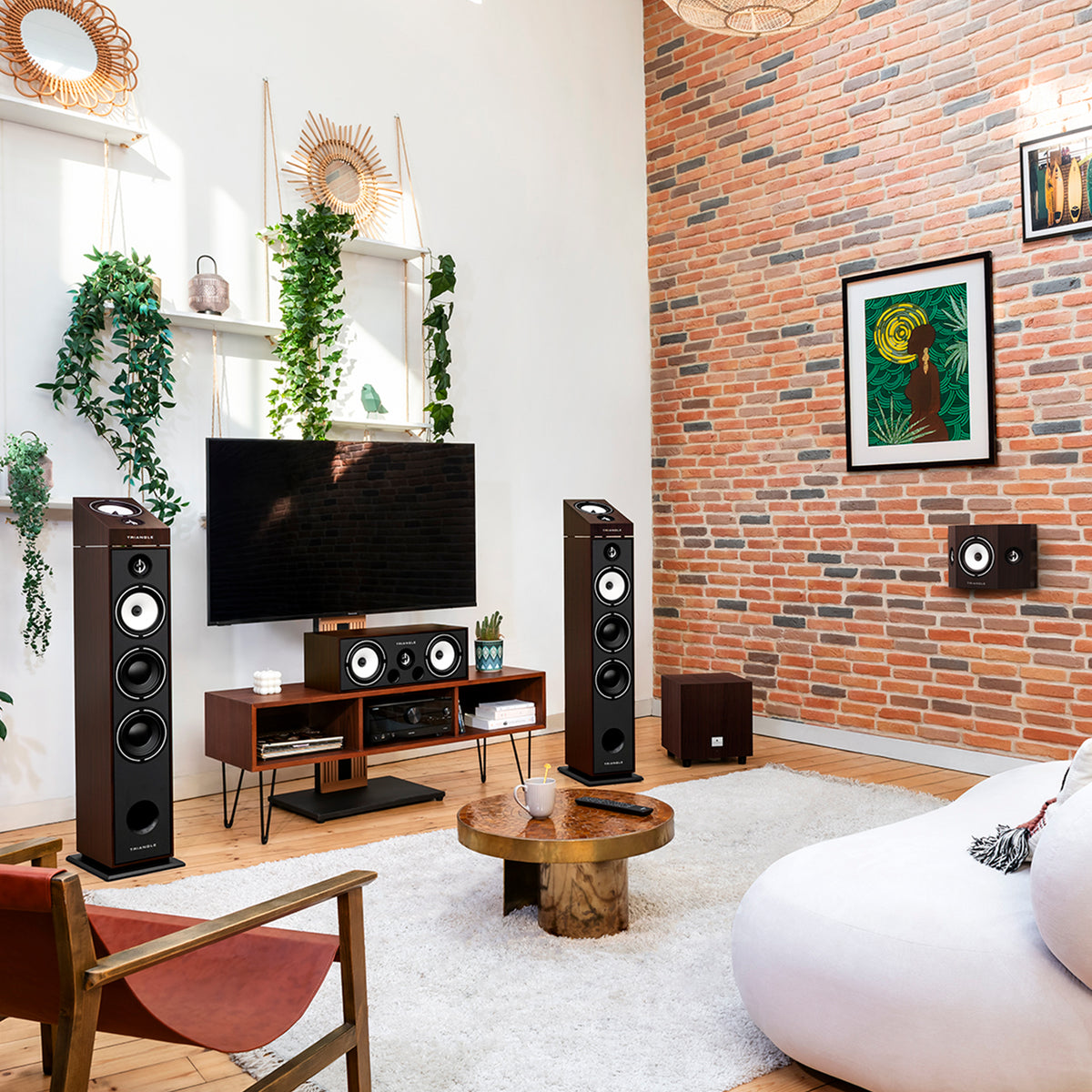

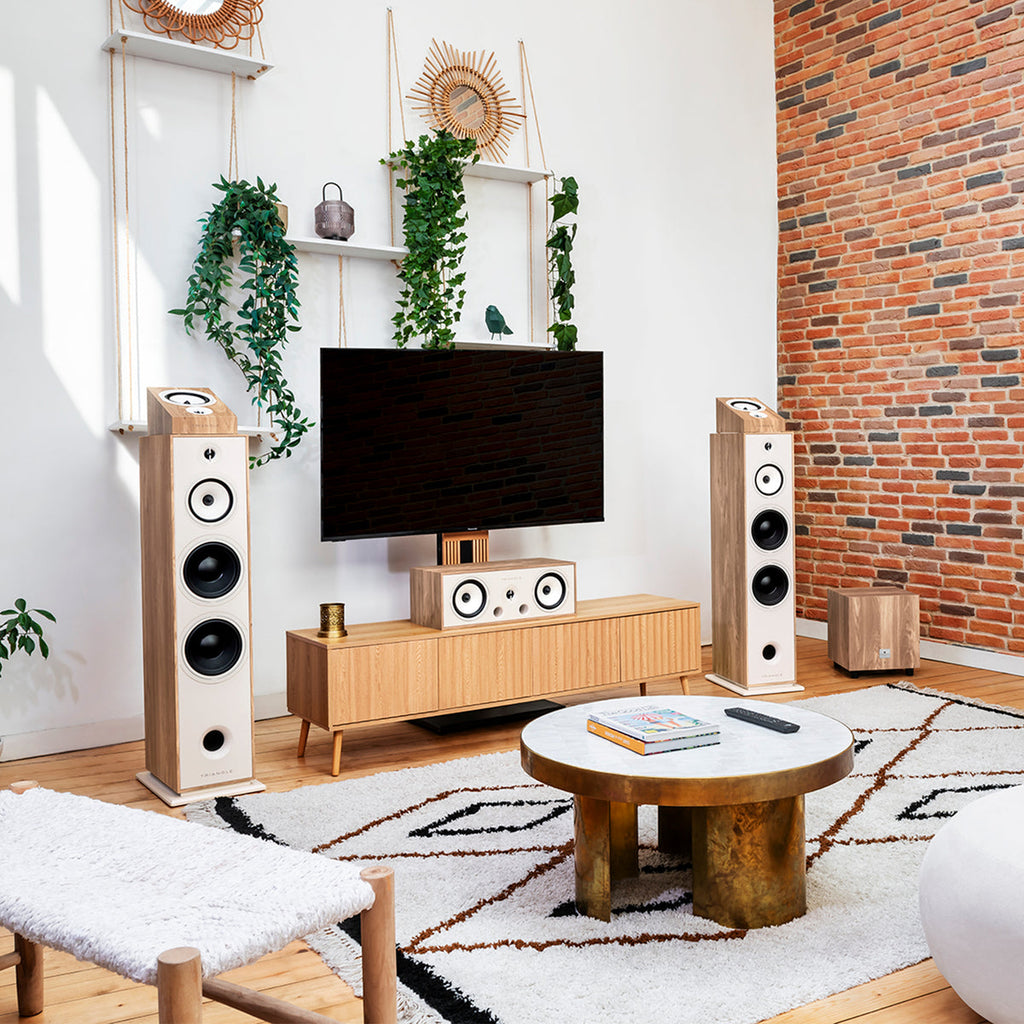

Create a high-performance home cinema system ranging from a 3.1.2 to 9.2.4 configuration, and enjoy clear, precise and dynamic sound, making the experience immersive and rich in emotions. The BRA1 speakers can be positioned on the BR03, BR07, BR08 and BR09 speakers from the Borea range.
Speaker use
Amplifier and Power Handling
Power Handling : 80W
* The power handling of a speaker is the average continuous power that the speaker can accept without damaging the drivers. You can use an amplifier more powerful than the permissible speaker power by limiting the volume to 70% of the maximum capacity. Conversely, an amplifier that is too underpowered will clip and create distortion, which can also damage the speakers if it is used beyond its capacity.
Features
Speaker Specifications
• Type : Effect speakers
• Crossover : 2 Ways
• Sensitivity (dB/W/m) : 89dB
• Bandwith (+/-3dB Hz) : 90Hz-22 000Hz
• Nominal impedance : 8Ω
• Minimum impedance : 4,5Ω
* The impedance of a speaker can be simplified as an electrical resistance. The lower is the impedance of the speaker, the more current the amplifier will have to deliver.
- Nominal impedance is measured at a frequency of 1kHz
- Minimum impedance is measured at low frequencies.
TRIANGLE loudspeakers never fall below 3 Ohms, which means they can be used with almost all Hi-Fi and Home Cinema amplifiers.

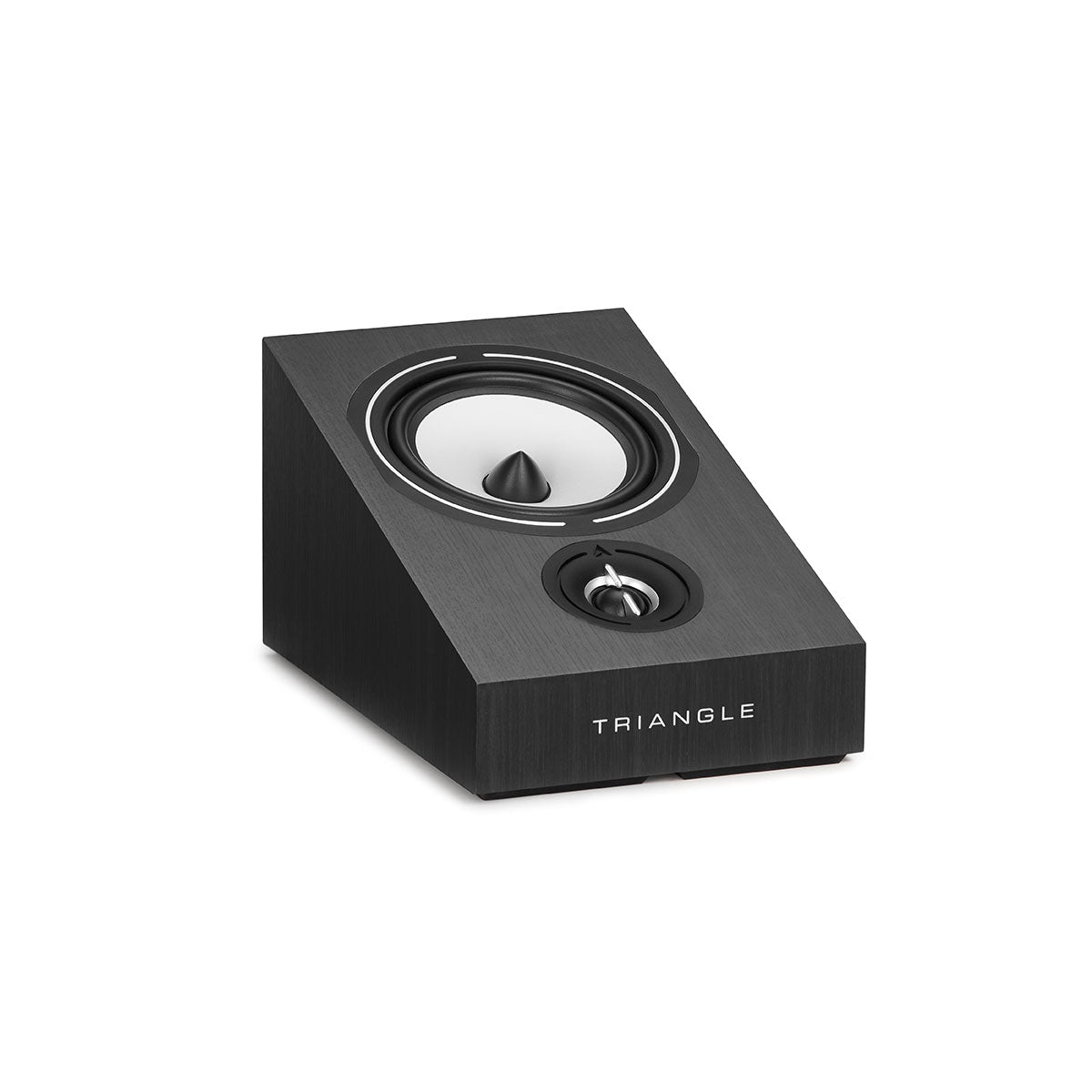

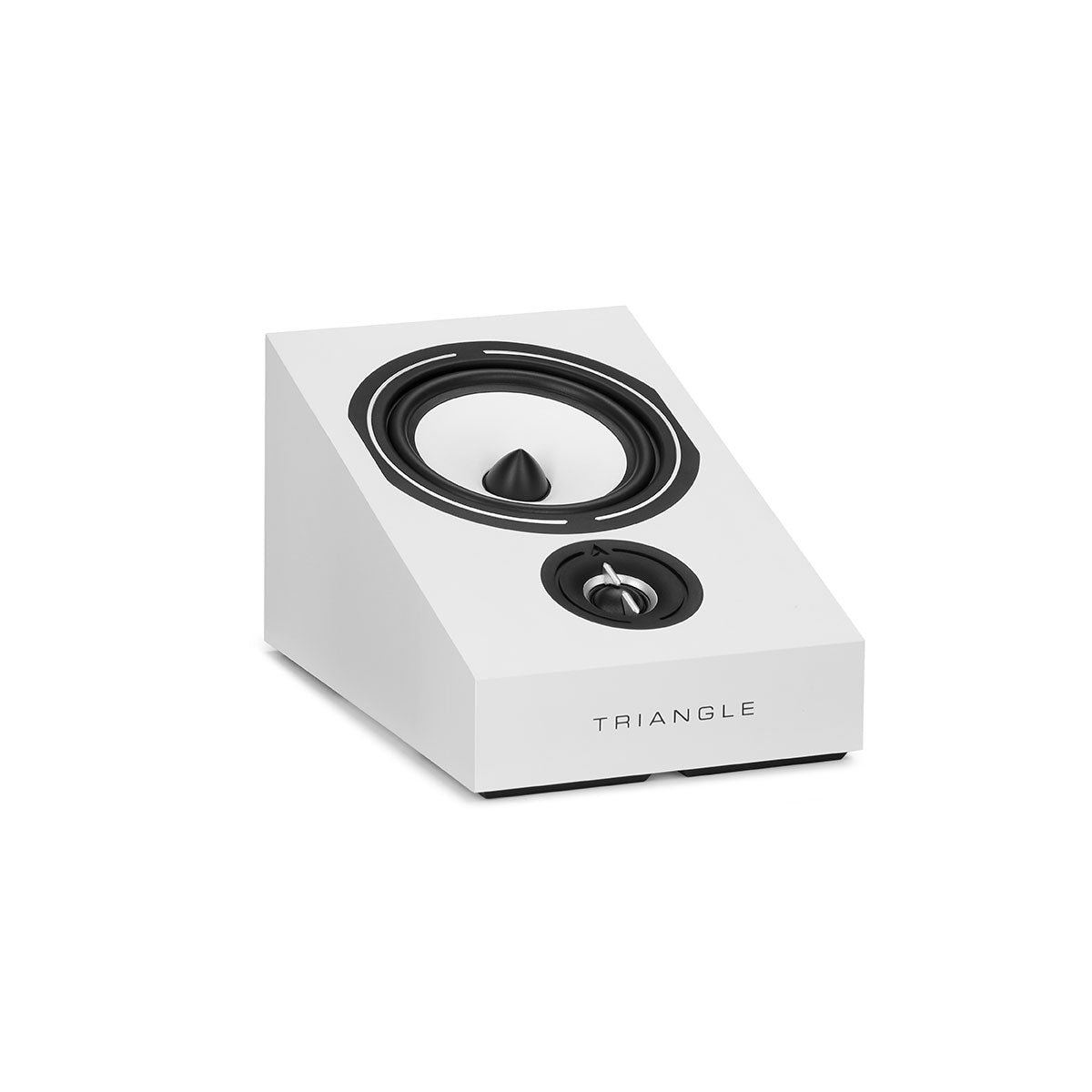

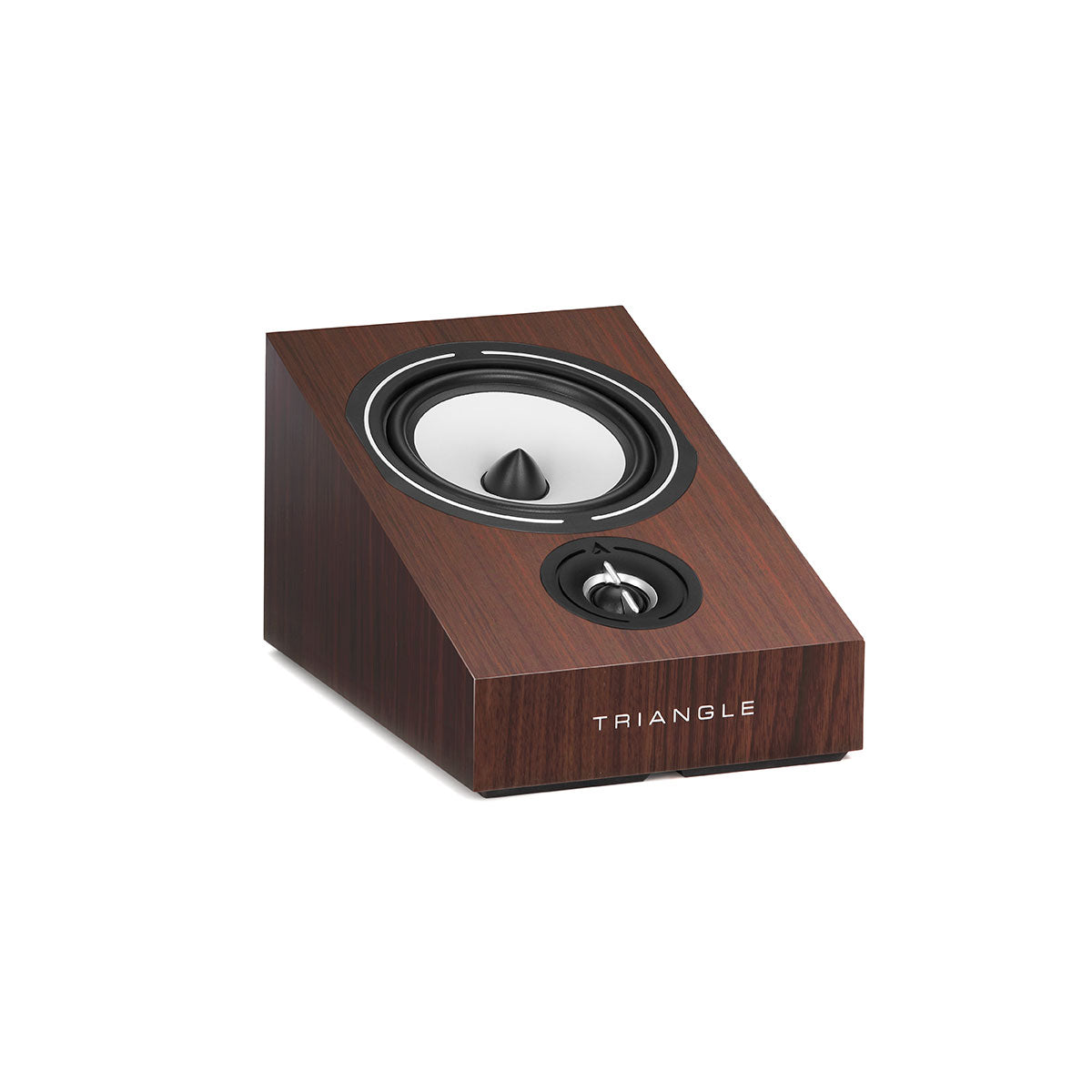

Driver information
2 Drivers :
• 1 x 25mm silk dome tweeter
• 1 x 16 cm midwoofer with natural cellulose pulp membrane
More Information
Weight & Dimensions
Speaker dimensions
• Width : 206 mm
• Height :180 mm
• Depth : 300 mm
Box dimension (pair) (W x H x D): 375 x 280 x 375 mm
Weight
• Net weight : 3,6 kg
• Gross weight (Pair) : 8,5 kg
