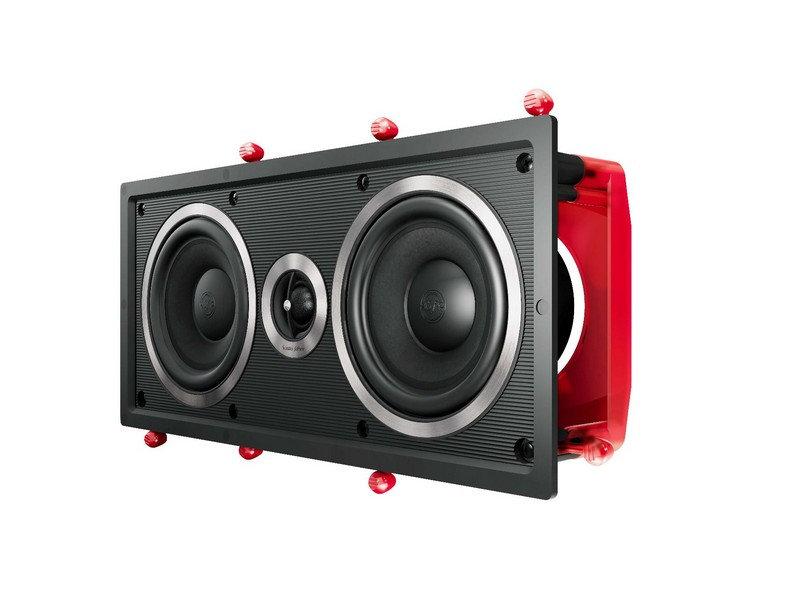

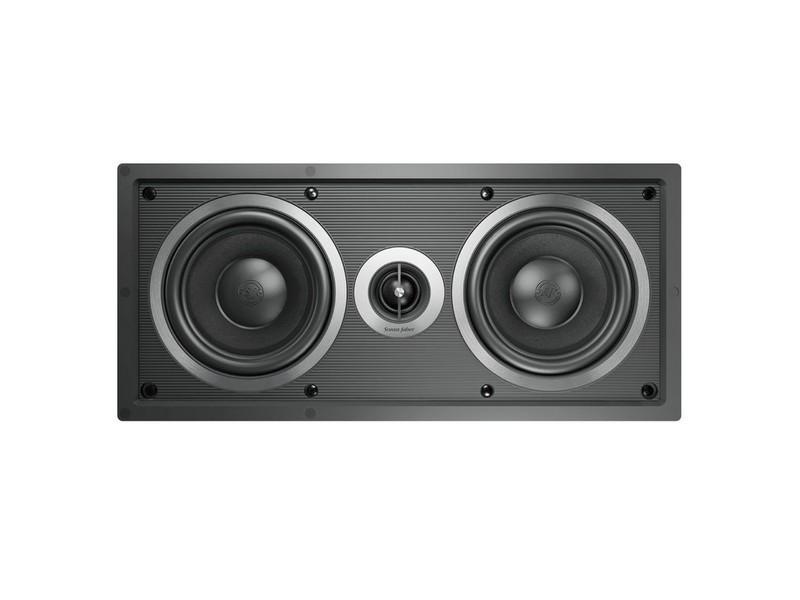

Sonus Faber PL-563 2-way Left/Right/Centre In-wall System
Brand Sonus Faber
SONUS FABER PL-563
Family Feeling The PL-563 directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design. Tweeter and mid-woofers are enriched with satin aluminum trims. Multiple Positions The LCR model PL-563 is designed to cover multiple roles according to different needs, front / side / surround channel if used in vertical position or center channel if mounted horizontally. The tweeter ring can be oriented according to the needs. Magnetic Grilles The PL-563 is equipped with a magnetic edgeless square metal grille, ready to be painted. Quick Installation Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
DAD (Damped Apex Dome) silk dome tweeter.
The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.
The anti-resonant design of the x-over network features the Paracross TopologyTM circuitry, to guarantee a better definition and purity of sound.
- 2 way left / right / centre in-wall loudspeaker system
- 29 mm / 1.1 in tweeter & 2 x 165 mm / 2 x 6.5 in midwoofer
- 45 - 25,000 Hz Frequency response
- Infinite baffle
- Paintable magnetically attached grille
A full line of Custom installation speakers in-wall and in-ceiling that inherits design and technical solutions from the entry level collection of Sonus faber, the Sonetto collection. Discreet and effective solution for any listening environment.
Palladio custom installation speakers naturally combine esteemed functionality and versatility of use with beautiful aesthetic and sound. This product’s vision aimed to break barriers for music, respecting the proportion of the listening environment, to bring the emotion of the musical experience everywhere in a total sound immersion.To achieve this goal, the Palladio collection features several important design solutions available in the Sonus faber high end loudspeakers catalogue.
We can subdivide the Palladio collection into two lines: Level 5 and Level 6, ideal completion of Sonetto and Olympica collections respectively with 13 models in total. Level 5 offers 2 In-Wall and 4 In-Ceiling speakers and the Level 6 includes 2 In-Wall and 5 In-Ceiling speakers. Additionally, both lines boast an option to add a versatile passive subwoofer (PS-G101).
The Voice of Sonus faber is timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand.As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp. The Crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross TopologyTM circuitry.
Any Custom Installation speaker line is designed to blend into the listening environment, but the Palladio Collection is intended to be seen and showcase the beauty of Italian design and creativity, without compensating functionality. Front panels of speakers reference our “traditional” collections and integrate the string pattern explicitly reminiscent of the Sonetto bookshelves’ stand design (Level 5). The Level 6 features the walnut wood front panels with maple inlays, derived from the typical Olympica finish.For those who do not want to renounce to the Sonus faber style, Level 6 (PL-664 and PW-662 models) can be upgraded with classic elastic grilles masks, typical feature of our most recognized models.
The Sonus faber Palladio collection is made up of 13 models of loudspeakers designed to satisfy all listening needs in home theater, stereo and multi-room configurations.A versatile collection, the Palladio custom installation speakers offer an ideal completion for every system. They are designed to offer a complete solution for every listening room and occasion to become a part of the everyday listening experience.
Palladio: The New Custom Installation
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
The Voice Of Sonus Faber
It's timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
Level 5 And Sonetto: Harmonic Integration
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).

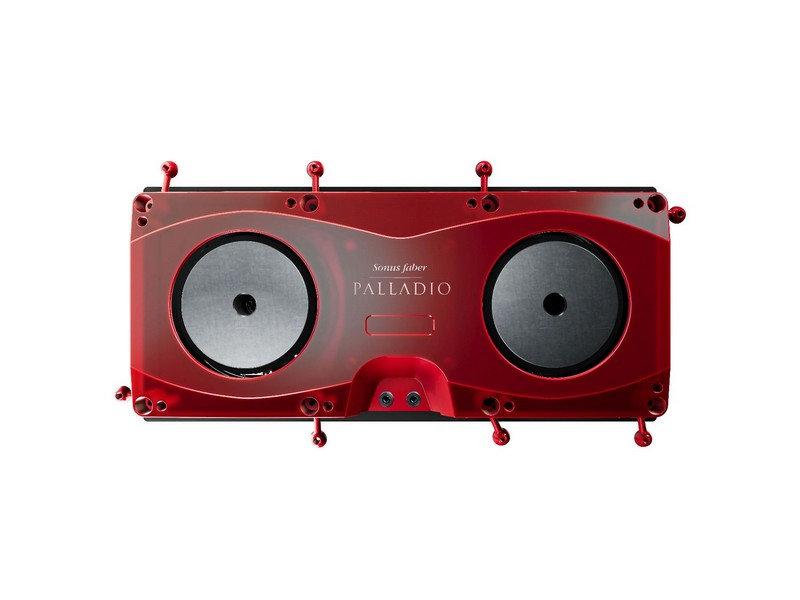

Easy To Install And Customise
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Two-way left/right/center In-wall system. Infinite baffle
Tweeter - DAD Driver
29 mm / 1.1 in
2 x 165 mm / 2 x 6.5 in
Crossover Frequency - Paracross Topology
50 - 25,000 Hz
Sensitivity (2.83 Vrms @ 1m)
Coverage Angle (1 kHz, @-6 dB)
± 45° H - ± 45° V
Suggested Amplifier Power Output
40 – 250W without clipping
471 x 216 mm / 18.5 x 8.5 in
448 x 192 mm / 17.6 x 7.6 in
Depth Behind Surface
101 mm / 3.4 in
13 mm / 0.51 in
6.3 Kg / 13.9 lb
Included In The Box
Bezel-Free round magnetic grille
