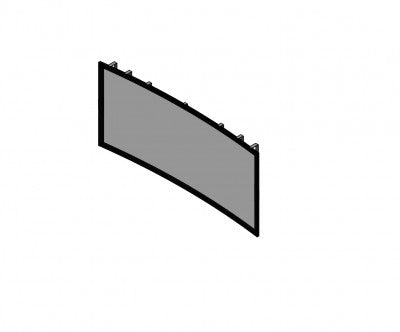

ScreenTechnics CinemaSnap MX Curved Screen - 2.35:1 Fixed Frame Screen



The combination of wide images and the use of an anamorphic projector lens can lead to pincushion distortion. This phenomenon can cause the image to look flat or pinched at the centre of the screen and appear higher towards the corners of the screen.

Using a curved screen creates the feeling of being surrounded by the image and helps eliminate the pincushion effect. A curved screen also improves the perceived image uniformity by reflecting the projected light to the viewer, including light at the edges of the screen, which on a standard screen is reflected away from the viewer.

Benefits include

  • Reduces pincushion distortion
  • Captivating, cinema-like viewing
  • Improved brightness uniformity for the viewer


  • Standard 78mm with matt black flocked finish​
  • 12m radius
  • 44mm depth


  • Matrix White grey backed
    (Gain 1.1)


  • 78mm top, sides and bottom


  • 84" - 180" diagonal


  • MultiTech wall brackets

Optional Extras

  • 9m radius curve
  • Custom powdercoat colours
  • Custom sizes and formats


  • 3 years (see T&C for more details)
