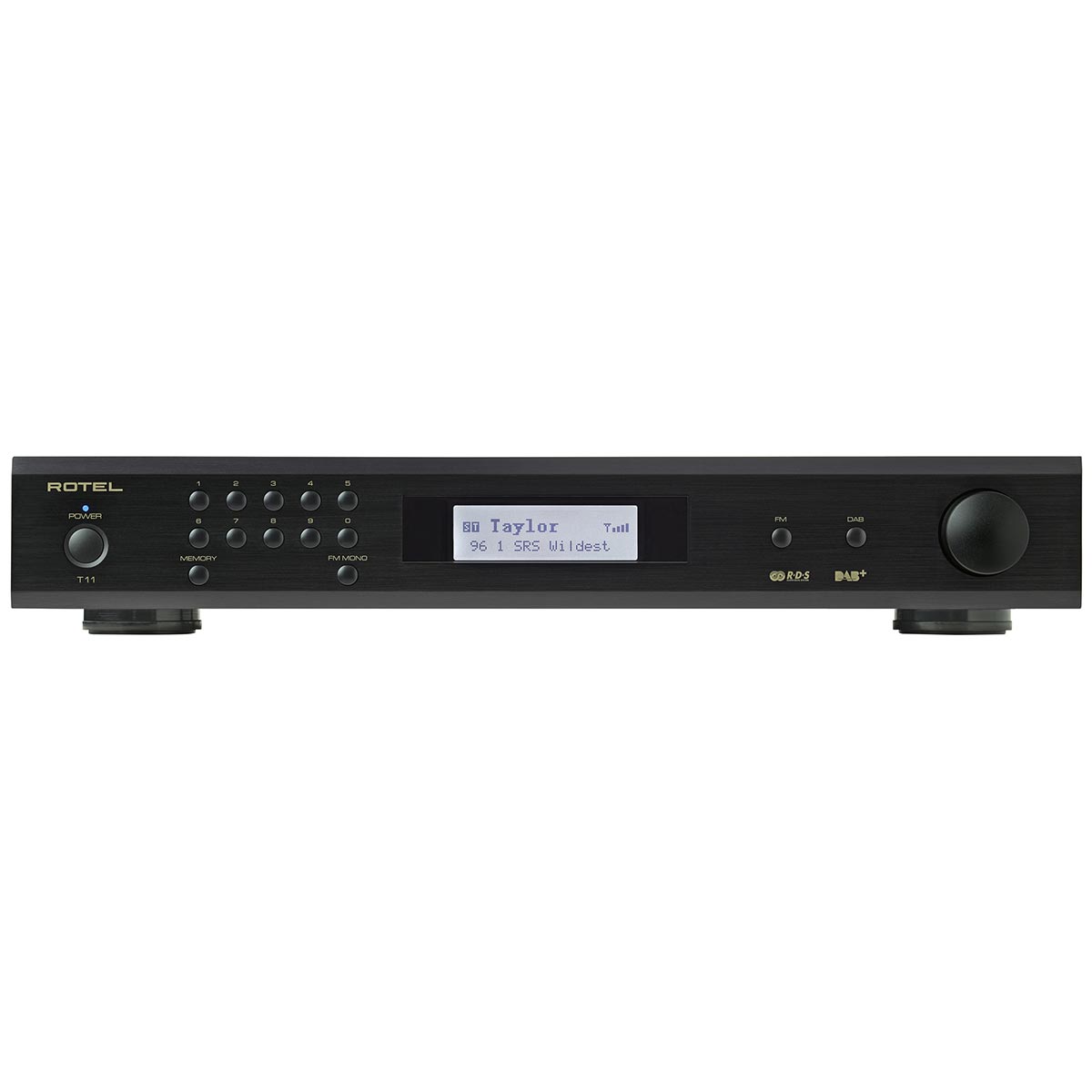

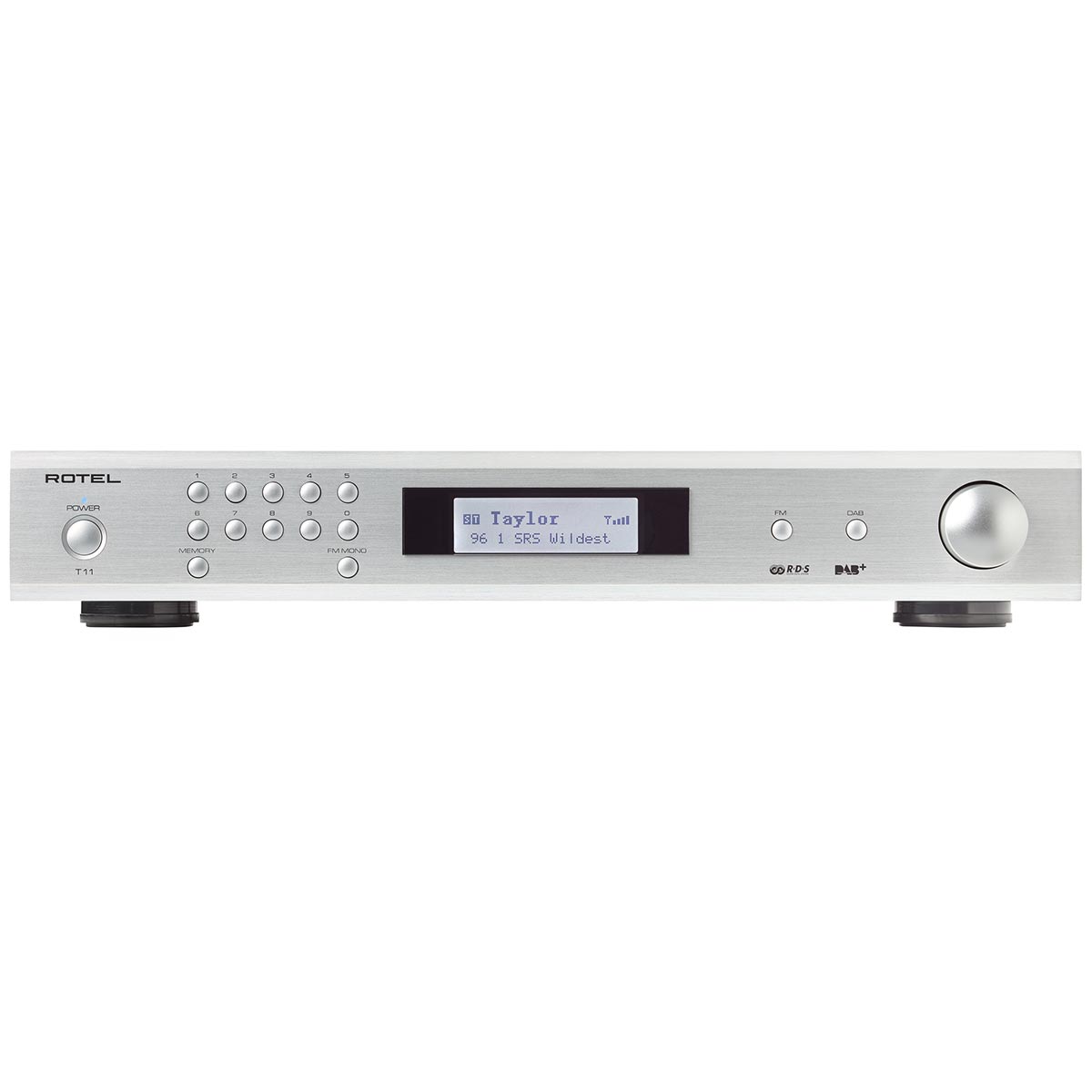

Rotel T11 FM/DAB+ Tuner
Rotel T11 Digital Radio Tuner is easy to operate with memory up to 30 FM and DAB+ Stations each.
Rotel has been producing quality tuners since the 1960s. One of the latest additions to this long-established line-up is the T11 FM/DAB+ tuner. It provides a wealth of listening options with easy access to classic analogue FM stations as well as newer DAB+ (Digital Audio Broadcasting) services.
Like the T14, T11 features the ability to easily store and recall up to 30 presets each for FM or DAB+ stations. A further useful feature common to all 14 Series products is the ability to dim the display panel and power LED to provide a comfortable visual reference in all lighting environments.
DAB SENSITIVITY: -80dBm
DAB TUNING RANGE: Band III (174-240MHz)
DAB AUDIO DATE RATE: 224Kbps Max
DAB FREQUENCY RESPONSE: 20Hz – 20kHz ±1dB
DAB ANALOG OUTPUT: 2.1V at 0dBfs
DAB ANTENNA INPUT: 75Ω F Connector
FM USABLE SENSITIVITY: 22.2dBf
FM 50DB QUIETING SENSITIVITY: 27.2dBf (Mono)
FM SIGNAL TO NOISE RATIO (at 65dBf):
FM HARMONIC DISTORTION (at 65dBf):
FM FREQUENCY RESPONSE: 10Hz – 15kHz ±3dB
FM STEREO SEPARATION (100Hz/1kHz): 40dB/37dB
FM OUTPUT LEVEL: 1V
FM ANTENNA INPUT: 75Ω F Connector
DIMENSIONS (W × H × D): 430 × 73 × 330mm
FRONT PANEL HEIGHT: 60mm
POWER REQUIREMENTS: 230V, 50Hz
POWER CONSUMPTION: 10W
STANDBY POWER CONSUMPTION: <0.5W NET WEIGHT: 4.3kg
