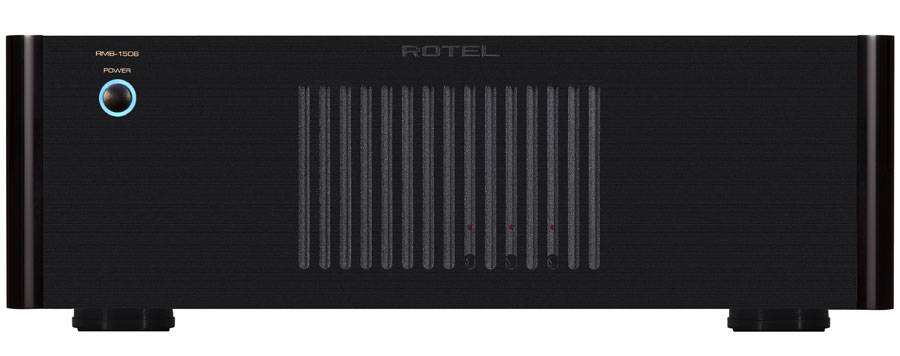

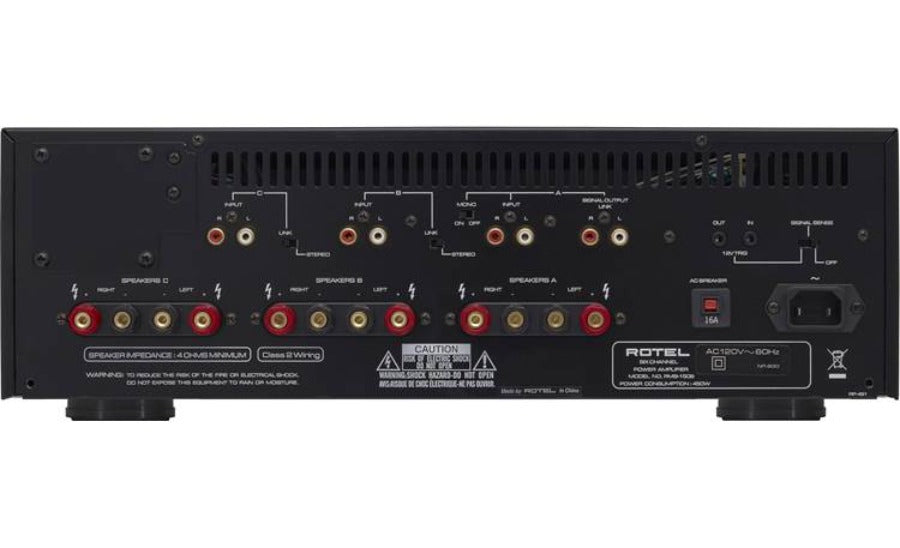

Rotel RMB-1506 Distribution Power & Multi Channel Power Amplifier

$1,484 $1,649
By Rotel

Description

This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.

Features:

  • 6 x 50 Watts of robust power
  • Class AB amplifier design
  • Rack ears included
  • Automatic signal sensing
  • 12 volt trigger input

*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.

Specifications:

Amplifier Class AB
Continuous Power Output 50 W/Ch (All Channels Driven, 8Ω), 80 W/Ch (All Channels Driven, 4Ω)
Total Harmonic Distortion (THD) 20 Hz – 20 kHz <0.03%
Frequency Response 10 Hz - 100 kHz ±1 dB
S/N Ratio (IHF "A" Weighted) 115 dB
Gain 26 dB
Intermodulation Distortion (60 Hz:7 kHz, 4:1) <0.03%
Damping Factor >200
Speaker Impedance 4Ω Minimum
Input Sensitivity 1 V
Input Impedance 20 kΩ
Dimensions, Weight & Power
Dimensions (W x H x D) 431 x 144 x 424 mm (17" x 5.7" x 16.7")
Front Panel Height 3U / 132.6 mm (5.25")
Power Requirements 230 V, 50 Hz
Power Consumption 450 W
Standby Power Consumption 2.6 W
Net Weight 15.3 kg (34 lbs.)
BTU Rating (4Ω, 1/8th Power) 1680 BTU/h
