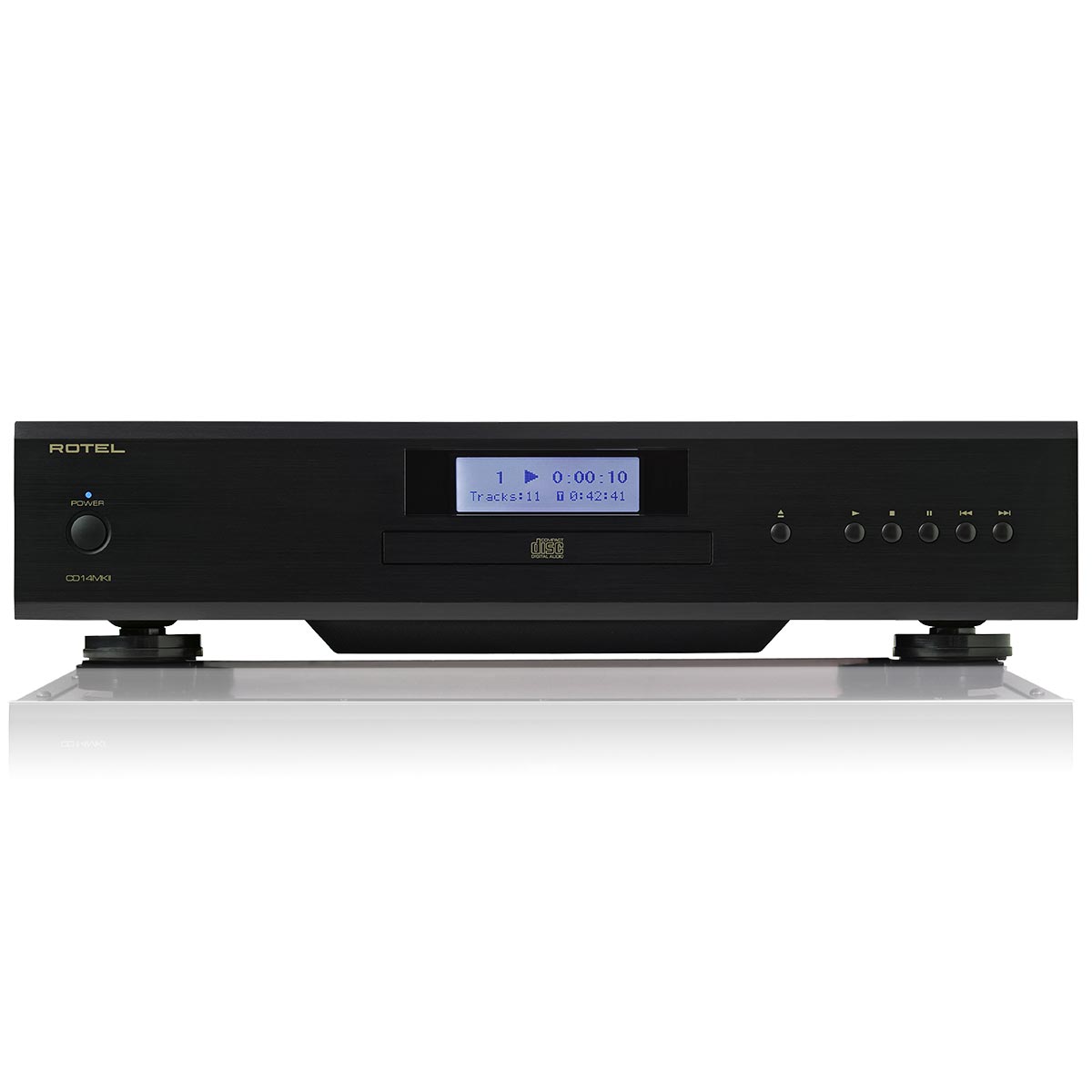

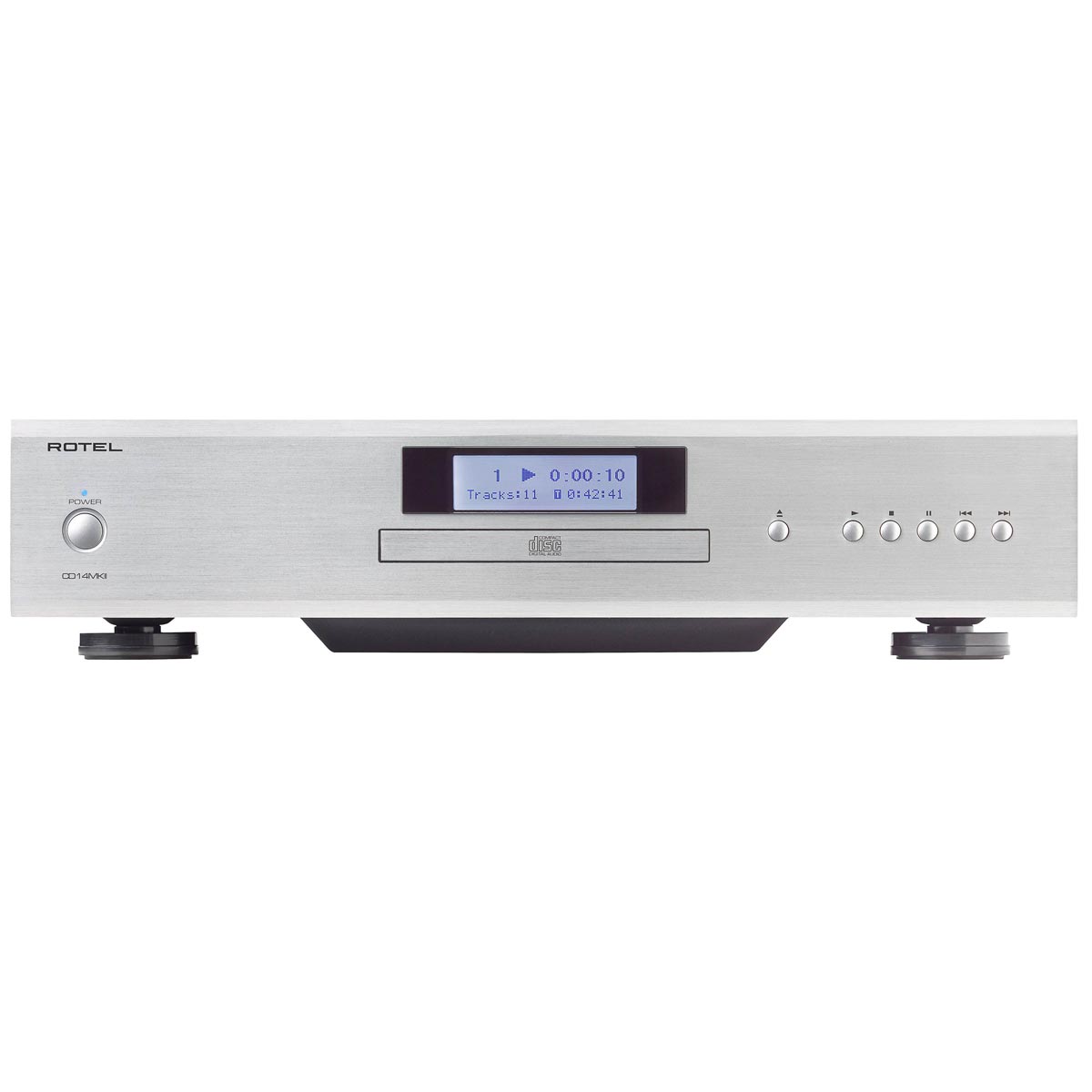

Rotel CD14MKII CD Player
The CD14 MKII delivers accurate reproduction of CDs with stunning clarity resolving even the finest details. The Texas Instruments 32-bit DAC is supported by independent power supplies isolating motor controls from sensitive audio circuits reducing noise and distortion. Bring your CD collection and let the CD14MKII deliver performance at its best.
The CD14 MKII follows Rotel’s tradition of award-winning CD players with innovations to the power supply, and newly tuned acoustic component resulting in a more accurate reproduction of the audio with rich, genuine detail.
- Texas Instruments premium 32-bit/384 kHz Digital to Analogue Converter
- Smooth tray loading CD mechanism
- 12 volt trigger input
- Coax output for use as a transport
- Includes remote control
Critical Digital to Analog conversion is managed by a premium Texas Instruments 32-bit DAC with independent power supplies eliminating unwanted distortion and isolating motor controls from sensitive audio circuits reducing noise and distortion.
The tray loading CD mechanism, IR remote, front panel controls and graphic display ensure seamless operation.
Bring your CD’s and allow the CD14 MKII to showcase your music with stunning detail, clarity, and accuracy.
|Total Harmonic Distortion (THD)||0.0035% @ 1 kHz|
|Frequency Response||20 Hz - 20 kHz ±0.5 dB|
|S/N Ratio (IHF "A" Weighted)||>118 dB|
|Dynamic Range||>99 dB|
|Digital to Analogue Converters||Texas Instruments|
|Channel Balance||±0.5 dB|
|Channel Separation||>118 dB @ 10 kHz|
|Intermodulation Distortion||0.0035% @ 1 kHz|
|Phase Linearity||±0.5 Degrees|
|Digital Output||0.5 V, Peak to Peak|
|Analogue Output Impedance||100Ω|
|Dimensions (W x H x D)||430 x 98 x 312 mm (17" x 3.8" x 12.3")|
|Front Panel Height||80 mm (3.15")|
|Power Requirements||230 V, 50 Hz|
|Power Consumption||15 W|
|Standby Power Consumption||<0.5 W|
|Net Weight||6.51 kg (14.35 lbs.)|
