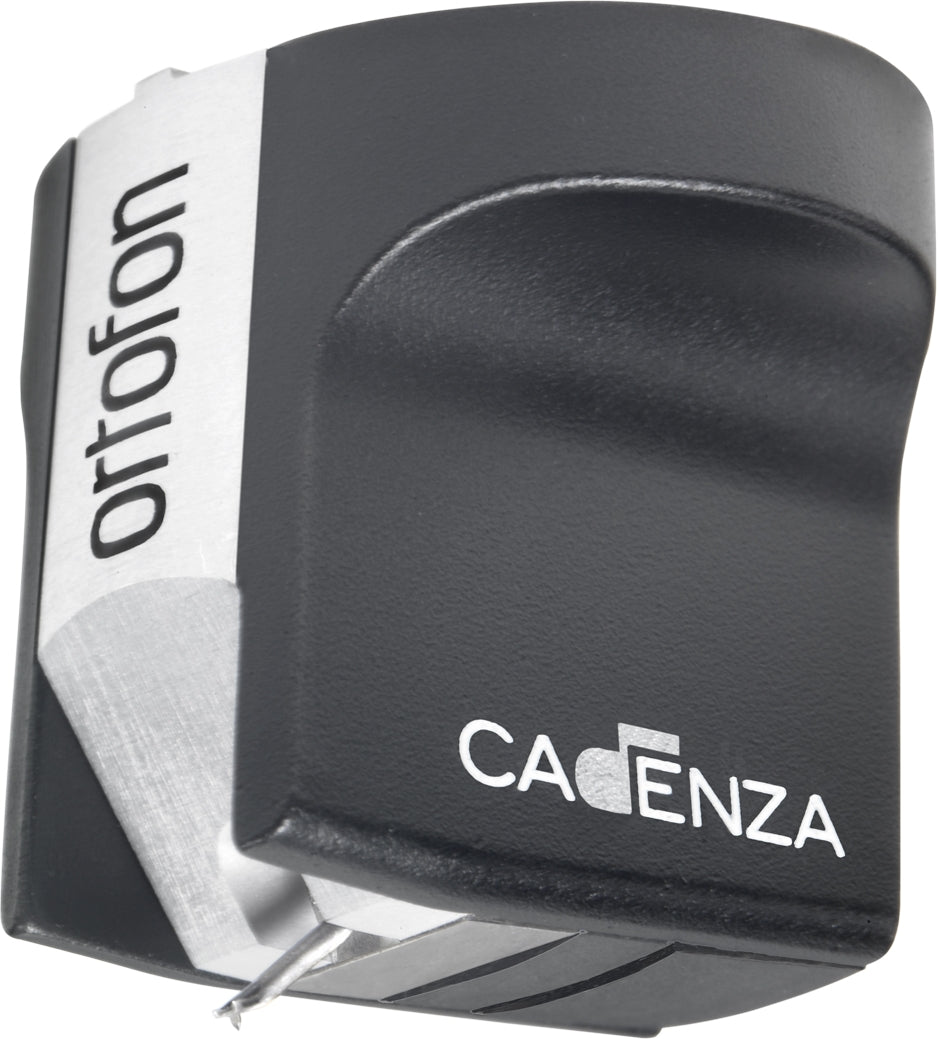

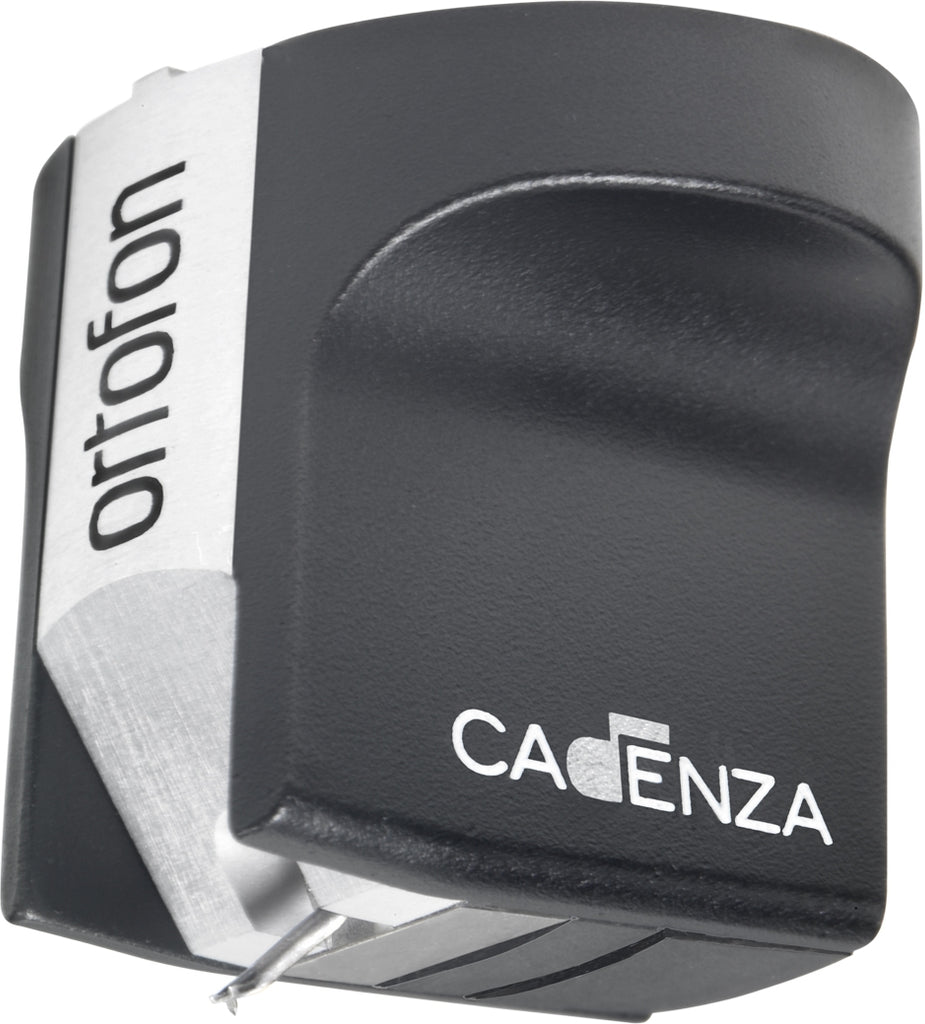

Ortofon Hi-Fi MC Cadenza Mono Moving Coil Cartridge
The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminium cantilever. The stylus radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.
For easy use the pins are connected so you get the same signal from both pairs of connecting pins.
Sharing internal build with the Cadenza Red and with optimised adjustments for mono playback the sound is relaxed, homogeneous and moderate.
Find your old records as well as new micro groove mono records and experience the Cadenza Mono!
|Output voltage||0.45 mV|
|Frequency range||20 Hz - 50 kHz|
|Tracking ability||70 μm|
|Compliance, dynamic, lateral||12 μm/mN|
|Stylus type||Nude Fine Line on Alu cantilever|
|Stylus tip radius||r/R 8/40|
|Tracking force range||2.2-2.7 g (22-27 mN)|
|Tracking force recommended||2.5 g (25 mN)|
|Internal impedance, DC resistance||5 Ohm|
|Recommended load impedance||50-500 Ohm|
|Cartridge body material||Stainless steel Aluminium|
|Cartridge weight||10.7 g|
