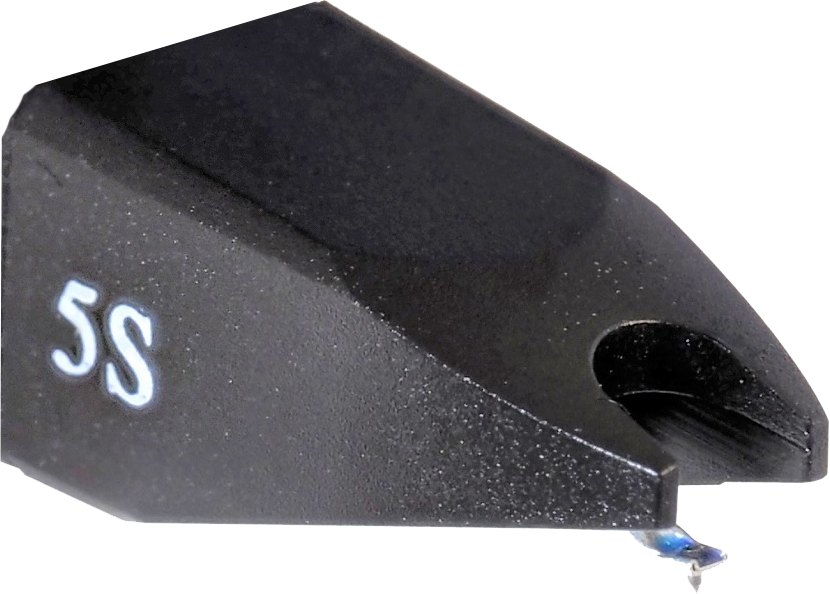

Ortofon Hi-Fi 5 S Replacement Stylus

$49 $55
By Ortofon

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

Moving Magnet Spherical Stylus

The replacement stylus OM 5S is recommended for the OM 5S cartridge. With a spherical stylus, the OM 5S is easy to align, and robust enough to deliver hours of listening pleasure.

The Ortofon OM5s Stylus is an optional replacement for your existing Ortofon OM cartridge. It features a Tipped Spherical stylus profile.

You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.

We find with proper care, up to 1000 hours is possible without degradation of performance. To get more hours out of your next stylus, consider a Clean It stylus brush or Vinyl Clean compound to compliment your new stylus purchase.

Specifications:

Output voltage at 1kHz, 5cm/sec

  • 4.5mV

Channel Balance at 1kHz

  • 2dB

Channel Separation at 1kHz

  • 20dB

Channel separation at 15kHz

  • 12dB

Frequency range at -3dB

  • 20Hz - 20kHz

Frequency Response

  • 20Hz - 22kHz

Tracking Ability at 315Hz at recommended tracking force

  • 60 µm

Compliance, Dynamic, Lateral

  • 20 µm/mN

Stylus Type

  • Spherical

Stylus tip radius

  • R 18 µm

Tracking force range

  • 1.5-2.0 g (15-20 mN)

Tracking force, recommended

  • 1.75 g (17.5 mN)

Tracking angle

  • 20°

Internal impedance, DC resistance

  • 750 Ohm

Internal inductance

  • 450 mH

Recommended load resistance

  • 47 kOhm

Recommended load capacitance

  • 200-500 pF

Cartridge colour

  • Black

Cartridge mass

  • 5g
