Ortofon Hi-Fi 5 E Replacement Stylus

$80 $89
By Ortofon

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

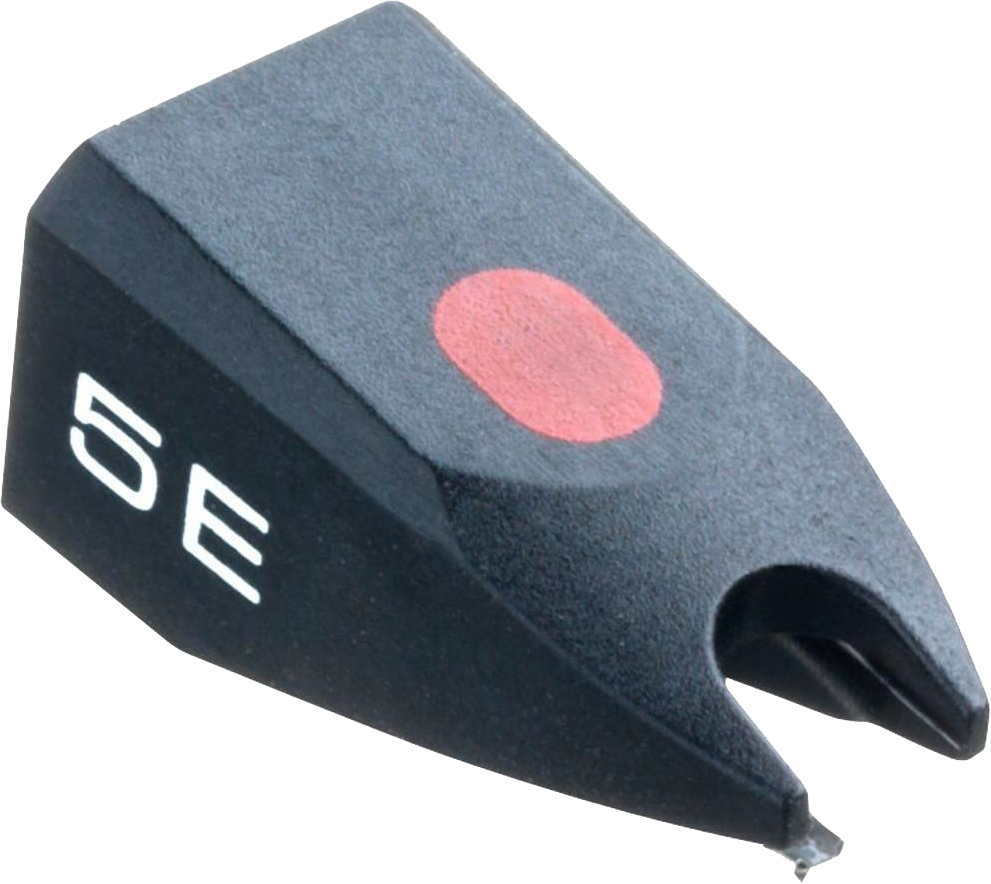

Replacement stylus for Ortofon 5E series cartridges

Moving Magnet Tipped Elliptical Stylus

The Ortofon OM5e Stylus is an optional replacement for your existing Ortofon OM cartridge. It features a Tipped Elliptical stylus profile.

You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.

We find with proper care, up to 1000 hours is possible without degradation of performance. To get more hours out of your next stylus, consider a Clean It stylus brush or Vinyl Clean compound to compliment your new stylus purchase.

Specifications:

Frequency Range

  • 20-25,000 Hz

Frequency Response

  • 20-25,000 Hz

Tracking ability at 315Hz at recommended tracking force

  • 65 µm

Compliance, Dynamic, Lateral

  • 20 µm/mN

Stylus Type

  • Elliptical

Stylus Tip Radius

  • r/R 8/18 µm

Equivalent Stylus Tip Mass

  • 0.5 mg

Tracking Force Range

  • 1.5-2.0 g (15-20 mN)

Tracking Force (Recommended)

  • 1.75 g (17.5 mN)

Tracking Angle

  • 20°

Stylus Colour

  • Black

Recommended for the following cartridges

  • OM 5E

  • OMP 5E

  • OMB 5E

  • OMT 5E
