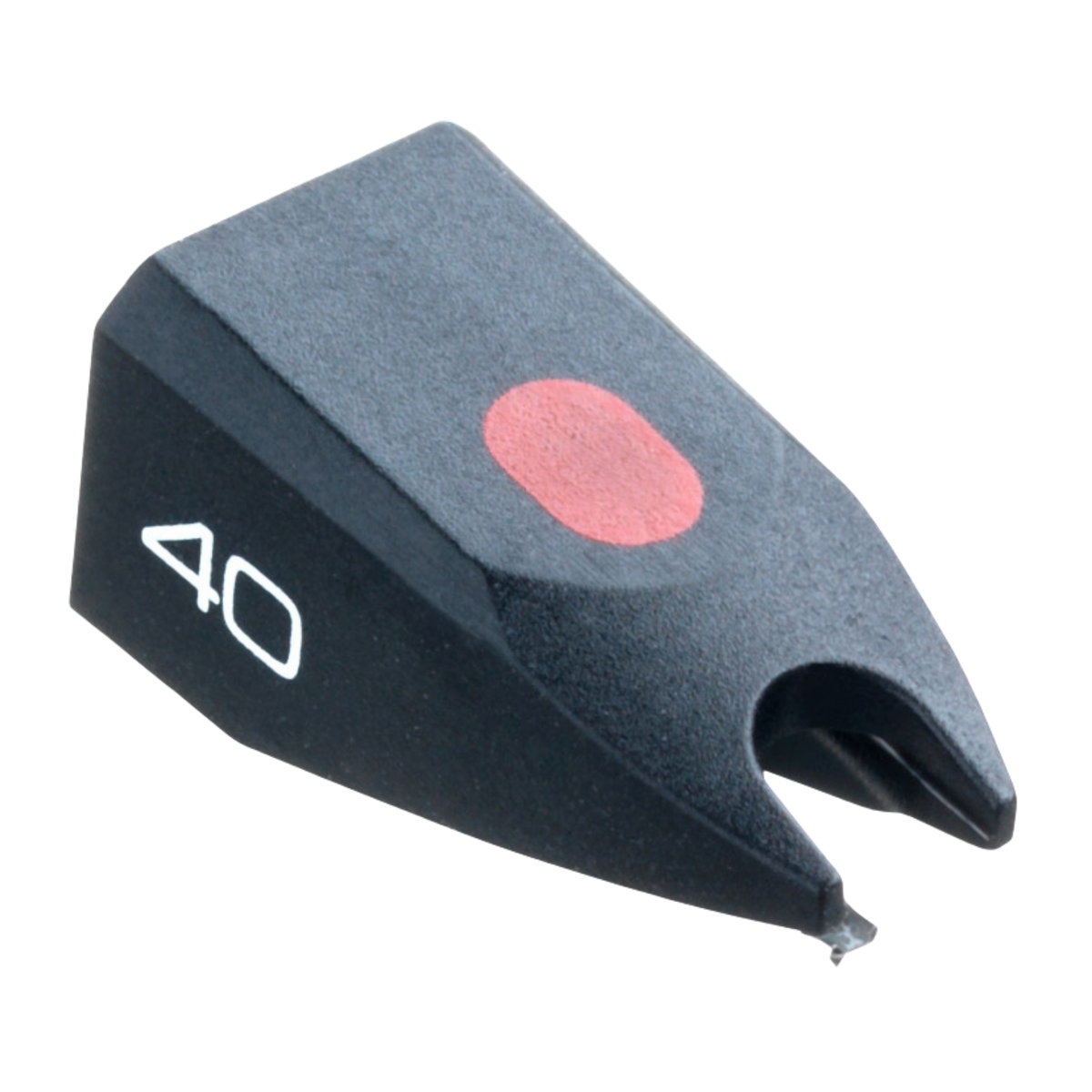

Ortofon Hi-Fi 40 Replacement Stylus

$629 $699
By Ortofon


Replacement stylus for Ortofon 40 series cartridges

Moving Magnet Fritz Gyger 70 Stylus

The Ortofon OM40 Stylus is an optional upgrade for your existing Ortofon OM cartridge. It features a stunning Nude Fritz Geiger 70 stylus profile.

You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.

We find with proper care, up to 1000 hours is possible without degradation of performance. To get more hours out of your next stylus, consider a Clean It stylus brush or Vinyl Clean compound to compliment your new stylus purchase.


Frequency Range

  • 20-30,000 Hz

Frequency Response

  • 20-30,000 Hz +2/-3dB

Tracking ability at 315Hz at recommended tracking force

  • 95 µm

Compliance, Dynamic, Lateral

  • 25 µm/mN

Stylus Type

  • Nude FG70

Stylus Tip Radius

  • r/R 5/70 µm

Equivalent Stylus Tip Mass

  • 0.3mg

Tracking Force Range

  • 1.25-1.75 g (12.5-17.5 mN)

Tracking Force (Recommended)

  • 1.5 g (15 mN)

Tracking Angle

  • 20°

Stylus Colour

  • Black

Recommended for the following cartridges

  • OM40

  • OM40 Gold
