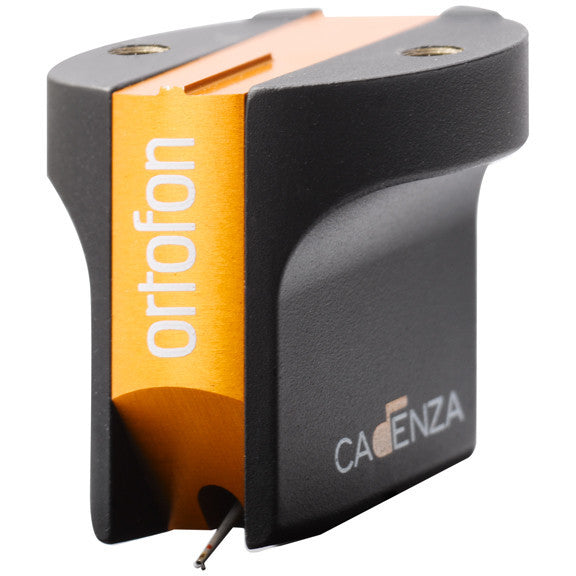

Ortofon Cadenza Bronze Moving Coil Cartridge

$2,999

Brand Ortofon

The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.

The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Field Stabilizing Element (FSE), is used for optimal linearity especially during complex crescendo passages.

Technical data


Output voltage at 1000 Hz, 5cm/sec. 0,4 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 24 dB
Channel separation at 15 kHz > 20 dB
Frequency range at - 3dB 20 - 55 kHz
Frequency response 20 Hz - 20 kHz +/-1,5
Tracking ability at 315Hz at recommended tracking force *) 80 µm
Compliance, dynamic, lateral 12 µm/mN
Stylus type Nude Ortofon Replicant on conical alu cantilever
Stylus tip radius r/R 5/100 µm
Tracking force range 2,2-2,7 g (22-27 mN)
Tracking force, recommended 2,5 g (25 mN)
Tracking angle 23°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance 50-200 Ohm
Cartridge body material Stainless steel / Aluminium
Cartridge colour Bronze/Black
Cartridge weight 10,7 gram
