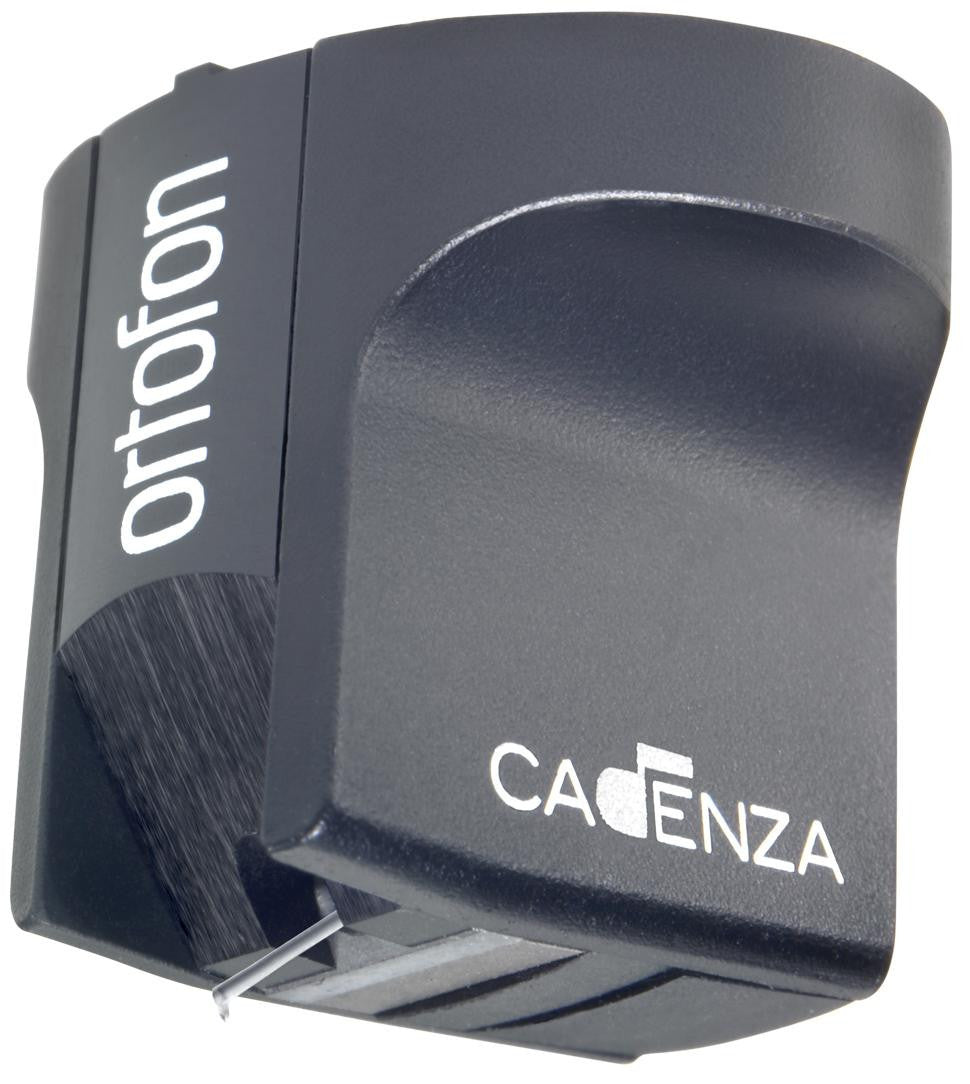

Ortofon Cadenza Black Moving Coil Cartridge

$3,914 $4,349
By Ortofon

Description

The Cadenza Black model is using a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminium.

It also uses the WRD (Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression), controlling the high and low frequency damping separately.

The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Technical data



Output voltage at 1000 Hz, 5cm/sec. 0,33 mV
Channel balance at 1 kHz < 0,8 dB
Channel separation at 1 kHz > 27 dB
Channel separation at 15 kHz > 20 dB
Frequency range at - 3dB 20 - 60.000 Hz
Frequency response 20 kHz - 20 kHz +1,5/0
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 16 µm/mN
Stylus type Nude Shibata on Boron cantilever
Stylus tip radius r/R 6/50 µm
Tracking force range 2,0-2,5 g (20-25 mN)
Tracking force, recommended 2,3 g (23 mN)
Tracking angle 20°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance > 10 Ohm
Cartridge body material Stainless steel Aluminium
Cartridge colour Black/Black
Cartridge weight 10,7 gram
