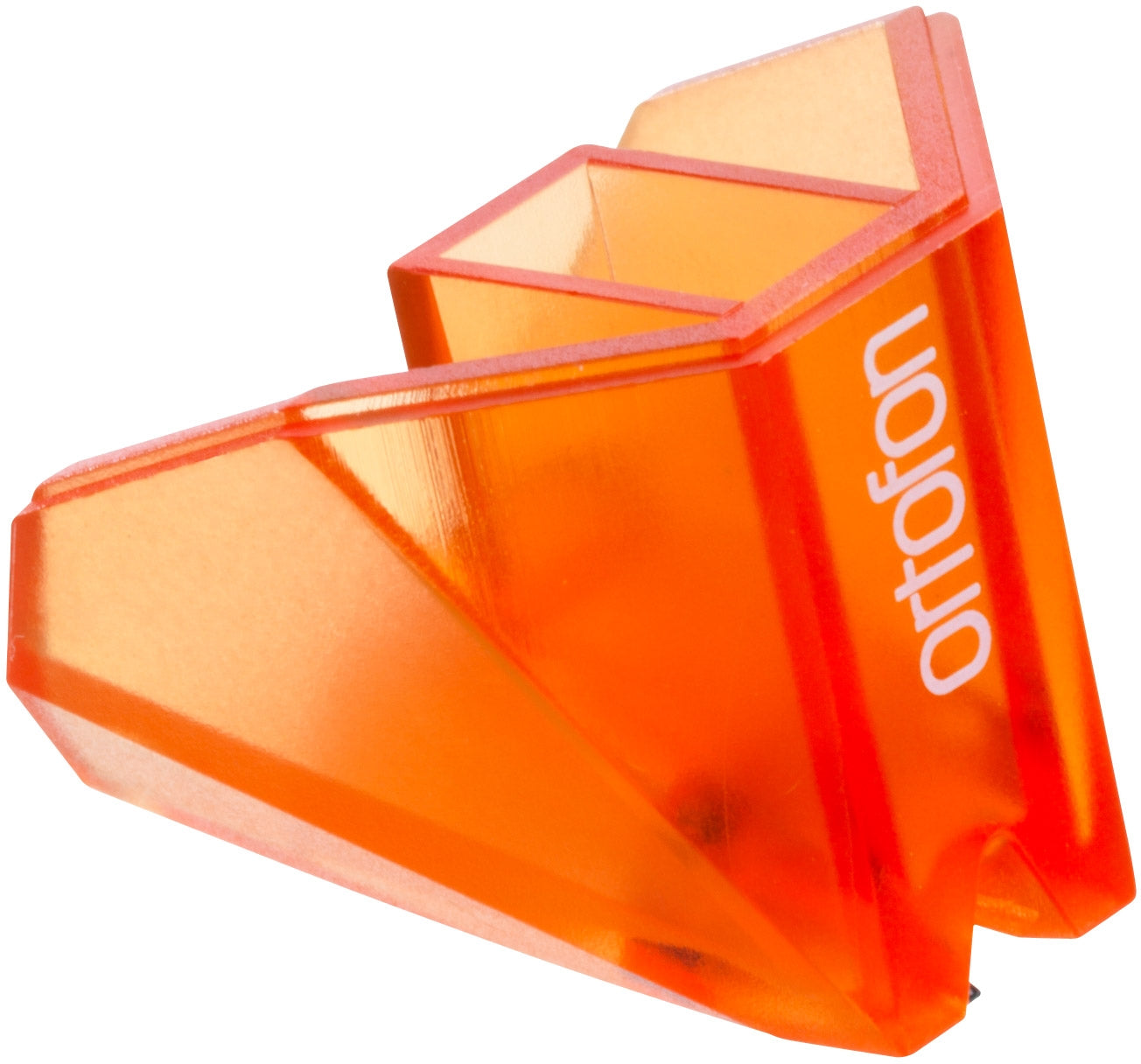

Ortofon 2M Bronze Moving Magnet Stylus
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound
The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.
The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.
We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.
Technical data 2M Bronze / 2M Bronze Verso
|Output voltage at 1000 Hz, 5cm/sec.||5 mV|
|Channel balance at 1 kHz||1 dB|
|Channel separation at 1 kHz||26 dB|
|Channel separation at 15 kHz||15 dB|
|Frequency range at - 3dB||20-29.000 Hz|
|Frequency response||20-20.000 + 2 / - 0 dB|
|Tracking ability at 315Hz at recommended tracking force||80 µm|
|Compliance, dynamic, lateral||22 µm/mN|
|Stylus type||Nude Fine Line|
|Stylus tip radius||r/R 8/40 µm|
|Tracking force range||1,4-1,7g (14-17 mN)|
|Tracking force, recommended||1,5 g (15 mN)|
|Internal impedance, DC resistance||1,2 kOhm|
|Internal inductance||630 mH|
|Recommended load resistance||47 kOhm|
|Recommended load capacitance||150-300 pF|
|Cartridge colour, body/stylus||Black/Bronze|
|Cartridge weight||7,2 g|
