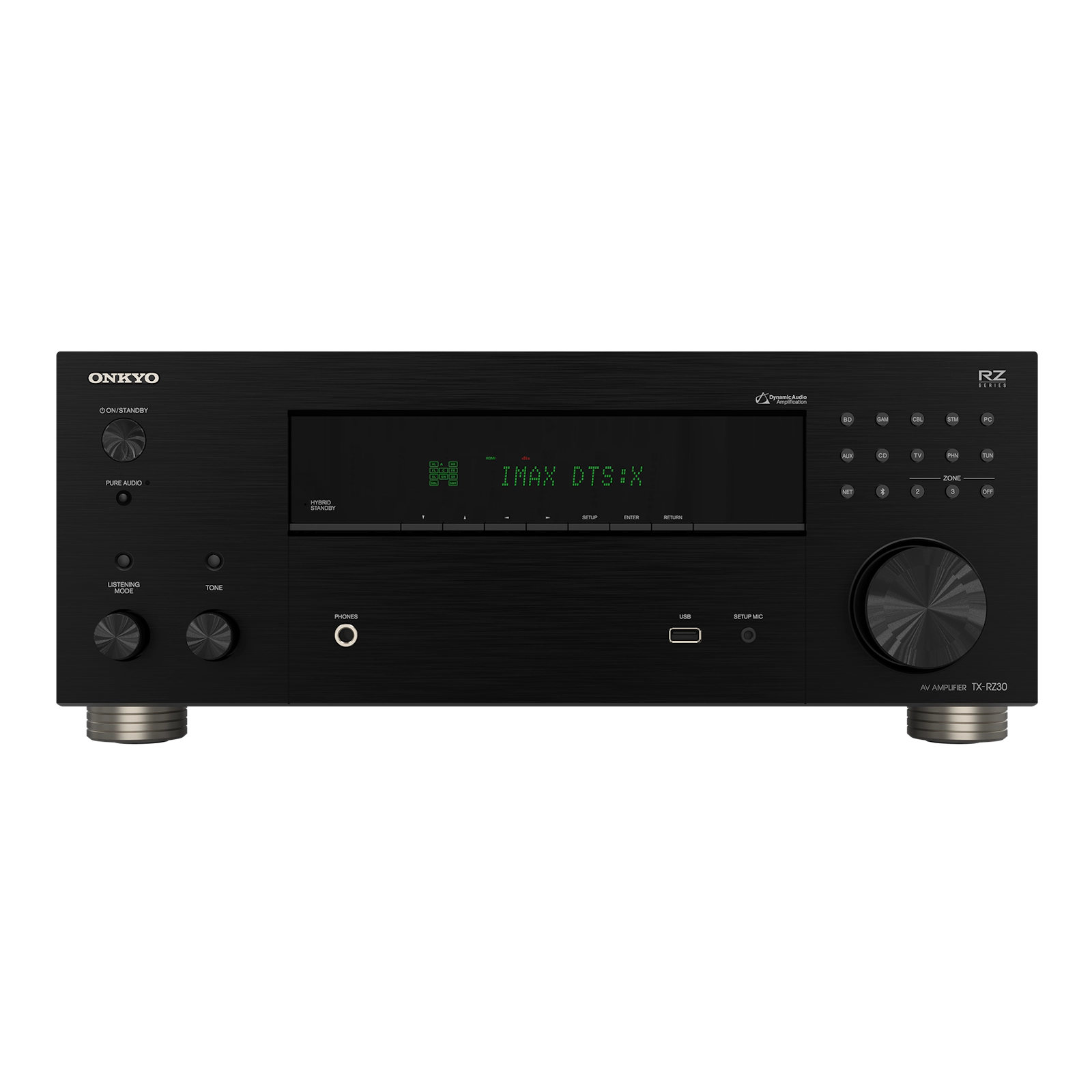

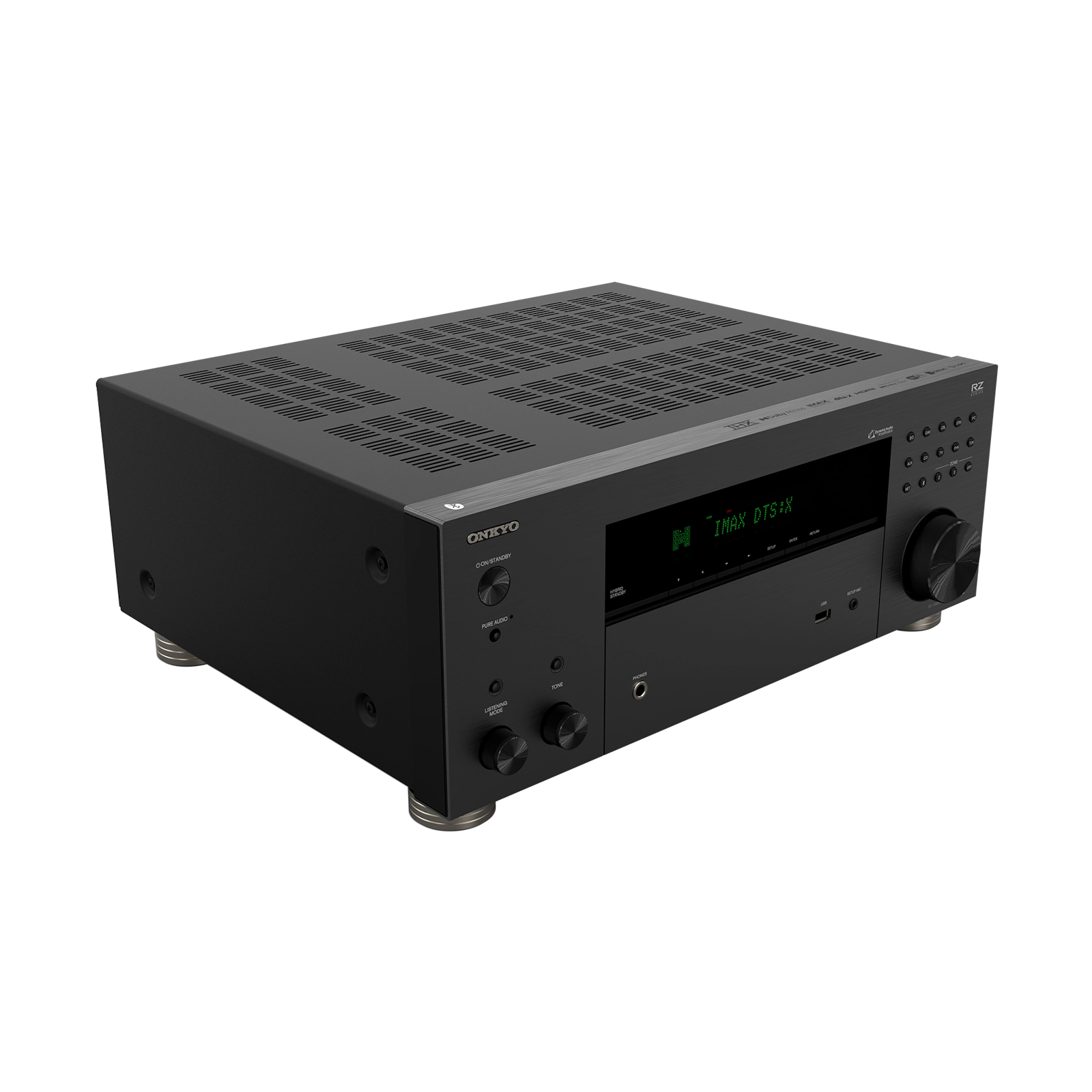

Onkyo TX-RZ30 AV Receiver

For nearly 80 years, Onkyo has been providing audiophiles with sounds that no

other company can match. Thanks to unique analogue circuitry and high-end am-
plifier technology, the 9.2-channel Onkyo TX-RZ30 delivers your favorite content

with out-of-this-world sound – with soaring highs and deeper bass. Fan favorite
features like Dirac Live, Dolby Atmos, Works with Sonos, and IMAX Enhanced
come standard with the Onkyo RZ Series AVRs to make it the heartbeat of your
entertainment system.

FEATURES
• 100 w/ch x 9 ch, High current amplifier
• Wi-Fi / Bluetooth
• Dirac Live Full Bandwidth License included
• Optional Dirac Live Bass Control
• Works with Sonos w/ Volume Pass-through
• THX Certified for Theater Reference Sound
• Klipsch Optimized Mode

Specification

Power and Amplification 100W

(8ohm, 20Hz-20kHz, THD0.08%, 2ch Driven)
9 channels amplifier
Class AB Amplifier
5Hz-100kHz (+1/-3dB)
9.2ch Processing

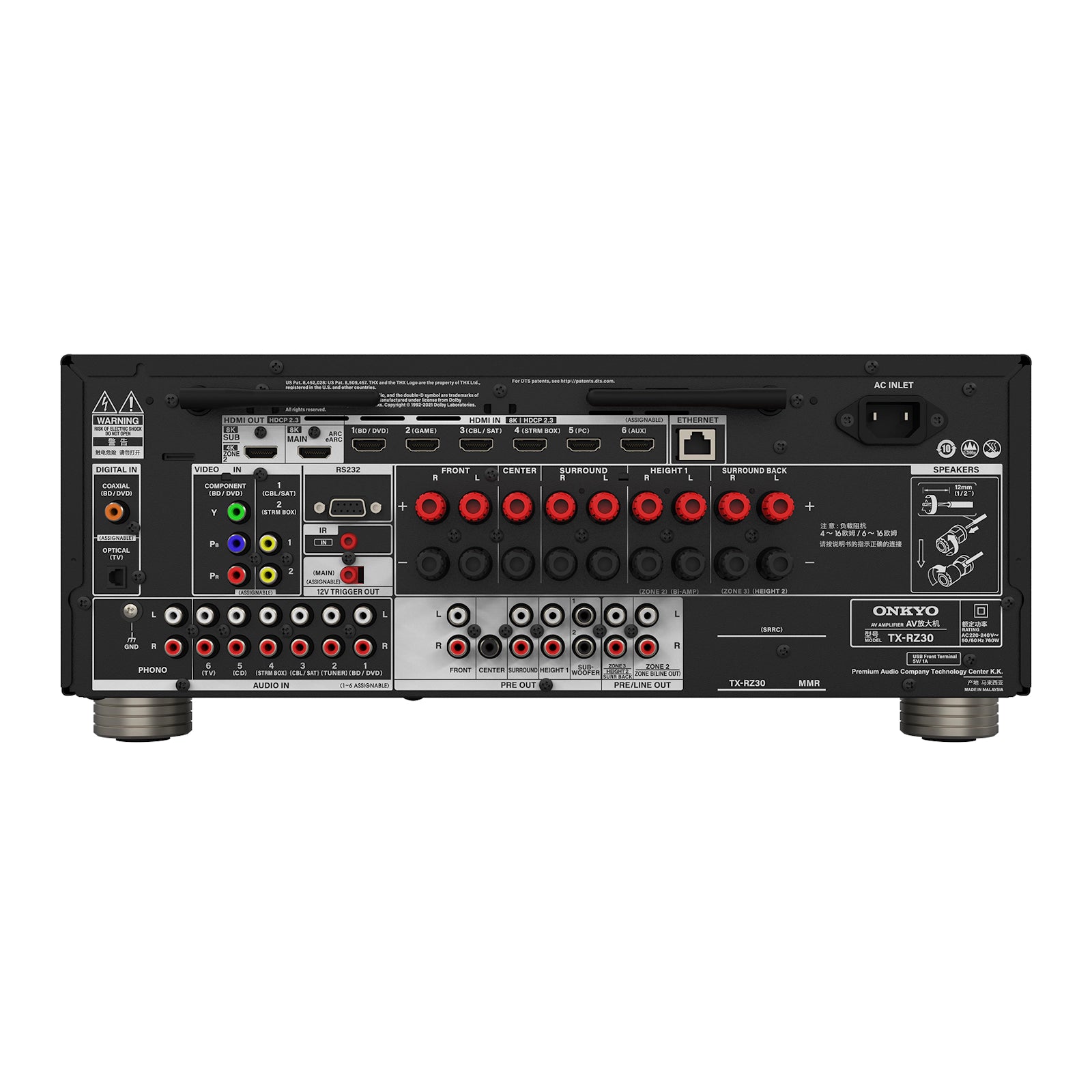

HDMI and video Inputs 6 In / 2 Out (eARC)
8K/4K Ultra HD
Dolby Vision, HDR10+, HDCP2.3,
HDMI2.1a VRR, QFT, ALLM, SBTM
1 component, 2 composite
Audio In/Out 6 RCA, 1 RCA Phono
1 Opt, 1 Coax
9.2 ch preouts (2 Independent subwoofer
outputs)
Zone 2 Stereo RCA
Surround Modes Dolby Atmos, Dolby Surround
DTS:X, Neural:X
IMAX Enhanced
THX

Streaming Roon Tested
Chromecast built-in
AirPlay 2
Spotify
Amazon Music HD
Tidal
Deezer
Pandora
TuneIn

Power supply AC 220–240 V~, 50/60 Hz
Dimensions (W x H x D) 435 x 177.5 x 382.5 mm
Weight 14.5 kg
Warranty 3 Year Warranty
