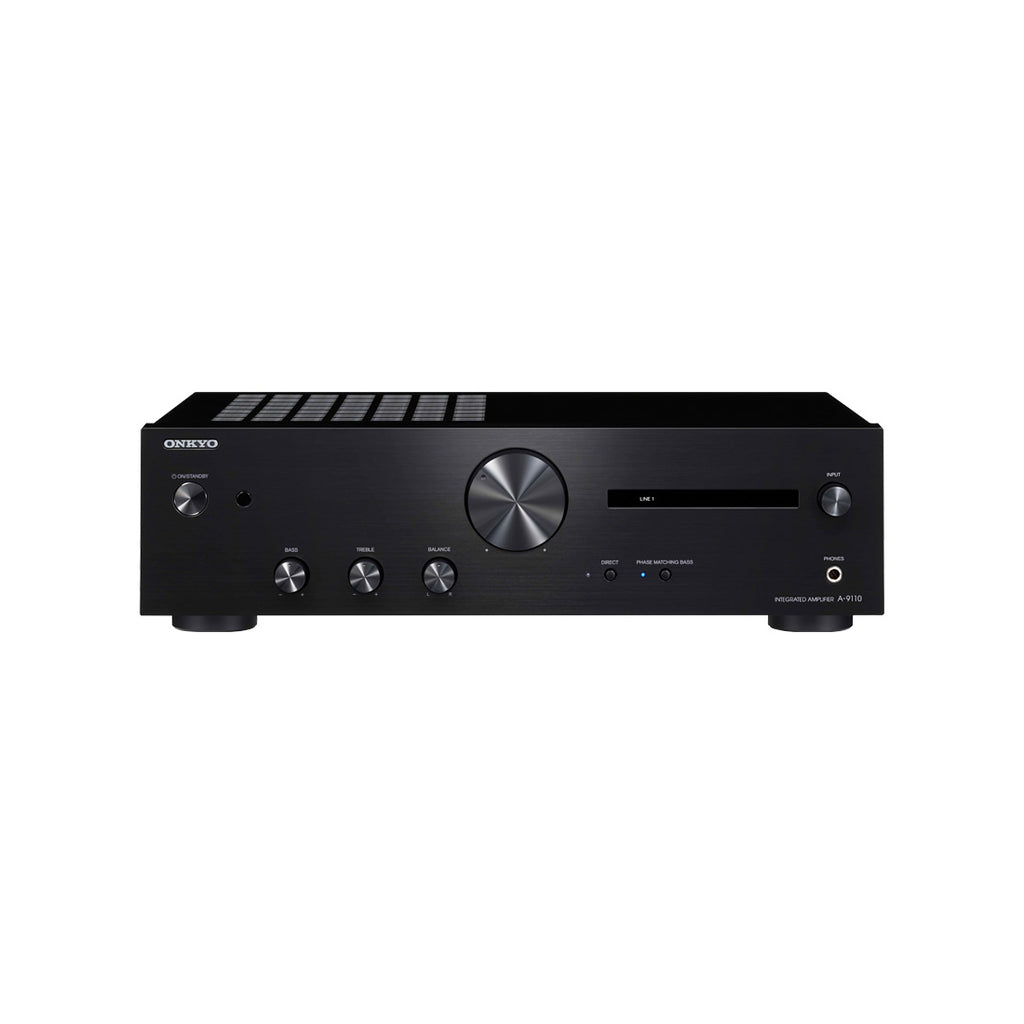

Onkyo A-9110 Integrated Amplifier

By Onkyo


Onkyo builds on the success of its A-9010 pre-main amp with the new A-9110 Integrated Stereo Amplifier, a component that refines an original amp design that’s won an excellent critical and commercial reputation for dynamic, musical sound. Lively dynamics, deep bass, and layered detail emerge from warm and expressive tuning sure to please European ears. WRAT delivers high-current power stability via large custom capacitors, while low-NFB amps capture the depth and spatiality of analog and hi-res recordings. Five RCA inputs including MM phono stage connect your sources while high-quality speaker-posts reveal Onkyo’s hi-fi heritage and careful attention to detail. The A-9110 invites you into each album, the hours passing comfortably in pure analog sound.



50 W + 50 W high-current amplification

WRAT (Wide Range Amplification Technology)

Direct Mode for source-authentic audio reproduction

Phase Matching Bass Boost

High-current EI transformer, large custom audio capacitors, and discrete output stage

MM phono input, 4 x RCA

New fine display for easy source selection


WRAT (Wide Range Amplifier Technology)

Customized high-current EI transformer

Two large custom-fabricated audio-grade main capacitors

Optimum Gain Volume Circuitry for clear low-volume playback

Four-ohm speaker-driving capability

Phase Matching Bass Boost

Rigid anti-resonant 1.6 mm metal chassis

Direct Mode for source-authentic audio reproduction


4 analog RCA inputs

1 phono input with discrete MM phono equalizer

1 analog RCA line-level output

Subwoofer pre-out

Non-magnetic speaker posts with clear knobs

6.35 mm headphone jack

RI (Remote Interactive) input


Fine display shows active input

Independent tone controls for bass and treble with balance control

Easy-to-use controls for smooth operation without a remote

RI (Remote Interactive) input enables connection of a supported component for integrated control with one remote controller

Auto Power Standby

Available in silver or black


Power output: 50 W + 50 W (4 ohms, 20 Hz–20 kHz, 0.9% THD, 2-ch driven, IEC)

Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Dimensions (W x H x D): 435 x 129 x 330 mm

Weight: 7.0 kg
