Nordost Blue Heaven Digital Cable 75 OHM

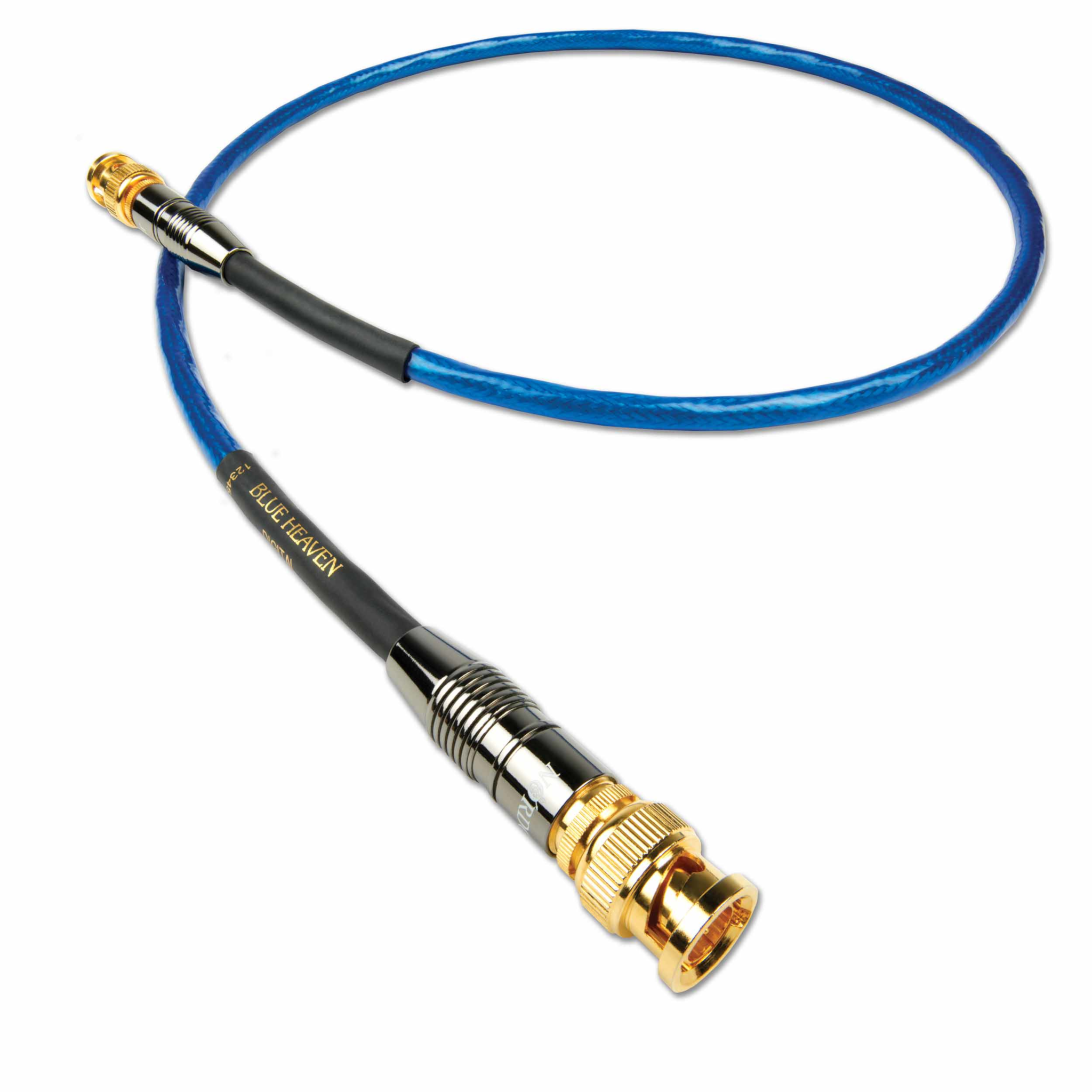

BLUE HEAVEN DIGITAL INTERCONNECT
The safe transfer of digital data streams depends on achieving accurate impedance within the transmission chain. The S/PDIF transmission standard dictates a 75 Ohm co-axial lead, but it is surprising how few cables meet that specification.
The Blue Heaven Digital Interconnect is a true 75 Ohm conductor. Employing a Micro Mono-Filament, co-axial construction, this advanced topology allows us to achieve superior electrical performance and geometrical accuracy irrespective of cable length. The high-speed, low-loss characteristics of the virtual air dielectric, combined with the superior mechanical behavior of the Micro Mono-Filament cradle minimize cable echoes and reflections, while the use of a BNC termination ensures that the 75 Ohm standard is maintained, even across the connectors. Each Blue Heaven Digital Interconnect is supplied with a pair of true 75 Ohm BNC to RCA adaptors, making the cable consistent in performance across any combination of co-axial output or input socketry – and future proof to boot. Changing your DAC or transport will no longer mean having to change your digital interconnect along with it.
|Insulation:||Fluorinated Ethylene Propylene (FEP)|
|Construction:||Mechanically tuned spacing, Micro Mono-Filament, co-axial design|
|Conductors:||1 x 24 AWG|
|Material:||Silver-plated 99.9999% solid core OFC|
|Overall Shield Coverage:||95%|
|Velocity of Propagation:||85%|
|Termination:||Gold-plated true 75 Ohm BNC. Gold-plated BNC to RCA adapters included|
