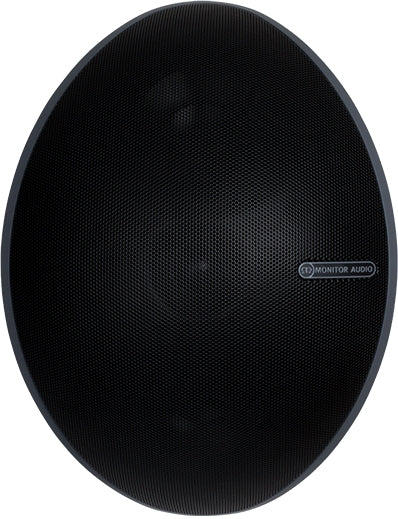

Monitor Audio Vecta V240-LV Indoor/Outdoor Speaker

$699

Description

Part of Monitor Audio’s Vecta interior/exterior range of architectural loudspeakers, the V240-LV adds further versatility in commercial applications with a 70/100V line level. Its integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses, when long cable runs are required.

Key Features:

  • Stylish, compact and versatile architectural design
  • Sealed enclosure impervious to ‘All weather’ environments – Rated to IP55
  • Intelligent automatic connection system – easier to install with no visible wires
  • V240-LV – 70/100 Volt line operation
  • V240-LV – power level selection switch for system optimisation (hidden behind the badge)
  • V-CLUSTER – a pole mount bracket for 360 degree coverage with 4 speakers (V240-LV model only)
  • Straight wall V-MOUNT bracket – providing 25 degrees of tilt (optional wedge adds extra 32.5 degrees)
  • V-CORNER bracket for corner, under eave or back to back installation
  • Dual 4" drivers featuring C-CAM metal cone technology
  • 25 mm (1") C-CAM Dome tweeter
  • High-density ABS enclosure with rust proof stainless steel grille
  • Available in black or white (Signal White, RAL 9003)
  • Paintable to match a custom installation
  • Operating temperature range: -25º to 65º C / -13º to 149º F

The V240-LV can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.

With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.

Driver and System design:

The dual 4" C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.

Product Video:

Fitting:

Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.

Specifications:

System Format 2-way (3 driver)
Frequency Response (-6 dB) 70 Hz – 25 kHz
Sensitivity (1W@1M) 88 dB
Nominal Impedance 70/100 Volt line leve
Minimum Impedance N/A
Switch 70 V (2, 4, 8, 16, 32) power level
Maximum SPL 108 dBA (each)
Power Handling (RMS) 100 W
Recommended Amplifier Requirements 25 – 100 W
Bass Alignment Sealed cabinet
Crossover Frequency 2.5 kHz
Connection Gold plated push terminals – attached to bracket
Environmental Protection Rating IP55 -25° to 65° C / -13° to 149° F
Bracket Pivot Angle Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45. 4-point cluster bracket - vertical.
Drive Unit Complement 2 x 4" Drivers featuring C-CAM metal cone technology, 25 mm (1") C-CAM dome tweeter
Dimensions (H x W x D) 335.9 x 243.2 x 150 mm (13 1/4 x 9 9/16 x 5 7/8")
Weight 3.56 kg (7 lb 14 oz)
Finishes Black or White (Signal White, RAL 9003)
Product Weight 7.88
Color Finish Name Black
Frequency Response 70 Hz – 25 kHz
Outdoor Approved Yes
Manufacturer Warranty 5 Year
Collection Vecta V240-LV
Rms Power Handling 100
Color Black
Maximum Power Handling (Watts) 100
Number of Speakers 1
Sensitivity 88 dB
