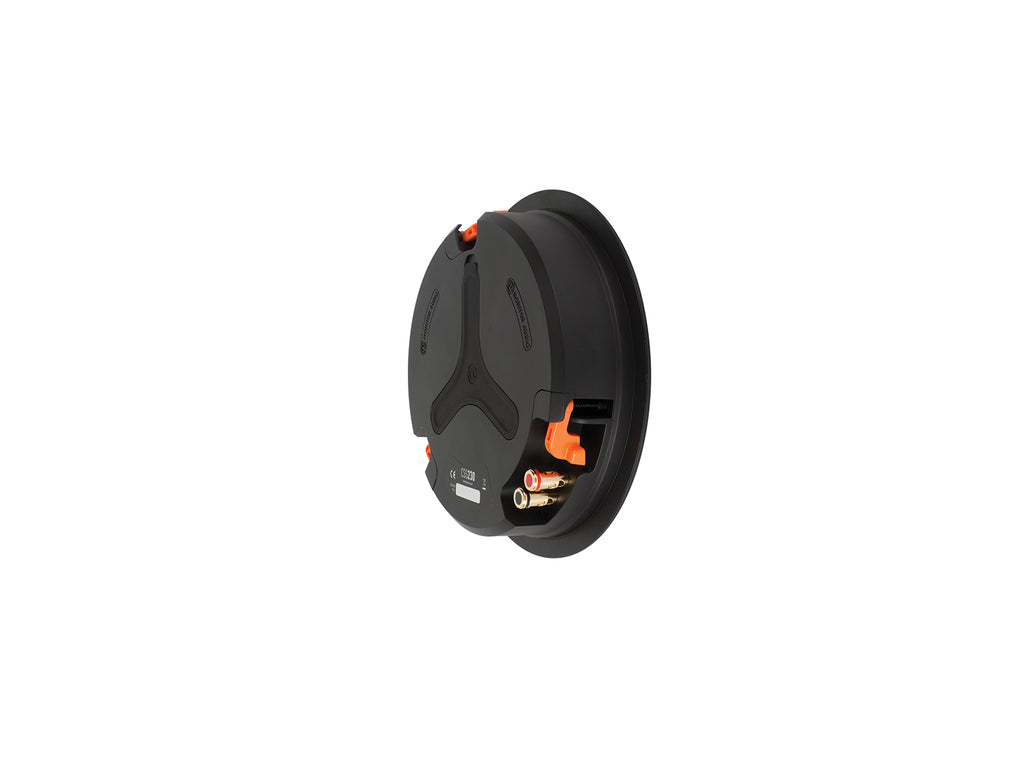

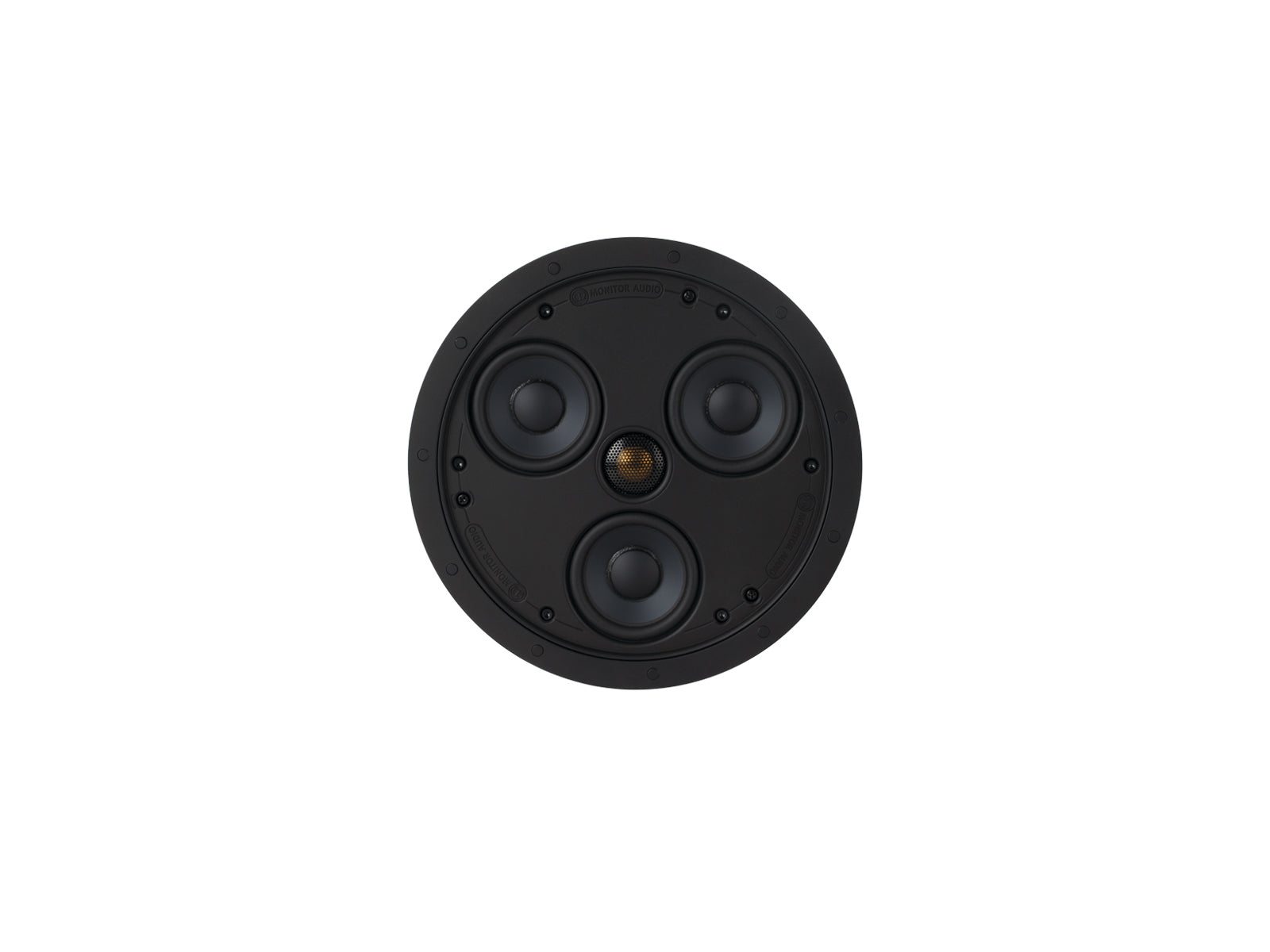

Monitor Audio Super Slim CSS230 In Ceiling Speaker

$499

Description

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.

Specifications

Frequency Response (-6 dB)

100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)

Nominal Impedance

8 ohms

Sensitivity (1W@1M)

86 dB

Maximum SPL

103.8 dBA

Power Handling (RMS)

40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)

Recommended Amplifier Requirements

10 - 60 W

Drive Unit Complement

3 x 3" C-CAM cone bass-mid drivers
1 x 19 mm (3/4") C-CAM Gold Dome tweeter

Crossover Recommendation

100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

Connection

Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2)

Overall Diameter (Including Grille)

250 mm (913/16")

Overall Depth (Including Grille)

54 mm (21/8")

Cut-Out Hole Diameter

211 mm (81/4")

Mounting Depth

50 mm (2")

Optional Square Grille - Outer Dimensions

249 x 249 mm (9 3/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille

Weight

2.88 kg (6 lb 5 oz)

Pre-Construction Bracket

CB6 Pre-Construction Bracket (Purple)

Sold As

Single Unit
