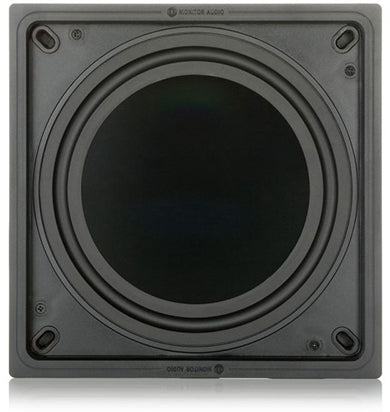

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box.
The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8") RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.
|Frequency Response||28 Hz — 120 Hz (When Mounted in Optimum Enclosure)|
|Nominal Impedance||8 Ohms|
|Sensitivity (1 W @ 1 m)||86 dB|
|Maximum SPL||Single Unit 109.8 dB; Pair 115.8 dB|
|Power Handling (RMS)||150 W|
|Cut-Out Dimensions||280 x 280 mm (11 x 11")|
|Mounting Depth||89.98 mm (3 1/2")|
|Fixing Type||4 Position Tri-Grip Dog Leg Fixings|
|Connection||Gold Plated "Push" Type Terminals|
|Construction Material||Mineral Filled ABS Plastic (RoHS 2 Compliant)|
|Overall Dimensions (H x W x D)||302 x 302 x 92.28 mm (11 7/8 x 11 7/8 x 3 5/8")|
|Overall Dimensions (Including Grille (H x W x D))||314.21 x 314.21 x 100.78 mm (12 3/8 x 12 3/8 x 3 15/16")|
|Weight||3.8 kg (8 lb 6 oz)|
