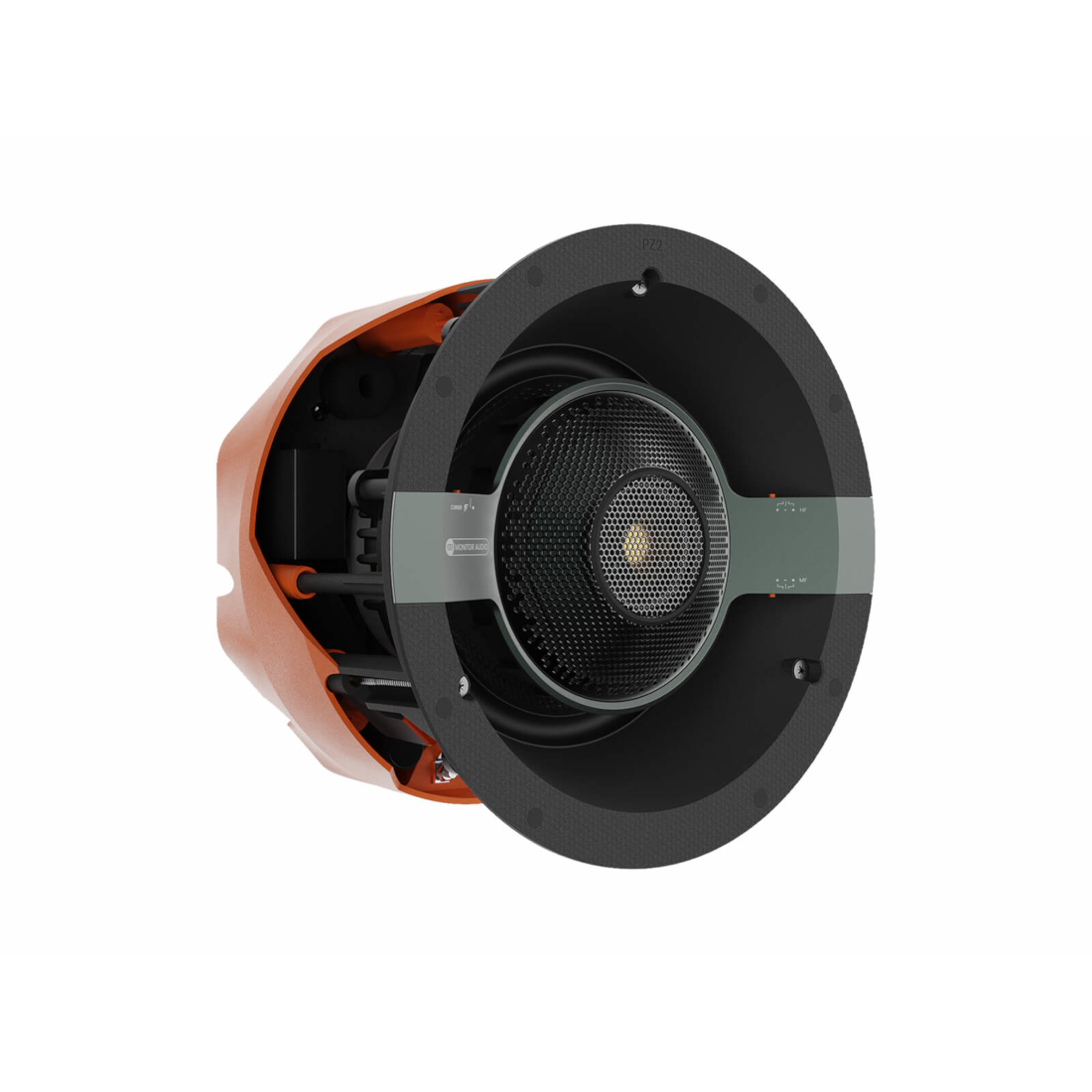

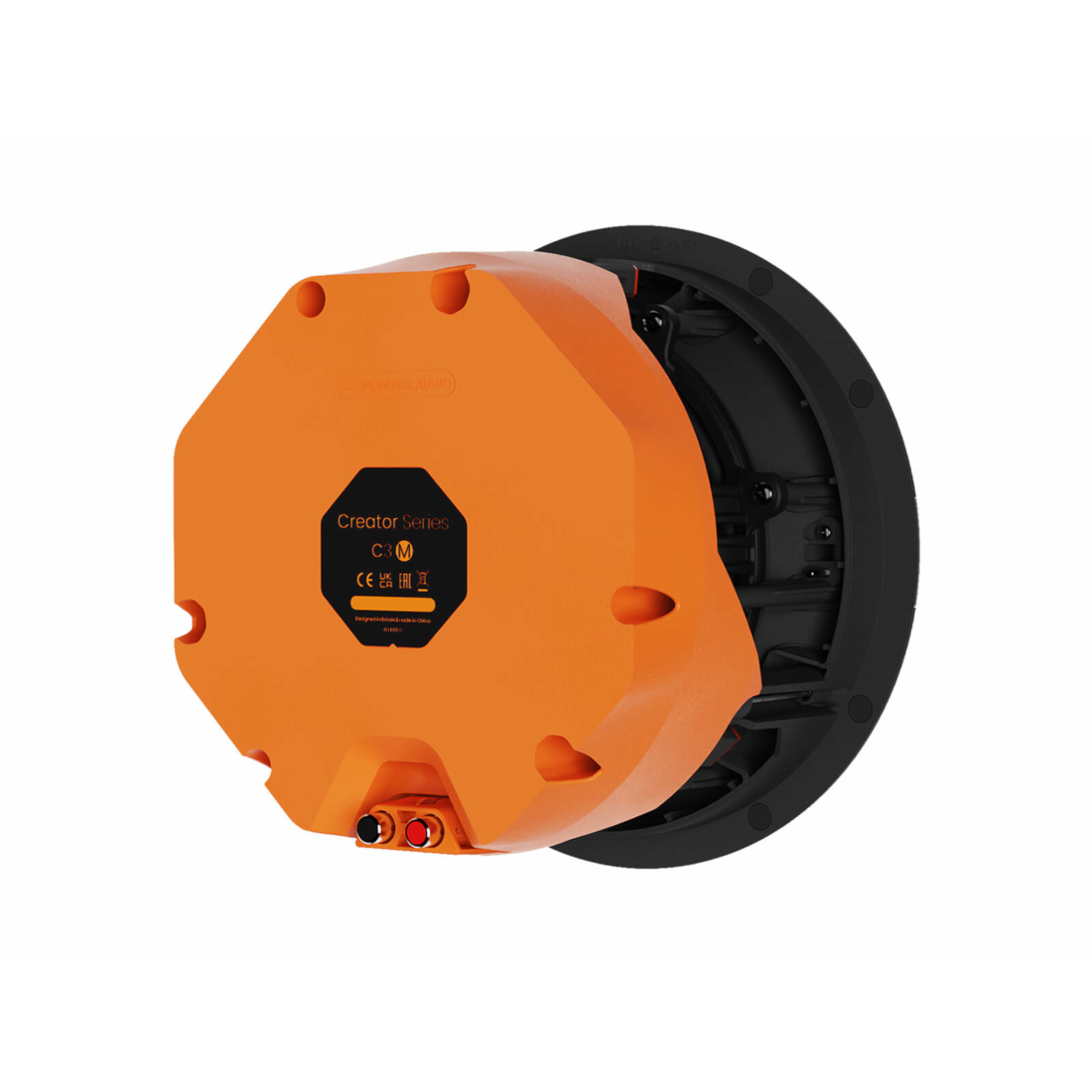

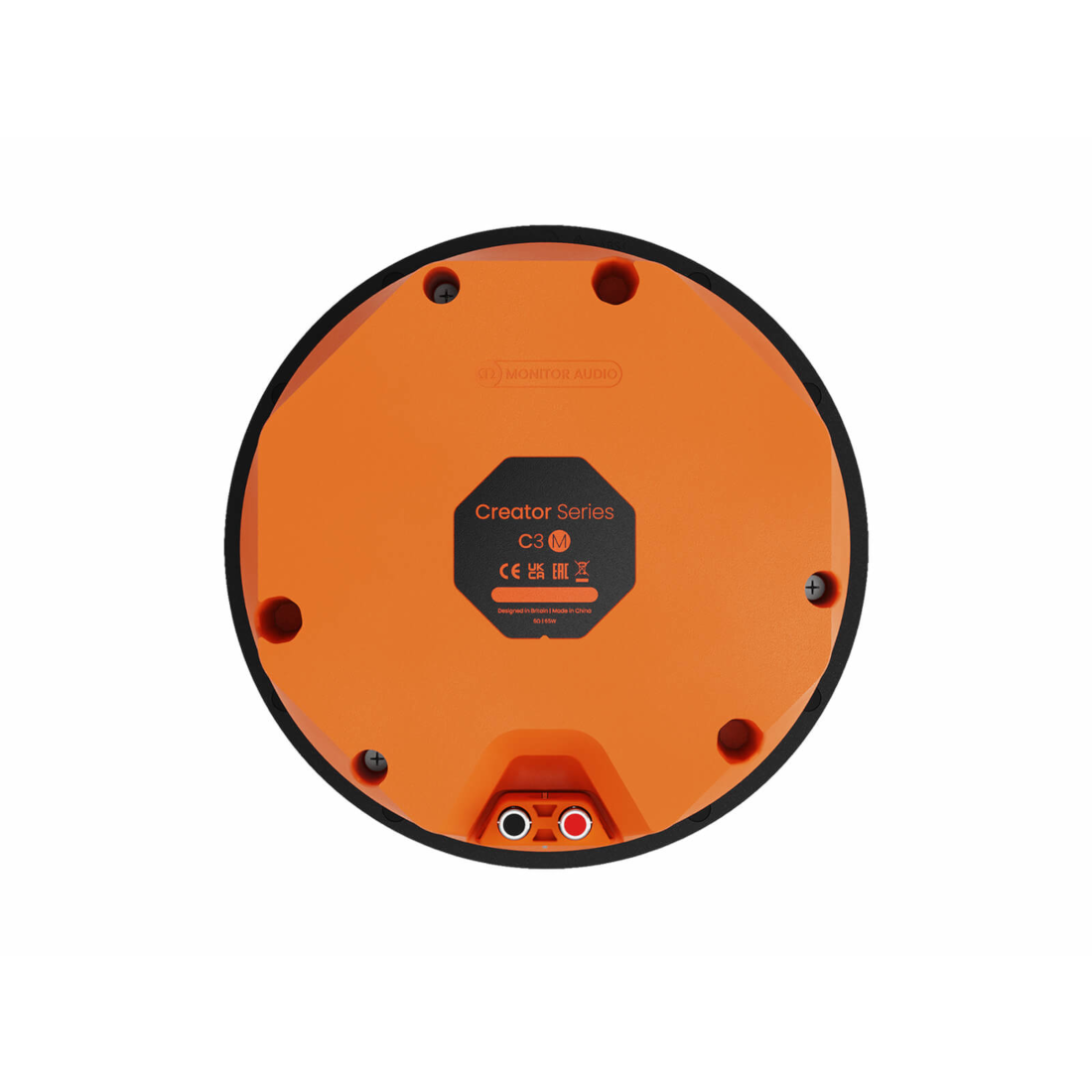

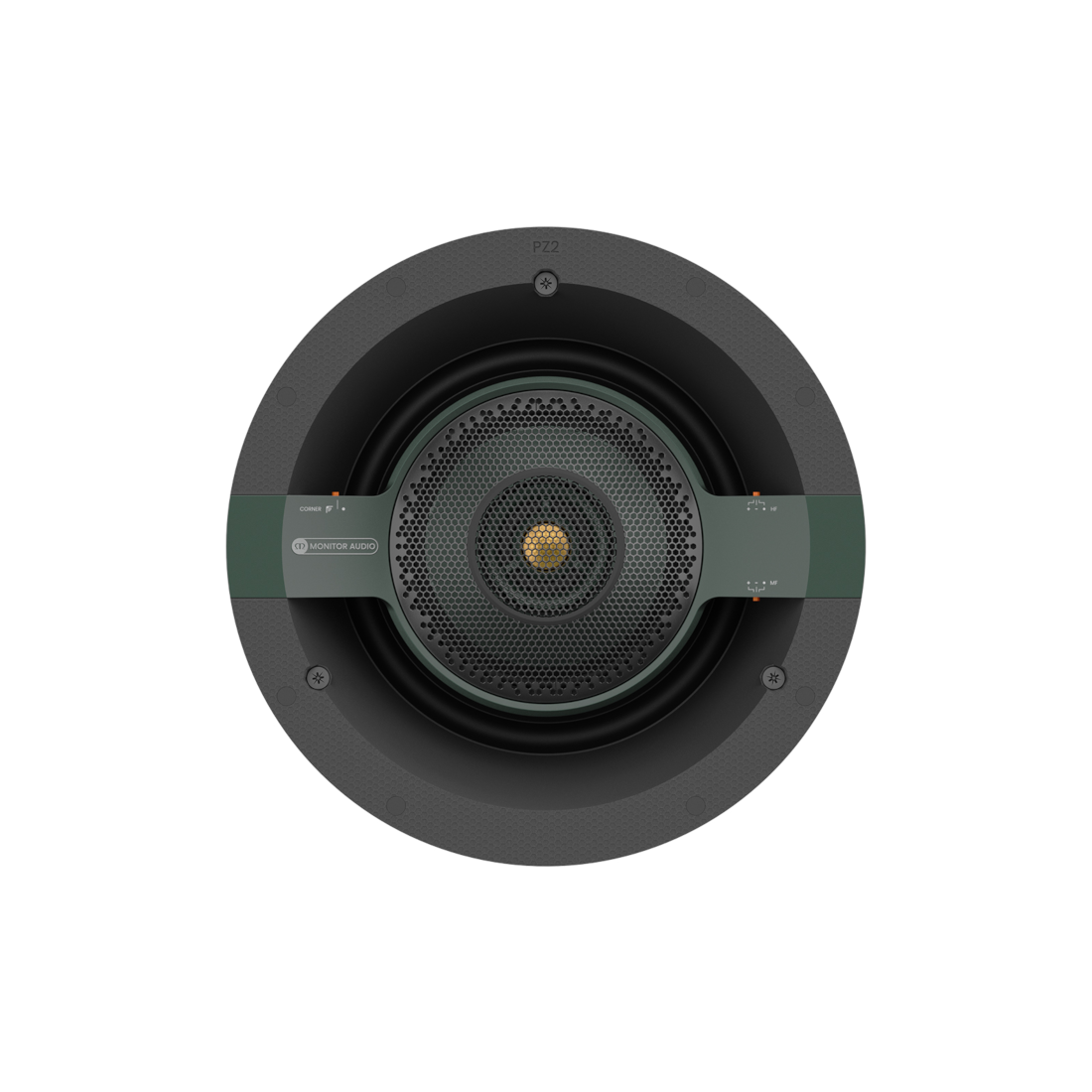

Monitor Audio Creator Series C3M In-Ceiling Medium Speaker



This high-performance medium-sized Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. It has a cut-out dimension of 212 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Key Features:

  • deal for installations where high-performance acoustics are desired
  • Three-way design
  • Mid-frequency ‘mid-pod array’
  • 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
  • 1 x 7" (178 mm) RDT III bass driver
  • 1 x 4" (102 mm) IDC II midrange driver
  • Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment

This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.

This really is the last word in installed performance, featuring an RDT III bass driver, IDC II mid-range driver and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of this acoustic technology was developed. It has a cut out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

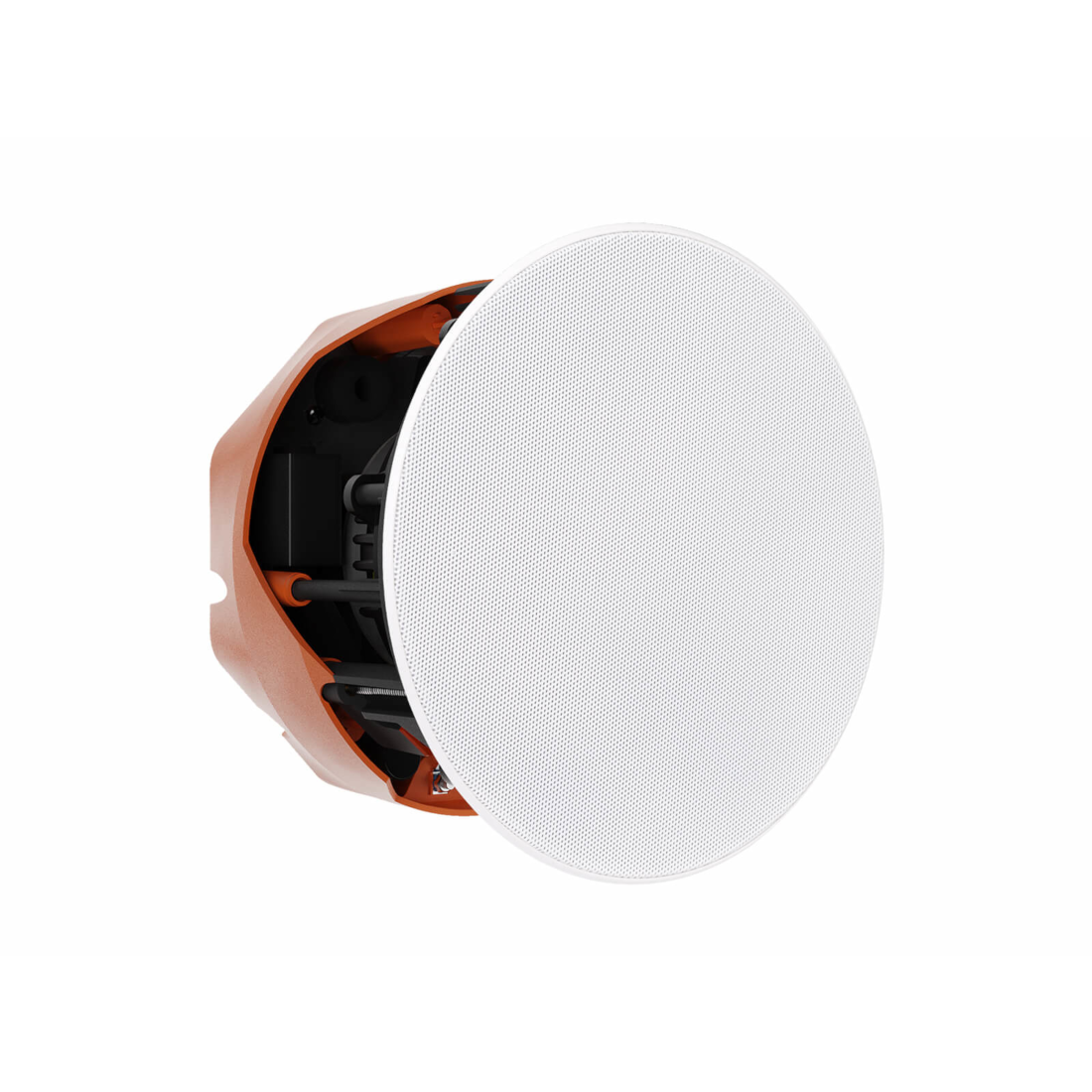

Optional square grille can be used with this model.


Drive Units Complement  1 x 7” RDT III bass driver, 1 x 4” IDC II midrange driver, 1 x 25mm IDC II tweeter
Nominal Impedance 6 Ohm
Amplifier Requirement 60 - 225 W
Continuous Power Handling 150 W
Sensitivity (2.83v @ 1m) 89 dB
Cut Out Size 248 mm
Mounting Depth 157 mm
Dimensions inc. grille: Ø 278 x 161 mm (Ø 10 15/16 x 6 5/16”)
Weight 5 kg (11 lb)
