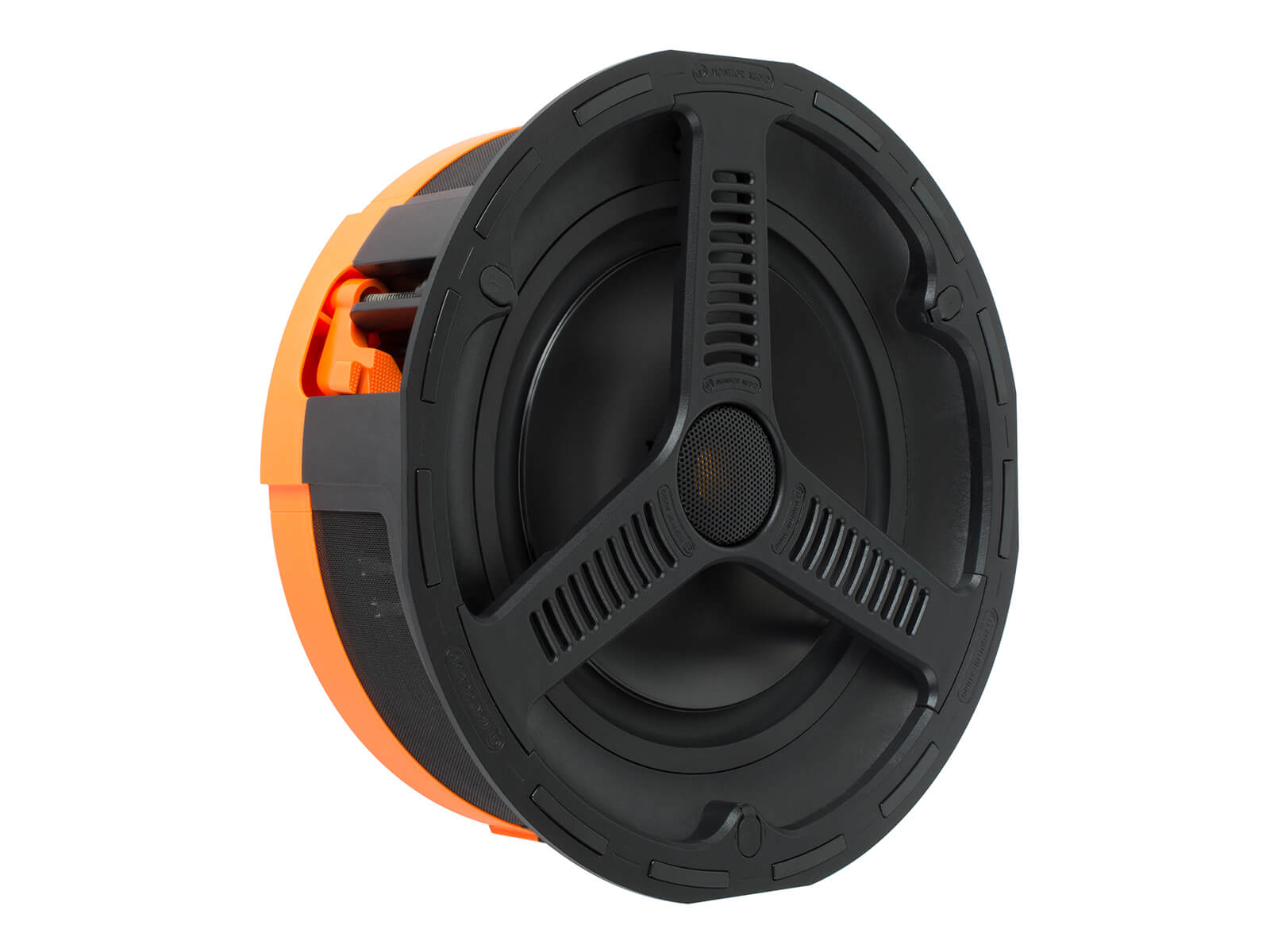

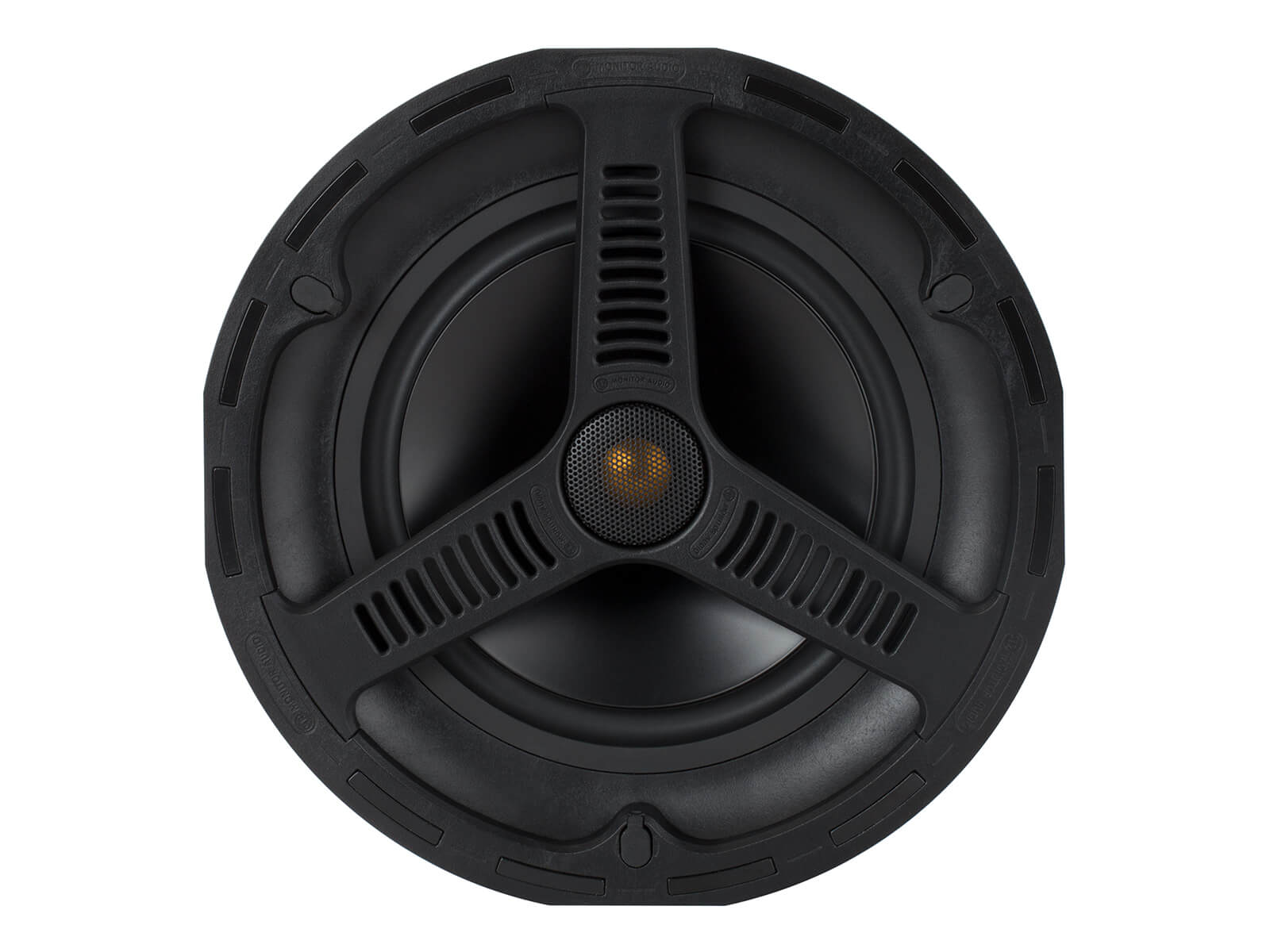

Monitor Audio All Weather AWC280 8-inch In-ceiling Speaker

$539

Description

Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC280 comprises a stylish two-way 8” C-CAM bass driver.

Specifications
Frequency Response

50 Hz — 30 kHz

Sensitivity (1W@1M)

89 dB

Nominal Impedance

8 ohms

Maximum SPL

109 dBA

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

20 — 100 W

Drivers

8" C-CAM cone bass driver
1" C-CAM Gold Dome tweeter (fixed angle)

Controls

HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Adjustment Controls

2 x (1 pair) Gold plated push style terminal

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

102.5 mm (41/32")

Cut-Out Hole Diameter

247 mm (93/4")

Mounting Depth

97.6 mm (37/8")

Optional Square Grille - Outer Dimensions

285 x 285 mm (111/4")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille

SS430 Stainless Steel

Magnets

Samarium Cobalt

Operating Temperature Range

-34° to 79° C -29° to 174° F

Weight

2.8 kg (6 lb 2 oz)

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CCBOX-R | CMBOX-R

Sold As

Single Unit
