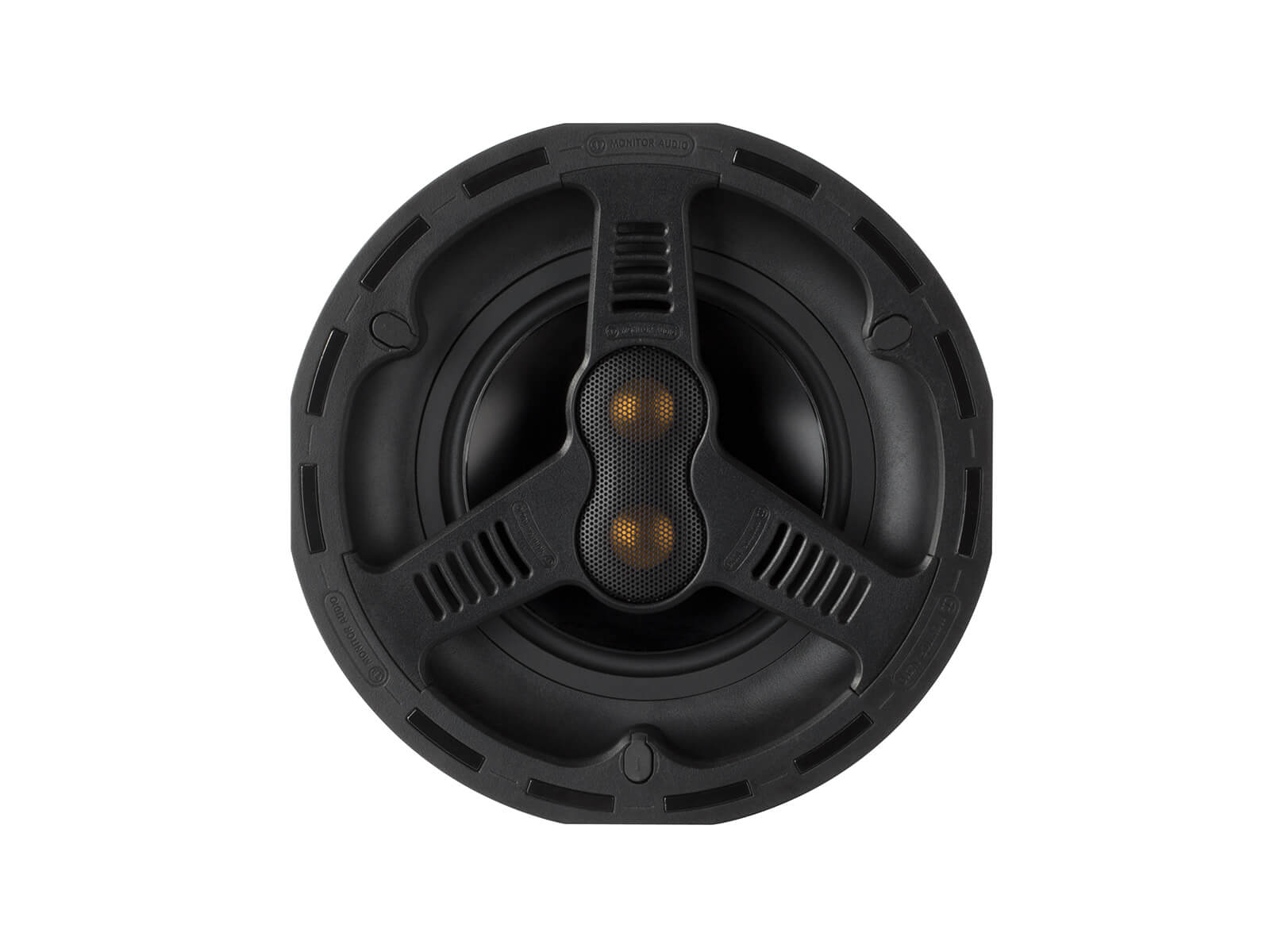

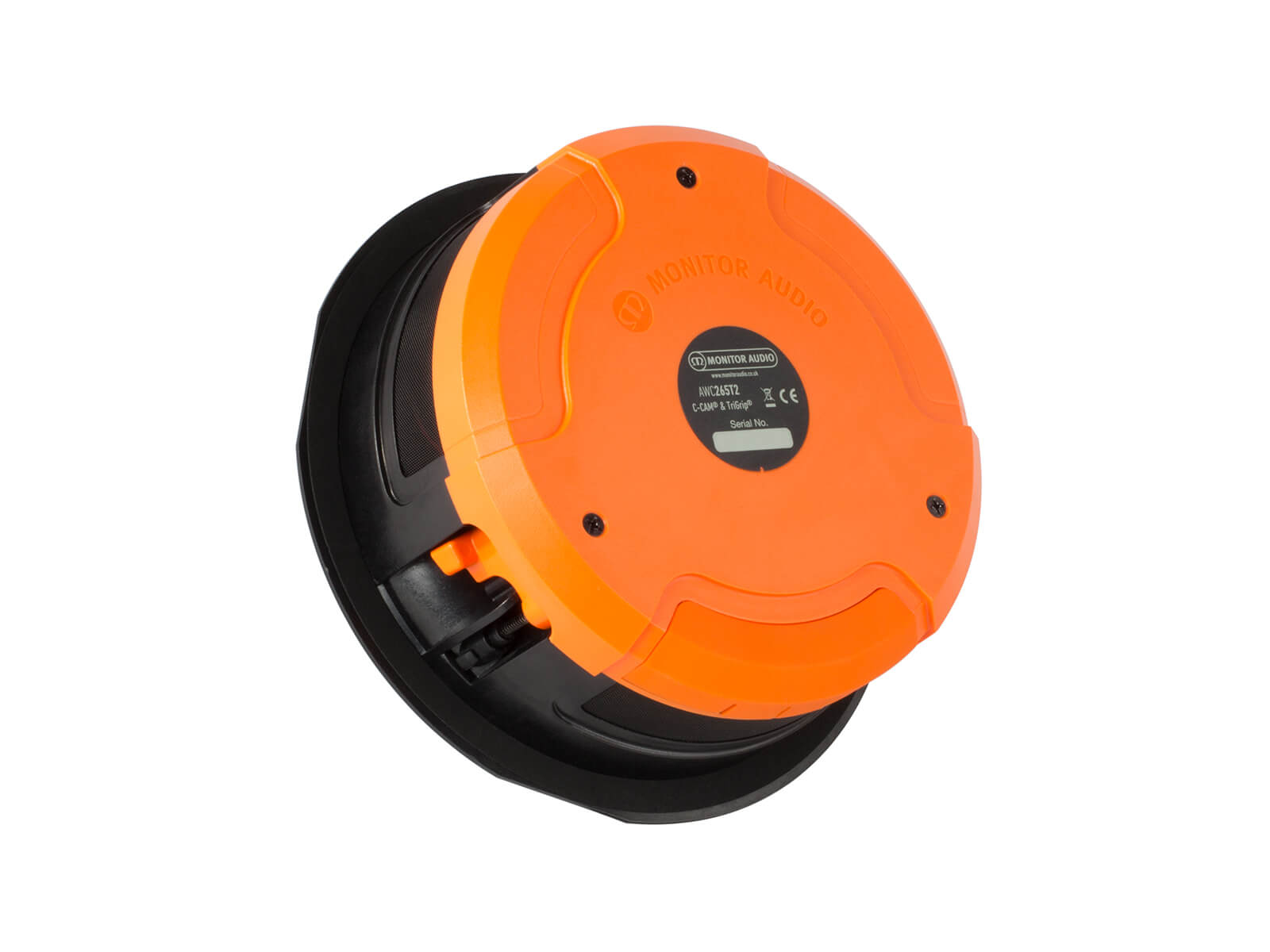

Monitor Audio All Weather AWC265-T2 6-inch Stereo In-ceiling Speaker

$548 $609

Description

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on the AWC265-T2 to deliver high performance stereo sound from a single unit where space is limited.

Specifications

Frequency Response

60 Hz — 30 kHz

Sensitivity (1W@1M)

88 dB (both channels driven)

Nominal Impedance

8 + 8 ohms

Maximum SPL

105.8 dBA

Power Handling (RMS)

60 W

Recommended Amplifier Requirements

20 — 60 W

Drivers

6.5" C-CAM cone bass driver
2 x 1" C-CAM Gold Dome tweeters (fixed angle)

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Connection

2 x (2 pairs) Gold plated push style terminal

Overall Diameter (Including Grille)

251.71 mm (915/16")

Overall Depth (Including Grille)

93.5 mm (31/2")

Cut-Out Hole Diameter

211 mm (81/4")

Mounting Depth

88.5 mm (31/2")

Optional Square Grille - Outer Dimensions

249 x 249 mm (9 3/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille

SS430 Stainless Steel

Magnets

Samarium Cobalt

Operating Temperature Range

-34° to 79° C -29° to 174° F

Weight

2.04 kg (4 lb 8 oz)

Pre-Construction Bracket

CB6 Pre-Construction Bracket (Purple)

Back Box

CCBOX-R | CMBOX-R

Sold As

Single Unit
