Marantz CD 6007

$1,290
By Marantz

Description
Improving upon the award-winning CD6006, the finely-tuned CD6007 CD Player offers even more specially-selected components and an enhanced circuit layout. Rigid feet further eliminate unwanted vibration while the oversized low noise power supply feeds the digital and analogue circuitry of the player. The new, high-quality AK4490 DAC along with 2 selectable filter options converts digital signals to analogue, this is then ‘pushed’ to the gold-plated synch outputs by Marantz’s proprietary small signal amplifier, the HDAM-SA2. In addition, we have included a new remote that also controls the fitting PM6007 amplifier. The CD6007 features a newly-developed, sophisticated headphone amplifier with a headphone amp gain setting to accommodate a wide range of headphones.

Key Features

    • Versatile playback for all your audio:
      Enjoy your CD and CD-R/RW collection.

    • Supports all your favourite files:
      Play all your music files through the front USB port including: WAV, MP3, AAC, WMA, FLAC HD, ALAC, AIFF and DSD files.

    • Pristine sound quality from all sources:
      High quality AK4490 D/A conversion, ideal for high-resolution files.

    • Optimized audio reproduction:
      Two selectable digital filters to optimize digital music content.

    • Engineered for your sound:
      Further sound tuned with carefully selected components.

    • High-quality sound even from demanding headphones:
      Full discrete headphone amplifier with HDAM-SA2, gain control and auto off function.

    • Eliminate interference for sound purity:
      Double-layered bottom plate and rigid feet allow for a cleaner, more complete sound.

    • Best amplifier connection:
      Gold Plated L/R/Coax output for a strong continuous connection to your amplifier.

    • Easy to use:
      System remote controls Marantz CD Player, amplifier, and network player.

  • Fits your interior design:

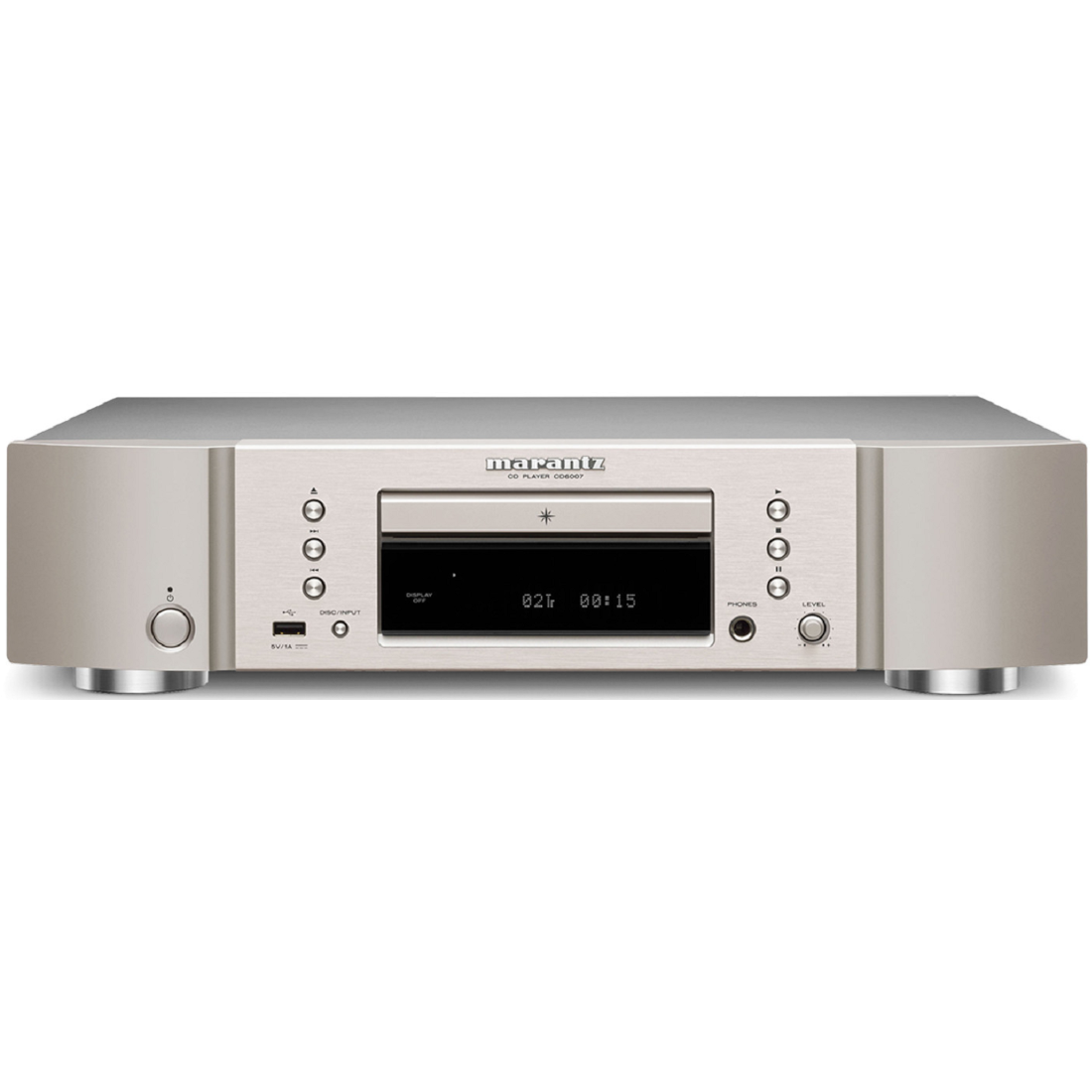

    Available in Black or Silver Gold.


Marantz HDAM Technology

Marantz developed its own discrete circuit boards to replace standard ICs. These HDAMs consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the widely used Op-Amps but outperform these designs dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. In the CD6007, the proprietary HDAM-SA2 circuit improves on its previous HDAM module for an even more stable power supply. The idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.


Reference Quality D/A Conversion

The CD6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, offering two selectable filter options, and provides up to 192-kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, pleasant mids and smooth extended highs for CD playback and Hi-Res formats from USB memory devices.

High Current Power Supply

The audio power supply employs high speed, high current Shottky Barrier Diodes and new higher value current storage capacitors compared to the previous model. The size of the power supply capacitors has been increased by 120% for improved current stability and reduced AC noise during high demanding listening sessions.

Headphone Amplifier with HDAM-SA2 and Headphone Amp Gain Setting (Low/Mid/High)



Compared to the CD6006, the CD6007 offers an improved and redesigned headphone amplifier section. The CD6007 inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience. However, if you prefer, the headphone amp is also equipped with an “Off Circuit” function that automatically turns off the headphone amplifier when a headphone is not connected to the unit to avoid any unwanted interference or noise.


Plays Hi-Res Audio

The CD6007 can playback MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24-bit) and DSD (up to 5.6MHz) files from a connected USB storage device.

Digital Filter

The CD6007 introduces a new selectable digital filter option. This two-mode filter (Filter1/Filter2) allows optimized reproduction of digital music content using the new AK4490 D/A converter to your taste. Filter 1 is a slow roll-off preset that improves deep stereo imaging while Filter 2 is a sharp roll-off filter for more precise imaging reproduction.


The Most Musical Sound

Engineered and extensively tuned by a team drawing on more than 65 years of Hi-Fi expertise, the CD6007 provides exceptional performance for your audio collection. Whether digital or analogue, enjoy the most musical sound from any source.

Specifications:

Features

CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC Yes / Yes / No / Yes / Yes / No
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data No / No / Yes / Yes / Yes
Data Disc Compatibility: DSD / WAV / ALAC No / No / No
DAC operation mode: USB / Coax / Optical No / No / No
Asynchronous mode rear USB No
Bit-perfect transmission No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
Signal isolator for DAC Mode operation No
HDAM version HDAM+HDAM SA2
Power Transformer: Toroidal / El No / Yes
High Grade Audio Components Yes
Customised Components Yes
Symmetric circuit layout Yes
Copper Plated Chassis No
Extra metal plate for chassis strengthing Yes
Digital out off / Audio EX Mode Yes / No
Headphone: Standard / Buffer / Current feedback No / Yes (HDAM-SA2) / No

Others

Selectable filter: CD / SA-CD / DAC-Mode Yes / No / No
Marantz Musical Mastering Yes
Marantz Musical Mastering Stream No
Marantz Musical Mastering Conversion No
Separated rectifier circuit for analog and digital circuitry Yes
Display: Dimmer / Off Yes / Yes
Low noise LCD display No
5mm Aluminum top cover No

Playback

Program Play (CD / SA-CD) 25
Repeat Yes
Random Play Yes
Start Sound Mode for SA-CD No

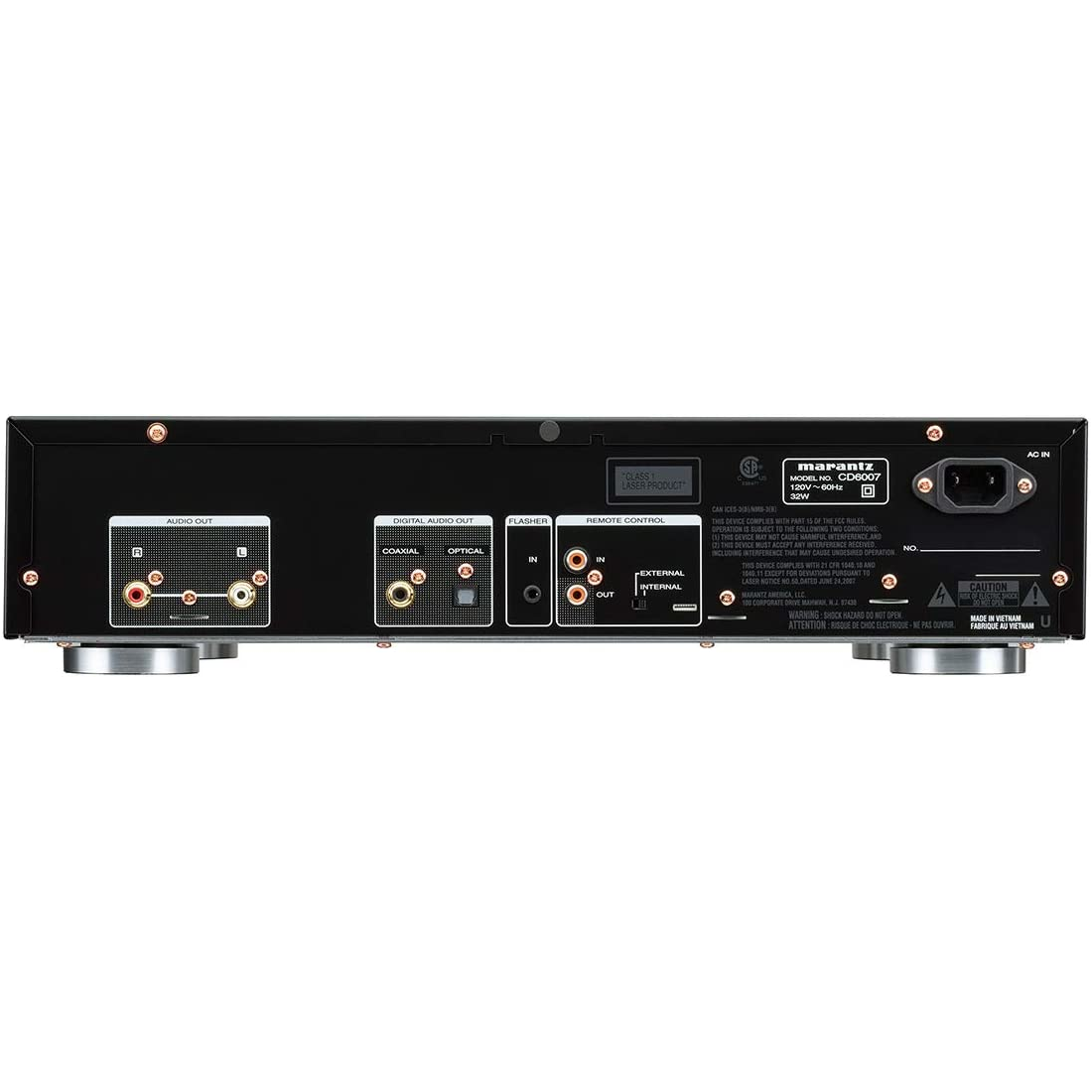

Inputs/Outputs

Analogue Out (Cinch) 2ch
Balanced Out No
Digital Optical In / Out No / 1
Digital Coaxial In / Out No / 1
Sample Rate digital In No
Gold Plated Cinch Yes
USB Audio (Front) / Made for iPod / Made for iPhone® Yes / No / No
USB-A: FLAC / WAV / AIFF / ALAC / DSD Yes
USB type B input for PC (rear) No
Asynchronous mode rear USB No
Sample Rate USB type B In No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
D-Bus Yes
Headphone Out Yes
Headphone Volume Control Yes

Specifications

Mechanism No
D/A Conversion No
DAC IC No
Digital Filter No
Noise Shaper No
Low Pass Filter stage No
Output Buffer No
Headphone amp No
Frequency Response (Cust.) No
Dynamic Range (SA) No
Signal to Noise Ratio (SA) No
Total Harmonic Distortion (SA) No
Channel Separation (SA) No
Frequency Response 2 Hz - 20 kHz
Dynamic Range 100 dB
Signal to Noise Ratio 110 dB
Total Harmonic Distortion 0.002%
Channel separation 98 dB

General

Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
Metal Front Panel Yes
Remote Control RC004PMCD
Power Consumption in W 32
Standby Consumption in W 0.3
Auto Power off Yes
Detachable Power Cable Yes
Maximum Dimensions (W x D x H) in inches 17.3 x 13.3 x 4.1
Weight in lbs. 14.3
Carton Maximum Dimensions (W x D x H) in inches 20.3 x 18.4 x 7.4
Carton Weight (inc. product) in lbs 19.4
