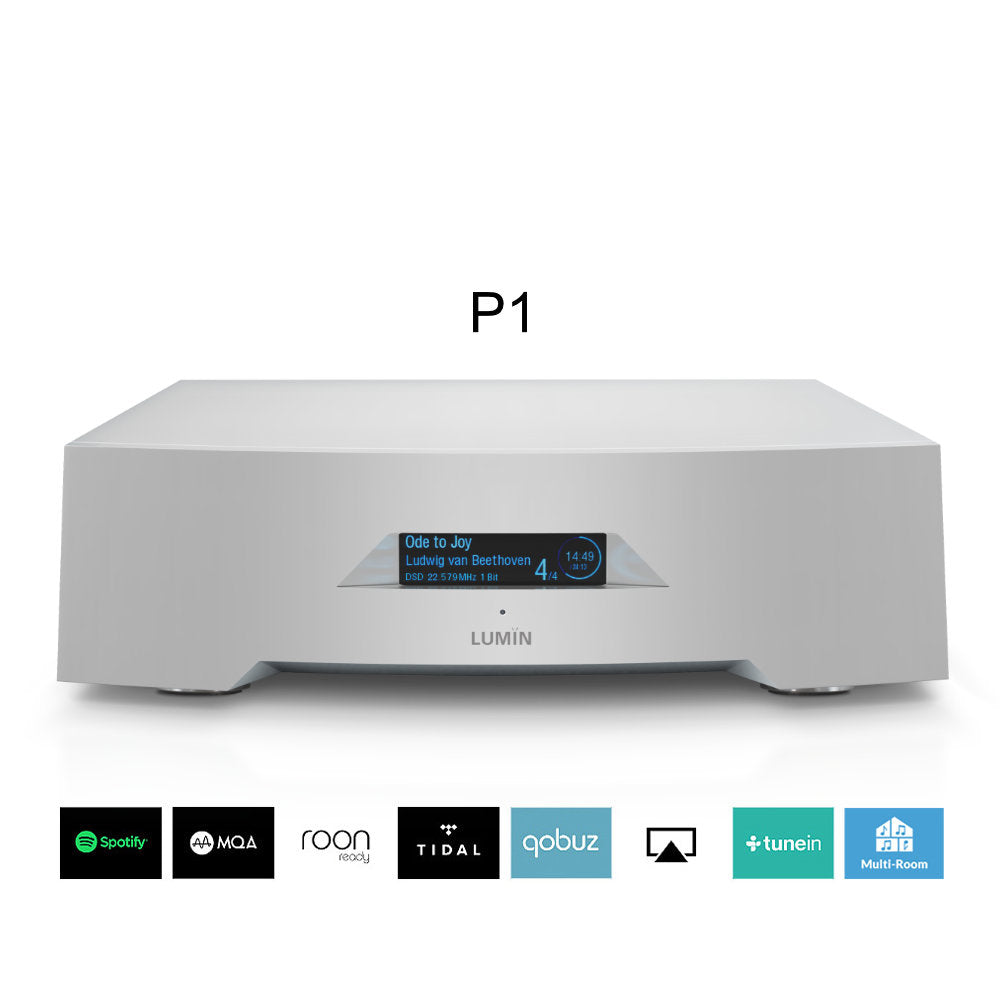

Lumin P1 Network Player
Description
LUMIN P1 makes system integration easier than ever:
- 9 digital & analogue inputs
- USB Digital Audio input & output support up to Native DSD512
- Balanced & unbalanced analog inputs
- SPDIF & AES input supports up to 192/24 with DoP
- HDMI 2.0 inputs & 4K passthrough with ARC support
- The new processor delivers native DSD512 & PCM384 playback
- Dual Mono design throughout maximizes channel separation
- Dual ES9028PRO SABRE DACs in Mono mode
- Femto Clock System with precision FPGA distribution
- New integrated dual-toroidal linear power supply & all-in-one chassis
- Fibre Network provides complete isolation from network digital noise
- Leedh Processing lossless volume control
Flexible setup options
Use as a streamer, a DAC, a pre-amplifier, or all three!
IDEA 1 - STREAMING DAC:
LUMIN P1 can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P1 is second only to LUMIN X1 is pure streaming ability.
IDEA 2 - HI-FI HUB:
Connect all your stereo sources to LUMIN P1 and attach a power amplifier and you've got everything you need for an incredible music system.
IDEA 3 - 2-CHANNEL TV SYSTEM:
No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P1 and P1 to your TV. With HDMI ARC, all your audio comes through your main speakers.
Specifications:
| NETWORK PLAYBACK: | Up to DSD512 Up to 384 kHz, 16–32-bit, Stereo MQA Full Decoding |
| UPSAMPLING RATES & BIT DEPTHS: | DSD128 upsampling option for all files PCM 384kHz upsampling option for all files |
| DIGITAL INPUT: | USB: USB Audio Class 2 Compatible WINDOWS 10 (Release 1703 or above) / Mac OSX or above DoP 128 support PCM 44.1–384 kHz, 16–32-bit, Stereo AES/OPTICAL/SPDIF: PCM 44.1 kHz–192 kHz, 16–24-bit DSD64 (DoP64, DSD over PCM) HDMI X3: PCM 2.0 Audio support 4K Video Passthrough |
| DIGITAL OUTPUT: | USB: Native DSD512 support PCM 44.1–384 kHz, 16–32-bit, Stereo BNC SPDIF: PCM 44.1 kHz–192 kHz, 16–24-bit DSD64 (DoP64, DSD over PCM) HDMI X1:(HDMI PASSTHROUGH AND ARC SUPPORT) PCM 2.0 Audio support 4K Video Passthrough ARC (Audio Return Channel) support |
| ANALOGUE INPUT: | RCA Unbalanced x1 XLR Balanced x1 |
| ANALOG OUTPUT: | Dual ESS SABRE32 ES9028Pro DAC chips Fully balanced layout with high-quality components Output connectors coupled with dual LUNDAHL LL7401 output transformers Femto Clock System with precision FPGA distribution |
| OPTICAL NETWORK: | Industry-standard SFP 1000Base-T Gigabit Ethernet The adapter may be needed for your particular switch/cables Use simultaneously with RJ45 (e.g. connect one to the router and one to LUMIN L1 or NAS) |
| POWER SUPPLY: | Internal dual-toroidal Separate digital & analog circuitry Low-noise linear regulator |
| STREAMING PROTOCOL: | UPnP AV protocol with audio streaming extension (OpenHome) Roon Ready Spotify Connect Flac lossless Radio stations AirPlay-compatible Gapless Playback On-Device Playlist |
| APP FEATURES: | Native support for TIDAL, MQA, Qobuz, and TuneIn Radio. Tidal MQA icons to identify high-res music Qobuz high-res icons to identify high-res music Volume control High-resolution artwork Artwork caching Search Multiple tag handling Composer tag support Album-grouping in playlist Automatic internet links to artists/album/songs Saving and restoring of playlists (including Tidal and Qobuz) |
| SUPPORTED AUDIO FILE FORMATS: | DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (lossy) Audio: MP3, AAC (in M4A container) MQA |
| INPUT: | Gigabit Ethernet Network (1000BASE-T) RJ45 A Shared USB port can also be used for storage, flash drive, USB hard disk (single-partition FAT32, exFAT, and NTFS only) |
| SUPPORTED CONTROL DEVICES: | All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support. Android devices. Android 4.0 (Ice Cream Sandwich) or later required |
| OTHER: | Leedh Processing lossless digital volume control Program of Continuous Development – Firmware-upgradable for further features and enhancements |
| FINISH: | Black anodized aluminium Raw aluminum |
| LUMIN (SOLID ALUMINIUM CHASSIS): | 350mm (W), 380mm (D), 107mm (H), 12kg |
