Lumin Amp Power Amplifier

By Lumin



Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.

Matched styling. Unmatched performance.

  • 160W per channel into 8Ω
  • 320w per channel into 4Ω
  • 2-channel design can be configured in Stereo, Dual Mono or Bridged mode
  • Class AB Amplification
  • Discrete Circuit
  • No global feedback
  • DC, overload and overheating protection
  • Bespoke 650VA transformer

LUMIN Amp Specification

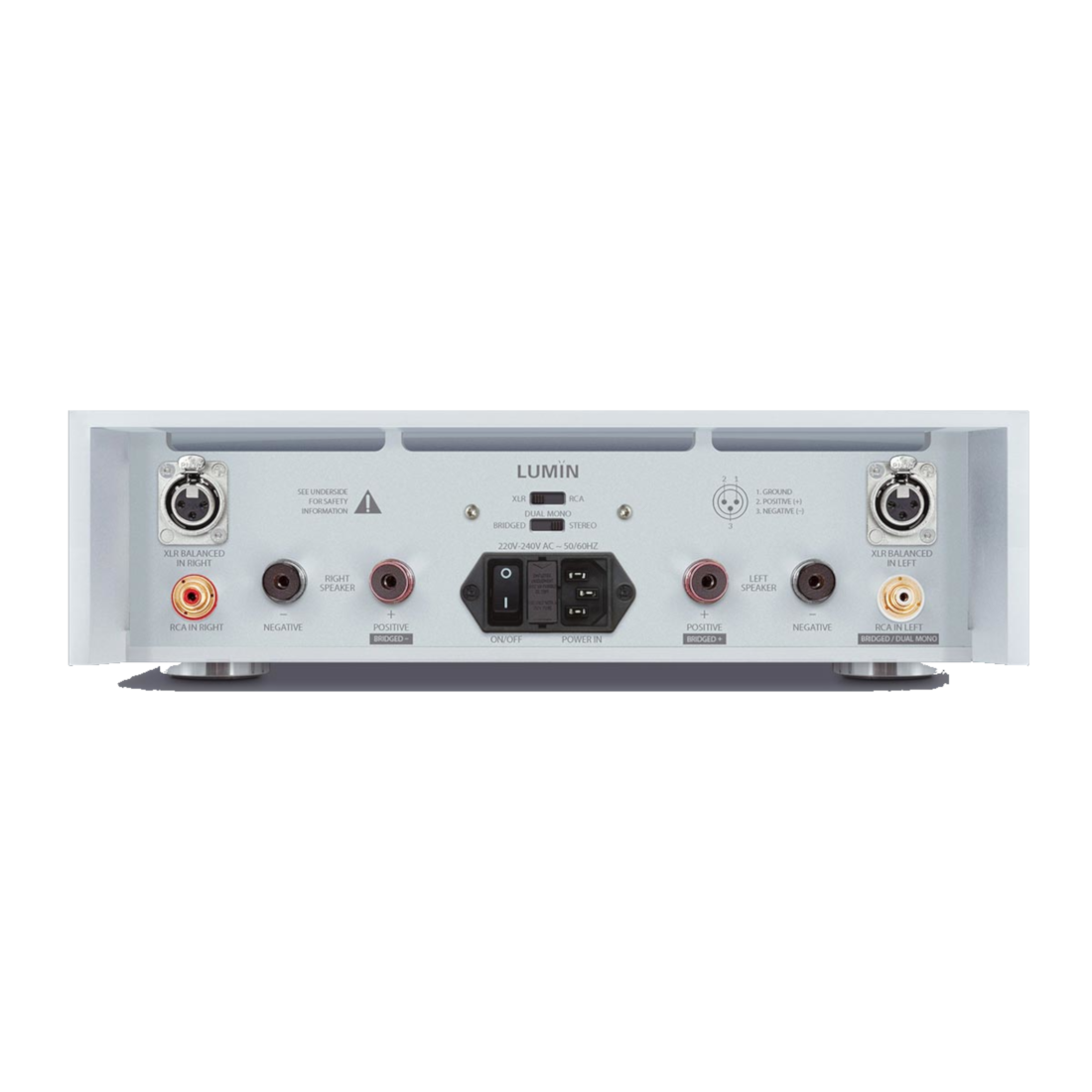

  • Audio Inputs:

    • Analogue input: 1 x XLR pair, 1 x RCA pair
    • Input impedance: 200kΩ
  • Speaker Outputs:

    • 160W per channel into 8Ω
      320W per channel into 4Ω
    • Output impedance: 0.1Ω
    • Signal to noise ratio: 105dB unweighted
  • Power Mains Supply

    • Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz
  • Volume control:

    • Volume is controlled by the LUMIN app
  • Construction:

    • CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
  • Finish:

    • Black anodized brushed aluminium or Raw brushed aluminium
  • Physical:

    • Finish:

      • 350mm (W), 374mm (D), 104mm (H), 19kg
