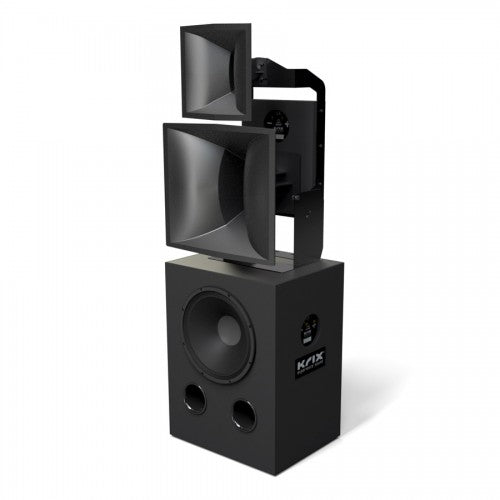

Krix Theatrix Theatre Speakers

$6,995
By Krix

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

THEATRIX

3 WAY

**Speakers are sold individually - Please get in touch with us to work our your requirements**

High acoustic power

Superior vocal intelligibility

Massive dynamic range

These 3 way extreme speakers deliver an incredibly dynamic and effortless performance. Utilising commercial cinema technology, the Theatrix are capable of producing high sound pressure levels with pristine fidelity and extremely low distortion. A dedicated midrange driver enhances performance and ensures superior vocal intelligibility.

EXPERIENCE DYNAMICS

The Theatrix are serious main front speakers for a truly serious dedicated home cinema experience.  It is a 3 way, bi-amped screen loudspeaker suitable for medium to large size rooms.  The addition of a dedicated midrange section overcomes the demands placed on the high frequency component, enhancing performance.

By splitting the signal into three dedicated sections, the loudspeaker produces superior vocal intelligibility in the critical 1kHz – 3kHz speech region. It’s not often that you find smooth response, acoustic power, and dynamic range in one model of speaker, but with the Theatrix you can have it all.

The Theatrix features a 380mm high stiffness paper cone driver with a 77mm voice coil for increased linear excursion, and a powerful, vented magnet assembly designed for low distortion. Its specially engineered bass driver offers superb bass performance, high peak program power handling and high efficiency – capable of very high sound pressure levels. The massive ferrite magnet structure includes components engineered to achieve maximum efficiency.  Symmetrical gap geometry, combined with large linear voice coil travel, ensures minimum distortion at all levels.

The dedicated midrange is delivered by a Krix designed 90 by 40 degree constant directivity horn with a 77mm throat, driven by a 165mm curvilinear paper cone driver with large voice coil and neodymium magnet.

For high frequencies, the Theatrix features Krix’s patented design, a 90 by 40 short throw horn, delivering optimum dispersion of 90 degrees horizontal and 40 degrees vertical, consistently maintained over the entire working bandwidth. It is driven by a compression driver with a 25mm throat, 32mm edge-wound aluminium voice coil and Nomex former.  The constant directivity means far less sound is reflected off of side walls and ceilings, ensuring sound energy is focused directly at the listening position for better clarity.

The horn assemblies are mounted to the bass cabinet with a solid mounting bracket which offers both vertical and horizontal tilt. The electronic filter network for the horn section is housed in a separate, well-ventilated enclosure, mounted at the rear of the midrange horn. Professional grade, close tolerance components ensure the system copes with the high sound pressure levels that well-recorded music and movies demand. A separate electronic crossover network is required between the bass driver and horn elements.

For the ultimate cinema experience at home, play it through Krix.

SPECIFICATIONS

Frequency Range
38Hz-16kHz in room response

Power Handling
500 Watts RMS recommended maximum amplifier power

Sensitivity
96dB for 2.83 volts at 1 metre

Impedance
Nominally 8 Ohms

Configuration
3-way

Enclosure Type
Bass reflex, front vented

Dimensions
Total Dimensions: 1680mm high x 565mm wide x 460mm deep

Low Frequency Driver
Single 380mm (15″) high stiffness paper cone driver with 77mm (3″) voice coil of optimal length for increased linear excursion, wound on high temperature apical former and powerful vented magnet assembly designed for low distortion

Mid Frequency Driver
Krix designed 90º x 40º constant directivity horn with a 3″ throat driven by a single 165mm (6½”) curvilinear paper cone driver. A 45mm (1¾”) edge-wound aluminium voice coil, with vented Neodymium magnet assembly and heat dissipation to minimise power compression at high sound output levels

High Frequency Driver
A Krix patented designed 90º x 40º short throw horn driven by a compression driver with a 1″ throat 1¾” edge-wound aluminium voice coil and Nomex former

Crossover Point
1600Hz passive MID/HF – contact Krix directly for bi-amped active filter parameters

Input Terminals
200 amp proprietary terminal posts, accepting up to 6mm diameter cable

Weight
64kg each
