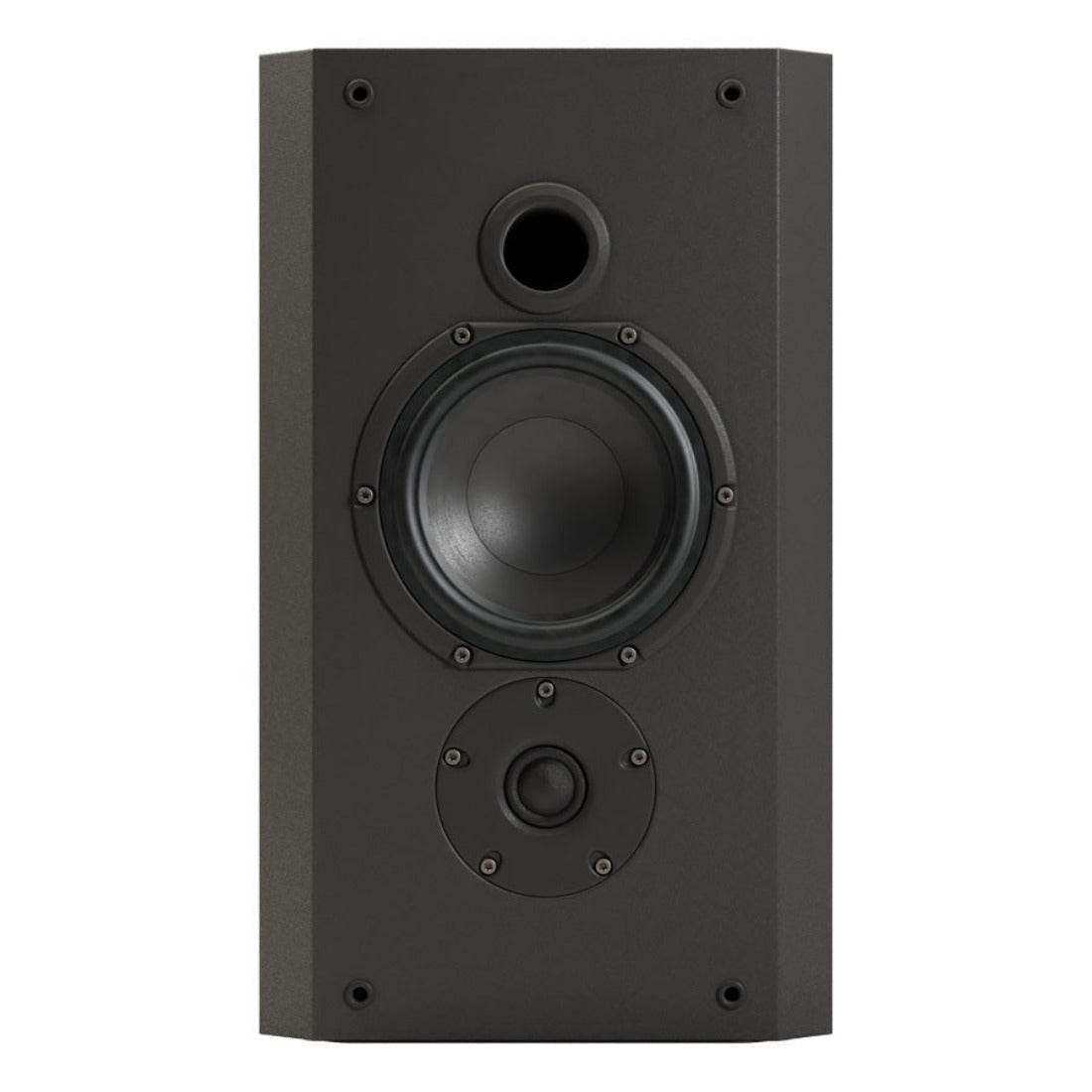

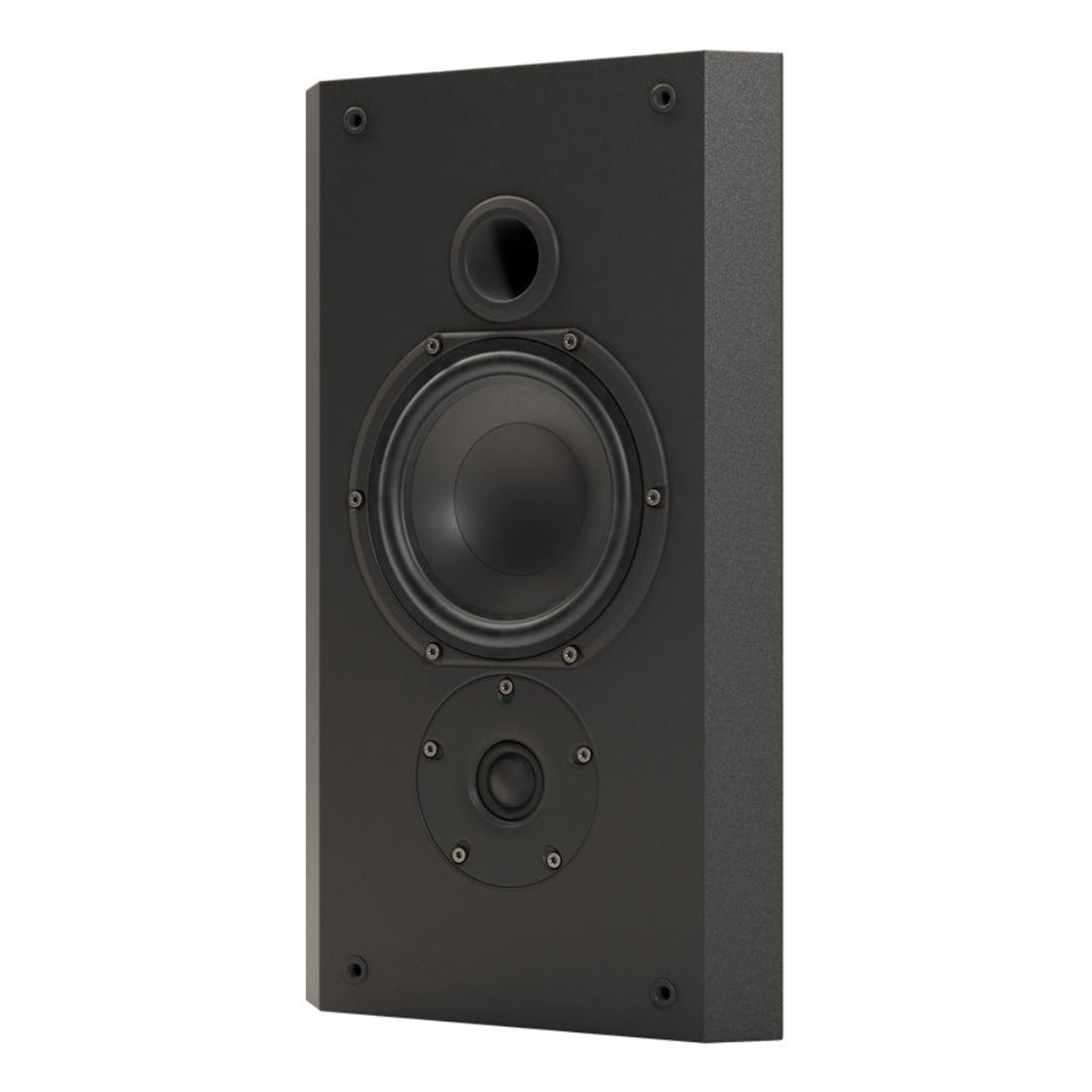

Krix Phonix 45 On wall Speaker

By Krix



  • Immersive surround or ceiling effects
  • Compact, angled design
  • Suitable for wall, ceiling, vertical and horizontal mounting
  • Included bracket allows for 45 degrees or flush mounting

Installed on the wall or ceiling, the Phonix 45 is incredibly versatile, delivering all the performance of the Phonix with an angled baffle to direct the sound to your seat.


For enveloping surround sound and overhead effects, the cleverly angled Phonix 45 provides an immersive home theatre experience as a surround or ceiling effect speaker.

Installed vertically or horizontally, the Phonix 45 is best used in locations where the speaker would normally be considerably off-axis to the main listening position. Prime examples are the front wide, front height, top front, top rear and rear height positions. By angling the front baffle towards your seat, the high frequency response is improved and significantly less equalisation and power are required. The speaker can also be mounted tightly into a corner.

The Phonix 45 has been designed with a shallow 124mm depth, so it can also be installed “flat” to the wall, for speaker positions that are more on-axis with the seating locations (see installation guide for mounting options).

Perfectly suited to home cinema applications, the high power handling and extension down to 45Hz make this speaker incredibly capable of delivering the most demanding soundtrack effects. The hefty 165mm bass driver has a 33mm voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band.

The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter. Combined with the crossover network which has been designed and built using close-tolerance, professional-grade components, the resulting sound is exceptionally smooth and well controlled.

Each speaker includes a bracket and black cloth grille with adjustable badge (horizontal or vertical orientation), ensuring the speaker looks great and is easy to install.

For the ultimate cinema experience at home, play it through Krix.


Frequency Range
45Hz-20kHz in room response
Power Handling
50-150 Watts RMS recommended amplifier power
Sensitivity 88dB for 2.83 volts at 1 metre
Impedance 8 Ohms
Configuration 2-way
Enclosure Type
Bass reflex, front vented
Dimensions 470mm high x 276mm wide x 124mm deep (please see technical drawing for dimensions when speaker is rotated)
Low Frequency Driver
Single 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilization ring for low distortion
High Frequency Driver
26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled
Crossover Point
Input Terminals
High current terminals featuring 5mm hole to accept up to 10 AWG cable
Weight 6kg each
