Krix MX-30 Modular Theatre System

$19,995

Brand Krix

We are not able to sell this product online please email us or call us on +61 2 62474844

MX-30

MODULAR

**As this is a custom design please get in touch with us to work our your requirements**

Behind screen cinema quality speakers

Easy to install

Krix Infinite Baffle Wall

Designed for larger dedicated home cinemas with an acoustically transparent screen, the MX-30 will deliver your favourite movie soundtracks with supreme definition and accuracy, right through the picture and into your seat. Larger bass drivers and compression high frequency drivers provide an extended frequency response at higher sound pressure levels.

EXPERIENCE REALISM

Featuring commercial cinema components, the Krix MX-30 provides a crisp, clear, realistic sound, with such power and precision it will make your hair stand on end.

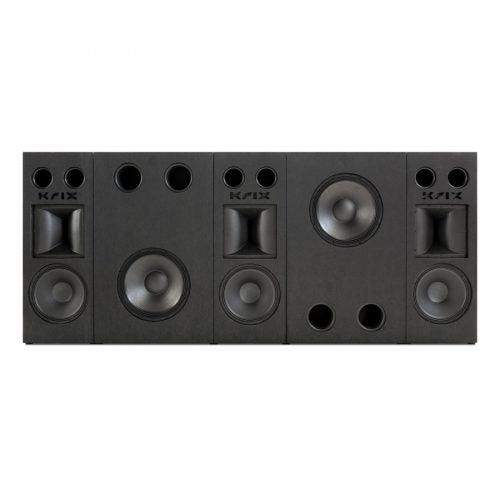

Created for larger home cinemas measuring five to fourteen metres long, the MX-30 features five modules, all of which are the same height and slim-line depth for easy installation into one cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.

The main speakers utilise a single 380mm, high stiffness, paper cone mid-bass driver with a 77mm voice coil for increased linear excursion, and a powerful vented magnet assembly designed to lower distortion.  You’ll hear a pin drop and a booming soundtrack crescendo with equal clarity.

High frequencies are handled by the Krix patented 90 by 40 degree short throw horn, driven by a high frequency compression driver with 44mm voice coil. Each subwoofer also contains a massive 455mm driver with 100mm voice coil, dual spider and vented magnet assembly.

With every aspect scrutinised to deliver the most faithful reproduction of your movie soundtrack, the Krix MX-30 will allow you to truly feel the on-screen action.

For the ultimate cinema experience at home, play it through Krix.

SPECIFICATIONS

LCR Speaker Modules

Frequency Range
38Hz-16kHz in room response

Power Handling IEC AES
350 Watts

Power Handling Program
700 Watts

Sensitivity
98dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Configuration
2-way

Enclosure Type
Bass reflex, front vented

Low Frequency Driver
Single 380mm (15″) high stiffness paper cone driver with 77mm (3″) voice coil of optimal length for increased linear excursion, wound on high temperature apical former and powerful vented magnet assembly designed for low distortion

High Frequency Driver
A Krix patented designed 90º x 40º short throw horn driven by a compression driver with a 1″ throat 1¾” edge-wound aluminium voice coil and Nomex former

Input Terminals
Gold plated spring terminals

Dimensions
1220mm high x 450mm wide x 335mm deep (2865mm wide including subwoofer modules)

Subwoofer Modules

Frequency Range
25Hz-500Hz in room response

Power Handling IEC AES
700 Watts

Power Handling Program
1400 Watts

Sensitivity
100dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Enclosure Type
Bass reflex, front vented

Low Frequency Driver
Single 455mm (18”) paper cone driver. 100mm (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly

Input Terminals
High level gold plated spring terminals

Dimensions
1220mm high x 750mm wide x 335mm deep (2865mm wide including LCR modules)

System Recommendations

Recommended Room Depth
5m – 14m

Min. Screen Size 16:9
130″ (2880mm x 1620mm)

Minimum Screen Size 21:9
120″ (2806mm x 1184mm)
