KRIX MX-10 Modular Speaker System

By Krix

This product is not available for online purchase. Please contact us via phone on +61262474844 or email to arrange purchase.


  • Easy to install
  • Krix Infinite Baffle Wall
  • For medium size rooms

Designed for dedicated home cinemas with an acoustically transparent screen, the MX-10 is a superb choice for those seeking an involving cinema experience with crystal clear intelligibility, large dynamic range and powerful bass.


Designed for medium size dedicated cinema rooms, the MX-10 presents the next level of modular home cinema performance, housing the same Krix waveguide and mid-bass driver of its bigger brother, the MX-20.

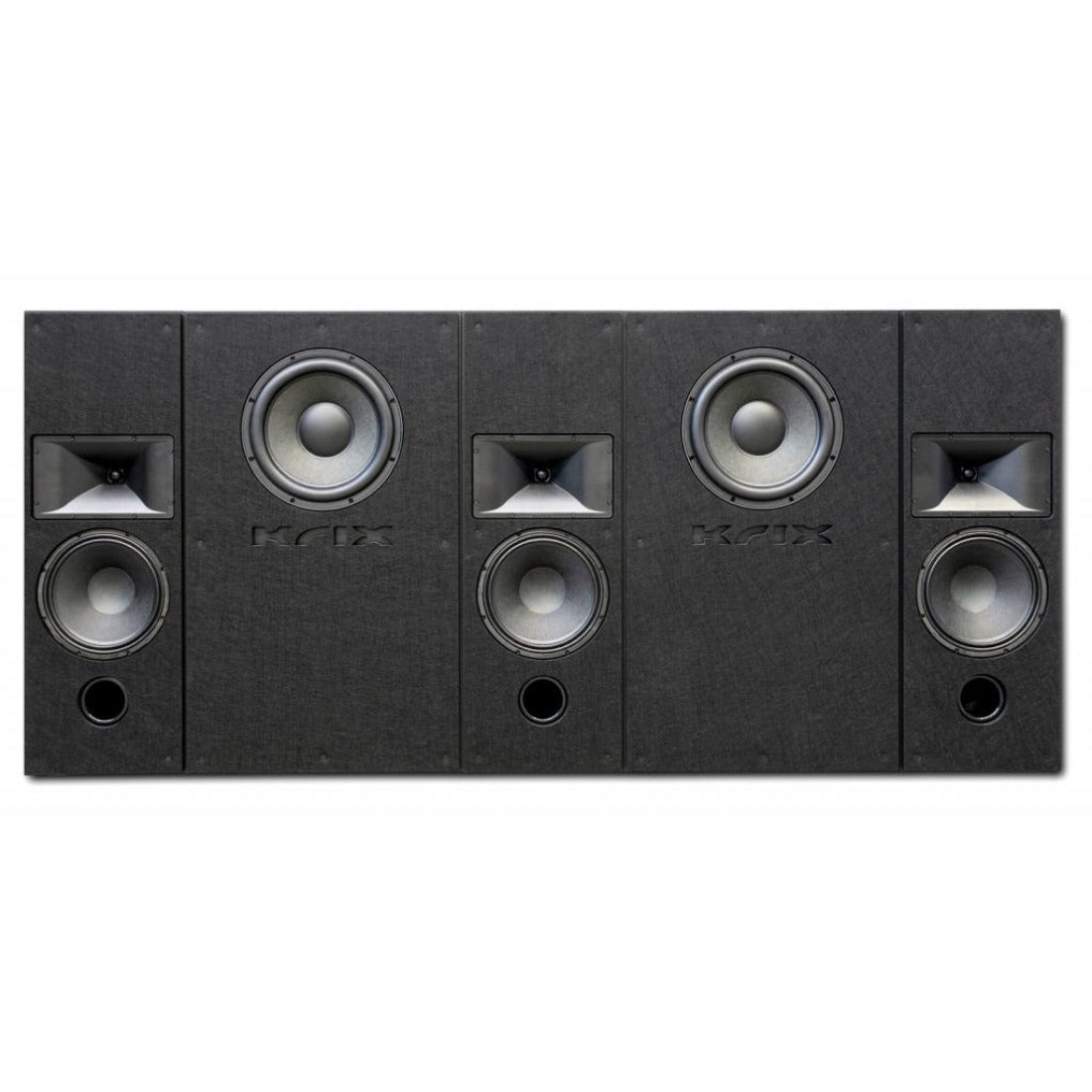

The MX-10 comprises of five modules, all of which are the same height and a slim depth of just 205mm for simple installation into a wall cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.

The main speakers feature a 255mm bass-mid driver which has a 50mm voice coil developed to offer low harmonic distortion, especially in the critical midband.

The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide, for optimum dispersion over the entire working bandwidth. Each subwoofer contains a large 305mm paper cone driver with a 50mm long throw voice coil developed for high level, low frequency reinforcement.

For the ultimate cinema experience at home, play it through Krix.


Frequency Range 40Hz-20kHz in room response
Power Handling 50 – 200 Watts RMS recommended amplifier power
Sensitivity 97dB for 2.83 volts at 1 metre
Impedance 8 Ohms
Configuration 2-way
Enclosure Type Bass reflex, front vented
Low Frequency Driver Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
High Frequency Driver 26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
Input Terminals Gold plated spring terminals
Dimensions 940mm high x 315mm wide x 205mm deep (2025mm wide including subwoofer modules)
Frequency Range 25Hz-200Hz in room response
Power Handling IEC AES 450 Watts
Power Handling Program 900 Watts
Sensitivity 92dB for 2.83 volts at 1 metre
Impedance 4 Ohms
Enclosure Type Bass reflex, down-firing vent
Low Frequency Driver Nominal 305mm (12”) diameter paper cone driver with 50mm (2”) long throw voice coil developed for high level, low frequency reinforcement
Input Terminals High level gold plated spring terminals
Dimensions 940mm high x 540mm wide x 205mm deep (2025mm wide including LCR modules)
