- Trimless magnetic grille
- Fits inside 70mm wall cavity
- Fully enclosed backbox

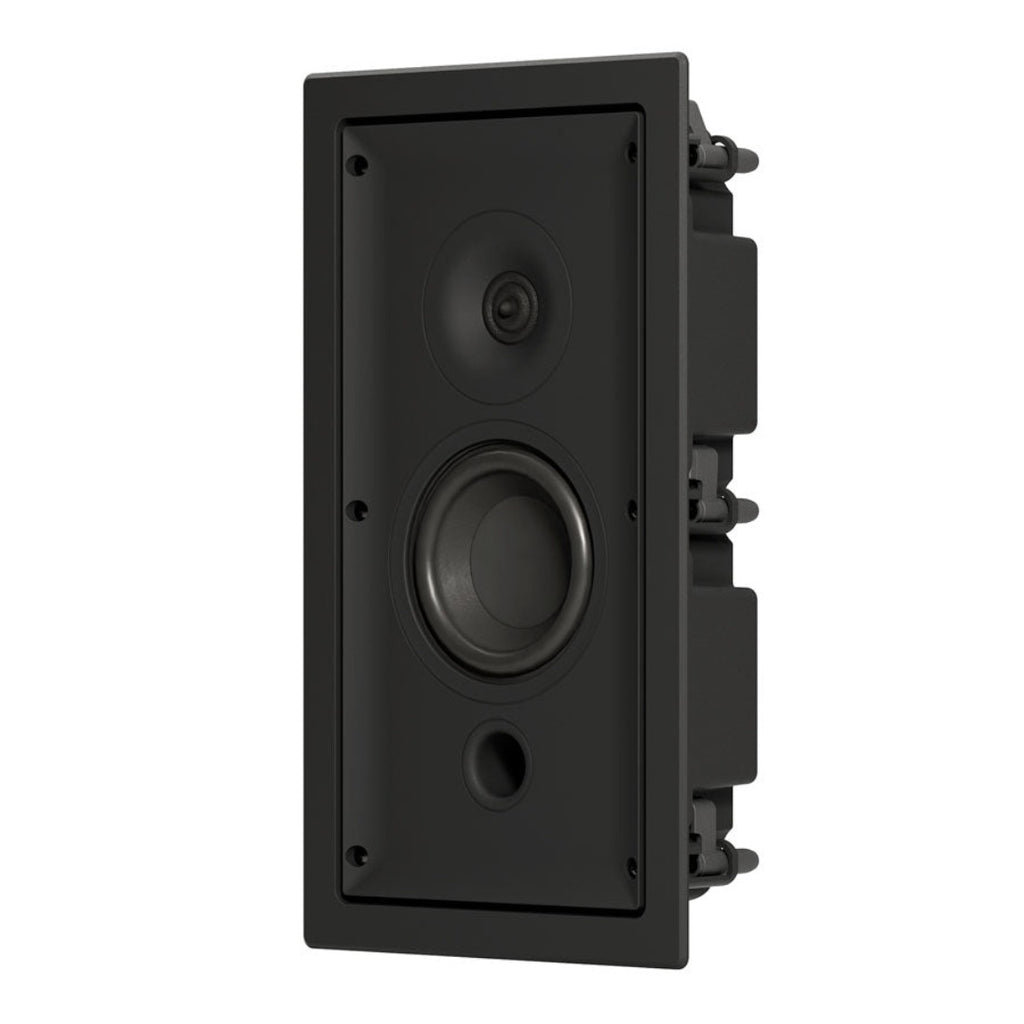

KRIX IW-30 IN WALL SPEAKER
Designed for use as both fronts and surrounds, the IW-30 will disappear into the room, leaving you to enjoy the soundtrack.
As a rectangular in wall version of the in ceiling IC-30 (Hemispherix AS) and IC-32 (Hemispherix A20) speakers, the IW-30 offers precise tonal matching, but will also provide excellent synergy with any of the Krix speaker range. Designed to fit within a 70mm wall cavity, its fully enclosed back box ensures acoustic integrity and prevents rear sound radiation from being transferred to adjoining rooms.

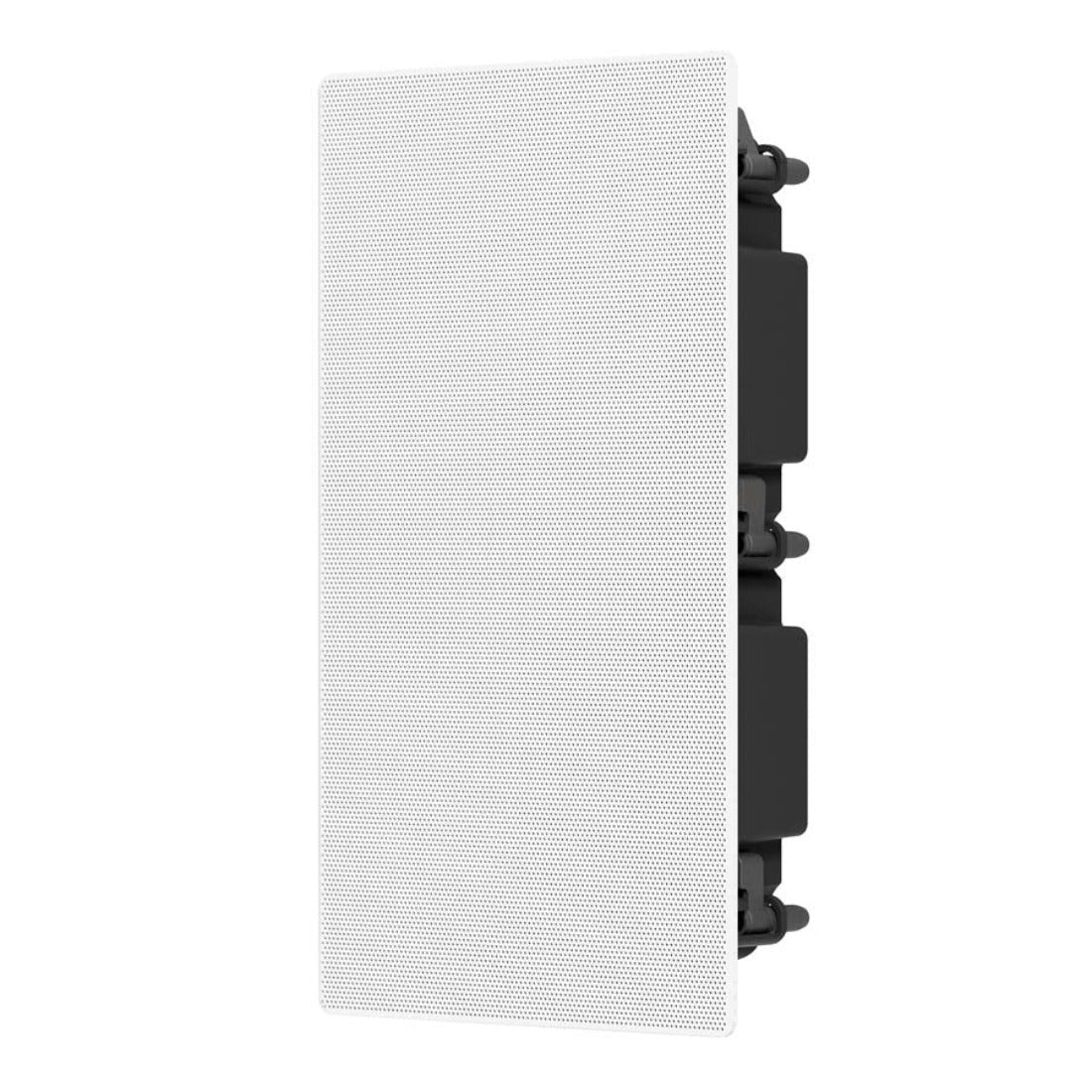

Bass and midrange clarity are delivered through the 100mm bass driver, while the 20mm ring radiator tweeter sits within an integrated waveguide for improved dispersion. The single piece trimless grille is held in place by magnets at the front of the speaker, and can be painted to match the decor of any room.
For the ultimate sound experience at home, play it through Krix.
65Hz-40kHz in room response
||20 – 100 Watts RMS recommended amplifier power|
|Sensitivity||86dB for 2.83 volts at 1 metre|
|Impedance||Nominally 6 Ohms (minimum 4.2 Ohms)|
||325mm x 170mm recommended|
|Dimensions||353mm high x 198mm wide x 79mm mounting depth|
|Low Frequency Driver
Nominal 100mm (4”) doped paper cone. 25mm (1”) voice coil wound on high temperature Kapton former
|High Frequency Driver
||20mm (3/4″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Neodymium magnet|
||Gold plated spring terminals|
||Bass reflex, front vented|
