Klipsh THX-5000-LCR Home Theatre Loudspeaker Each

By Klipsch



By using the same research and development used to create its professional cinema systems, Klipsch has developed the THX-5000-LCR loudspeaker to create real theater-style sound in the comforts of home. As part of the THX® Ultra2 family, this LCR reproduces all the passion that the filmmakers originally intended.


    • Sealed enclosure
    • Top-of-the-line internal wiring
    • Dual 5.25-inch Cerametallic™ woofers
    • 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn

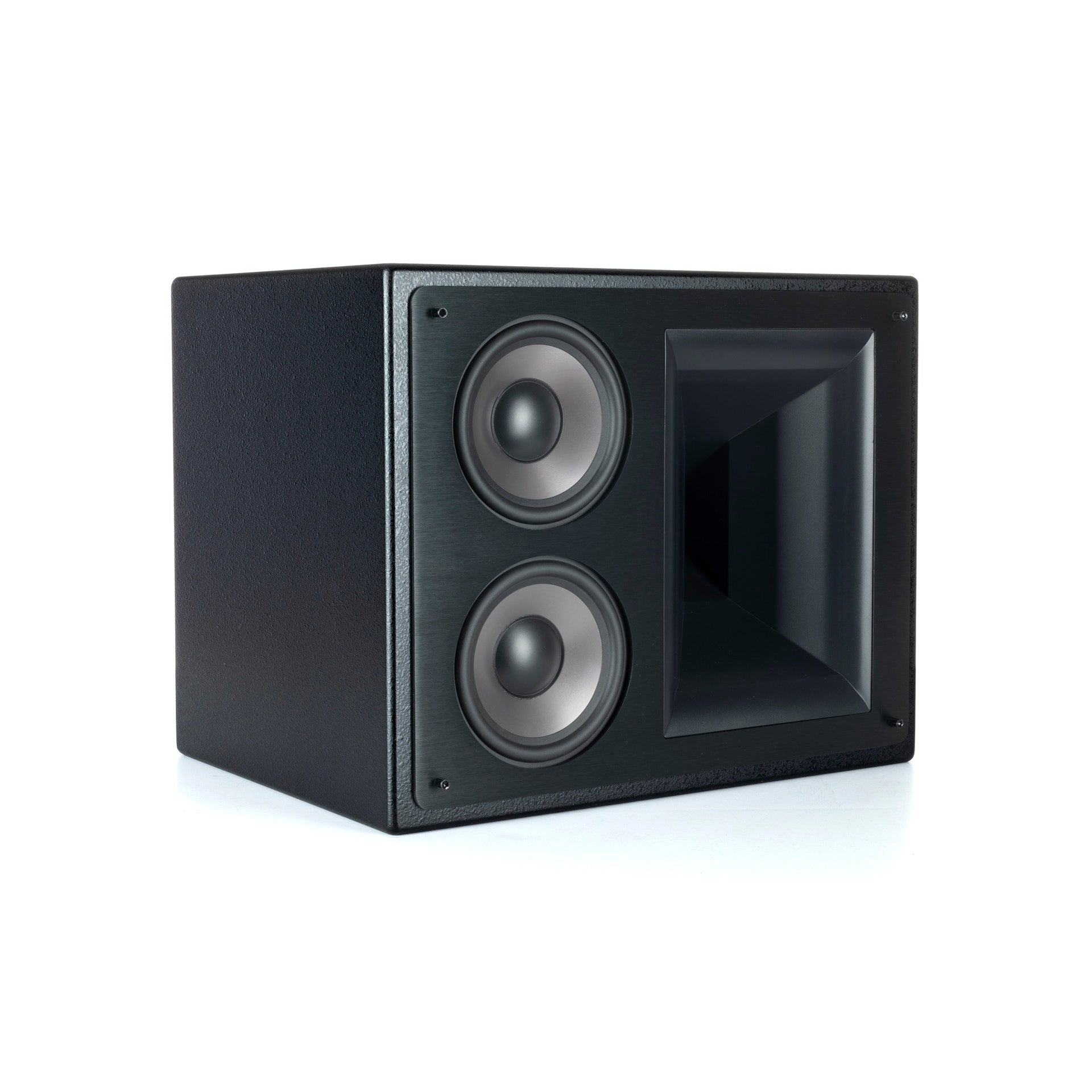

    The highly efficient THX-5000-LCR features a sealed enclosure, top-of-the-line internal wiring, dual 5.25-inch Cerametallic™ woofers, and a 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn.

    The THX-5000-LCR enclosure has the same dado and rabbet construction used in Klipsch professional speakers ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points on this loudspeaker facilitate wall or ceiling mounting using standard hardware.

    Available in a custom Galaxy black finish with an aluminum fascia, the KL-525-THX delivers dynamic audio experiences that draw listeners into the middle of live concerts and action-packed movies.

     Technical Specifications:

    Frequency Response 80Hz-20kHz ±3dB
    Sensitivity 94dB @ 2.83 volts / 1 meter
    Nominal Impedance 8 ohms compatible
    High Frequency Crossover 1500Hz
    Power Handling 100 watts maximum continuous (400 watts peak)
    Enclosure Type Sealed
    Enclosure Material Medium density fiberboard construction (MDF)
    Tweeter 1" (2.5cm) magnetically shielded, titanium dome compression driver with 9.6oz ceramic magnet structure
    High Frequency Horn 10" x 6" rectangular 90° x 60° Tractrix® Horn
    Woofer Two 5.25" (13.3cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers

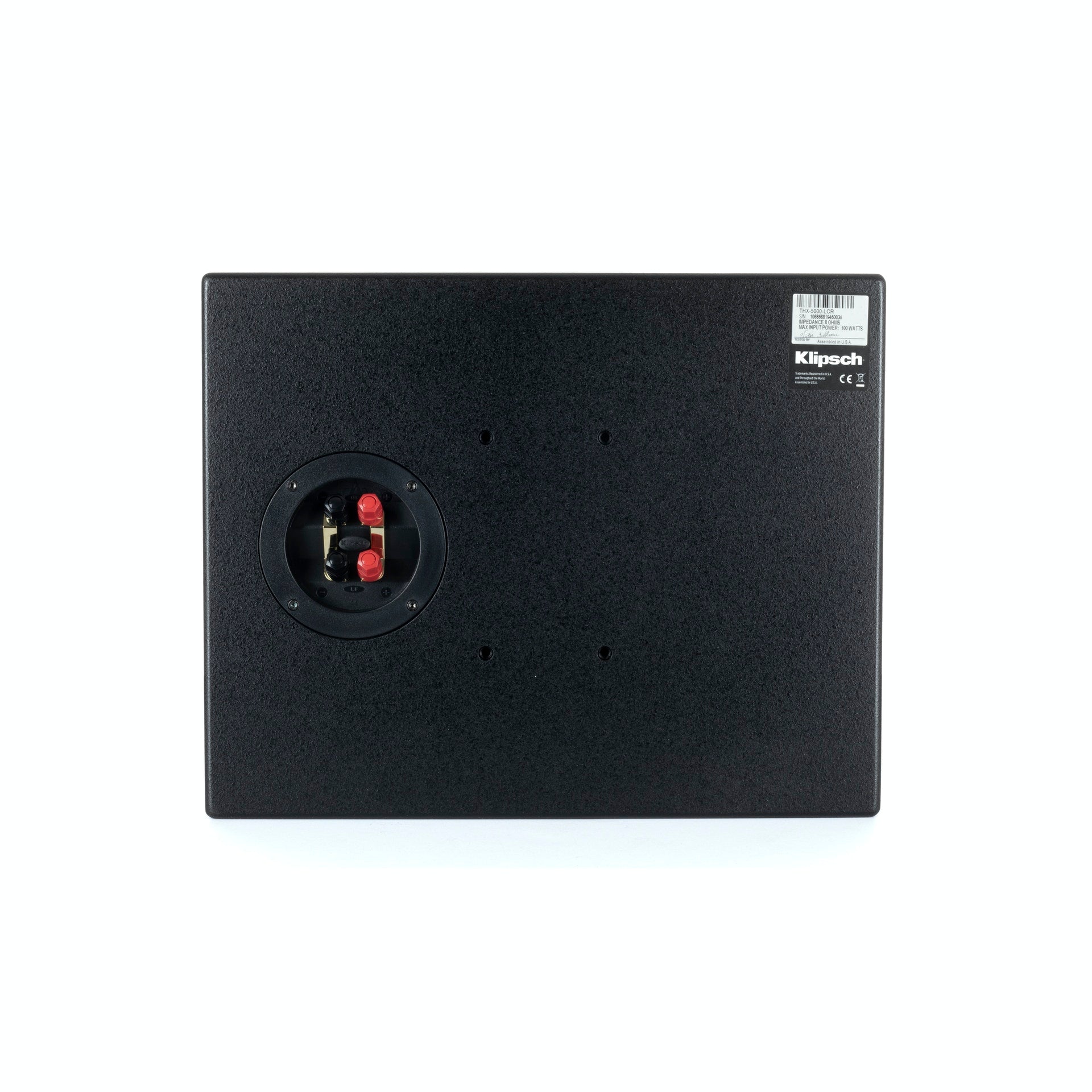

    Inputs Two sets of binding post speaker terminals (connected via brass strap jumpers)
    Dimensions 12.75" (32.4cm) H x 16" (40.6cm) W x 12.5" (31.8cm) D (w/grille)
    Weight 32 lbs. (14.5kg)
    Finish Galaxy Black cabinet with Black anodized aluminum fascia
    Mounting 4-bolt pattern 1/4"-20 thread
