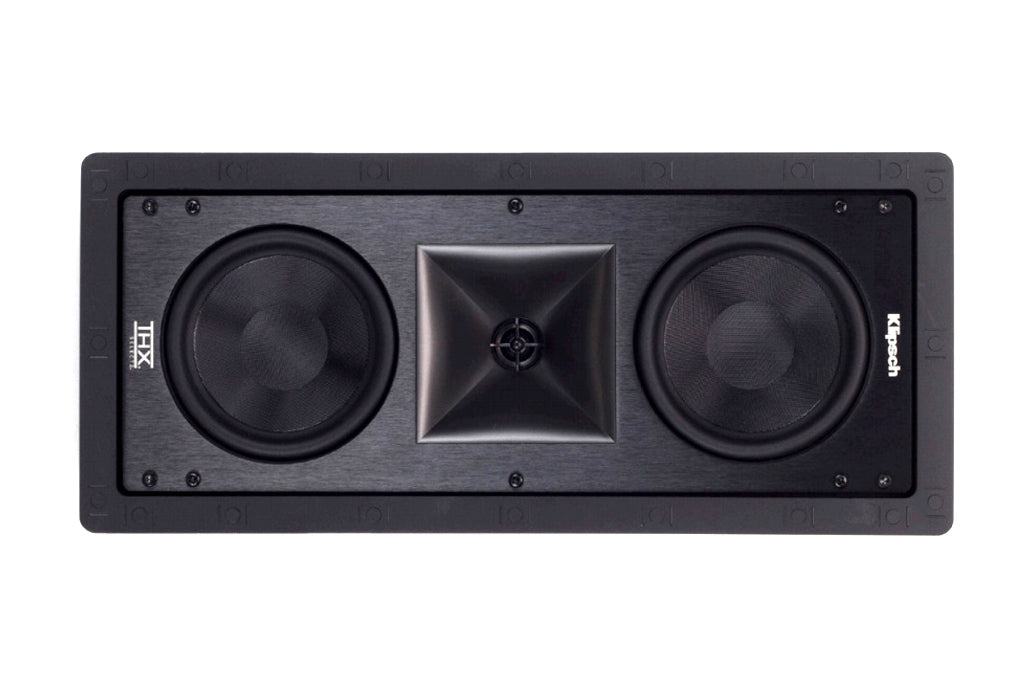

Klipsch THX-502-L In Wall Speaker Each
THX-502-L IN-WALL SPEAKER
- 1" Titanium Diaphragm Compression Driver mated to 90° x 90° square Tractrix® Horn
- Dual 5.25" Fiberglass Cone Woofers
- THX® Select 2 Certified
- Cinema Quality Sound
- Maximum Installation Reliability
- Unlimited Flexibility
- Edge-to-Edge Grille
THX® SELECT2 CERTIFIED
Delivers effortless dynamic range and brings superior sound to larger areas thanks to its highly regarded THX Select2 certification. It not only delivers consistent compelling audio to larger-sized rooms it also brings real cinema sound to the comforts of home without taking up any floor space.
CINEMA QUALITY SOUND
Employs high output fiberglass woofers for powerful bass impact, while a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90 square Tractrix® Horn generates flat in-room frequency response with high efficiency and low distortion.
MAXIMUM INSTALLATION RELIABILITY
This in-wall speaker also consistently delivers thrilling, realistic sound, whether it's installed horizontally or vertically. It features sure-grip mounting dogs that provide even pressure against drywall for long- term installation reliability, and includes a paintable grille that blends in perfectly with any decor.
Timbre matched to all of our THX-certified products, so you can mix and match to create an unbeatable, discreet stereo or home theater system that's just right for you.
Covering the whole of the speaker makes painting the product both simpler and quicker. Premium Neodynium magnets make it easy to install and remove and ensure a secure and flush fit without any moving parts. The flat grill allows better harmonization with today's mode
|System Type||2-way In-wall|
|Frequency Response||46Hz-20kHz +/-3dB|
|Recommended Amp Power||150W|
|Sensitivity||92dB @ 2.83V / 1m|
|Impedance||8 Ohms switchable|
|High Frequency Driver||1” (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn|
|High Frequency Crossover||2100Hz & 1200Hz|
|Low Frequency Driver||Dual 5.25” (13.3cm) high-output, fiberglass cone woofers|
|Speaker Enclosure||MDF & Aluminum motorboard /ABS frame|
|Enclosure Type||Infinite baffle, front flush with wall|
|Hole dimensions (mm/in, HxWxD)||16.5” (41.9cm) H x 6.5” (16.5cm) W|
|Dimensions||17.98” (459.69mm) H x 8.11” (205.99mm) W|
|Mounting Depth||3.49” (88.65mm)|
|Cutout Dimensions||16.42” (417.07mm) L X 6.57” (166.88mm) W|
