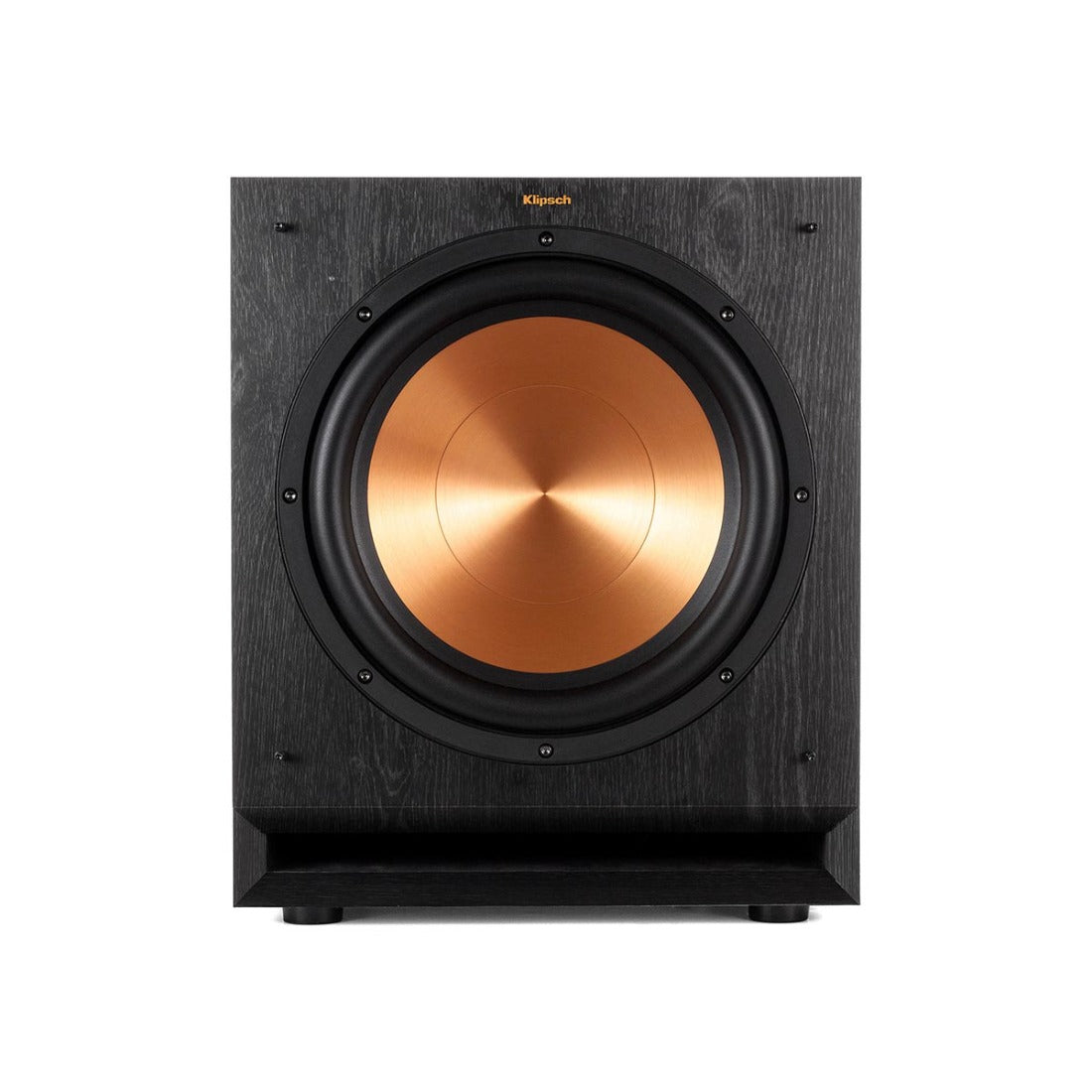

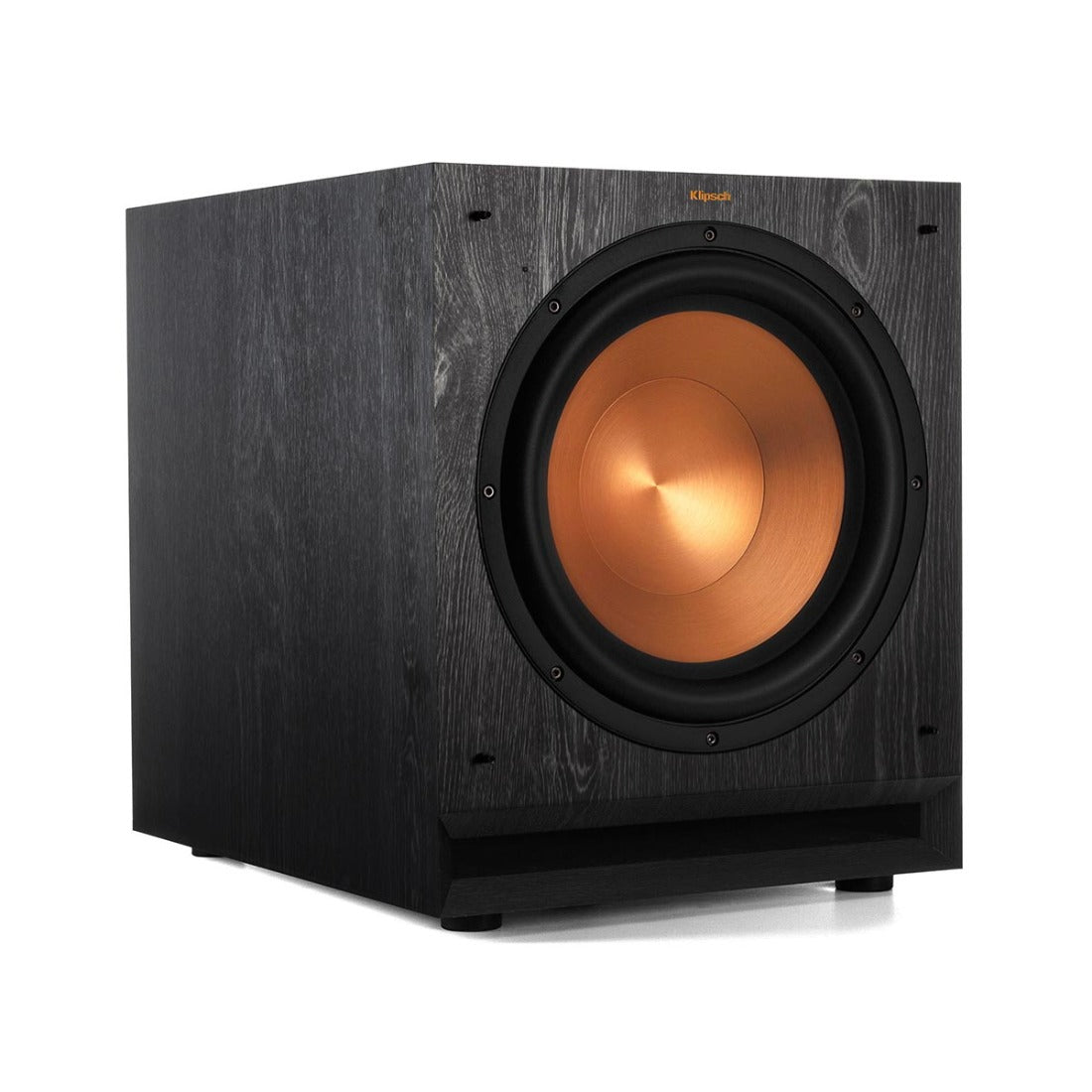

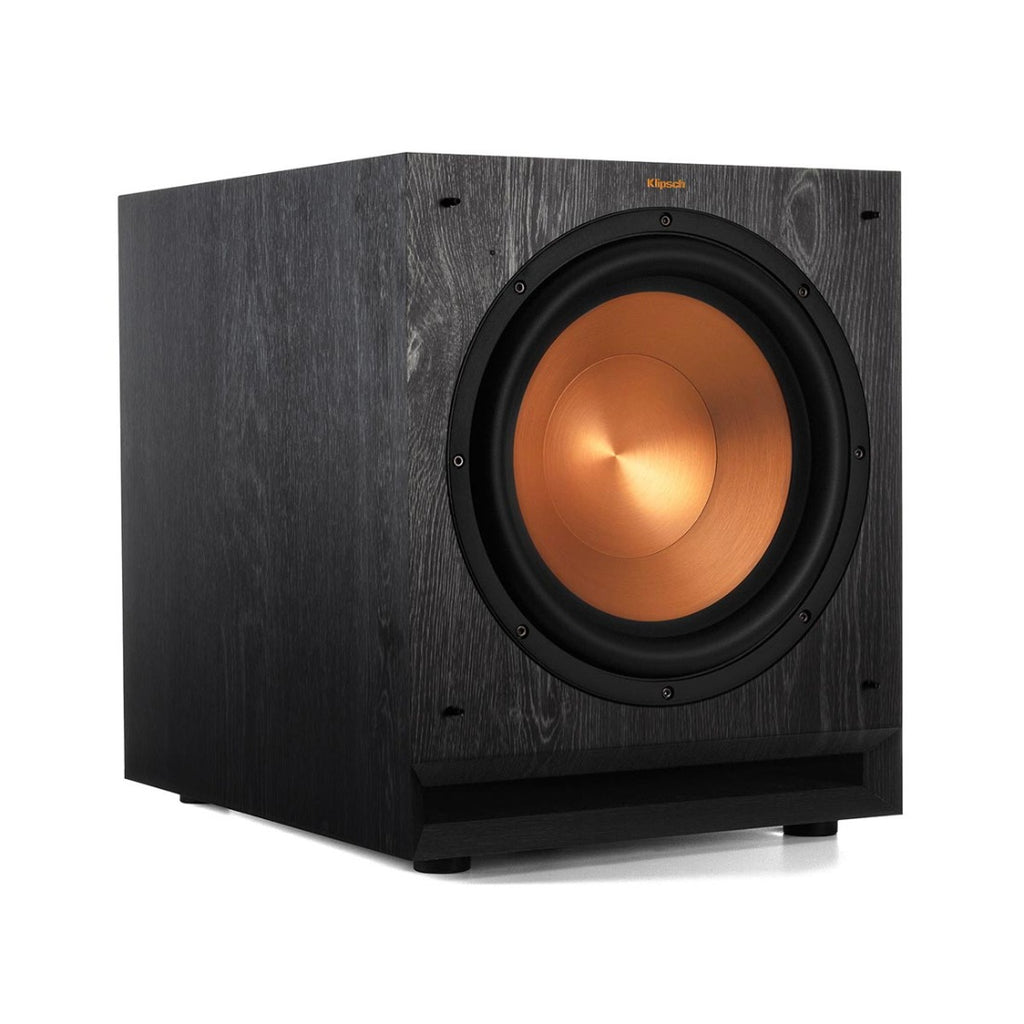

Klipsch SPL-120 12" Powered Subwoofer
The SPL-120 subwoofer is a step up from the Klipsch Reference series. Featuring a high-efficiency Class-D amplifier and spun copper Cerametallic™ woofer, the Klipsch SPL series subwoofers deliver best-in-class low-frequency output.
- 12" Spun Copper Cerametallic™ Woofer
- Bass-Reflex via Exclusive Front-Firing Internal Flare Port
- Class D Amplifier with 300W RMS / 600W Peak
- Premium Scratch-Resistant Finish
- Shock-absorbing rubber feet, steel grille posts and a woven cloth grille for a premium look and feel
- Dimensions (H x W x D): 451 x 374 x 506 mm (17.75” x 14.7” x 19.9”)
High Efficiency Class D Amplifier
The built-in, high efficiency amplifier features an analogue preamp design, which maintains the original signal path for cleaner, true-to-source reproduction. The Class D output stage ensures maximum efficiency for maximum output, detail, and low frequency power.
Spun Copper Cerametallic Woofers
Cerametallic™ woofers are exceptionally light and extremely rigid, providing remarkable low frequency response with minimal cone breakup and distortion for higher, cleaner output using less amplifier power.
Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.
Exclusive Port Technology
Klipsch SPL subwoofers leverage proprietary internal-flare geometry that minimises port noise for clean undistorted low frequencies. The front-firing design allows for placement flexibility to reduce unwanted resonance from your walls or furniture behind the subwoofer.

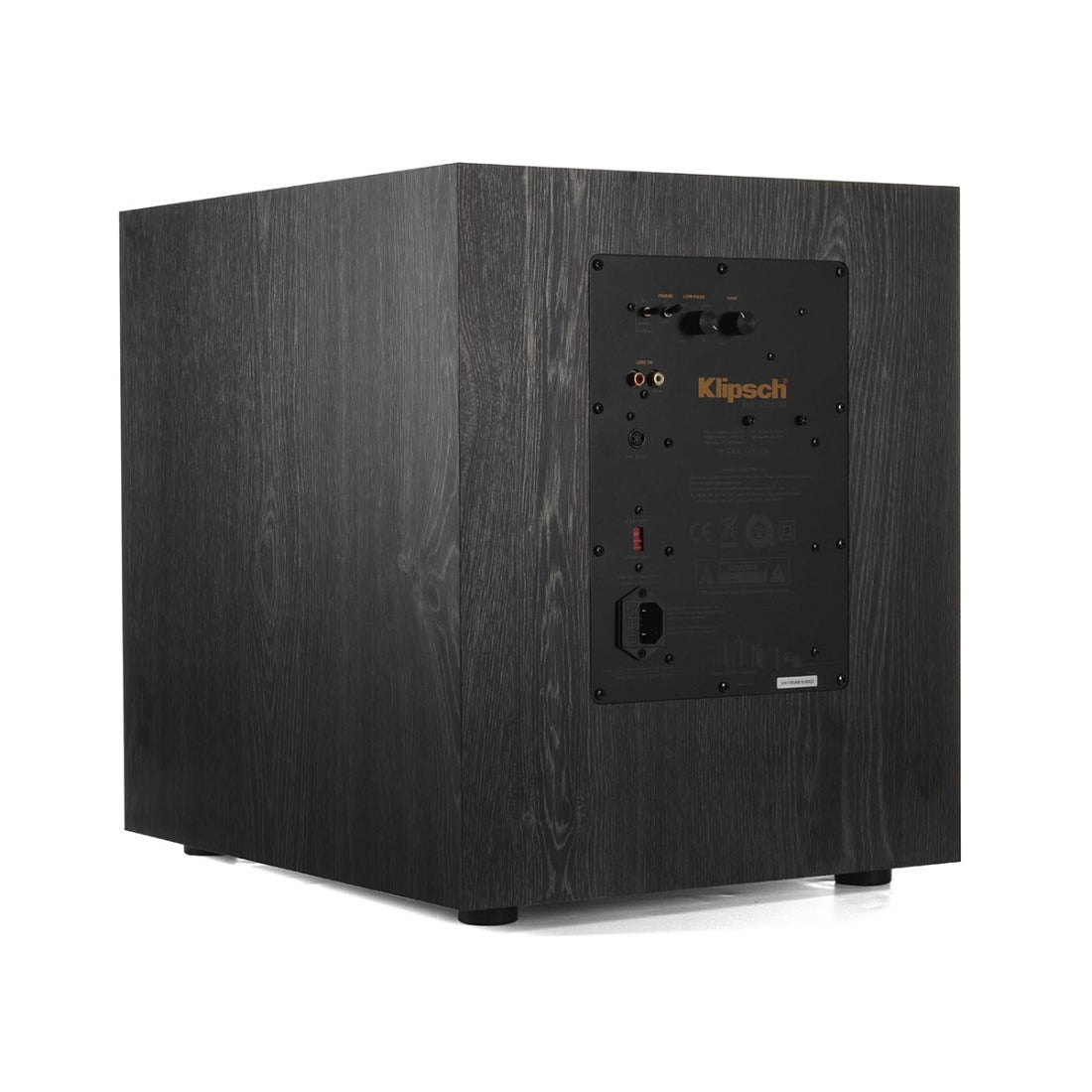

Low Pass Crossover and Variable Phase control allows you to tune the subwoofer to your Klipsch speakers and to your room, establishing the ideal level of bass. Line Level / LFE RCA inputs ensure compatibility with home theatre receivers.
Both the RCA and wireless inputs can be utilized, giving you the ability to use a single subwoofer with multiple system in the same room. For example, you can use the wireless input for your home theatre set up and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.
Klipsch SPL subwoofers feature a scratch-resistant ebony finish that looks like real wood and covers the entire cabinet. Shock-absorbing rubber feet, steel grille posts, and a woven cloth grille give the SPL subwoofers a premium look and feel.
|Frequency Response||24 Hz - 125 kHz +/- 3 dB|
|Maximum Acoustic Output||118 dB|
|Amplifier||Class D with Analogue Preamp Stage|
|Amplifier Power (Continuous / Peak)||300 W / 600 W|
|Woofer||12” Long-Throw Cerametallic|
|Enclosure Type||Bass Reflex via Front-Firing Slot Port|
|Inputs||Dual RCA/LFE Line In, Wireless WA-2 Port|
|Height||451 mm (17.75”)|
|Width||374 mm (14.7”)|
|Depth||506 mm (19.9”)|
|Weight||20.4 kg (45 lb)|
