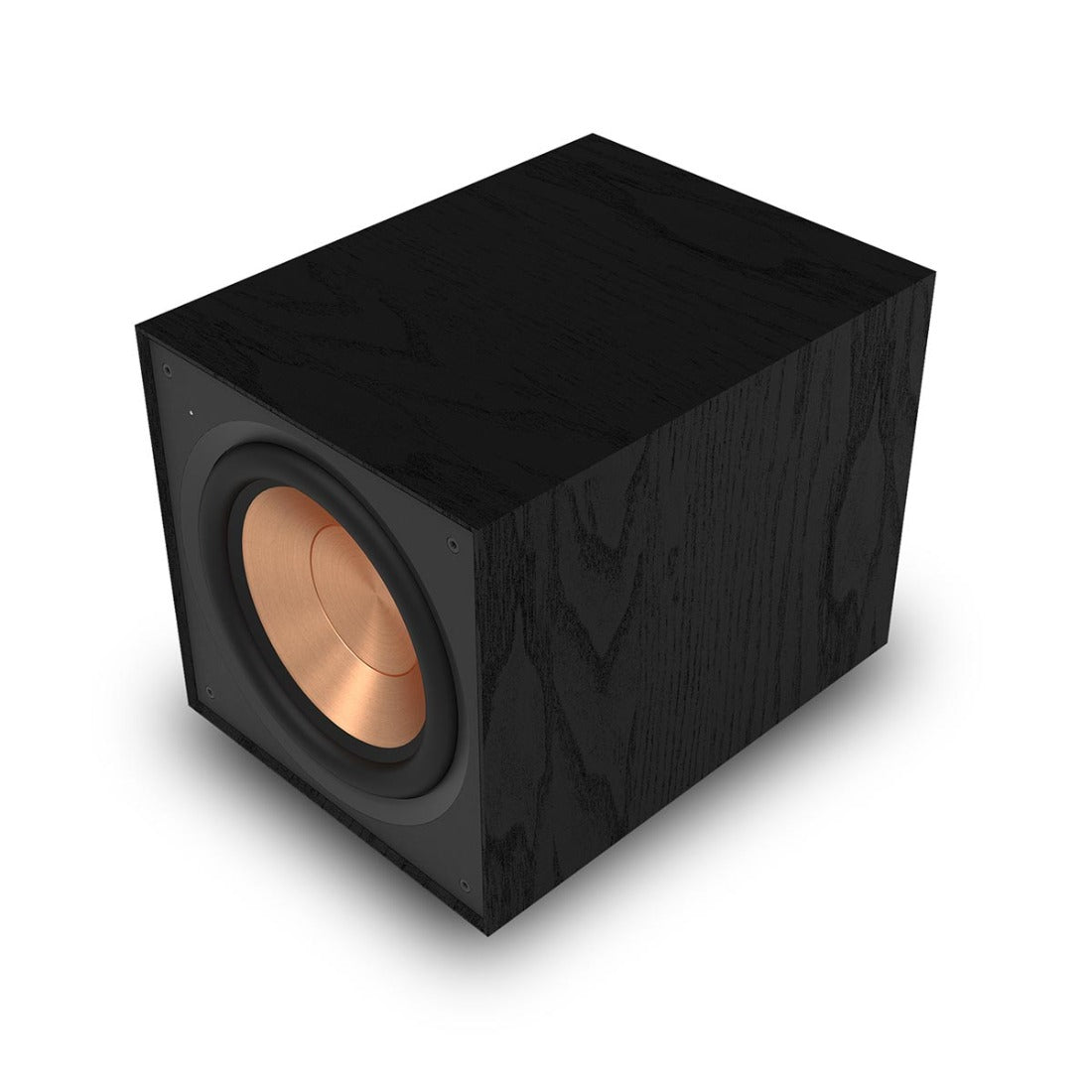

Klipsch Reference Series II R-101SW 10" Powered Subwoofer

By Klipsch


New Tech, Cleaner Bass

Revamped spun-copper thermoformed crystalline polymer woofers make the latest Reference subwoofers exceptionally light while providing low frequency response, minimal cone breakup, and degradation-free distortion.

All-Digital Amplifier

The built-in, all-digital amplifier delivers ample power with high efficiency and true-to-source accuracy in reproduction, ensuring maximum efficiency for best-in-class output, detail, and power.

Front-Firing Driver

The high-performance 10" driver provides deep bass and flexible room placement.

Highly Durable & Versatile Cabinet Design

A stylish aesthetic with unrivalled durability that results in a seamless integration into any décor, Reference Subwoofers feature:

  • Scratch-resistant
  • Reinforced ¾" MDF construction
  • All-new bracing design for reduced vibration
  • Front-mounted LED power indicator

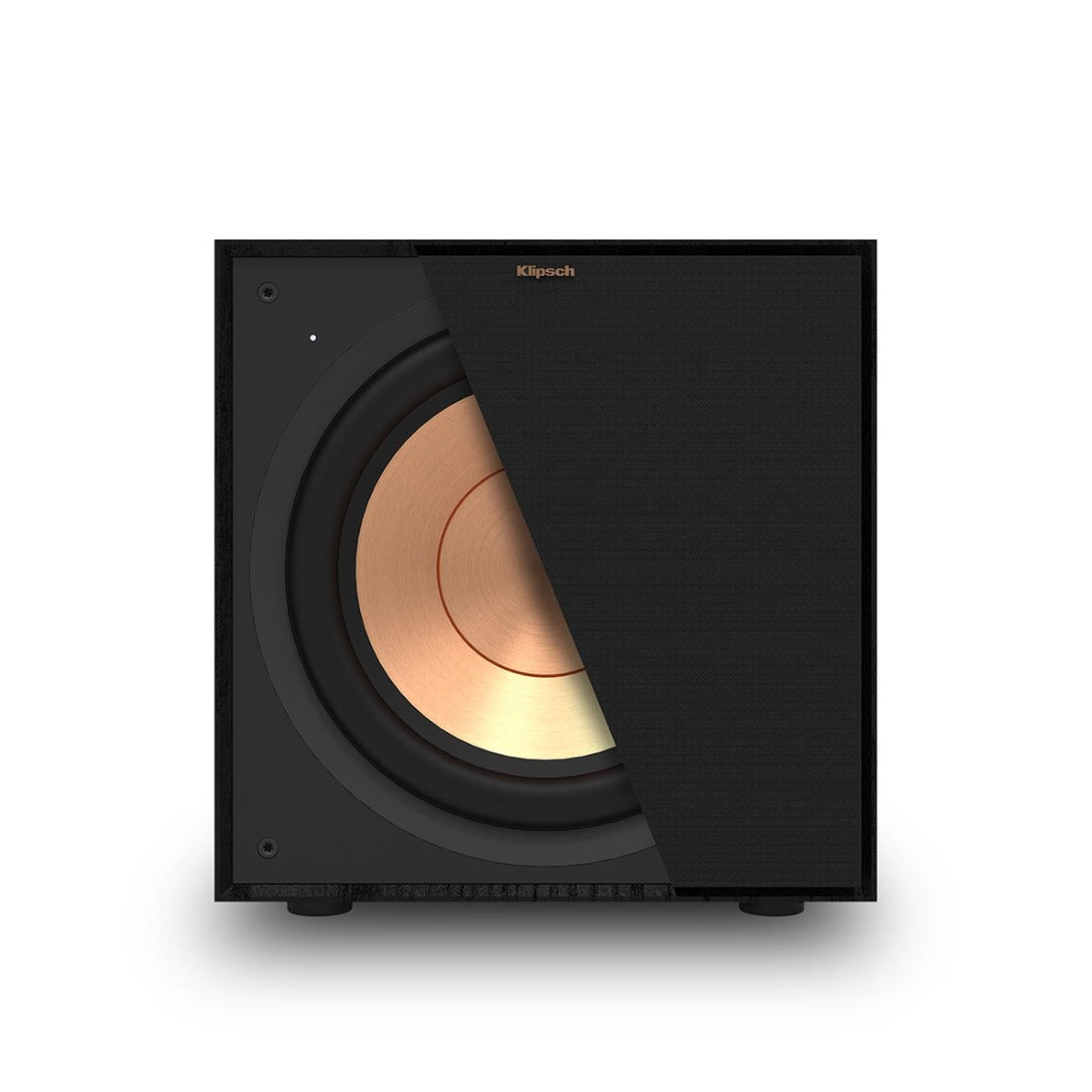

  • Low-profile grille for acoustic transparency

Low Pass Crossover and Phase Control

Ensures the subwoofer's low-frequency tones blend with other Klipsch speakers and establish your ideal level of bass.

Line/LFE Inputs

Reference subwoofers are compatible with your home theatre receiver, no matter the make and model.

Reference Redefined

Check out all of the speakers in the newest generation of the legendary Klipsch Reference series and prepare to have your world rocked.


Frequency Response 29.5 Hz - 120 kHz
Maximum Acoustic Output 115 dB
Amplifier All Digital
Amplifier Power (Continuous / Peak) 150 W / 300 W
Amplifier Features Volume, Low-Pass, 0/180 Phase, Auto Power On
Driver Components 10” High Excursion Spun-Copper TCP Woofer
Enclosure Material MDF

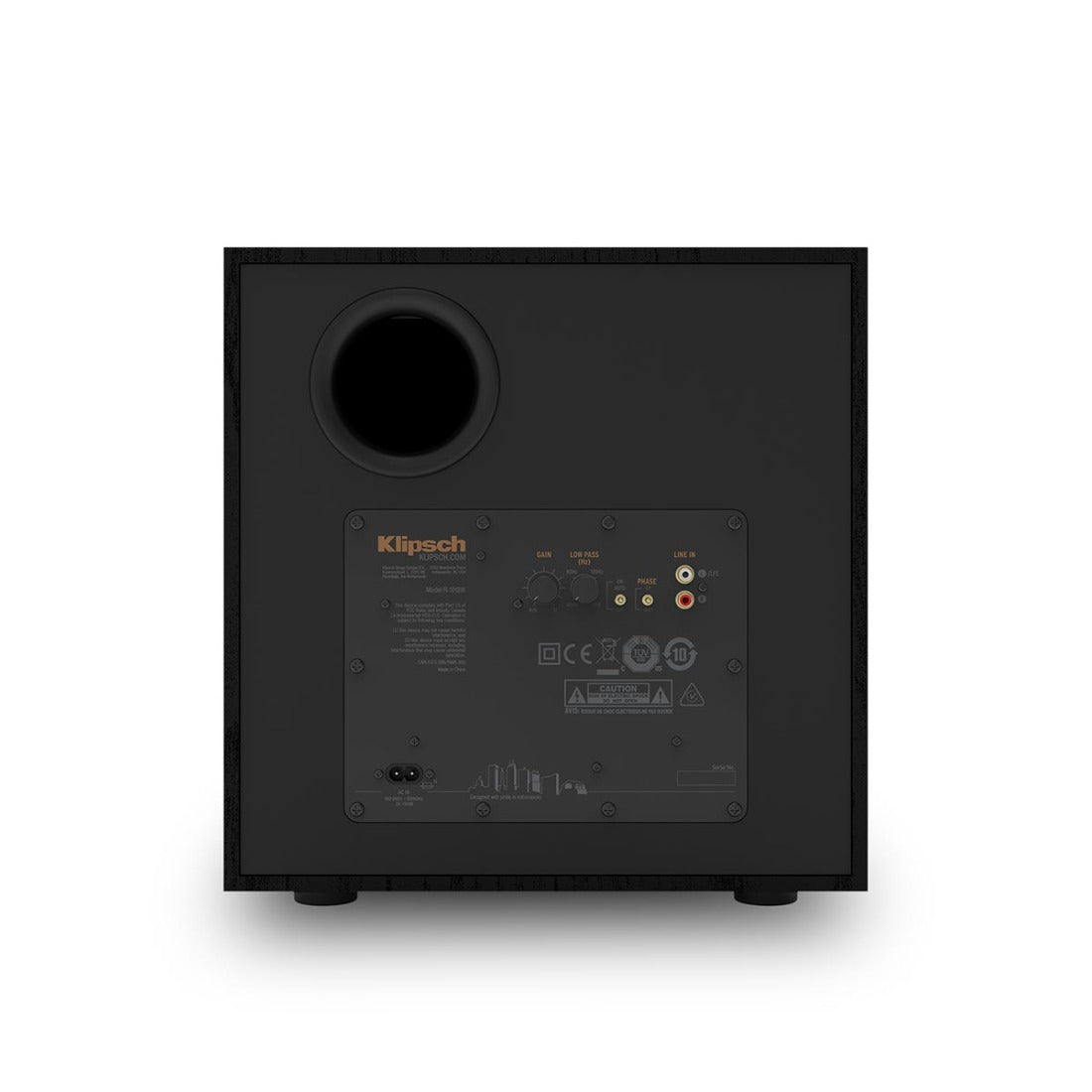

Enclosure Type Bass-Reflex via Rear-Firing Port
Inputs Line Level/LFE RCA Jacks
Height 370 mm (14.6”)
Width 356 mm (14”)
Depth 500 mm (19.7”)
Weight 13.9 kg (31 lb)
Finish Black Textured Wood Grain Vinyl
