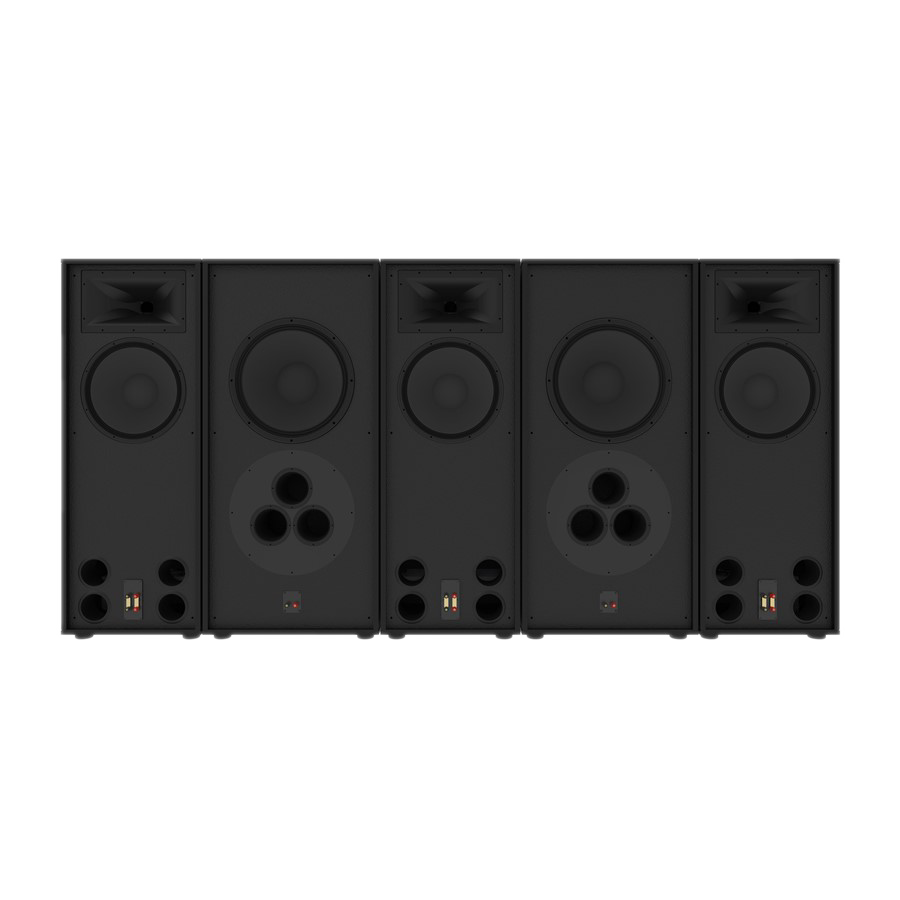

Klipsch RCC-112-BTS

$5,399
By Klipsch

Description

An ultra-premium, high performance behind-the-screen LCR/Sub system for 112”-121” wide screens

18” high output polyfiber cinema subwoofer drivers

15” high output polyfiber cinema woofers

3” titanium HF cinema compression drivers

90° x 60° Tractrix® Horns Modular design ensures full coverage, easy installation, with no light creep

Premium double braced MDF construction with high impact textured black finish

For decades, Klipsch has ruled the professional cinema space with exceptional sounding, high output cinema speakers designed and built at our factory in Hope, Arkansas. Now the same components used in those speakers all over the world can now bring movie night home.

Utilizing the same acoustic and network components as our legendary professional cinema speakers, the all new Real Custom Cinema systems are specifically designed to bring the exceptional performance and power of these professional speakers to the home theater.

The modular false-wall design allows for incredibly easy system design and installation, while eliminating light creep from behind the screen for a professional cinema experience - acoustically and visually.

Introducing the Real Custom Cinema Series from Klipsch. High performance, professional grade cinema speakers for the home. Proudly designed, engineered, and built in Hope, Arkansas, USA

Specifications:

  • SPEAKER SYSTEM : Behind-The Screen LCR/SUB System for Screens 112”-121” in Width
  • MAX CONTINUOUS OUTPUT : 130 dB
  • MAX PEAK OUTPUT : 136 dB
  • SYSTEM FREQUENCY RESPONSE : 17 - 20kHz
  • POWER HANDLING : LCRs (Each) : 400W Continuous, 1600W Peak, SUBS (Each) : 600W Continous, 2400W Peak
  • SYSTEM SENSITIVITY : 107 dB, 2.83V @ 1m, 1/2 space
  • HORIZONTAL COVERAGE : 90° +/- 20 (1.1kHz - 20kHz)
  • VERTICAL COVERAGE : 60° +/- 20 (2.2kHz - 20kHz)
  • NOMINAL IMPEDENCE : 8 Ohm
  • MINIMUM RECOMMENDED
  • AMPLIFIER POWER LCRS : 250W RMS, SUBs : 500W RMS
  • HIGH-FREQUENCY DRIVERS : (3) K-691 3” Titanium Compression Driver Mounted on a K-510-M Horn
  • LOW-FREQUENCY DRIVERS : (3) K-45-ST 15” Polyfiber Woofers
  • SUBWOOFER DRIVERS : (2) K-49-EP 18” Polyfiber Woofers
  • ENCLOSURE TYPE : Double Braced Dado and Rabbit MDF
  • INPUTS : Dual 5-Way Binding Posts
  • SYSTEM HEIGHT : 55” (139.7 cm)
  • SYSTEM WIDTH : 111.5” (283.21 CM)
  • SYSTEM DEPTH : 20.25” (51.44 cm)
  • SYSTEM WEIGHT : 683 LBS (309.80 KG)
  • FINISH : Textured Black Paint
  • RECOMMENDED SCREEN WIDTH : 112” - 121”
  • RECOMMENDED SCREEN SIZE
  • (DIAGONAL) : 16:9: 128” - 140”, 1:2.35: 122” - 132”
