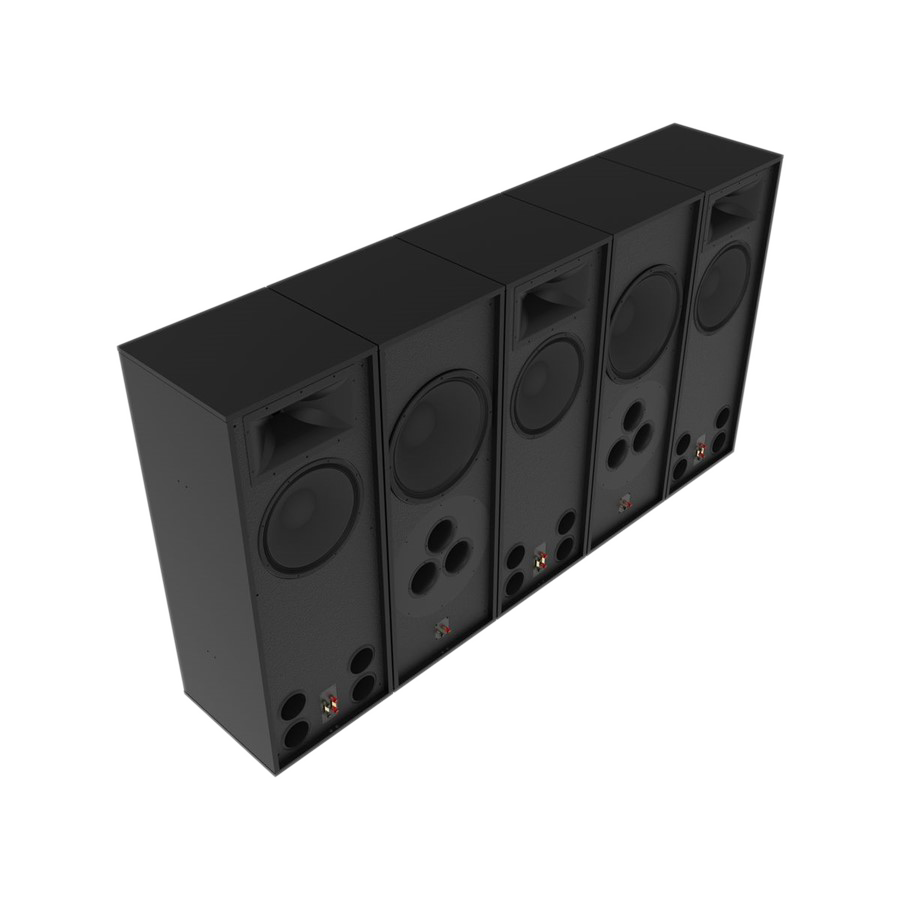

Klipsch RCC-102-BTS Behind the Screen System

$4,999

Brand Klipsch

An ultra-premium, high performance behind-the-screen LCR/Sub system for 112”-121” wide screens

18” high output polyfiber cinema subwoofer drivers

15” high output polyfiber cinema woofers 3” titanium HF cinema compression drivers

90° x 60° Tractrix® Horns Modular design ensures full coverage, easy installation, with no light creep

Premium double braced MDF construction with high impact textured black finish

For decades, Klipsch has ruled the professional cinema space with exceptional sounding, high output cinema speakers designed and built at our factory in Hope, Arkansas. Now the same components used in those speakers all over the world can now bring movie night home.

Utilizing the same acoustic and network components as our legendary professional cinema speakers, the all new Real Custom Cinema systems are specifically designed to bring the exceptional performance and power of these professional speakers to the home theater.

The modular false-wall design allows for incredibly easy system design and installation, while eliminating light creep from behind the screen for a professional cinema experience - acoustically and visually.

Introducing the Real Custom Cinema Series from Klipsch. High performance, professional grade cinema speakers for the home. Proudly designed, engineered, and built in Hope, Arkansas, USA.

Specifications:

MAX CONTINUOUS OUTPUT 126 dB
MAX PEAK OUTPUT 132 dB
SYSTEM FREQUENCY RESPONSE 18 - 20kHz
POWER HANDLING LCRs (Each): 200W Continuous, 800W Peak
SUBs (Each): 600W Continous, 2400W Peak
SYSTEM SENSITIVITY 107 dB, 2.83V @ 1m, 1/2 space
HORIZONTAL COVERAGE 90° +/- 20 (1.1kHz - 20kHz)
VERTICAL COVERAGE 60° +/- 20 (2.2kHz - 20kHz)
NOMINAL IMPEDENCE 8 Ohm
MINIMUM RECOMMENDED AMPLIFIER POWER LCRs: 200W RMS
SUBs: 500W RMS
HIGH FREQUENCY DRIVERS (3) K-702 1.75” Titanum Compression Driver Mounted on a K-603-M Horn
LOW FREQUENCY DRIVERS (3) K-45-ST 15” Polyfiber Woofers
SUBWOOFER DRIVERS (2) K-49-EP 18” Polyfiber Woofers
ENCLOSURE TYPE Double Braced Dado and Rabbit MDF
INPUTS Dual 5-Way Binding Posts
SYSTEM HEIGHT 55” (139.7 cm)
SYSTEM WIDTH 101.25” (257.18 cm)
SYSTEM DEPTH 20.25” (51.44 cm)
SYSTEM WEIGHT 648 lbs (293.93 kg)
FINISH Textured Black Paint
RECOMMENDED SCREEN WIDTH 102” - 112”
RECOMMENDED SCREEN SIZE (DIAGONAL) 16:9: 117” - 129”
1:2.35: 110” - 121”
