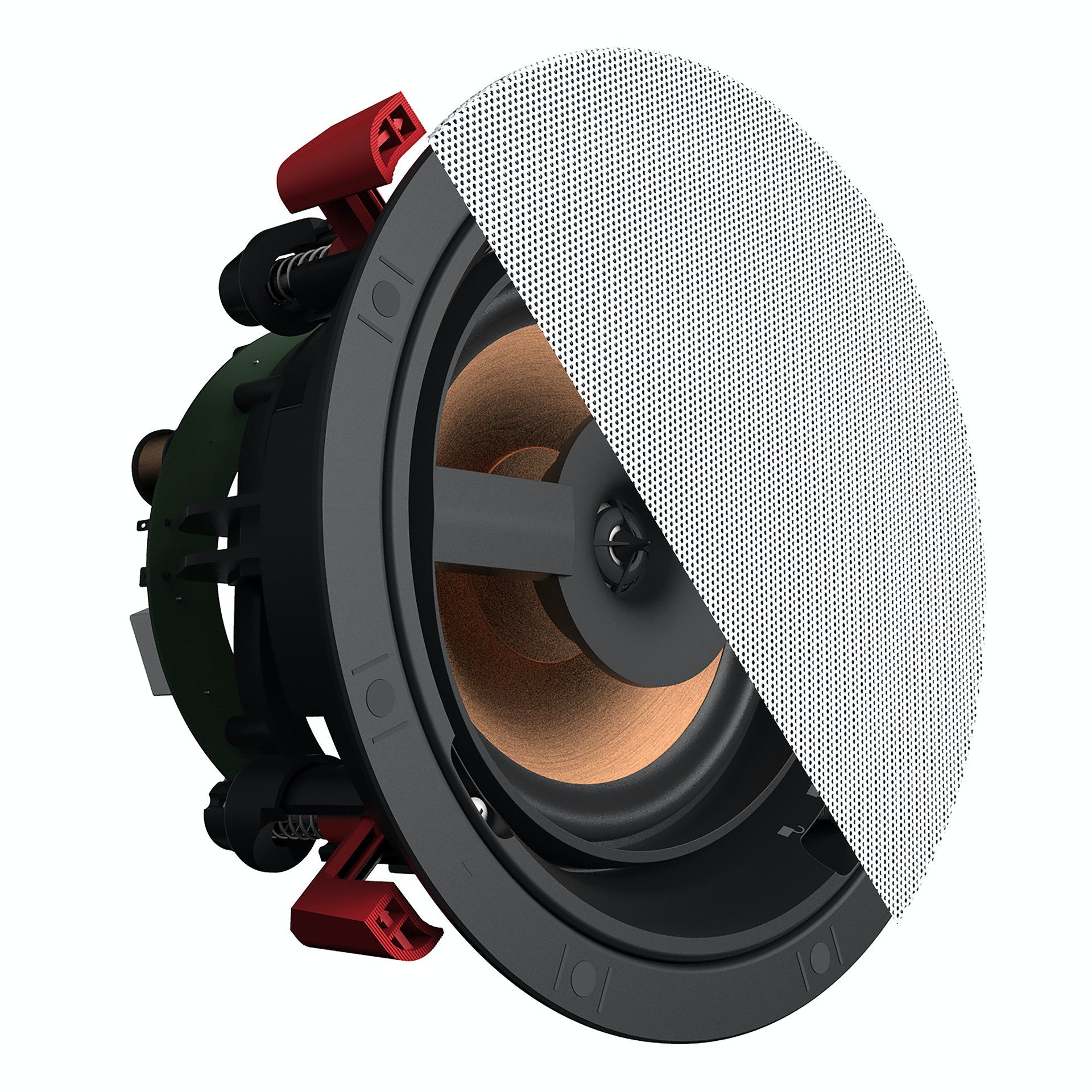

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RC brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
- 6.5” Injection Molded Graphite (IMG) Woofer
- 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
- Exclusive, modular SecureFit™ Installation System
- Bezel-Free square and round paintable magnetic grilles
- Controlled Dispersion™ Technology
- Magnetic paint shield
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
CONTROLLED DISPERSION™ TECHNOLOGY
Controlled Dispersion™ Technology allows for the tweeter and woofer to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
|Power Handling||50W RMS / 200W Peak|
|Product Dimensions||9.31" W x 9.31" H x 6.4" D ( 23.7cm W x 23.7cm H x 16.2cm D)|
|Cutout Dimensions||Ø8.15 " (Ø20.7cm)|
|Product Weight||7 lbs (3.18kg)|
|Sensitivity||94 dB @ 2.83V / 1m|
|Frequency Range||63Hz - 23kHz +/- 3dB|
|High Frequency Driver||1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn|
|Low Frequency Driver||6.5" (16.51cm) IMG Woofer|
|Impedance||8 Ohm Compatible|
|Enclosure Type||ABS/Infinite Baffle|
|Finish||Black Baffle/Frame, White Paintable Grille|
|Mounting Depth||6.15" 15.6cm)|
|Included||Round Grille, Square Grille, Paint Shield|
|Installation Kit||IK-650-C II (Sold Separately)|
