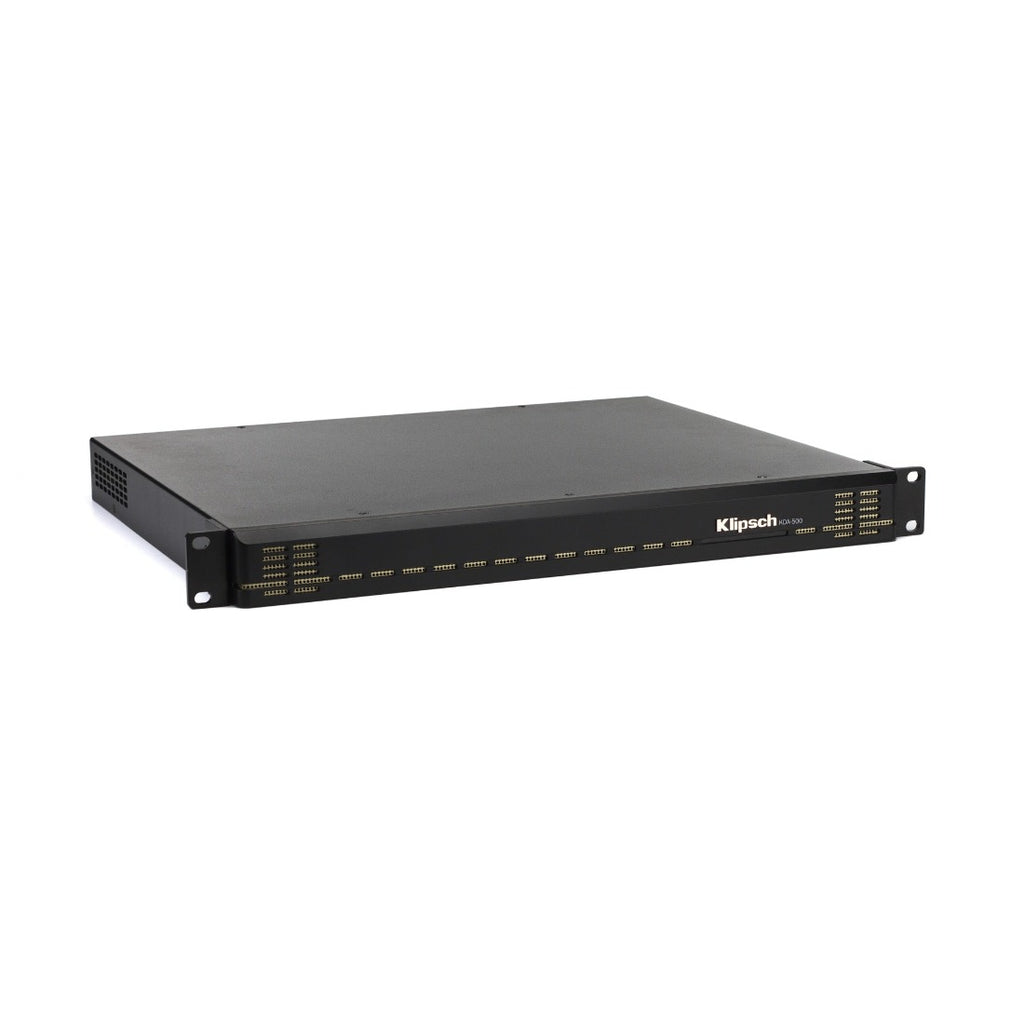

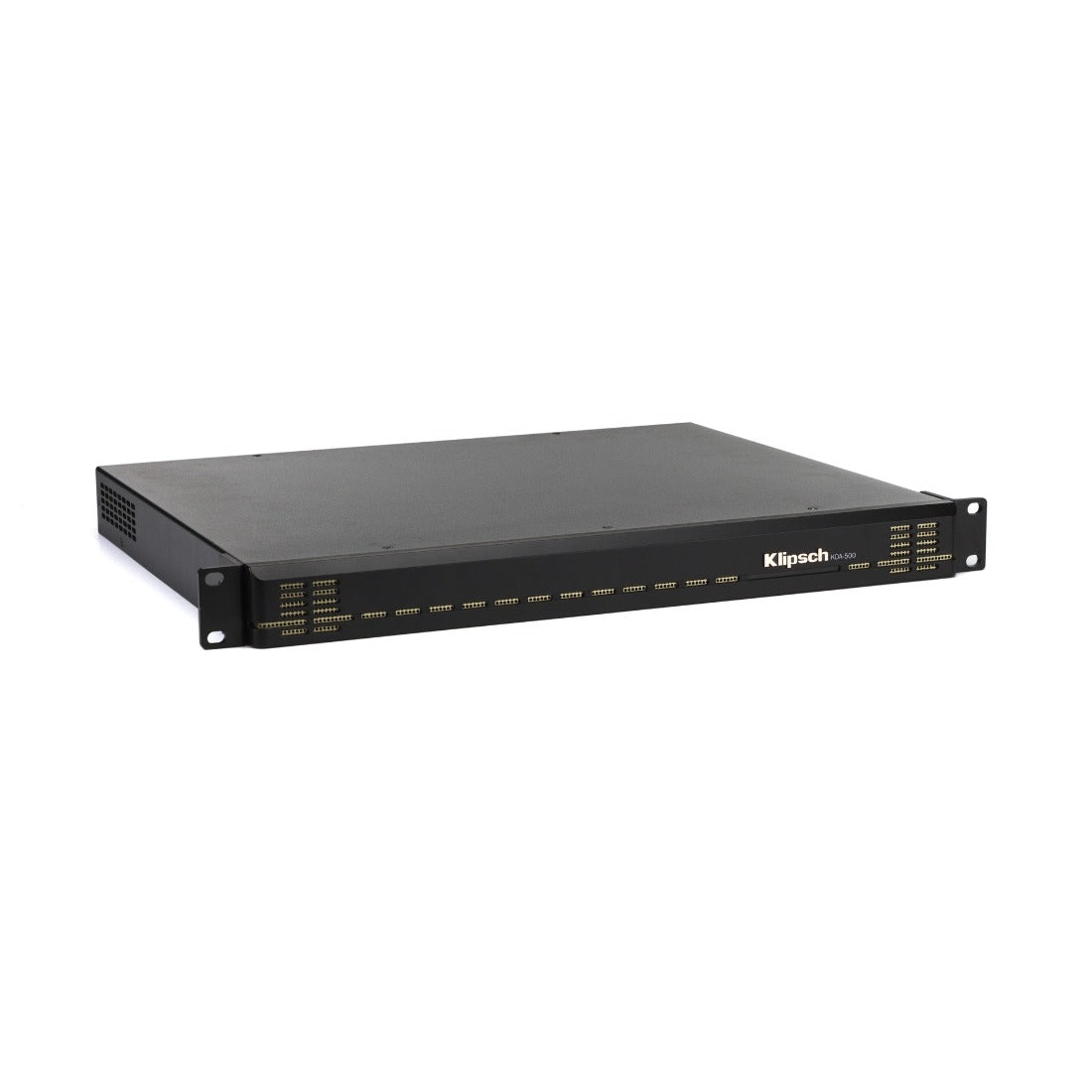

Klipsch KDA-500 DSP AMPLIFIER

$2,199
By Klipsch

Description

The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA- 500 offers 500W of class G/H power, for clean, dynamic power in any type of install.

Features:

  • 500W Total System Power (4 x 125W)
  • High performance power platform
  • 70V / 100V / Low Impedance Compatibility
  • Flexible I/O
  • State-of-the-art DSP control and set-up

Specifications:

Part Number 120V: 1063257 230V: 1063260
Amplifier Type High Efficiency Class G/H
Amplifier Power 500W Total System Power 4 x 125W Per Channel
Inputs Balanced: 4 x Phoenix Line Level (up to 12 AWG wire) Unbalanced: 4 x RCA Line Level
Outputs 4 x Phoenix Speaker Level (up to 12 AWG wire) 4 x RCA Line Level (Throughs)
Input Sensitivity 750mV Balanced, 0dBU
Input Impedance Balanced 40k
THD <1% @ Rated Output
Signal-To-Noise -100dB Below Rated Output
Enclosure Type Front Face: ABS Plastic Case: Machine Formed Steel
Rack Unit 1RU
Product Dimensions 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)
Product Weight 15 lbs (6.82 kg)
Mounting Options Removable 1RU Rack Ears, Removable Rubber Feet
Built From 2016
