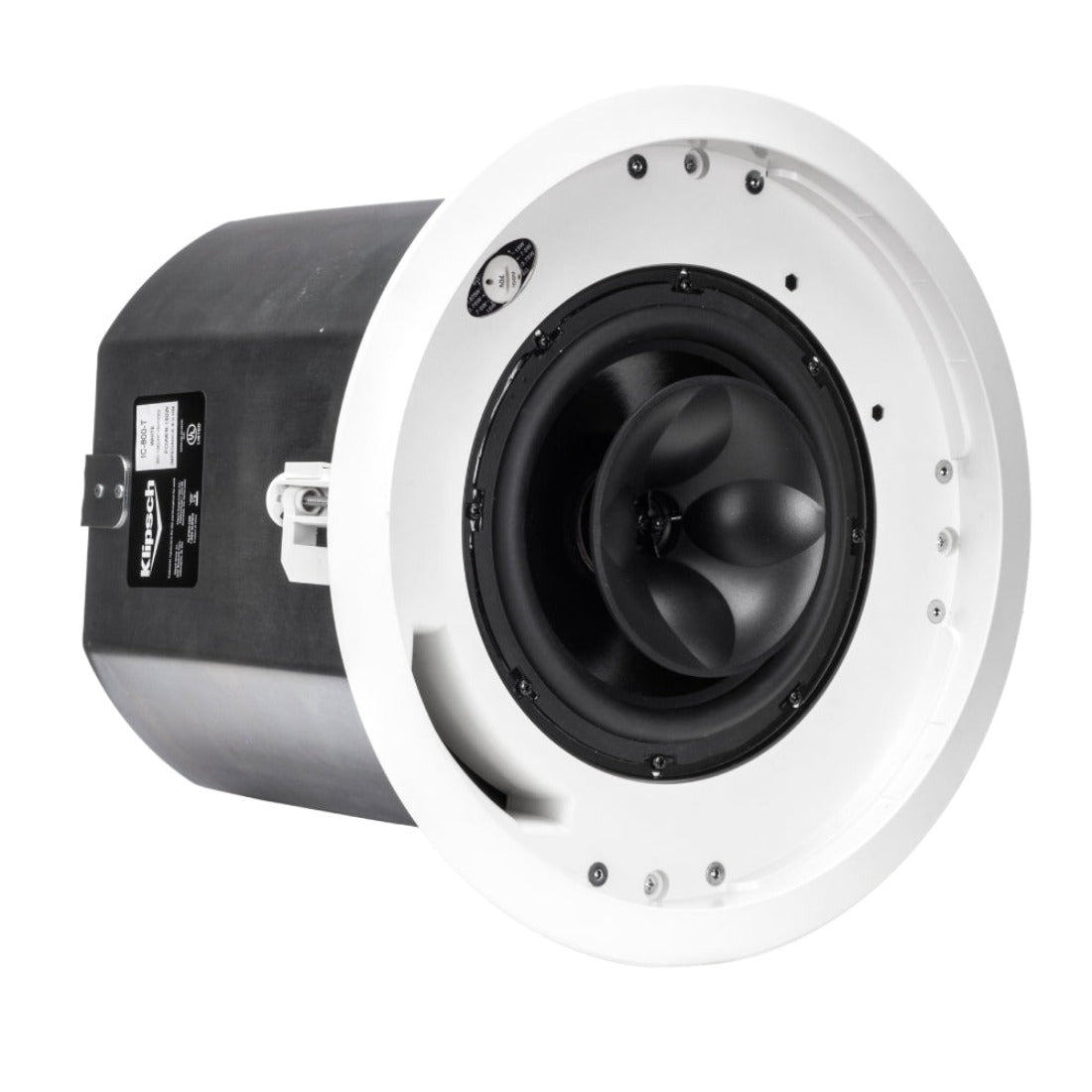

Klipsch IC-800T

By Klipsch




The IC-800-T packs proven materials and Tractrix® horn technology into a high performance, install friendly, UL-2043 & 1480 certified loudspeaker with an integrated backcan. For distributed applications, the IC-800-T features a 70/100 volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap settings is conveniently located under the speaker grille.

  • Tight 75 degree coverage pattern for high ceiling applications
  • 100 watt, low insertion loss, multitap transformer for high output and less compression
  • 70-volt, 100-volt or low impedance operation selectable via a front baffle switch
  • Tractrix port design for deep bass with improved linear response
  • Excellent low-frequency performance for applications where low-frequency bass extension is required
  • Designed to mix & match with Klipsch CA-T speakers


Brand Klipsch
Color White
Speaker Type In-Ceiling Speaker
Enclosure type Bass Reflex via Tractrix Port
Frequency Response 49 Hz - 20 kHz
Power 400 Watts
Woofer Size 8"
Woofer Bass Driver Size (mm) 203 mm
Tweeter 25 mm
Impedance (Ω) 8 Ω
Sensitivity 92 dB
Item Sold As Pair
Warranty Australian Manufacturer Warranty
Product Dimension (H×W×D) Ø 359 x 333 mm (ea)
Hole Cutout Dimensions Ø 321 mm (ea)
Mounting Depth 324 mm (ea)
Product Weight 9.5 Kg (ea)
