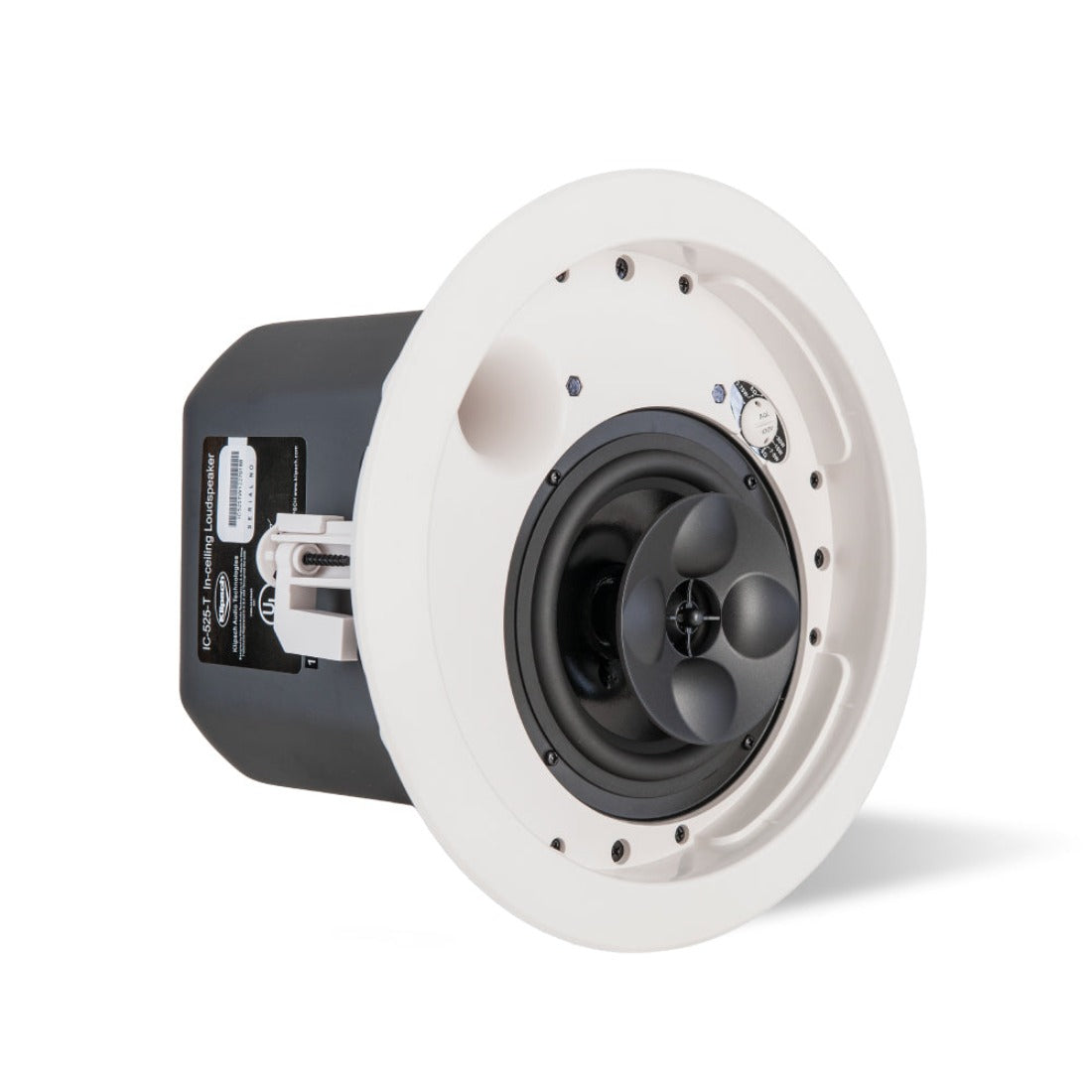

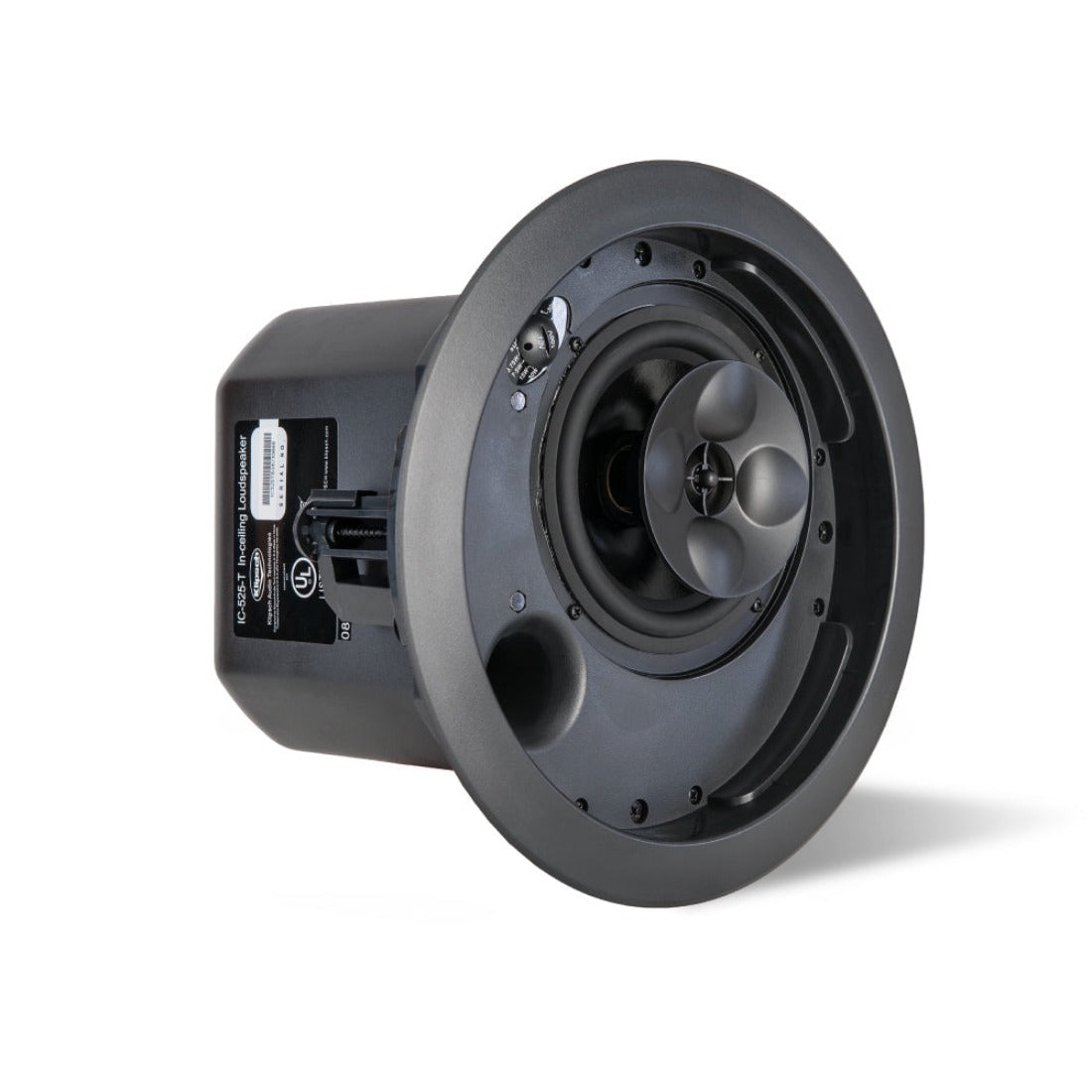

Klipsch IC-525-T In Ceiling Speaker Each

By Klipsch


Klipsch IC-525-T Commercial Speaker is widely known for its performance as an installation with a shorter design and clear sound in any location.


  • Wider, shorter design to fit low ceilings; multi-tap transformer
  • 70-volt, 100-volt, or 8-ohm operation selectable via front baffle switch
  • Tractrix Port design for deep bass with less compression
  • Wide dispersion Tractrix® Horn tweeter with XT technology for clear sound in any location
  • Designed to mix and match with Klipsch CA-T speakers

The IC-525-T pack's proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and 1480 certified loudspeaker with an integrated back can and multi-tap transformer. IC-T Series speakers have been included in a number of major installations nationally, from Bloomingdales in New York City to the Ron Jon Surf Shop in Orlando.

The two-way IC-525-T features a 5.25-inch woofer, and a titanium diaphragm compression driver on a 3.5-inch round modified XT Tractrix® Horn for a smooth response with constant directivity. A Tractrix port design helps to provide deeper, fuller bass with less compression and distortion, while a new, more compact design simplifies low ceiling mounting.

For distributed line applications, the IC-525-T features a 70/100-volt multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap setting is conveniently located under the speaker grille. The IC-525-T is shipped complete with a tile bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.




Speaker Type

In-Ceiling Speaker

Frequency Response

65 Hz - 20 kHz


65 Watts

Woofer Size


Woofer Bass Driver Size (mm)

133 mm


25 mm

Impedance (Ω)

8 Ω


89 dB

Item Sold As



Australian Manufacturer Warranty


Product Dimension (H×W×D)

Ø 273 x 211.2 mm (ea)

Hole Cutout Dimensions

Ø 231.8 mm (ea)

Product Weight

3.74 Kg (ea)
