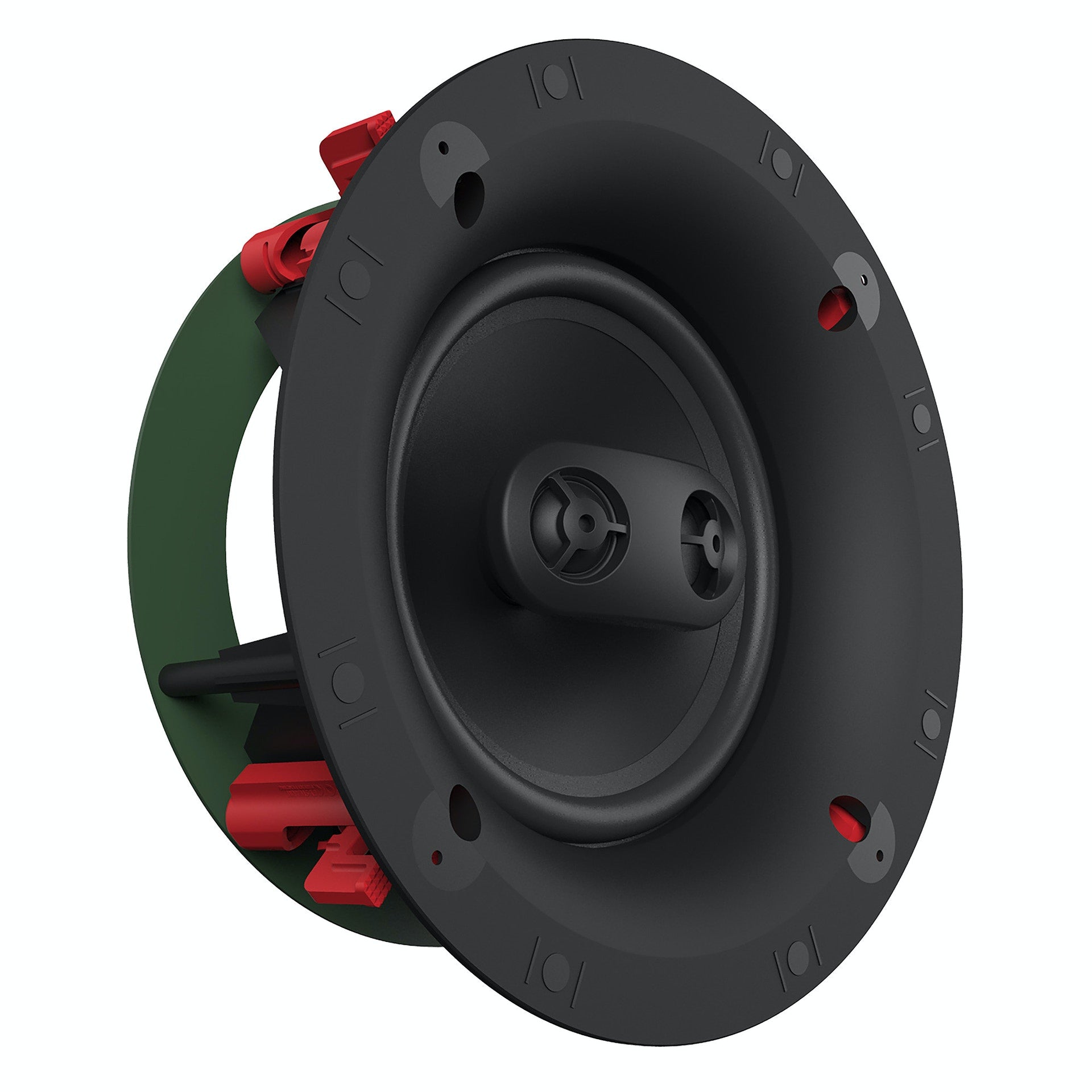

Klipsch DS-180CSM In Ceiling Speaker Each
Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.
- 8” Polypropylene woofer
- Dual .75” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
SKY HOOK® TOOL-FREE INSTALLATION SYSTEM
The exclusive Sky Hook® patented Cinch by Swarm Installation System engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over-torquing. This fast, easy installation system reduces install time by up to 75%.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
|Frequency Response||73Hz - 20kHz +/- 3dB|
|High Frequency Driver||Dual .75" (1.9cm) Silk Dome Tweeters|
|Low Frequency Driver||8" (20.32cm) Polypropylene Woofer|
|Sensitivity||94 dB @ 2.83V / 1m|
|Power Handling||50W RMS / 200W RMS|
|Enclosure Type||ABS/Infinite Baffle|
|Finish||Black Baffle/Frame, White Paintable Grille|
|Product Dimensions||10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D)|
|Mounting Depth||4.45” (11.3cm)|
|Cutout Dimensions||9.8” (24.9cm)|
|Product Weight||7.4 lbs (3.36kg)|
|Included||Flat Paintable Magnetic Grille|
|Installation Kit||IK-800-C II (Sold Separately)|
|Fire Rated Enclosure||ME-800-C (Sold Separately)|
